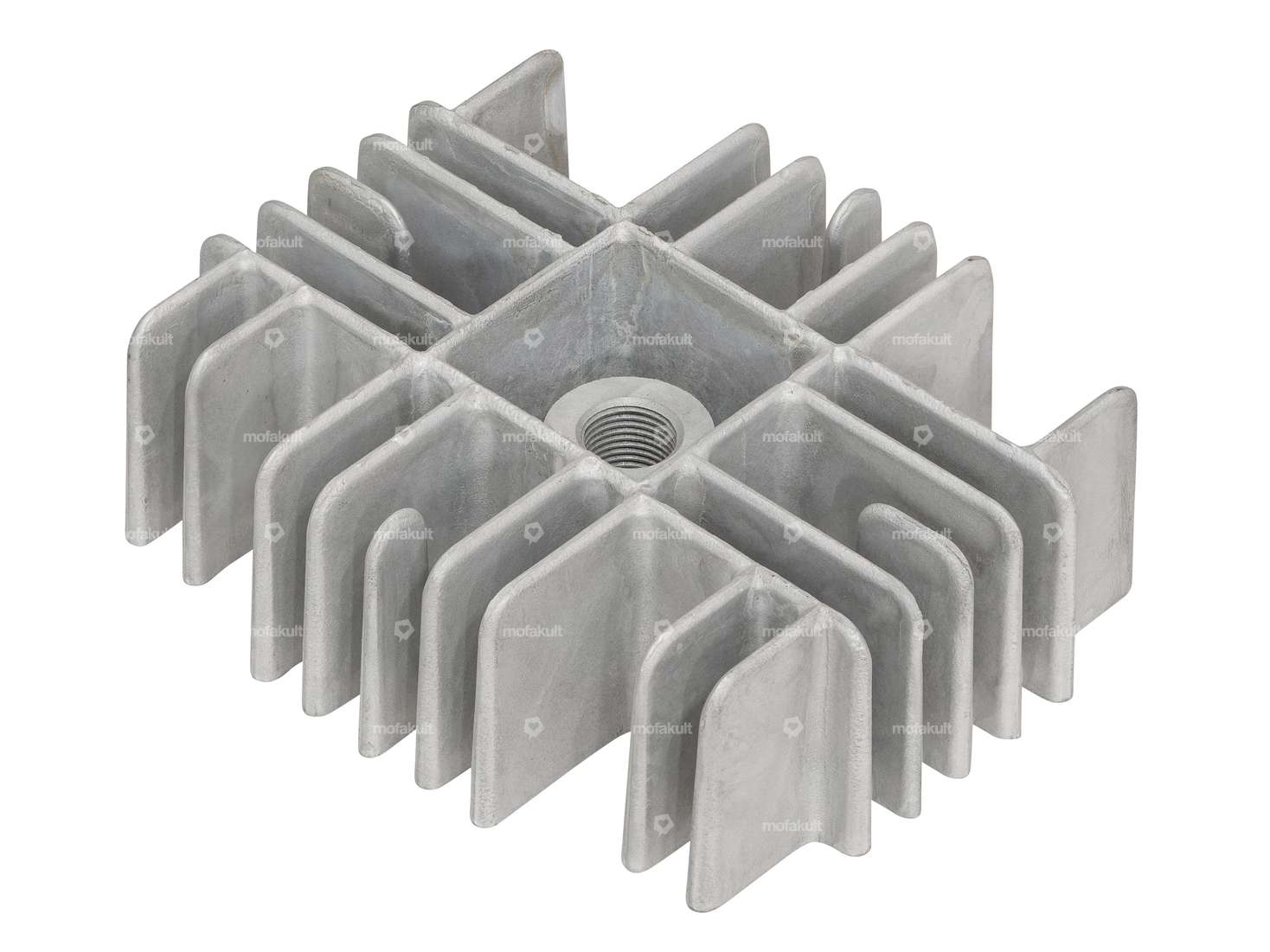

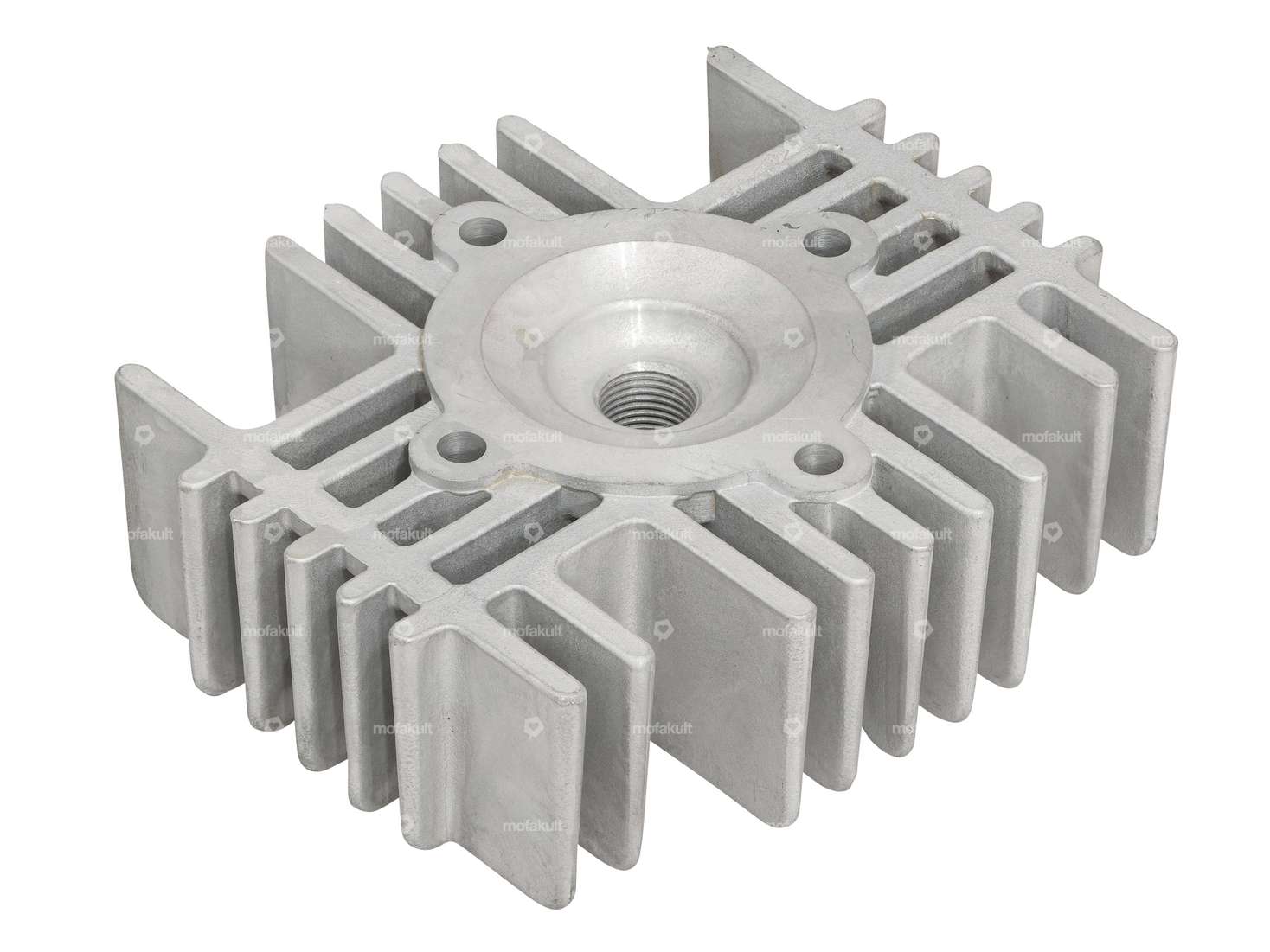

Cylinder head with 43.5 mm combustion chamber diameter suitable for your Sachs 504 & 505 moped / moped.
The cylinder head is suitable for the 43.5 mm cylinder kit from Airsal for Sachs 504 / 505.
You can find the matching complete racing kit in the accessories section.
Quality product from the Spanish manufacturer Airsal.
Details
| Manufacturer | Airsal |
| Ø cylinder | 43.5 mm |
| Area of application | Racing |
Suitable for the following models
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A |
Accessories & related products
Airsal 43.5 mm cylinder kit incl. mounting parts | Sachs 504, 505, 508
Manufacturer: Airsal · Material: Aluminum · Camouflaged: No · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 43.5 mm · Ø cylinder neck: 50 mm · Ø Outlet outside: 26 mm · Ø Inlet inside: 14 mm · Hole spacing inlet: 31 mm · Ø piston pin (B): 12 mm · Inlet window: 23.8 x 14.8 · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Area of application: Tuning · Number of fixing points: 4 pcs · Outlet type: clamped · Decompressor: M10x1.5
CHF 199.90
Athena 45 mm cylinder kit incl. mounting parts | Sachs (504), 505, 508
Manufacturer: Athena · Material: Aluminum · Surface: sandblasted · Nominal diameter: 45 mm · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 51.7 mm · Ø Outlet outside: 25.9 mm · Ø outlet inside: 19.5 mm · Ø Inlet inside: 14.3 mm · Inlet window: 23.4 x 12.6 · Thread inlet: M6x1 (standard thread) · Hole spacing inlet: 31.5 mm · Hole spacing outlet: 50 mm · Outlet type: clamped · Outlet type: straight · Number of fixing points: 4 pcs · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56 (61) x 56 · Decompressor: M10x1.5 · Camouflaged: No · Area of application: Tuning
CHF 299.90
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Manufacturer: Athena · Camouflaged: No · Surface: sandblasted · Nominal diameter: 48 mm · Material: Aluminum · Crankshaft stroke: 44 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 32.5 mm · Number of fixing points: 4 pcs · Hole spacing outlet: 50 mm · Area of application: Tuning · Outlet type: clamped · Outlet type: straight · Thread outlet: M8x1.25 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5
CHF 299.90
Airsal 14 mm intake manifold angled | Sachs 504, 505
Manufacturer: Airsal · Material: Aluminum · Ø External connection: 20 mm · Ø inside: 13.6 mm · Hole spacing inlet: 31 mm · Mounting type: Screws · Height flange center hole: 56 mm · Number of fixing points: 2 pcs · Area of application: Tuning
CHF 36.90
Airsal piston 43.5 mm | Sachs 504 / 505
Manufacturer: Airsal · Nominal diameter: 43.5 mm · Ø outside piston (A): 43.5 mm · Ø piston pin (B): 12 mm · Compression height (C): 25.8 mm · Curvature (D): 4.25 mm · Total piston height (E): 52.2 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1 mm
CHF 49.90
Moped fans like you also bought:
Cable set black | Sachs 50/2, 503 2AL/2BL (manual)
Ø Stranded wire: 1.25 mm · Ø Stranded wire: 1.5 mm · Ø Stranded wire: 1.8 mm · Nipple shape: Barrel (transverse) · Nipple shape: Cylinder · Nipple shape: Pears · Manufacturer: Made in Germany · Total length: 1400 mm · Total length: 1600 mm · Total length: 2200 mm · Material: Steel · Quantity: 5 pcs · Color: black · Outer shell length: 1150 mm · Outer shell length: 1250 mm · Outer shell length: 1300 mm
CHF 22.90
