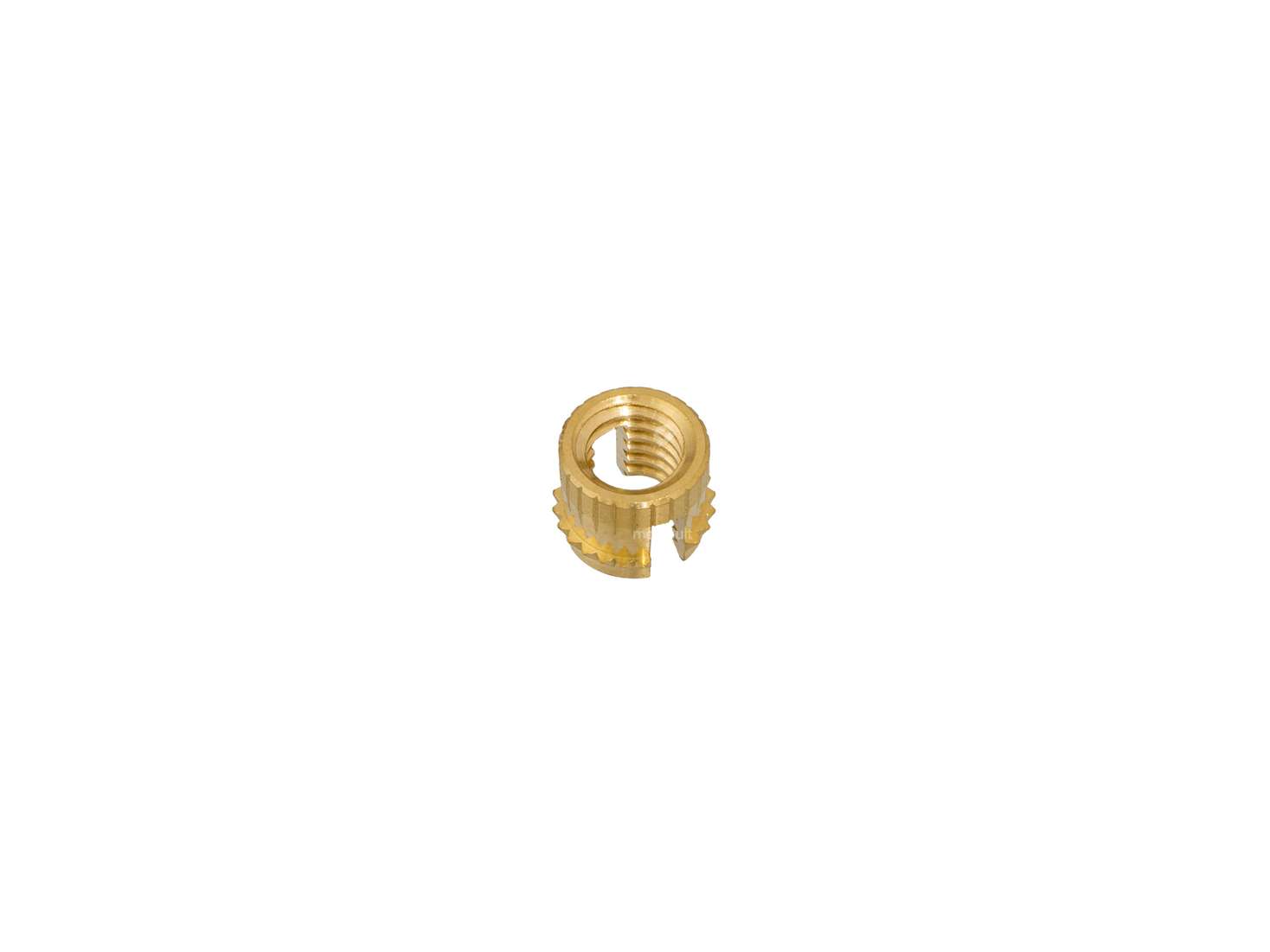

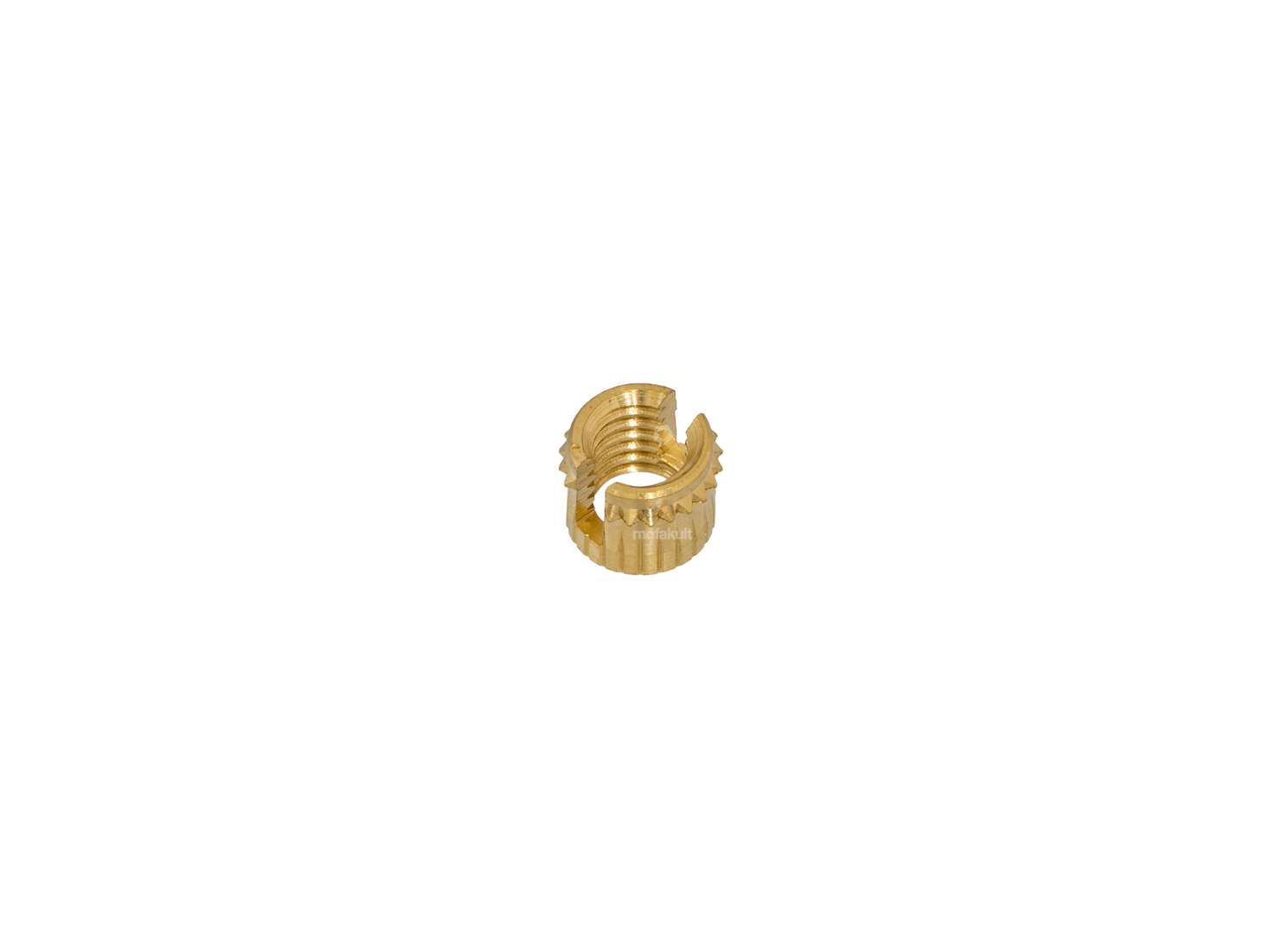

Press-fit threaded insert made of brass with M4 internal thread.
The expansion insert can be used universally in plastic, wood and composite material.
Thread: M4
Thread pitch: 0.7 mm
Total height: 6.5 mm
Material: Brass
Ø for pre-drilling: 5.9 - 6.0 mm
Price per piece.
Quality product from the French manufacturer Amecoil.
Details
Manufacturer | Amecoil |
Material | Brass |
Total length | 6.5 mm |
Ø bore | 5.9 - 6 mm |
Internal thread | M4x0.7 (standard thread) |
