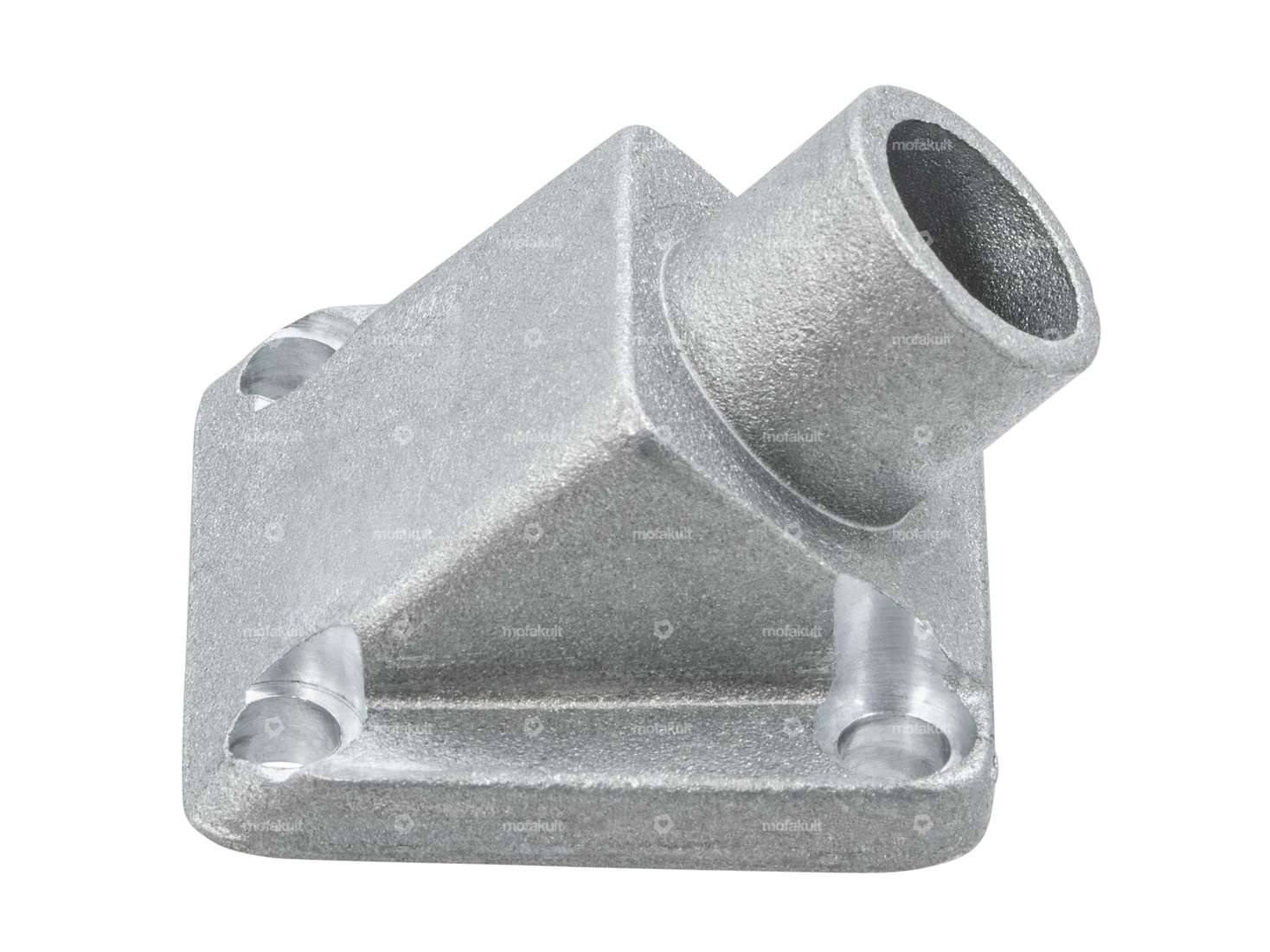

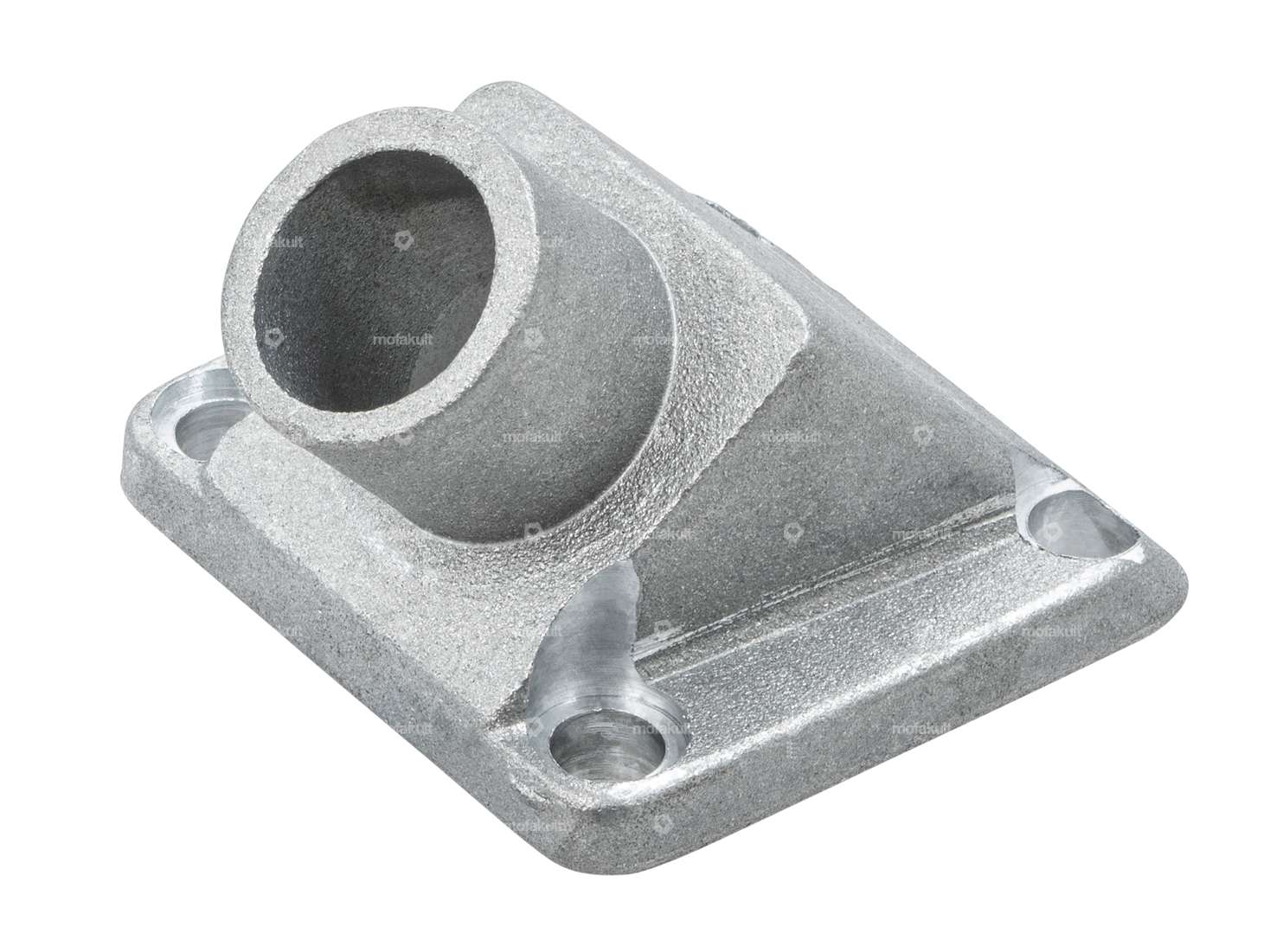

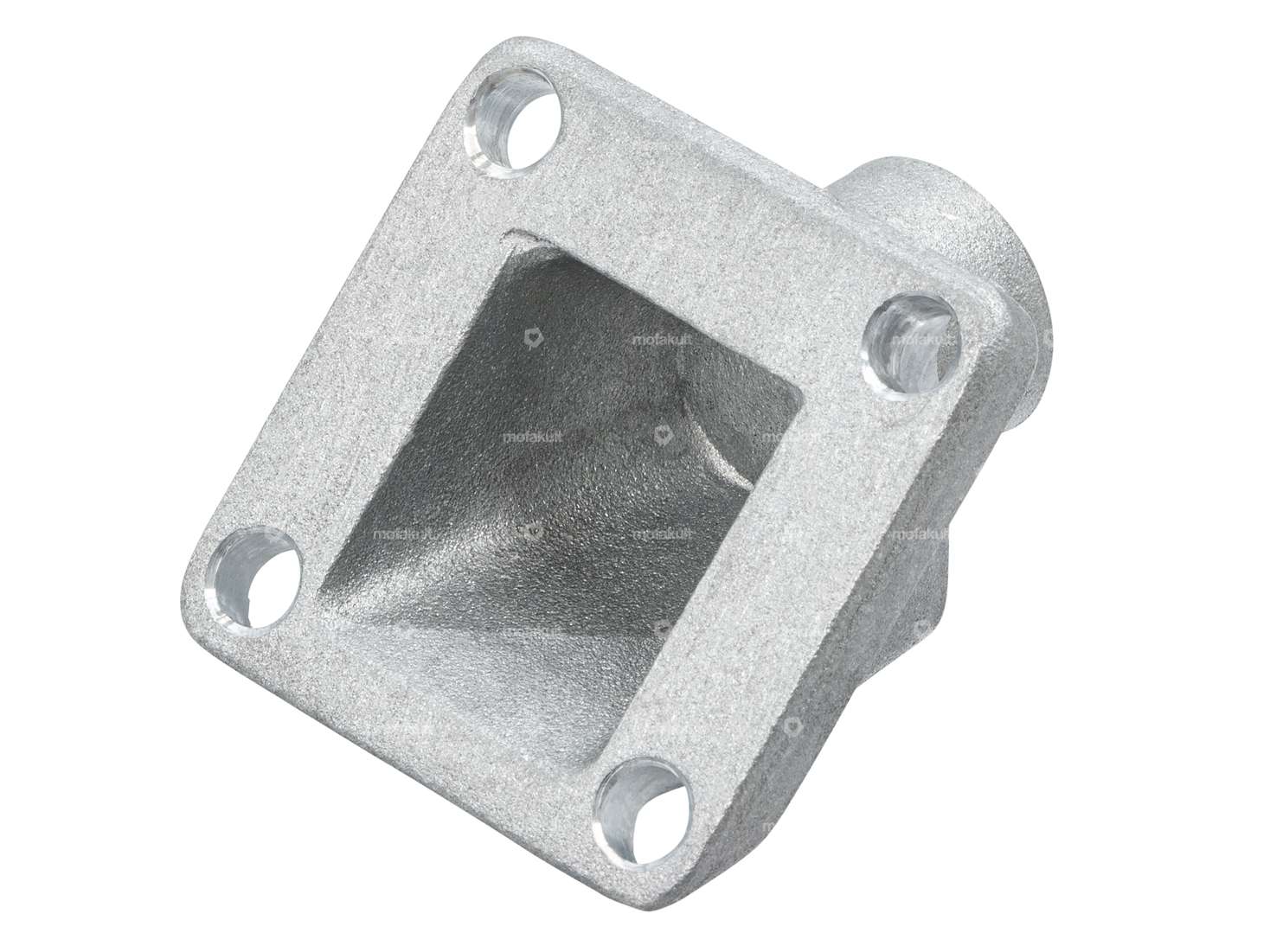

An intake manifold from the Athena brand for cylinders with diaphragm system, both for Puch and Sachs mopeds.
The matching cylinders are listed below in the accessories.
Connection diameter: 19 mm
Internal diameter: 15 mm
Quality product from the Italian manufacturer Athena.
Details
| Ø inside | 15 mm |
| Manufacturer | Athena |
| Material | Aluminum |
| Area of application | Tuning |
| Ø External connection | 19 mm |
| Mounting type | Screws |
| Number of fixing points | 4 pcs |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
Accessories & related products
Athena 45 mm cylinder kit incl. diaphragm | Puch
Number of fixing points: 4 pcs · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Nominal diameter: 45 mm · Displacement: 70 ccm · Ø piston pin (B): 12 mm · Ø cylinder neck: 47.8 mm · Ø outlet inside: 24 mm · Ø Inlet inside: 20.5 mm · Hole spacing inlet: 31.5 mm · Inlet window: 22 x 27.5 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Decompressor: No · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
CHF 259.90
Athena 38 mm cylinder kit incl. diaphragm | Puch
Number of fixing points: 4 pcs · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 38 mm · Crankshaft stroke: 43 mm · Displacement: 50 ccm · Ø piston pin (B): 12 mm · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 44 x 44 · Outlet type: straight · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)
CHF 199.90
CHF 220.00
Athena 48 mm cylinder kit incl. diaphragm | Sachs (504), 505, 508
Number of fixing points: 4 pcs · Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 44 mm · Nominal diameter: 48 mm · Ø piston pin (B): 12 mm · Ø cylinder neck: 51.8 mm · Ø Outlet outside: 26 mm · Ø outlet inside: 19.4 mm · Ø Inlet inside: 14.7 mm · Ø Inlet inside: 17.8 mm · Hole spacing inlet: 32.5 mm · Inlet window: 31.9 x 36.2 · Thread inlet: M5x0.8 (standard thread) · Hole pattern [mm]: 56/60 x 56 · Decompressor: M10x1.5 · Outlet type: clamped · Outlet type: straight · Hole spacing outlet: 50 mm · Thread outlet: M8x1.25 (standard thread)
CHF 299.90
