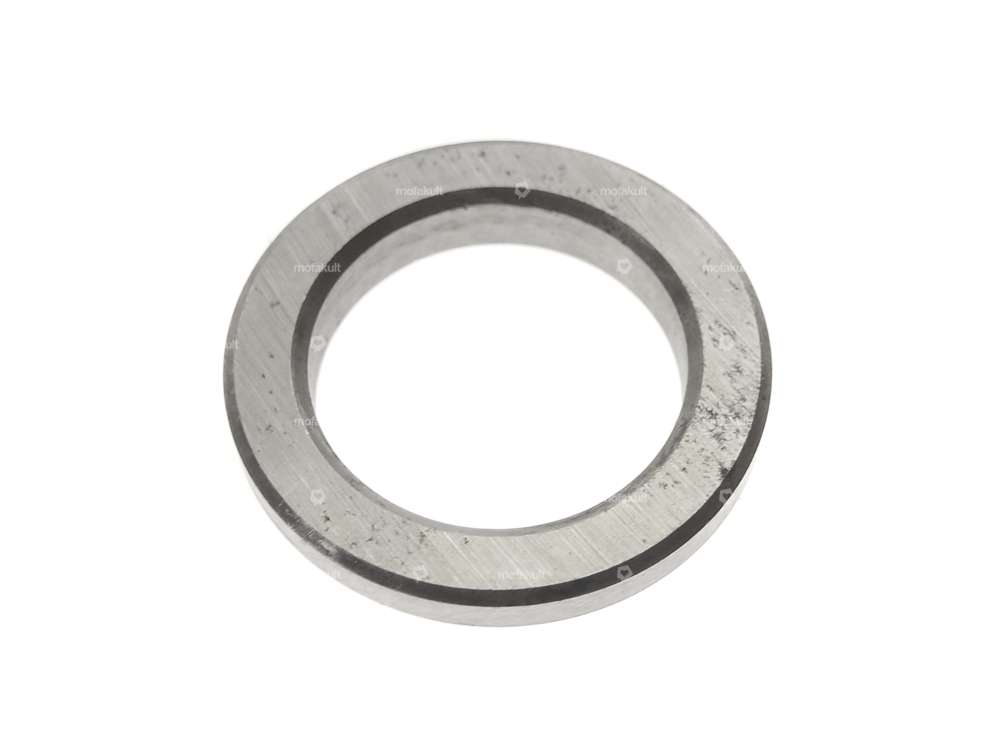

Bearing shell for the headset replacement of the fork of various Tomos models (Quadro, Sprint, Classic & FunSport).
Can be used as lower and upper bearing shell.
Ø inner: 26 mm
Ø outer: 38 mm
Height: 6.6 mm
In the accessories you will find the complete headset bearing set.
Original Tomos spare part number: 200714
Details
Height | 6.6 mm |
Manufacturer | Tomos |
Ø inside | 26 mm |
Ø outside | 38 mm |
Material | Steel |
Tomos spare part no. | 200714 |
Suitable for the following models
Tomos |
