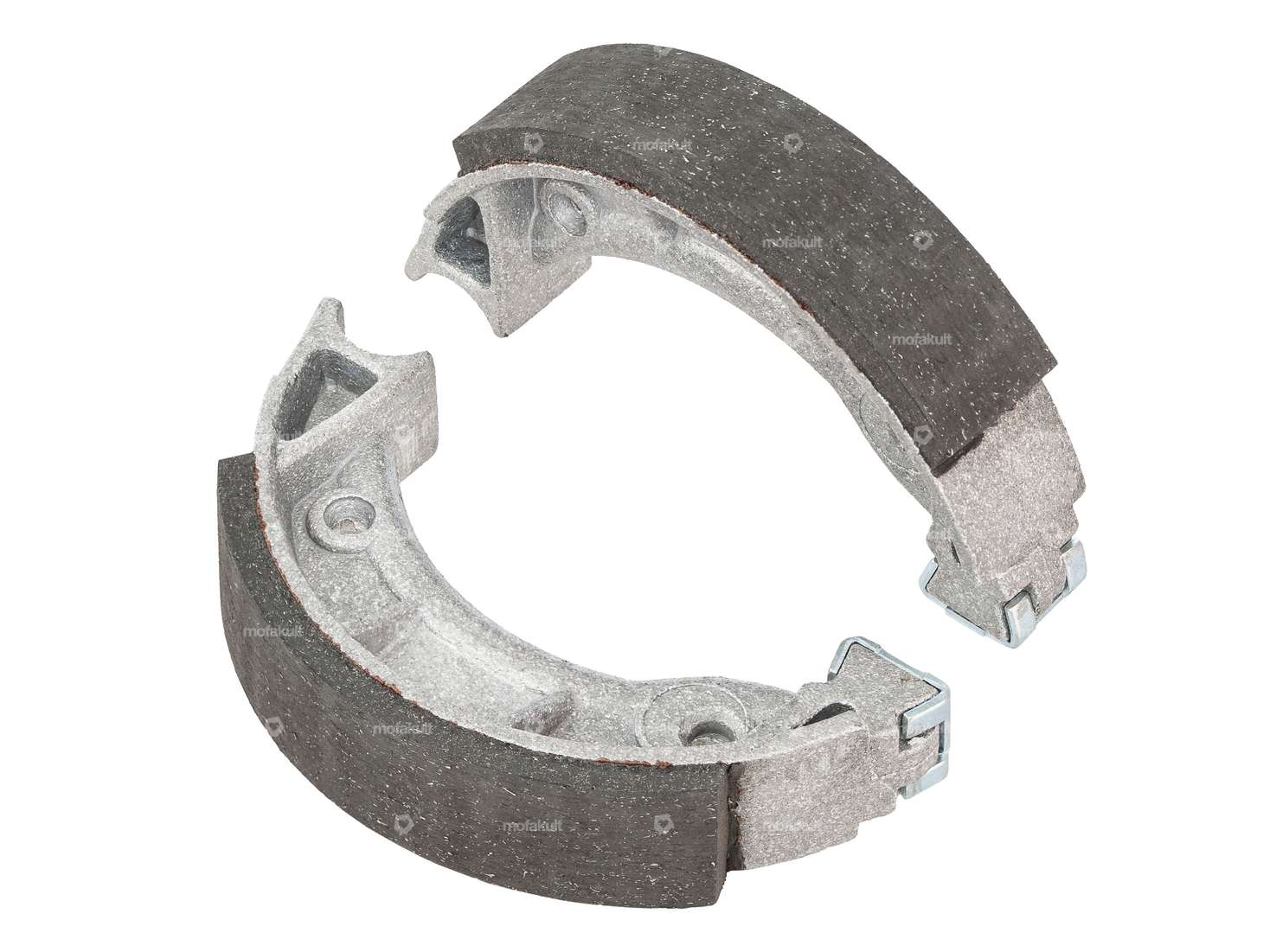

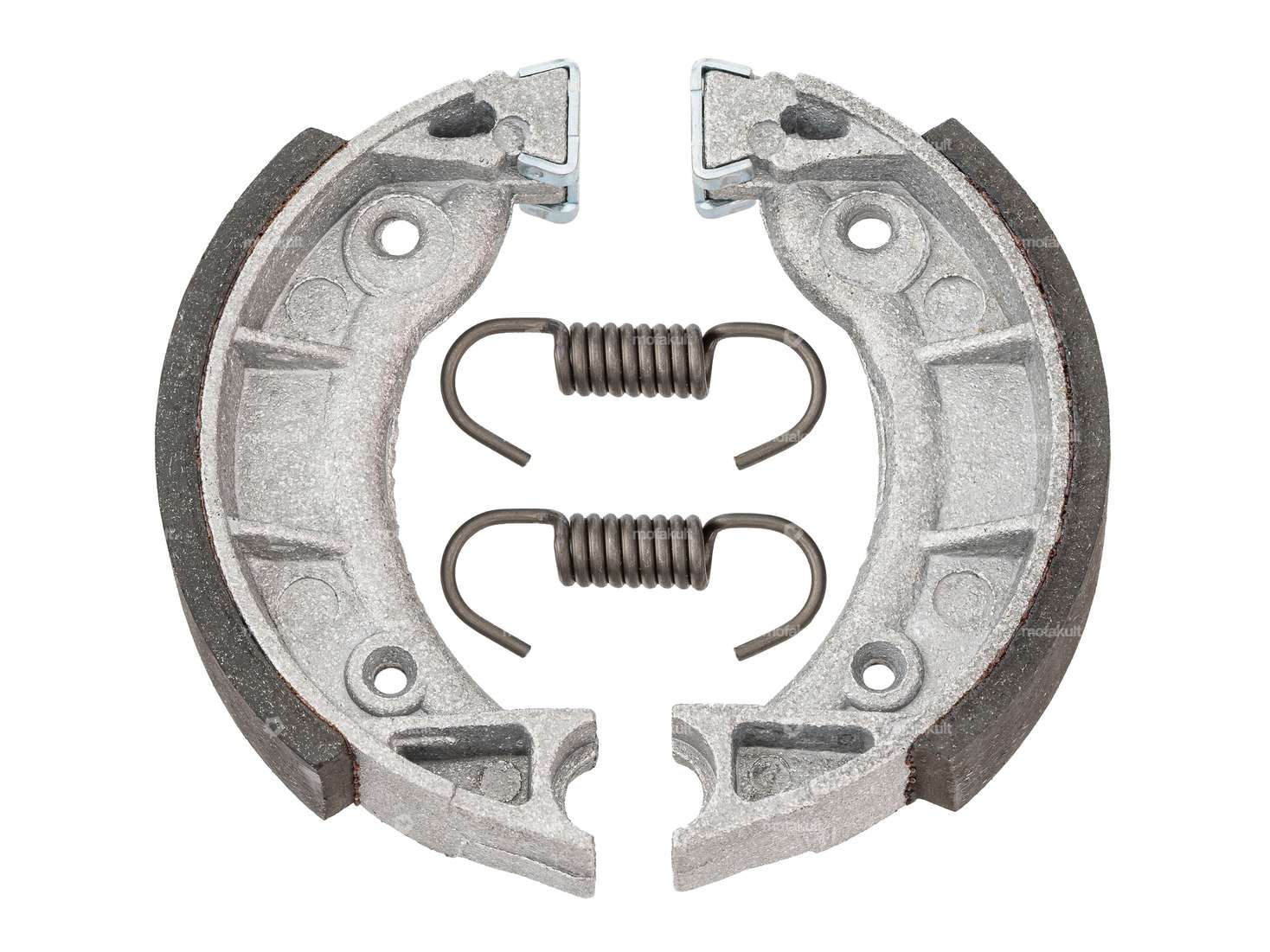

Brake shoes Ø 90 x 18 spoke wheel front | Piaggio Ciao, Bravo, Boxer

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Ø cable: 5 mm · Ø cable: 7 mm · Pony OEM number: A2099 · Sachs OEM no.: 0265 100 00

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Mounting type: Union nut · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

Magura gas cable clamp / deco cable clamp Ø 5 x 6 mm

Manufacturer: Magura · Material: Brass · Material: Steel · Surface: nickel-plated · Ø outside: 5 mm · Number of components: 2 pcs · Total length: 6 mm · Ø Cable bushing: 1.6 mm · Drive: Slot · Screw head: Lens head · Thread type: M4x0.7 (standard thread) · Thread length: 4 mm

CIF Clamping screw front brake | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Material: Steel · Surface: galvanized (blue) · Ø outside: 11 mm · Number of components: 6 pcs · Width across flats SW: 11 mm · Total length: 25 mm · Drive: External hexagon · Screw head: Hexagon · Area of application: Standard · Thread type: M7x1 (standard thread) · Thread length: 19.5 mm

GPO control bearing set | Piaggio Ciao

Bearing type: Bearing ring · Manufacturer: GPO · Material: Steel · Surface: galvanized (blue) · Color: silver · Ø outside: 41.4 mm · Ø outside: 42 mm · Ø inside: 27 mm · Ø mounting frame: 30.05 mm · Height: 10.5 mm · Height: 17 mm · Thread type: FG25.4 (1" 24G) · Ø ball [inch] / [mm]: 5/32" (4.00 mm)

Clutch linings Mono | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Made in Italy · Material: Aluminum · Material addition: Composite materials · Number of jaws: 3 pcs · Area of application: Standard · Thickness: 14 mm

Brake shoes Ø 90 x 18

Manufacturer: Made in Italy · Ø drum: 90 mm · Width: 18 mm · Number of springs: 2 pcs · Springs included: Yes

Brake shoe Ø 135 x 16 rear (budget) | Piaggio Ciao, SI, Bravo, Boxer

Ø drum: 135 mm · Width: 16 mm · Number of springs: 1 pcs · Springs included: No

Michelin 2.25 - 2.50 x 17" tube

Manufacturer: Michelin · Tire width [inch]: 2.25 - 2.5 " · Tire width [mm]: 57.15 - 63.5 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Wheel size [inch]: 17 " · Tire height [%]: 100 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5 · Valve type: TR4 Auto valve

Ø 9 mm wedge 4.5° pedal crank galvanized (budget)

Material: Steel · Surface: galvanized (blue) · Ø outside: 9 mm · Angle crank wedge: 4.5° · Total length: 42 mm · Thread type: M7x1 (standard thread)
