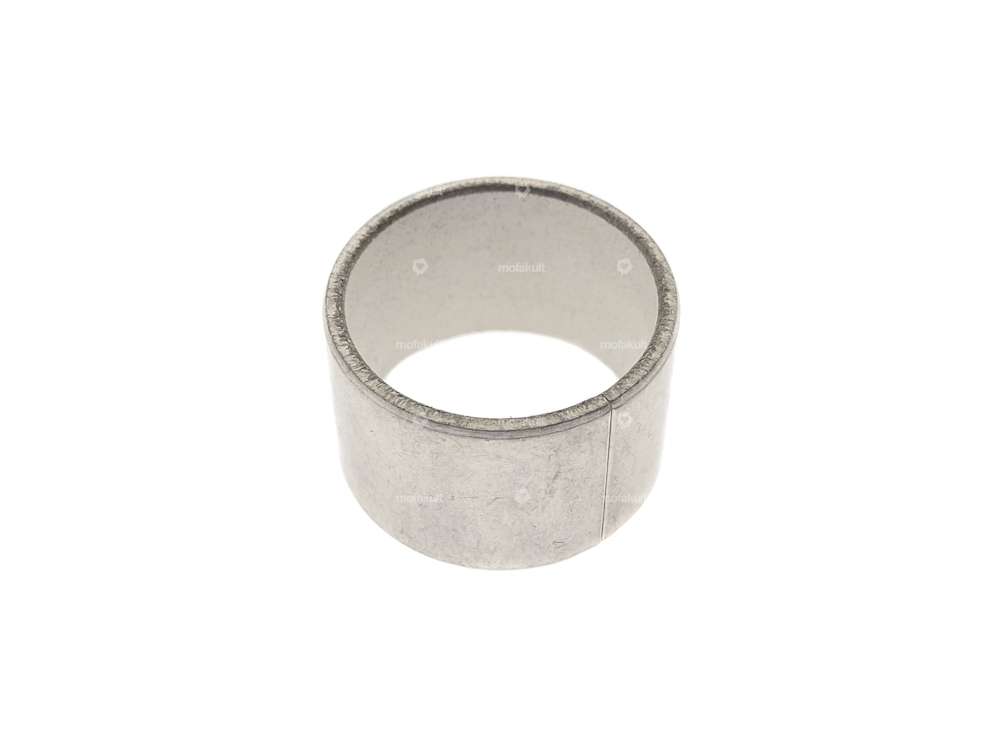

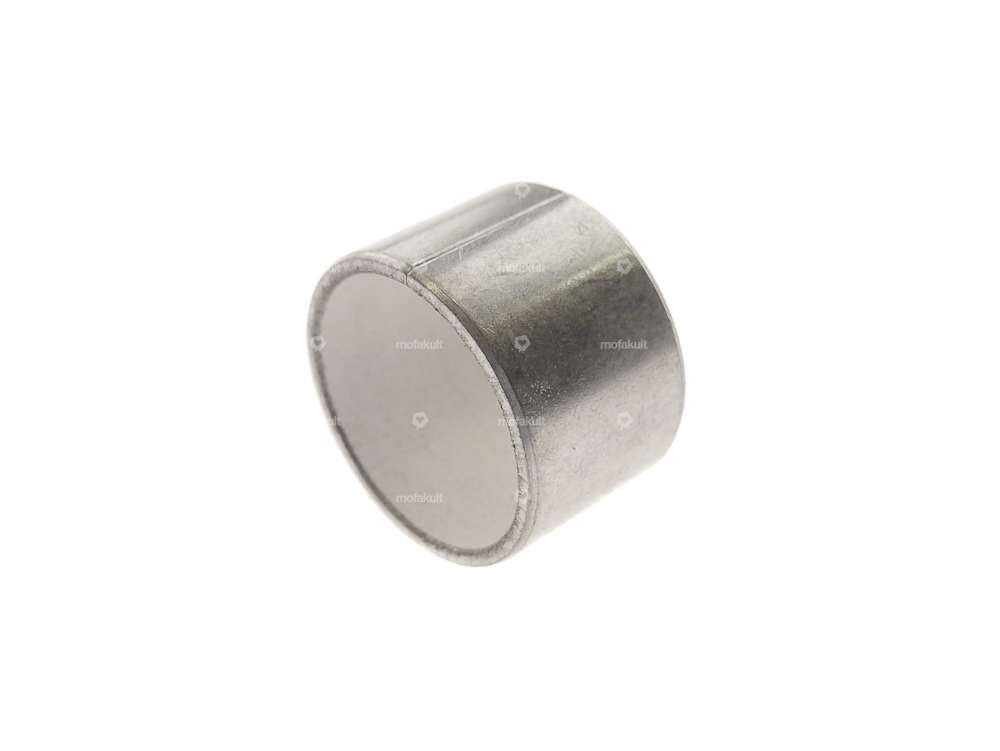

Bushing 20/23/15 Gearwheel 1st gear | Tomos

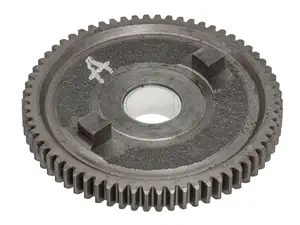

Gearwheel 1st gear | Tomos

Manufacturer: Tomos · Toothing type: straight toothed · Number of teeth: 66 pcs · Tomos spare part no.: 227194

NTN 6203 C3 Ball bearing 17/40/12

Bearing type: Deep groove ball bearing · Stock number: 6203 · Inner ring width: 12 mm · Manufacturer: NTN · Ball bearing closed: No · Bearing clearance: C3 · Bearing cage: "-" Sheet steel cage ball-guided · Groove ring: No · Area of application: Standard · Material: Steel · Surface: blank · Width: 12 mm · Ø inside: 17 mm · Ø outside: 40 mm

Petrol hose Ø 5 / 8 mm orange 30 cm

Material: Plastic · Color: orange · Ø inside: 5 mm · Ø outside: 8 mm · Total length: 300 mm

Oil seal NBR 17/35/7 A DUO

Simmering type: A DUO - With rubberized outer casing / two sealing lips. · Ø inside: 17 mm · Ø outside: 35 mm · Material: NBR · Surface: rubberized · Temperature resistance (min.): -30 - 100 °C · Width: 7 mm

Union pedals aluminum black

Manufacturer: Union · Material: Aluminum · Material: Plastic · Color: black · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Reflectors: Yes

CIF revision set gearbox variator | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: CIF · Area of application: Original · Area of application: Standard · Gearbox type: Vario

Dell'Orto gasket set SHA carburetor 14 - 15 mm type 1

Manufacturer: Dell'Orto · Carburetor type: SHA (type 4)

Gasket cylinder base Tomos

Place of use: Cylinder base · Tomos spare part no.: 233714

Oil seal NBR 15/24/5 AS

Simmering type: AS - With rubberized outer casing / one sealing lip / one dust lip. · Material: NBR · Surface: rubberized · Width: 5 mm · Ø outside: 24 mm · Ø inside: 15 mm · Temperature resistance (min.): -30 - 100 °C

Spring freewheel Tomos

Spring design: Ironing spring · Manufacturer: Tomos · Material: Spring steel · Tomos spare part no.: 223121

Spring brake release lever kickstarter shaft | Tomos

Manufacturer: Tomos · Material: Metal · Tomos spare part no.: 209048
