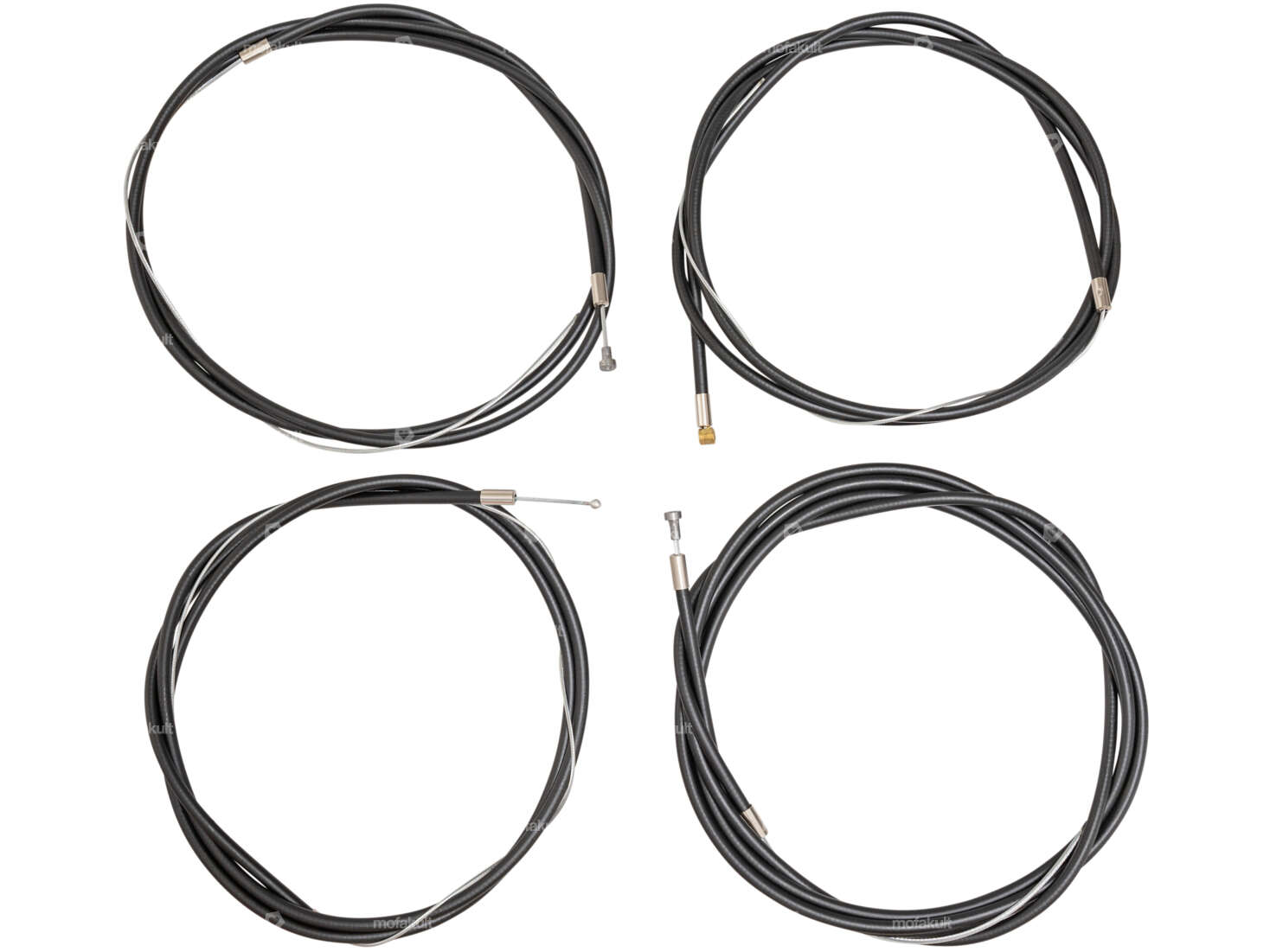

Complete, high-quality cable set for your Piaggio Ciao and SI moped / moped.
This complete cable set in black color is ideal for new builds or regular cable service. The cable sleeves are pre-cut to size and crimped on one side with end sleeves. An end sleeve is supplied for the opposite side, which is still loosely attached to the outer sleeve. This allows the cable set to be cut to size depending on the handlebar height.
The cable set contains the following components:
1 pc. Gas cable (inner cable with round nipple on one side 165 cm, Ø 1.25 mm / cable core 120 cm)
1 pc. Deco cable (inner cable with cylindrical nipple on one end 160 cm, Ø 1.25 mm / cable length 130 cm)
1 pc. Front brake cable (inner cable with pear-shaped nipple on one end 160 cm, Ø 1.50 mm / cable length 125 cm)
1 pc. Rear brake cable (inner cable with one-sided pear-shaped nipple 218 cm, Ø 1.80 mm / cable length 200 cm)
You can find other cable set versions and matching handle sets in the accessories section.
A quality product made in Germany.
Details
| Manufacturer | Made in Germany |
| Material | Steel |
| Color | black |
| Quantity | 4 pcs |
| Ø Stranded wire | 1.25 mm, 1.5 mm, 1.8 mm |
| Outer shell length | 1200 mm, 1300 mm, 1250 mm, 2000 mm |
| Nipple shape | Ball, Pears, Barrel (transverse) |
| Total length | 1350 mm, 1600 mm, 2180 mm |
Suitable for the following models
| Piaggio | Ciao - P, SC, PX, C24 Si Bravo / Super Bravo Boxer Grillo |
Accessories & related products

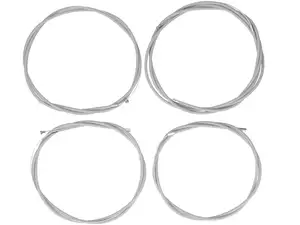

Cable set cut chrome | Piaggio Ciao, SI
