Complete cable set suitable for Puch Maxi S & N mopeds / mopeds with E50 input automatic engine.
Can also be used universally for various other mopeds, please note the cables and cable nipples.

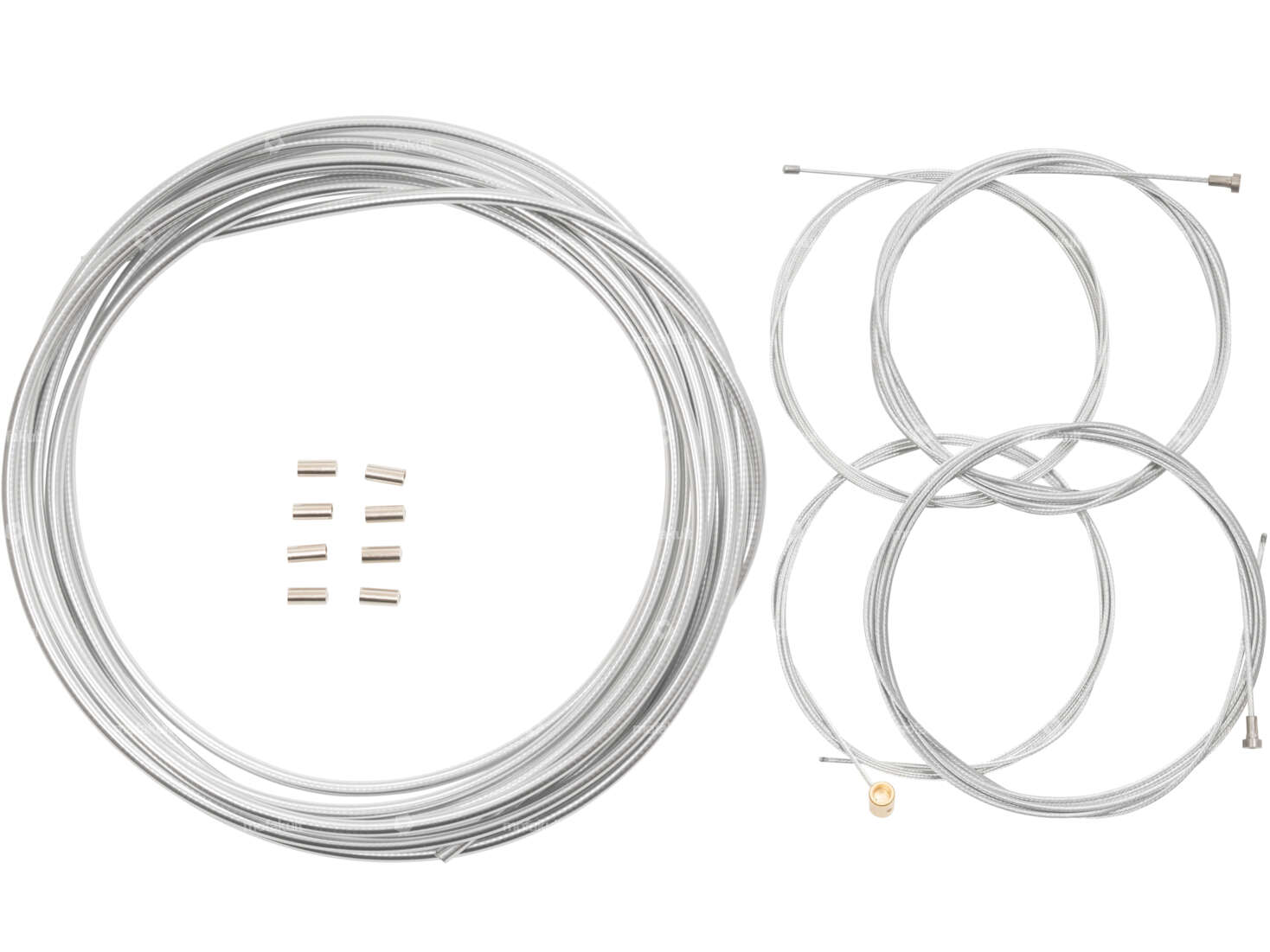

The cable set consists of the following components:
6m chrome cable housing (Ø outer 5 mm)
2 pcs. Brake cable (220 cm, Ø 1.80 mm)
1 pc. Throttle cable (220 cm, Ø 1.25 mm)
1 starter cable (160 cm, Ø 1.50 mm)
8 pcs. Nickel-plated brass end sleeves (12 mm, Ø inside 5 mm)
Alternative cable pull sets in various colors and other products can be found in the accessories section.
When you purchase this complete set, you will receive a large percentage off the retail price of the individual parts.
The set includes the following fixed parts:
Manufacturer: Made in Germany · Material: Steel · Quantity: 4 pcs · Ø Stranded wire: 1.8 mm, 1.25 mm, 1.5 mm · Total length: 2200 mm, 1600 mm · Nipple shape: Cylinder, Pears, Barrel (transverse)
Material: Steel, Plastic · Surface: coated · Ø cable: 1.8 mm · Ø inside: 2 mm · Ø outside: 5 mm · Total length: 6000 mm · Ordering unit: Roll 6 meter · Coating: PTFE · Color: Chrome
Details
| Material | Steel |
| Quantity | 4 pcs |
| Ø Stranded wire | 1.25 mm, 1.5 mm, 1.8 mm |
| Total length | 1600 mm, 2200 mm |
| Color | Chrome |
| Outer shell length | 6000 mm |
| Nipple shape | Cylinder, Pears, Barrel (transverse) |
Suitable for the following models
| Universal | |
| Puch |
