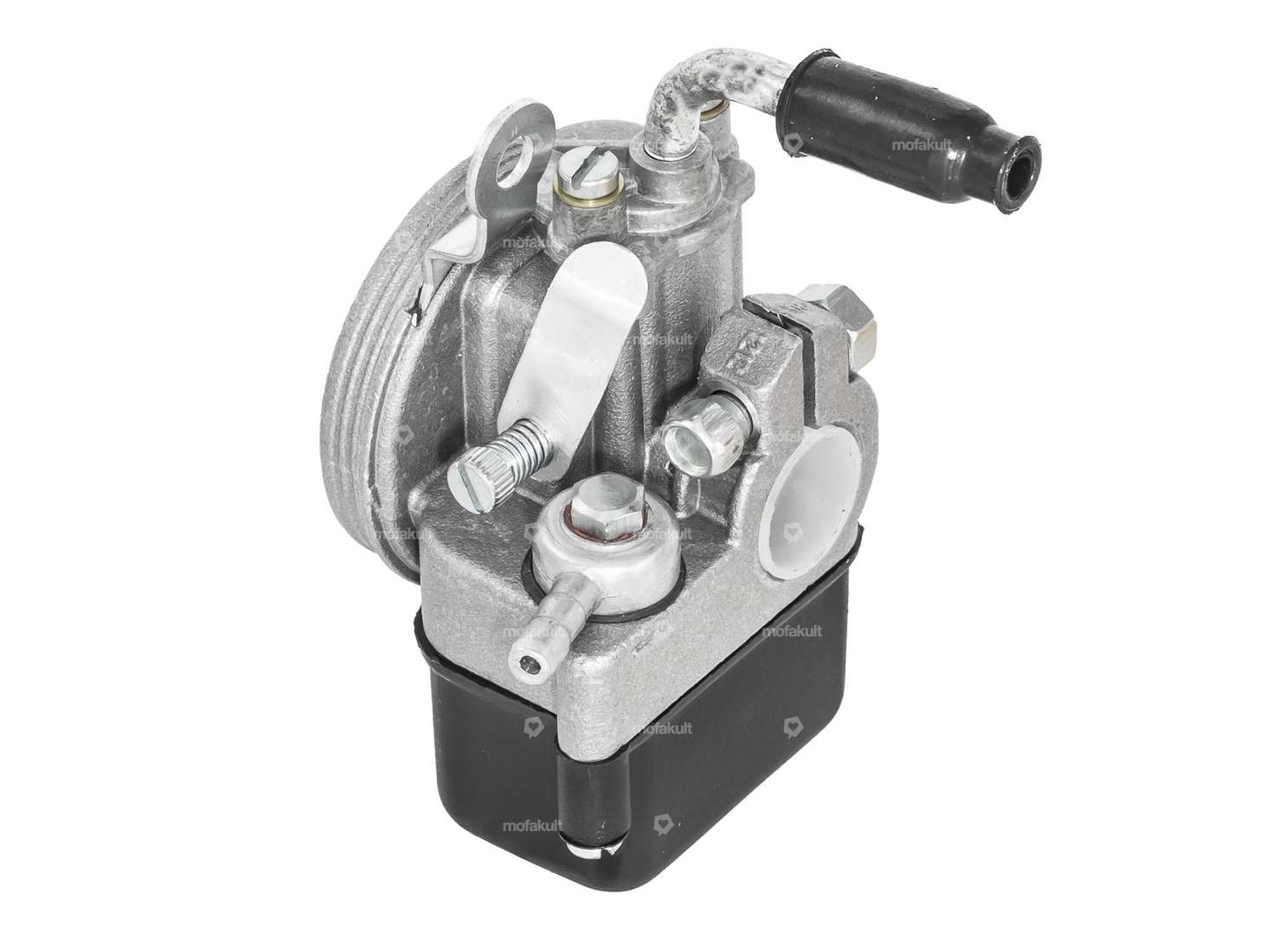

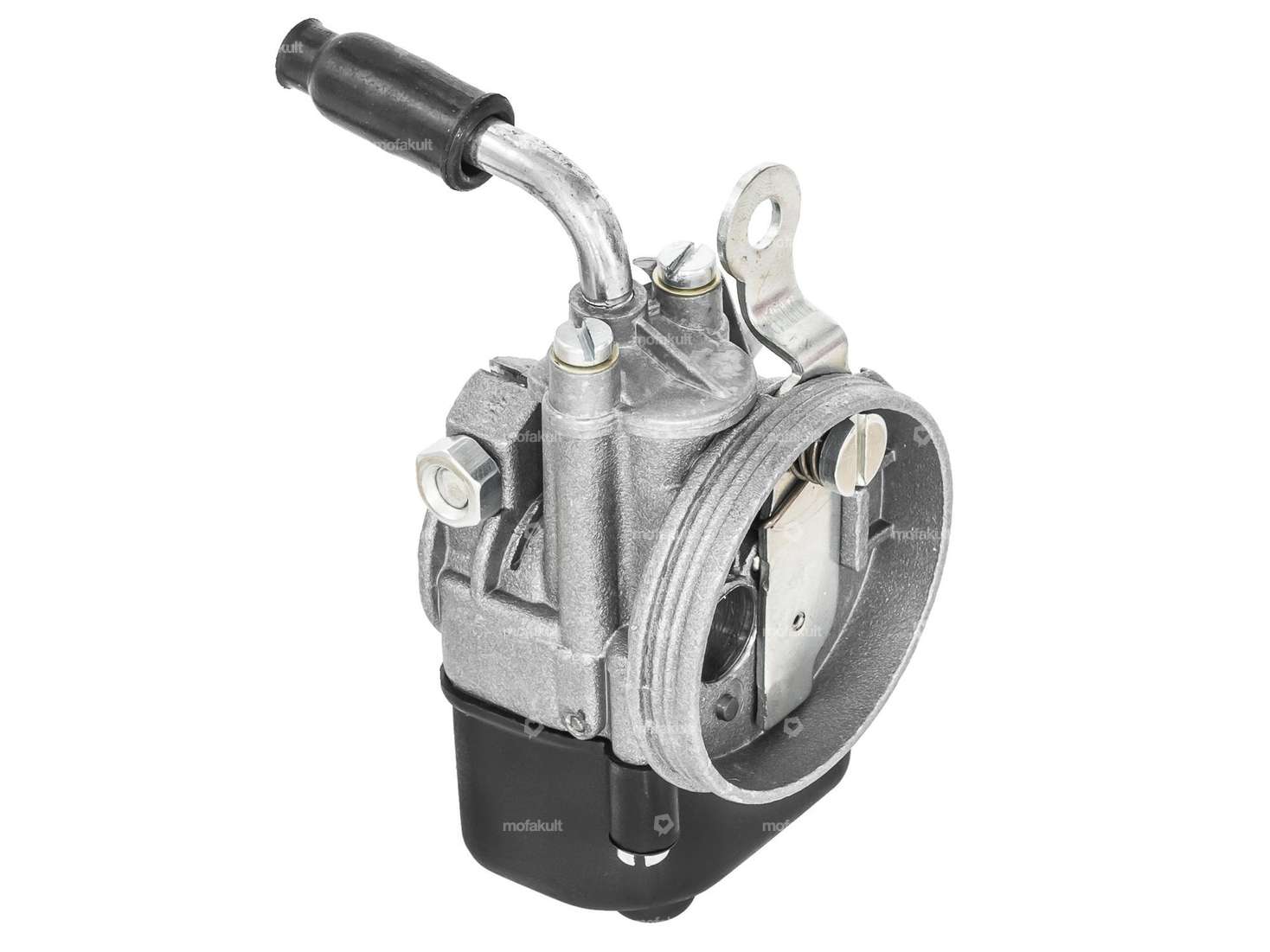

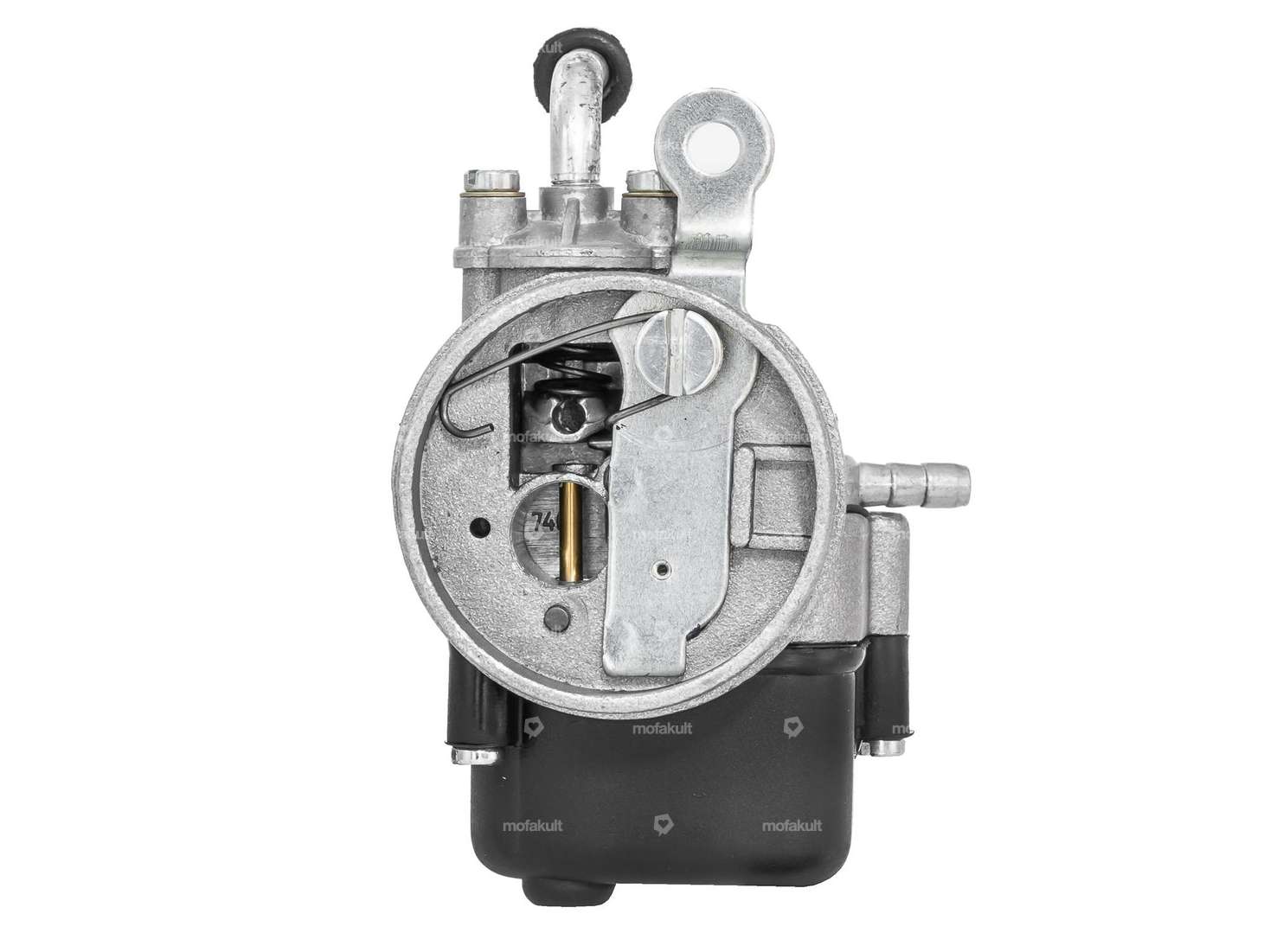

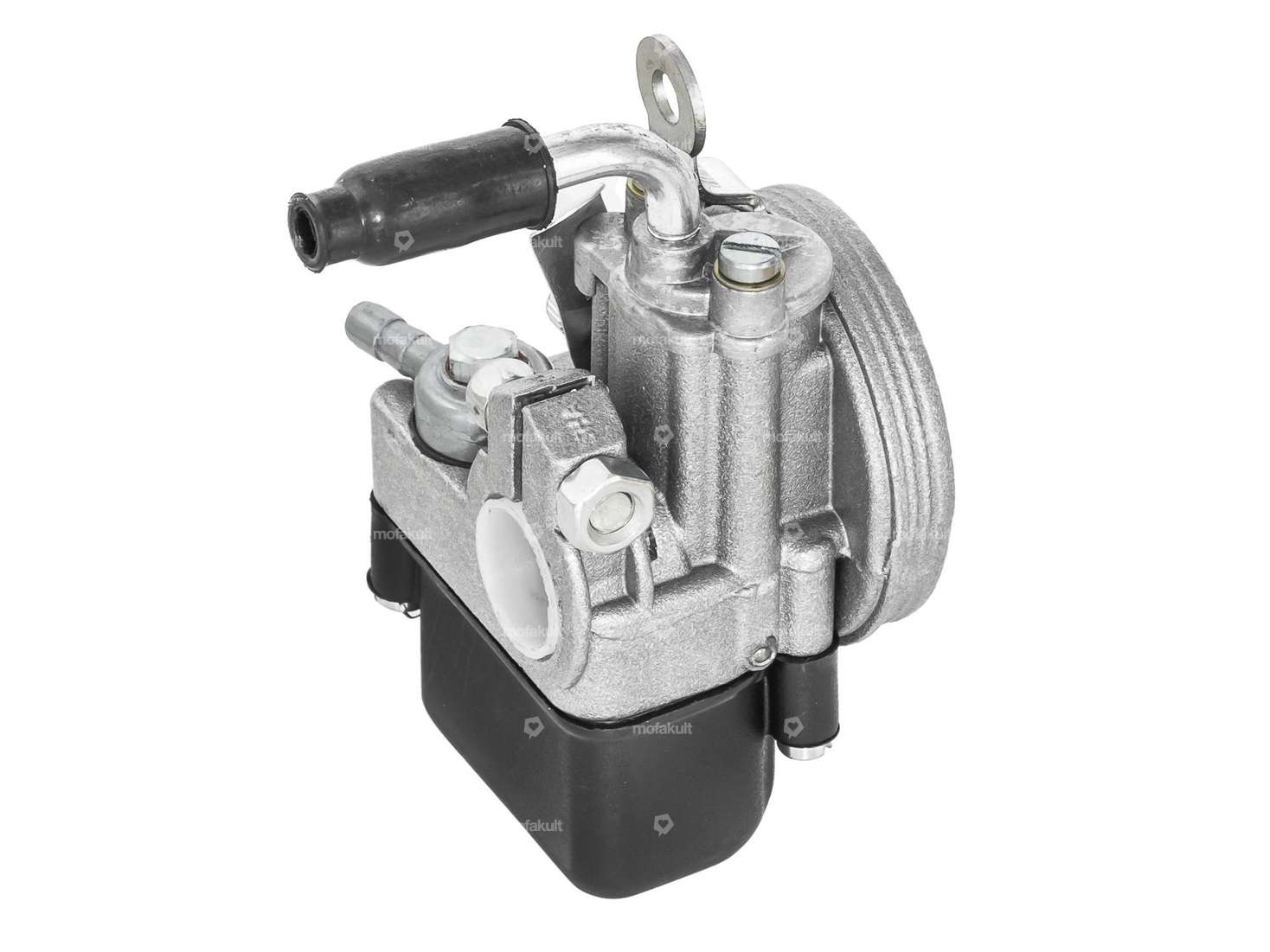

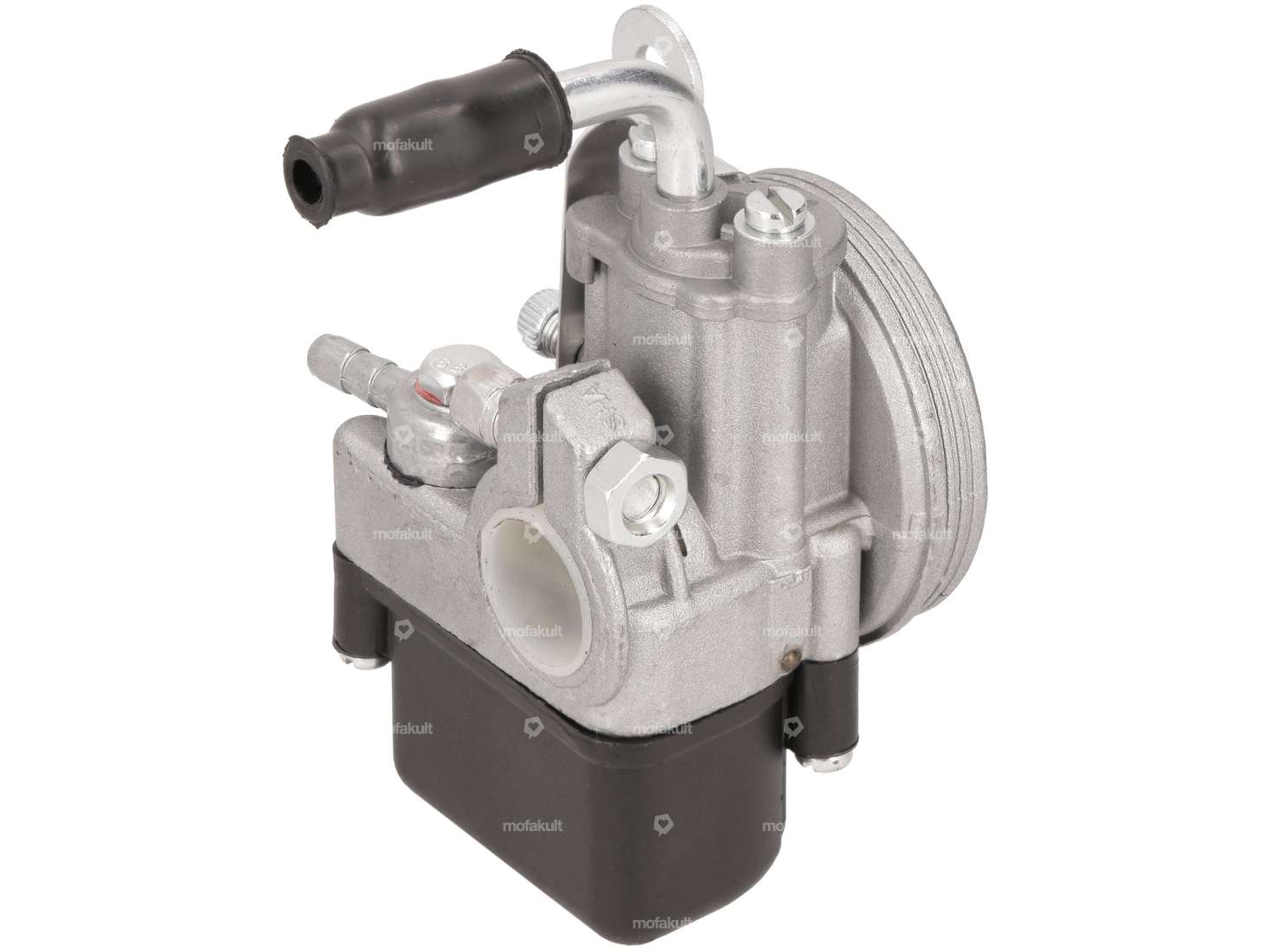

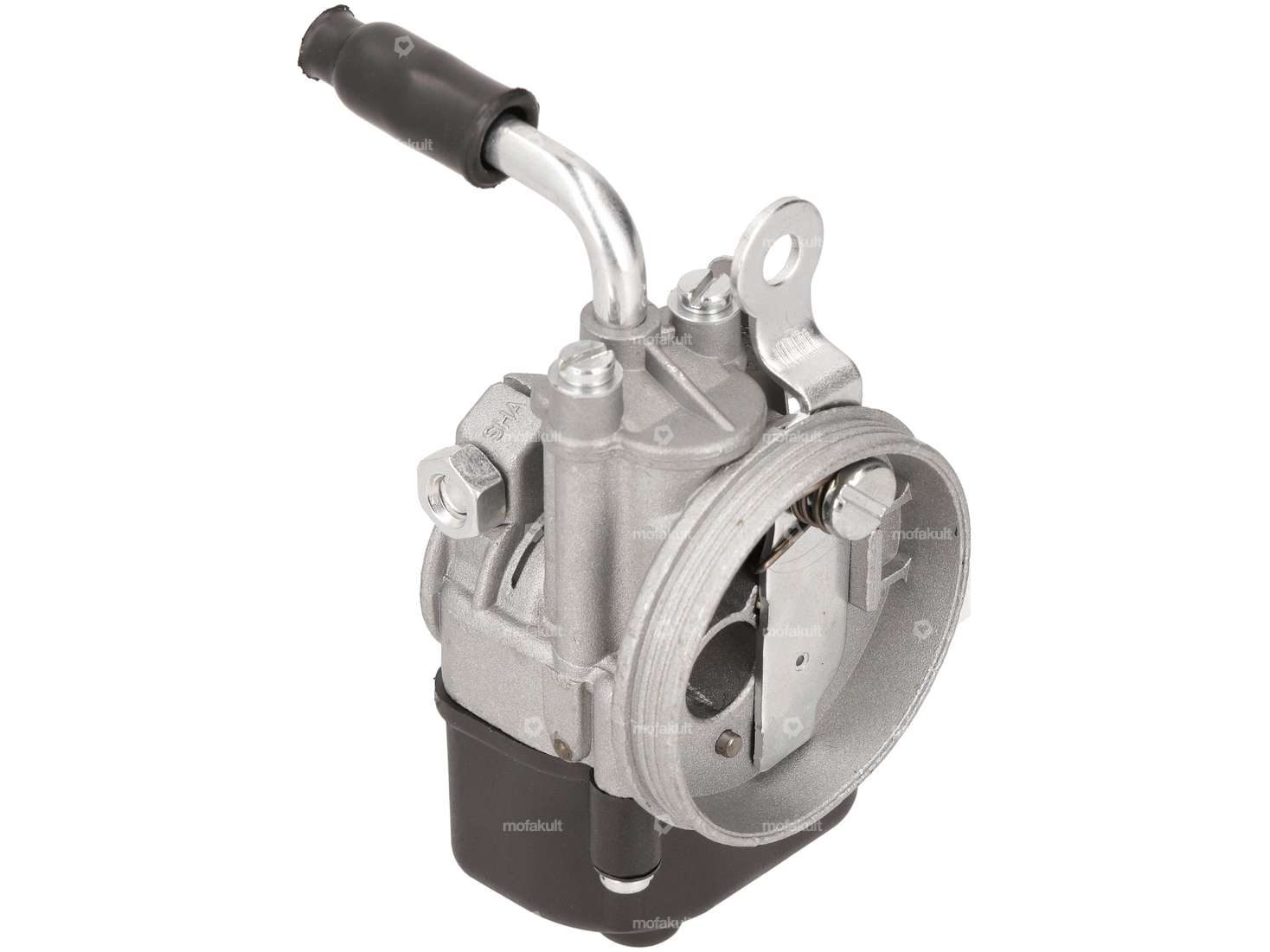

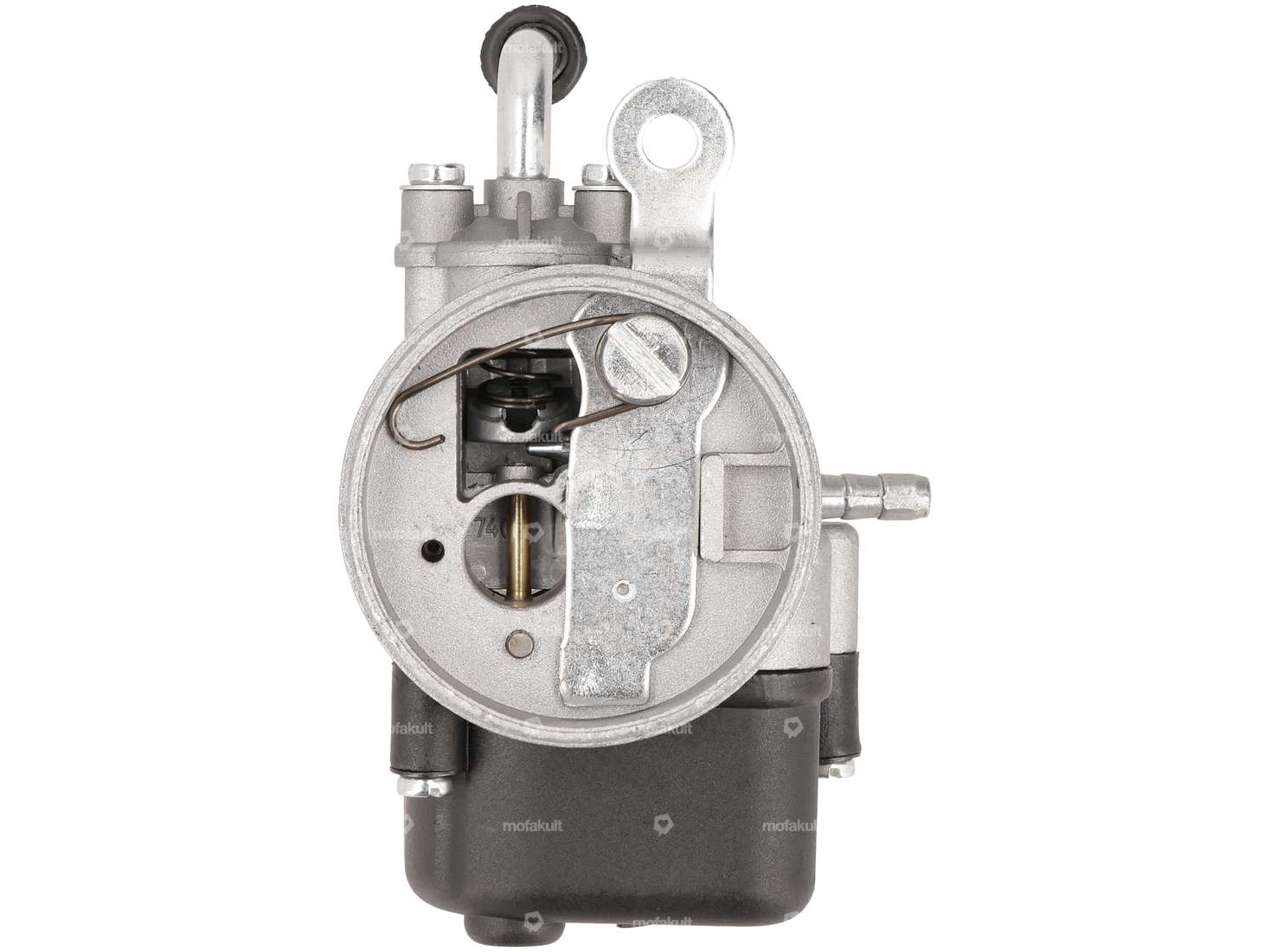

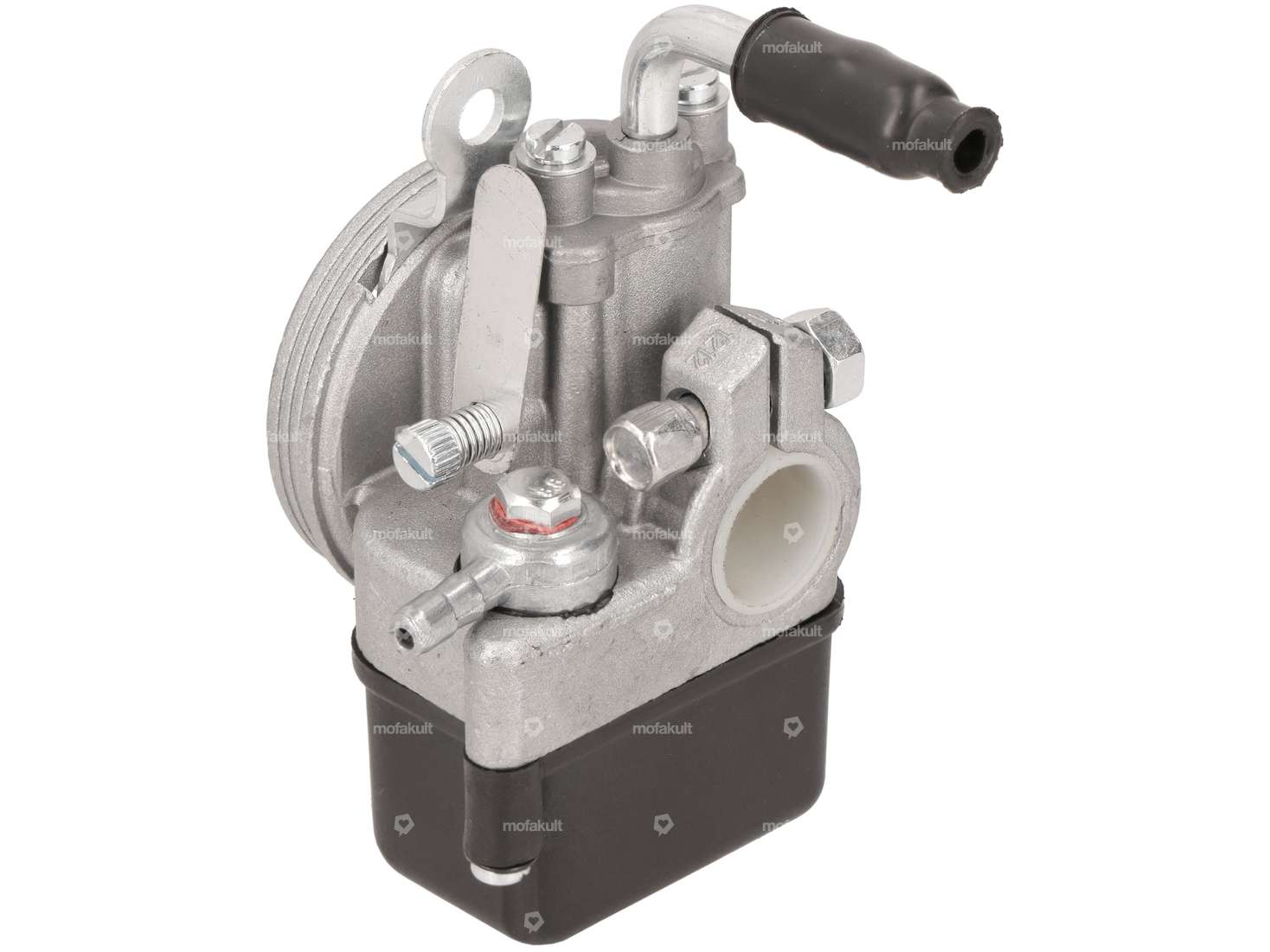

Favourable 12 / 12 replica carburettor for your Piaggio Ciao moped / moped.
The carburettor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 3 (SHA3)
Main thread size (M5): 48
Inlet connection diameter: 16 mm (or 18 mm after removing the reducer). 18 mm after removing the reducing sleeve)
Ø outside air filter connection: 50.5 mm
Ø passage on air filter side: 12 mm
Ø passage on intake manifold side: 12 mm
Total height: 87 mm (without pipe bend)
Total length: 45 mm
Total width: 60 mm
Note: The finish of the aftermarket carburettors varies. The idle throttle bore is not perfect on all of them. We also recommend that you clean the carburetor again before installation, as some metal shavings from production can be found in the carburetor. If you want to be on the safe side and avoid problems, go straight for the original Dell'Orto product.
You can find suitable jets, air filters and original Dell'Orto carburettors in the accessories section.
Good quality reproduction product from the Asian market.
Details
| Nominal diameter | 12 mm |
| Total length | 45 mm |
| Manufacturer | Quenching |
| Camouflaged | No |
| Area of application | Tuning |
| Component group Carburetor | Carburetor complete |
| Material | Aluminum |
| Color | black |
| Carburetor type | SHA (Piaggio) |
| Ø Internal connection | 16 mm |
| Ø fuel hose connection | 5.5 mm, 4.8 mm |
| Ø without reducing sleeve | 18 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.5 mm |
| Mounting type | Plug connection clamped |
| Mixed oil connection | No |
| Vacuum connection | No |
| Width | 60 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 48 |
| Height | 104 mm |
Suitable for the following models
| Piaggio | Ciao - PX, C24 |
Accessories & related products
Malossi air filter | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Malossi · Camouflaged: No · Material: Plastic · Color: black · Filter type: Foam · Ø Internal connection: 51 mm · Ø outside: 53.2 mm · Mounting type: Plug connection clamped · Total length: 31.2 mm · Width: 95 mm · Height: 88.7 mm · Area of application: Tuning
CHF 19.90
Air filter 2 PS (DGM) original | Piaggio Ciao, SI, Bravo, Boxer
Manufacturer: Piaggio · Material: Plastic · Color: black · Filter type: Grille · Ø Internal connection: 49.7 mm · Ø outside: 51 mm · Mounting type: Plug connection clamped · Total length: 26.5 mm · Width: 94 mm · Height: 89 mm · Area of application: Original · Area of application: Tuning
CHF 15.90

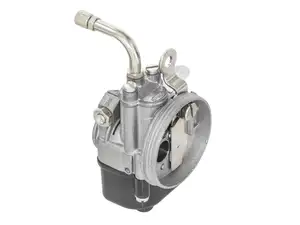

Dell'Orto 12/12 SHA carburetor hand choke | Piaggio Ciao PX, C24
Manufacturer: Dell'Orto · Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Color: black · Carburetor type: SHA (Piaggio) · Nominal diameter: 12 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 18 mm · Ø Inside entrance: 12 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 5.1 mm · Ø fuel hose connection: 6 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 48 · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 110 mm · Area of application: Tuning
CHF 64.90
swiing® revival nozzle M5 (30 - 120 of your choice) Dell'Orto SHA, PHBG
Manufacturer: swiing® revival parts · Component group Carburetor: Spraying · Material: Brass · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 30 · Nozzle size: 31 · Nozzle size: 32 · Nozzle size: 33 · Nozzle size: 34 · Nozzle size: 35 · Nozzle size: 36 · Nozzle size: 37 · Nozzle size: 38 · Nozzle size: 39 · Nozzle size: 40 · Nozzle size: 41 · Nozzle size: 42 · Nozzle size: 43 · Nozzle size: 44 · Nozzle size: 45 · Nozzle size: 46 · Nozzle size: 47 · Nozzle size: 48 · Nozzle size: 49 · Nozzle size: 50 · Nozzle size: 51 · Nozzle size: 52 · Nozzle size: 53 · Nozzle size: 54 · Nozzle size: 55 · Nozzle size: 56 · Nozzle size: 57 · Nozzle size: 58 · Nozzle size: 59 · Nozzle size: 60 · Nozzle size: 61 · Nozzle size: 62 · Nozzle size: 63 · Nozzle size: 64 · Nozzle size: 65 · Nozzle size: 66 · Nozzle size: 67 · Nozzle size: 68 · Nozzle size: 69 · Nozzle size: 70 · Nozzle size: 71 · Nozzle size: 72 · Nozzle size: 73 · Nozzle size: 74 · Nozzle size: 75 · Nozzle size: 76 · Nozzle size: 77 · Nozzle size: 78 · Nozzle size: 79 · Nozzle size: 80 · Nozzle size: 81 · Nozzle size: 82 · Nozzle size: 83 · Nozzle size: 84 · Nozzle size: 85 · Nozzle size: 86 · Nozzle size: 87 · Nozzle size: 88 · Nozzle size: 89 · Nozzle size: 90 · Nozzle size: 91 · Nozzle size: 92 · Nozzle size: 93 · Nozzle size: 94 · Nozzle size: 95 · Nozzle size: 96 · Nozzle size: 97 · Nozzle size: 98 · Nozzle size: 99 · Nozzle size: 100 · Nozzle size: 101 · Nozzle size: 102 · Nozzle size: 103 · Nozzle size: 104 · Nozzle size: 105 · Nozzle size: 106 · Nozzle size: 107 · Nozzle size: 108 · Nozzle size: 109 · Nozzle size: 110 · Nozzle size: 111 · Nozzle size: 112 · Nozzle size: 113 · Nozzle size: 114 · Nozzle size: 115 · Nozzle size: 116 · Nozzle size: 117 · Nozzle size: 118 · Nozzle size: 119 · Nozzle size: 120 · Total length: 8 mm
CHF 3.50
swiing nozzle set M5 (32 - 50) Dell'Orto SHA, PHBG
Manufacturer: swiing · Component group Carburetor: Spraying · Material: Brass · Quantity: 10 pcs · Carburetor type: PHBG · Carburetor type: SHA · Carburetor type: SHA (Piaggio) · Nozzle type: Main nozzle · Drive: Slot · Nozzle thread: M5x0.8 (standard thread) · Nozzle size: 32 · Nozzle size: 34 · Nozzle size: 36 · Nozzle size: 38 · Nozzle size: 40 · Nozzle size: 42 · Nozzle size: 44 · Nozzle size: 46 · Nozzle size: 48 · Nozzle size: 50 · Total length: 8 mm
CHF 20.90
swiing® ingenious 16 mm intake manifold | Cilo 502
Manufacturer: swiing® ingenious parts · Material: Aluminum · Area of application: Tuning · Color: black-matt · Surface: anodized · Ø inside: 16 mm · Ø External connection: 19 mm · Hole spacing inlet: 32 mm · Mounting type: Screws · Number of fixing points: 2 pcs
CHF 48.80

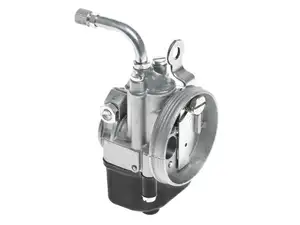

Dell'Orto 12/12 SHA carburetor | Piaggio Ciao PX, C24
