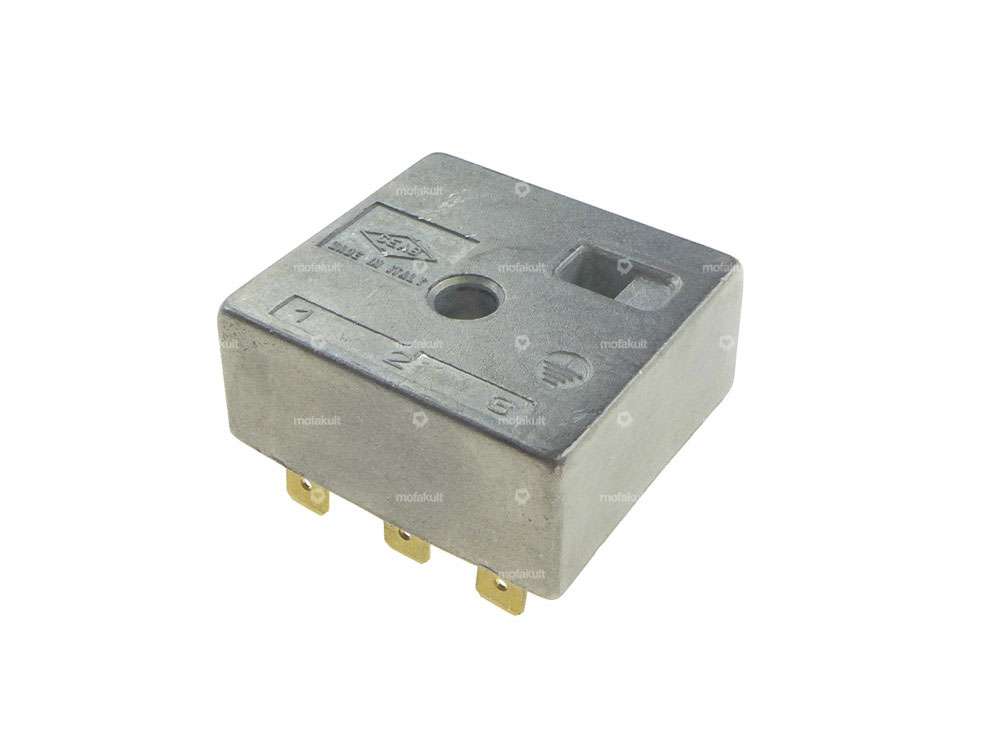

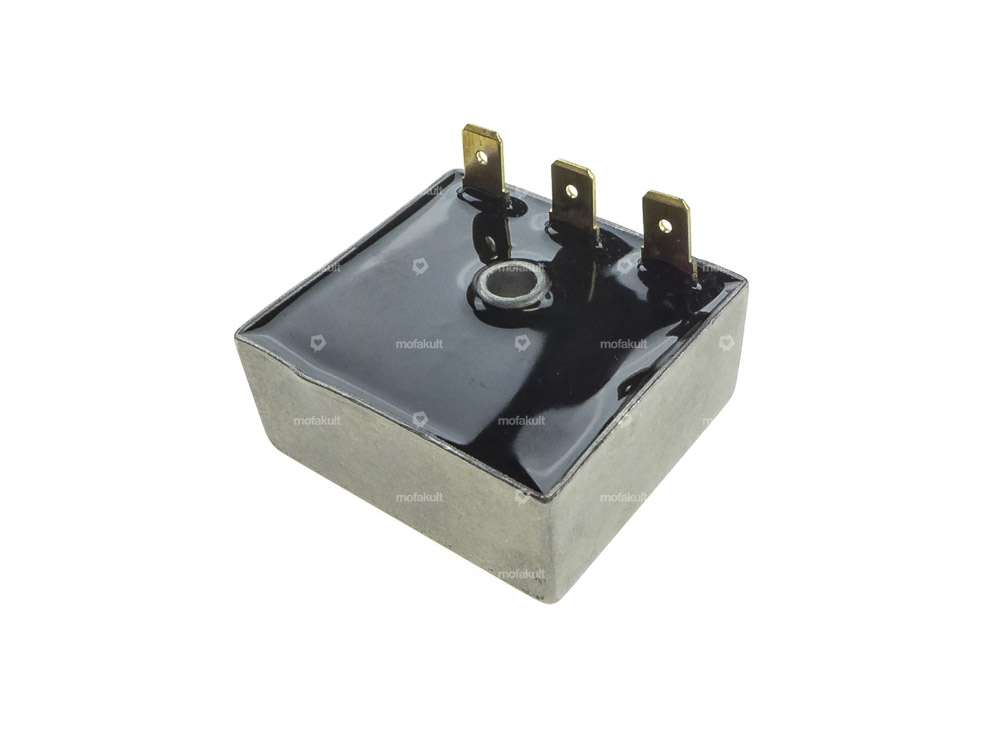

Voltage regulator suitable for CDI ignitions with 12V - 12 ampere.
The regulator has 3 connections:
Pin 1: Yellow, current-carrying cable from the light coil
Pin 2: Yellow cable to light
Pin 3: Ground
Quality product from the Italian manufacturer CEAB.
Details
| Ø mounting hole | 6 mm |
| Manufacturer | CEAB |
| Material | Plastic |
| Tension | 12 V |
| Type of current | Alternating current (AC) |
| Mounting type | Screws |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) Z50 (X30 Sport) Z50 (X30 Velux) 2-Gang MS, MV, MV50 3-Gang VSD, DS, VZ, MC |
| Sachs | 50 (Fahrtwind, 1.25 / 1.5 PS, DE) 502 (Saxonette) - AL, AML 50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS) 50/3 50/4 - MLFB (2.6 PS), LKH (4.5 PS) 50/5 503 - AAL, ABL, 2AL / 2BL, AB, AC, ADV 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
| Zündapp Belmondo |
