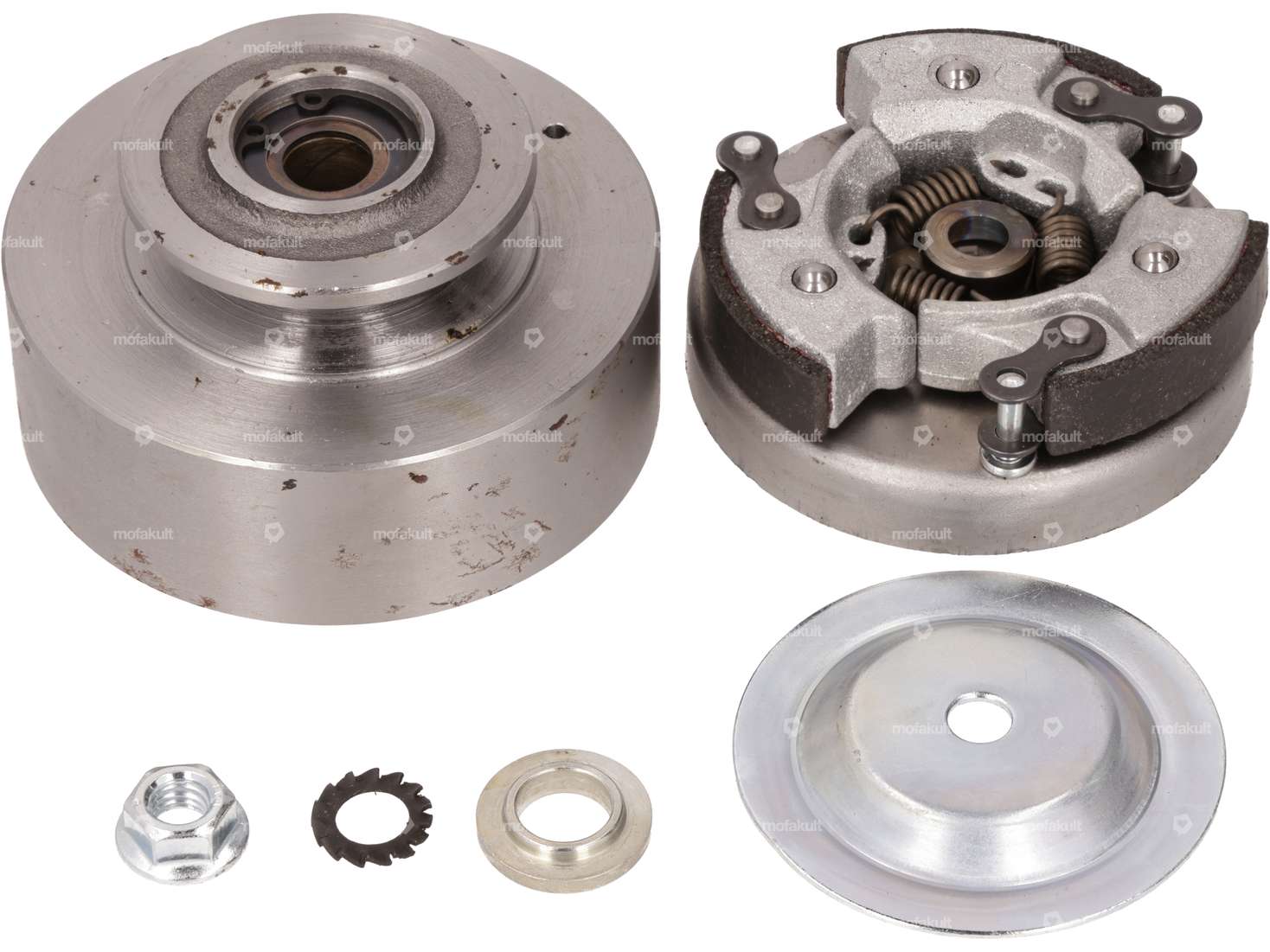

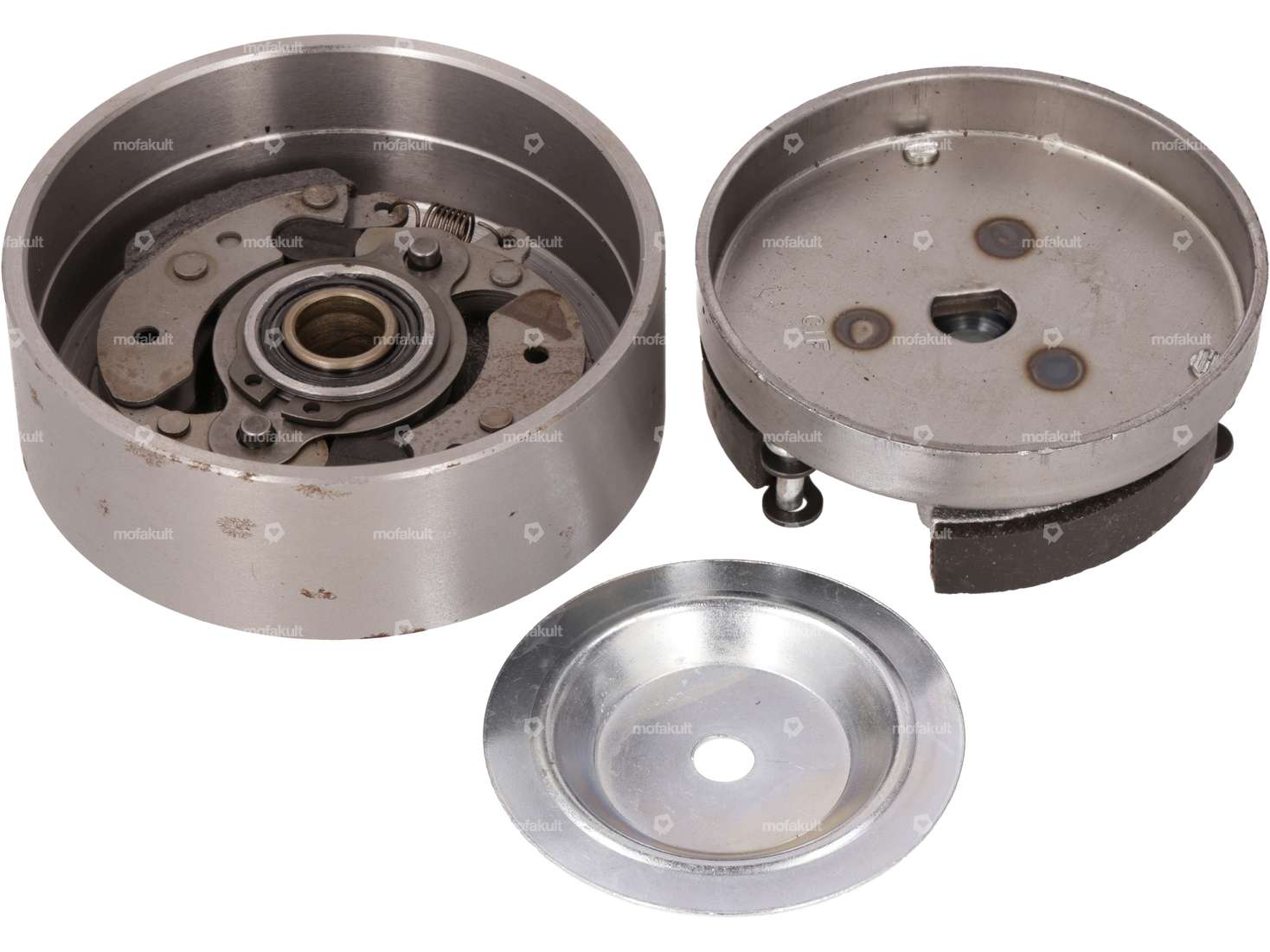

Original 1.2 hp clutch with — 56 mm for Piaggio mopeds such as Ciao, SI, Bravo and similar models with mono gearbox and 16° cast rims.
Note: During assembly, it is essential to adjust the axial play of the clutch bell in order to prevent the rivets from sticking to the starter clutch, this should be 0.1-0.2 mm.
It is essential to remove the liner before installing the clutch; the needle bearings inside the clutch must then be filled with grease, otherwise the clutch bearing will run dry and seize.
Matching spacers can be found in the accessories section.
Original Piaggio spare part number: 1651505/ 4803595
Made by the Italian brand CIF.
Details
| Manufacturer | CIF |
| Ø Outer pulley | 56 mm |
| Material | Steel |
| Ø inside | 82 mm |
| Number of jaws | 3 pcs, 2 pcs |
| Ø outside | 90 mm |
| Number of springs | 3 pcs, 2 pcs |
| Area of application | Standard |
Suitable for the following models
| Piaggio | Ciao - Ciao, Ciao, Ciao, Ciao Si Bravo/Superbravo Boxer Grillo |
