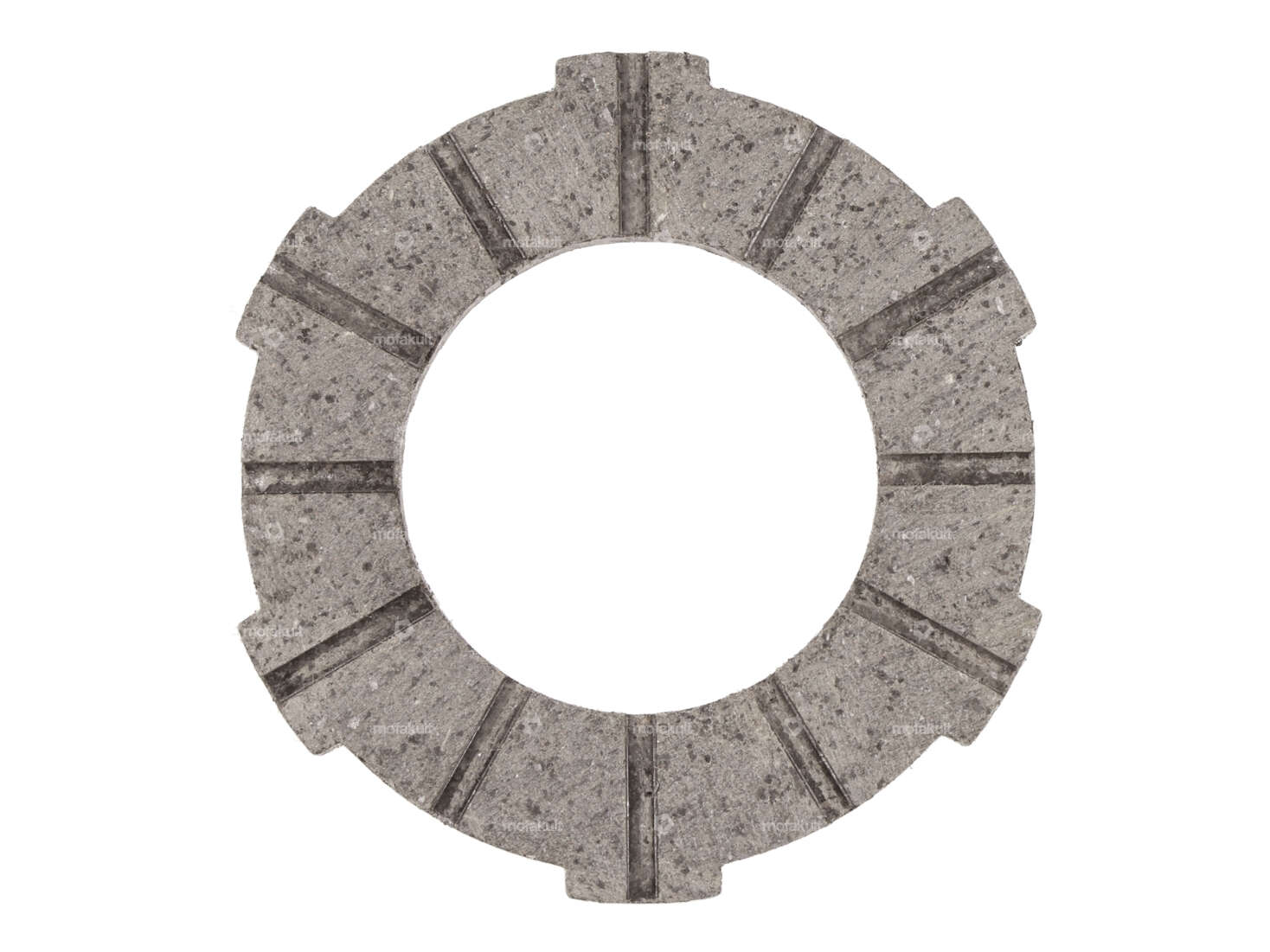

Clutch plate for your moped, moped or small motorcycle with Sachs 504, 505, 508, 535 engine (manual & automatic).
This 4.2 mm thick version was installed in combination with a 3.2 mm clutch disk in 505 and 508 engines ex works according to the technical documentation. However, the combination also occasionally appears in 504 or 535 engines.
Details
| Ø inside | 36.8 mm |
| Material | Composite materials |
| Number of slats | 1 pcs |
| Thickness | 4.2 mm |
| Ø outside | 66 mm, 61.3 mm |
Suitable for the following models
| Sachs | 504 (ohne Tretwelle) 505 (mit Tretwelle) - 1A (AT), 2 A (HG) 508 - 1 A 535 |
