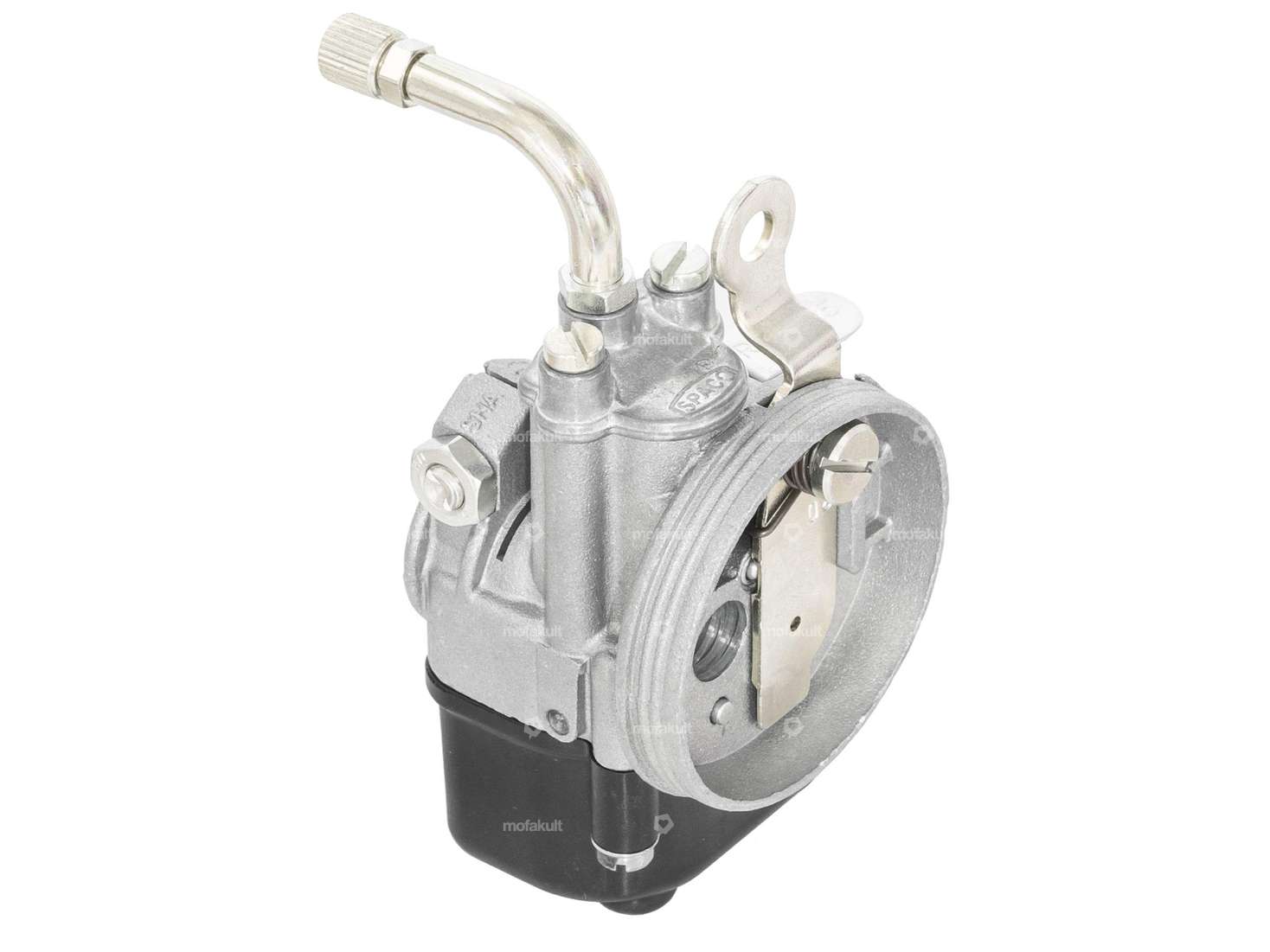

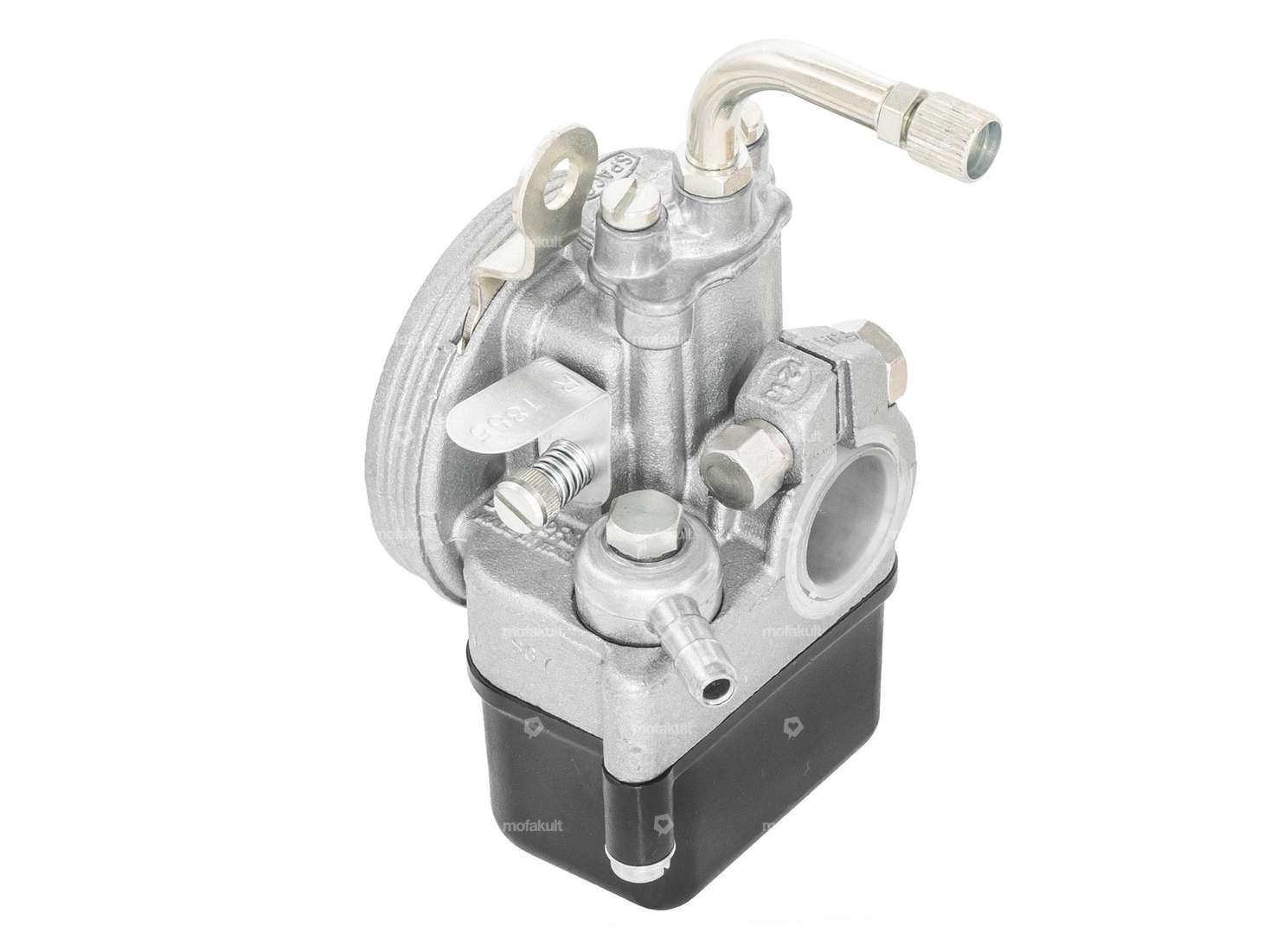

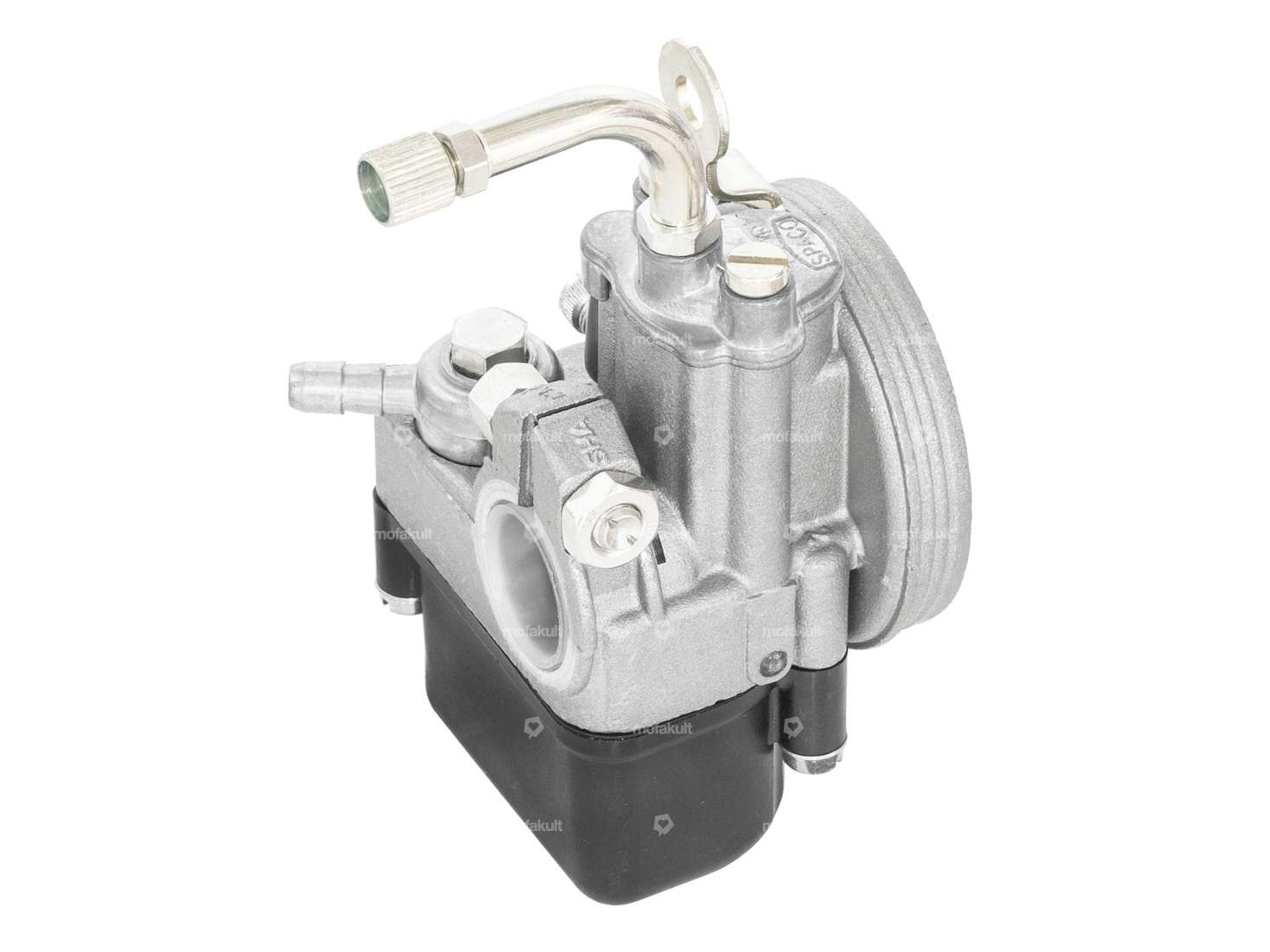

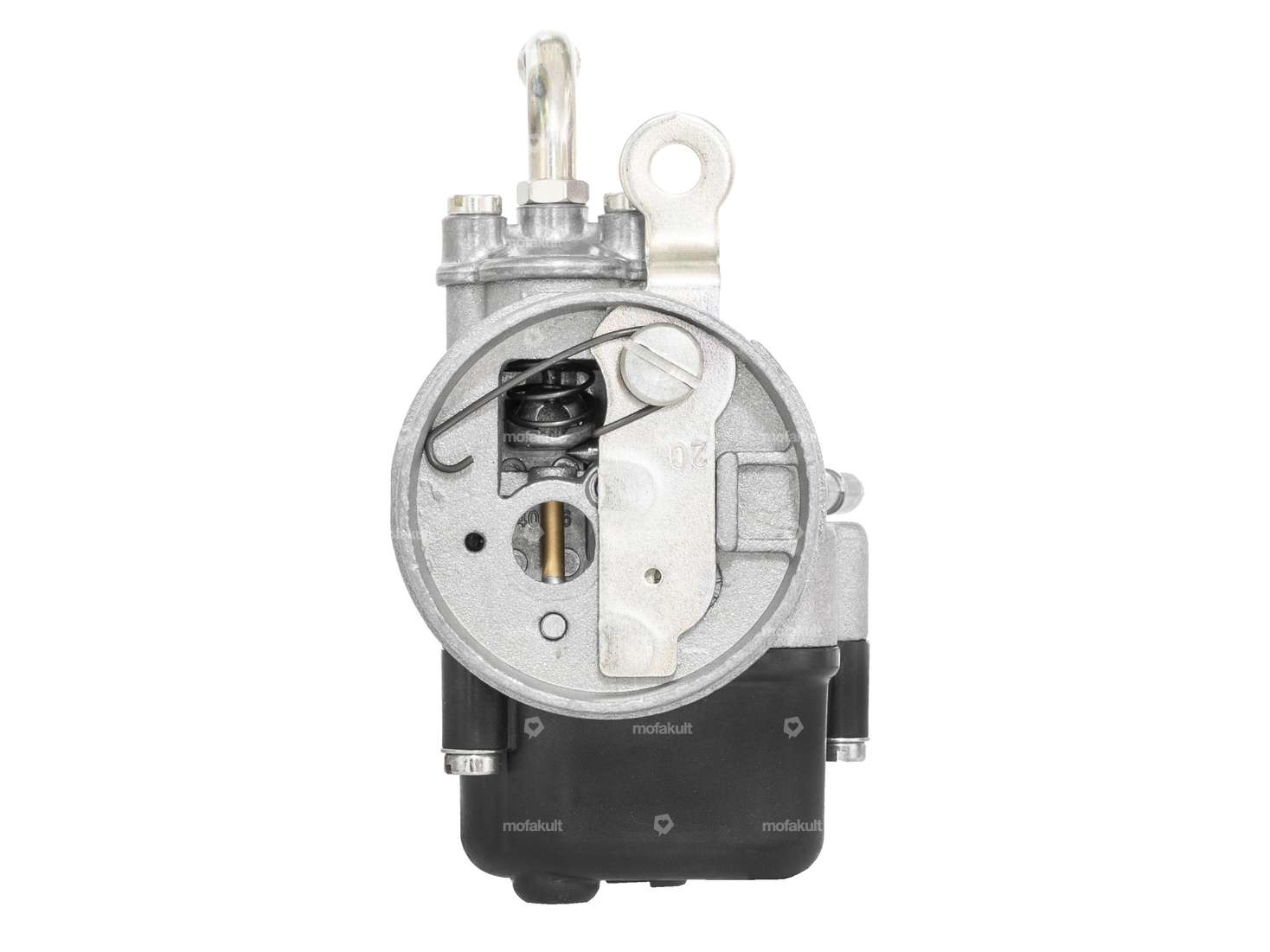

Dell'Orto 12/10 mm SHA carburetor suitable for Pony Beta 521 mopeds.
This carburetor is an alternative to the original Pony carburetor. The choke lever differs slightly from the original carburetor.
Installed dimensions: 37
Attention: To be able to mount the carburetor with the original air filter box, the flange in the accessory must be glued on with Loctite 638 and an air filter mat must be inserted in the air filter box. It is no longer possible to fit the air filter screen!
You can find the attachment parts and suitable nozzles in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
The set includes the following fixed parts:
Nozzle size: 37 · Manufacturer: Dell'Orto · Camouflaged: No · Material: Aluminum · Color: black · Carburetor type: SHA (type 3) · Nominal diameter: 12 mm, 10 mm · Ø Internal connection: 16 mm · Ø without reducing sleeve: 19 mm · Ø Inside entrance: 10 mm · Ø Output inside: 12 mm · Ø Air filter connection: 50.6 mm · Ø fuel hose connection: 6 mm, 5.3 mm · Mixed oil connection: No · Vacuum connection: No · Choke control: Hand choke · Nozzle thread: M5 · Mounting type: Plug connection clamped · Total length: 55 mm · Width: 60 mm · Height: 111 mm · Area of application: Original, Tuning
Details
| Manufacturer | Dell'Orto |
| Carburetor type | SHA (type 3) |
| Nominal diameter | 12 mm |
| Ø without reducing sleeve | 19 mm |
| Ø Internal connection | 16 mm |
| Ø Inside entrance | 10 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 50.6 mm |
| Ø fuel hose connection | 6 mm |
| Mixed oil connection | No |
| Mounting type | Plug connection clamped |
| Width | 60 mm |
| Vacuum connection | No |
| Total length | 45 mm |
| Choke control | Hand choke |
| Area of application | Tuning |
| Nozzle thread | M5 |
| Nozzle size | 37 |
| Height | 96 mm |
Suitable for the following models
| Pony / Cilo (Beta 521 & 512) | Beta 512 Beta 521 (Motor) |
