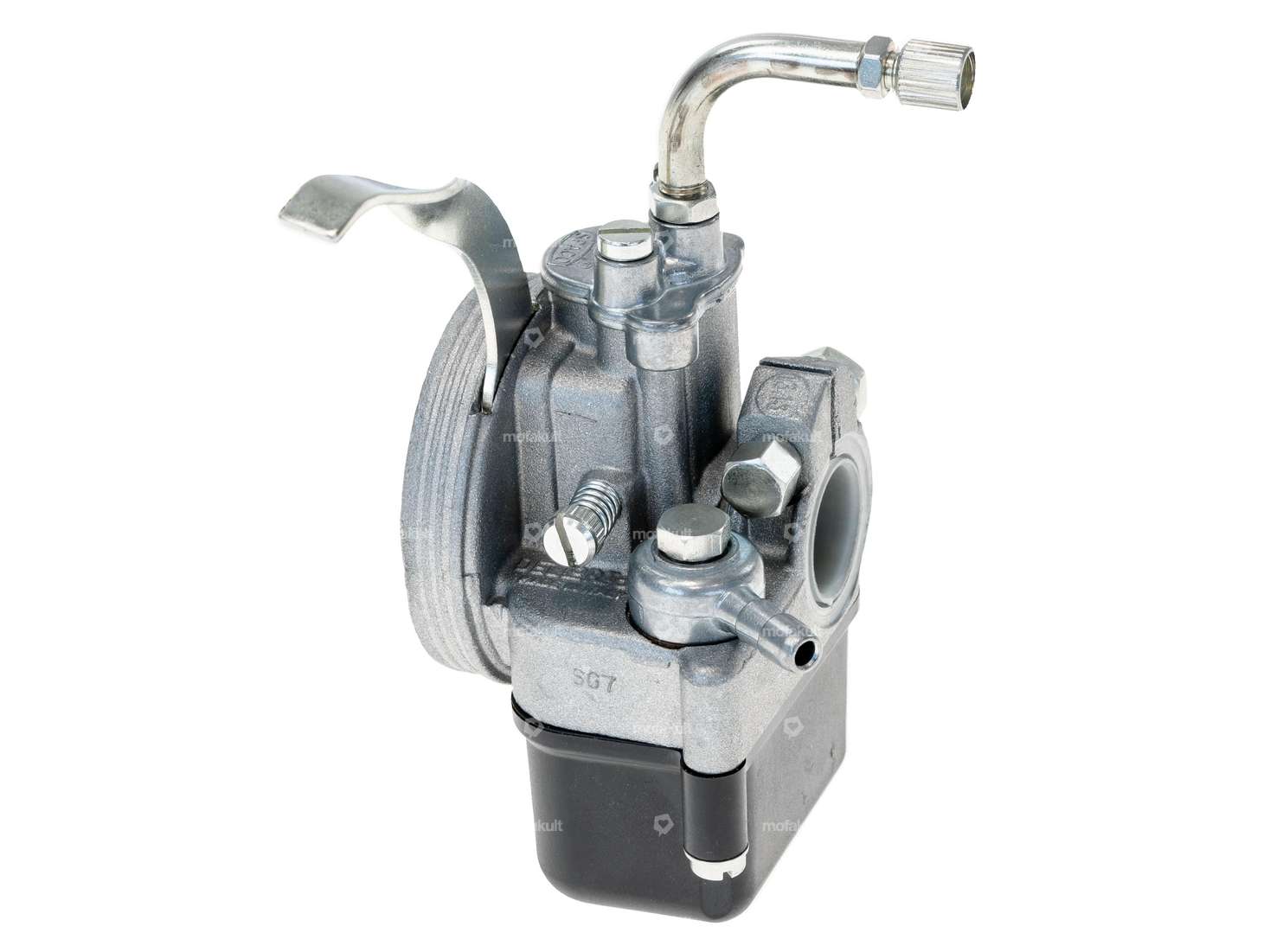

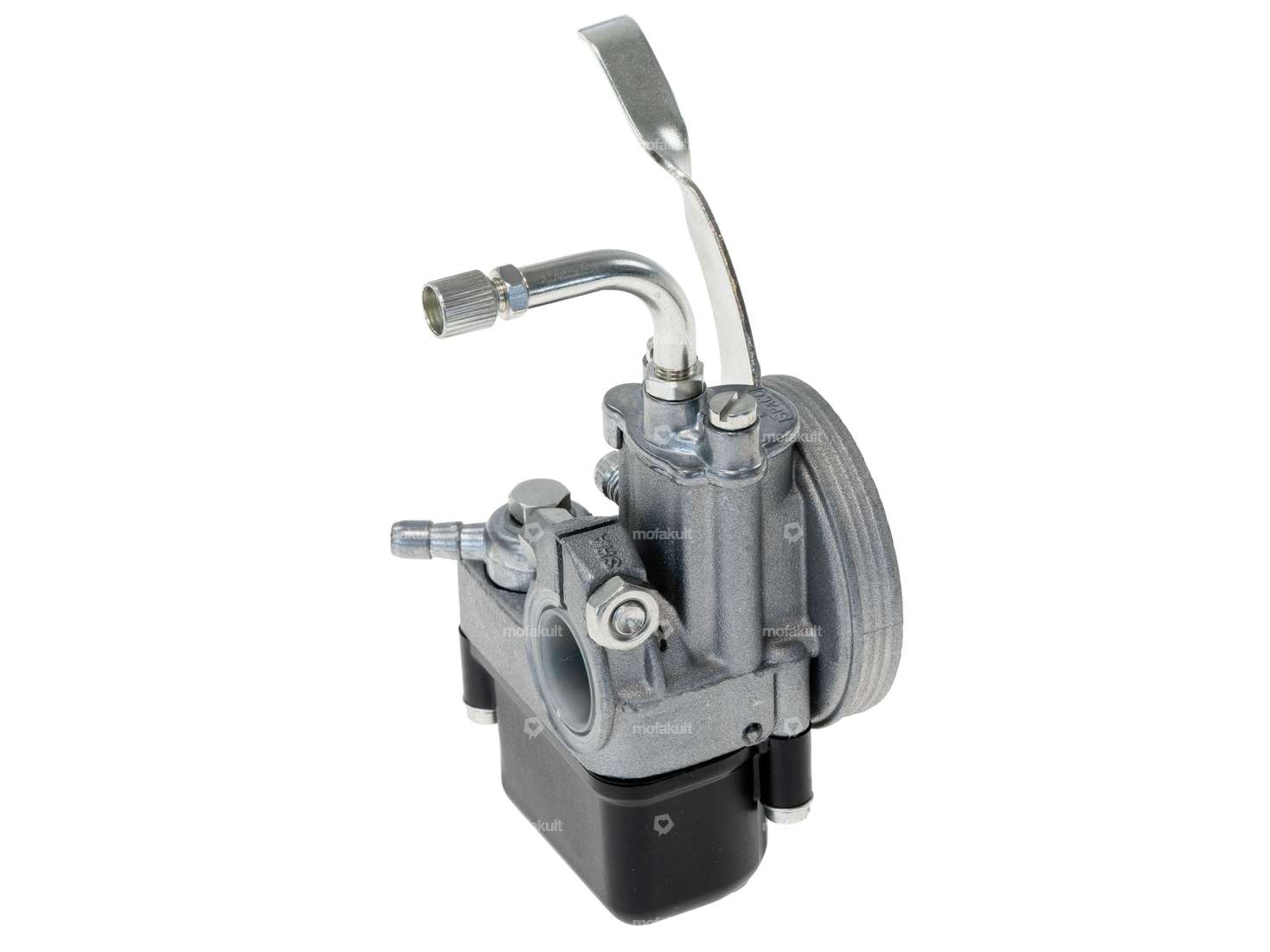

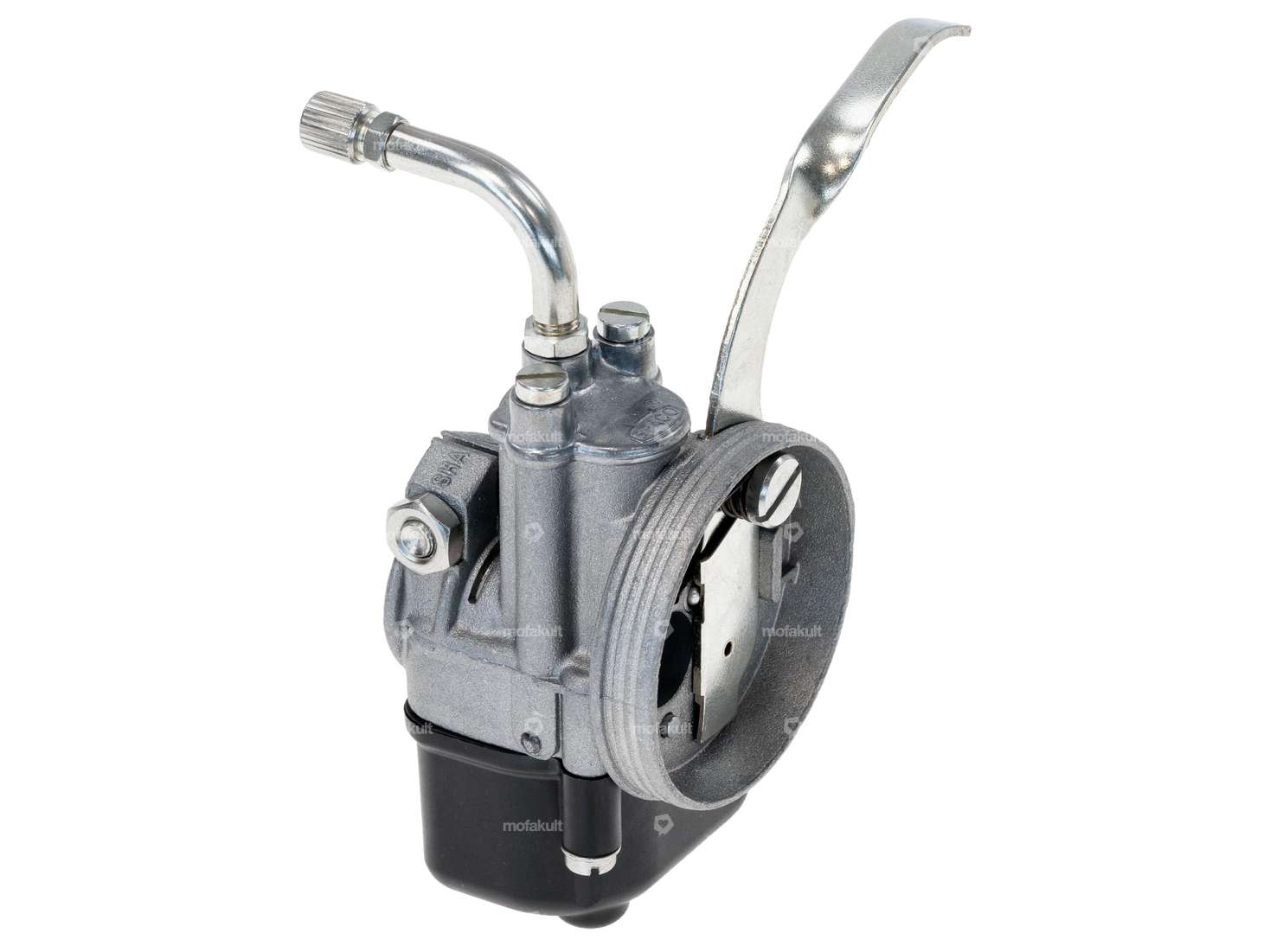

Dell'Orto 13 / 13 SHA racing carburetor for Piaggio Ciao P and SC mopeds / mopeds which have a choke lever that extends to the right.
Depending on the footboard used, the carburetor in this version can also be installed in newer models such as the PX or C24.

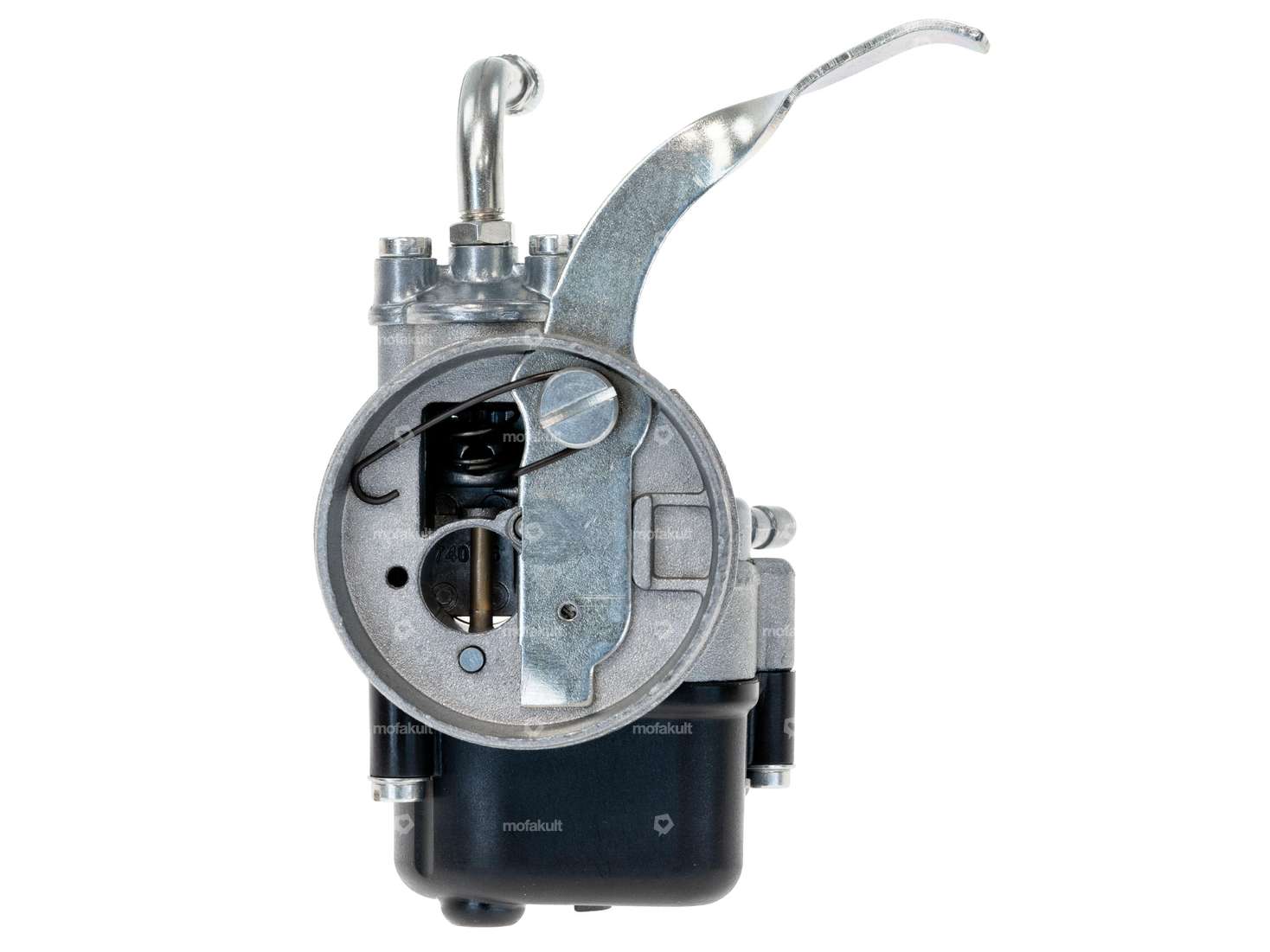

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburetor type: SHA type 3 (SHA3)
Main thread size (M5): 66
Inlet connection diameter: 16 mm (or 18 mm after removing the reduction sleeve)
Ø external air filter connection: 50.9 mm
Ø passage on air filter side: 13 mm
Ø passage on intake manifold side: 13 mm
Total height: 110 mm (without pipe bend)
Total length: 55 mm
Total width: 60 mm
For matching nozzles and alternative air filters, see accessories.
Quality product from the Italian manufacturer Dell'Orto.
Details
Color | black |
Manufacturer | Dell'Orto |
Camouflaged | No |
Material | Aluminum |
Area of application | Tuning |
Carburetor type | SHA (type 3) |
Choke control | Hand choke |
Nominal diameter | 13 mm |
Height | 110 mm |
Ø fuel hose connection | 6 mm, 5.2 mm |
Nozzle thread | M5 |
Nozzle size | 66 |
Ø without reducing sleeve | 18 mm |
Ø Inside entrance | 13 mm |
Ø Output inside | 13 mm |
Ø Air filter connection | 50.9 mm |
Ø Internal connection | 16 mm |
Width | 60 mm |
Total length | 55 mm |
Mixed oil connection | No |
Vacuum connection | No |
Mounting type | Plug connection clamped |
Suitable for the following models
Piaggio | Ciao - Ciao, Ciao |
