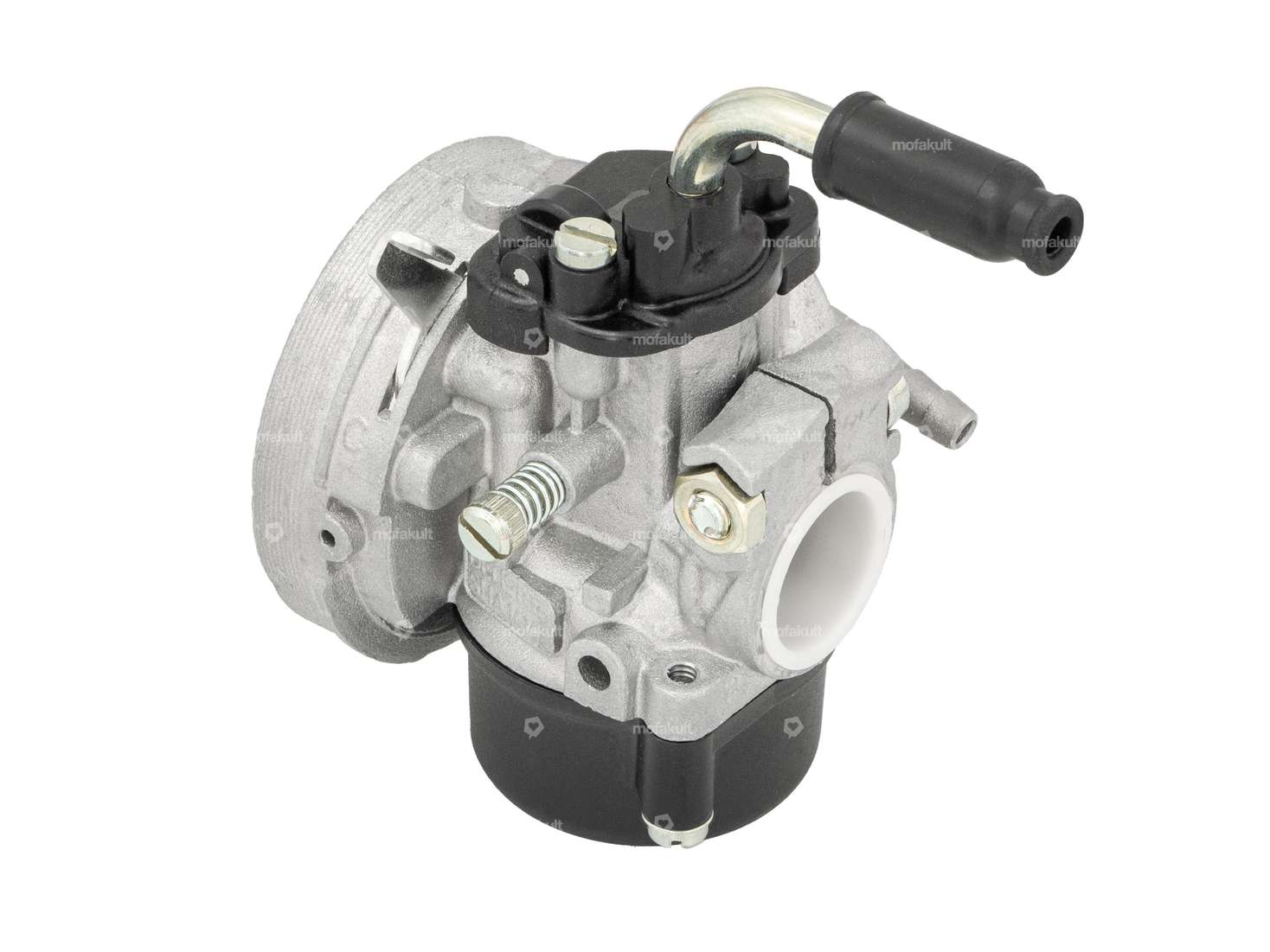

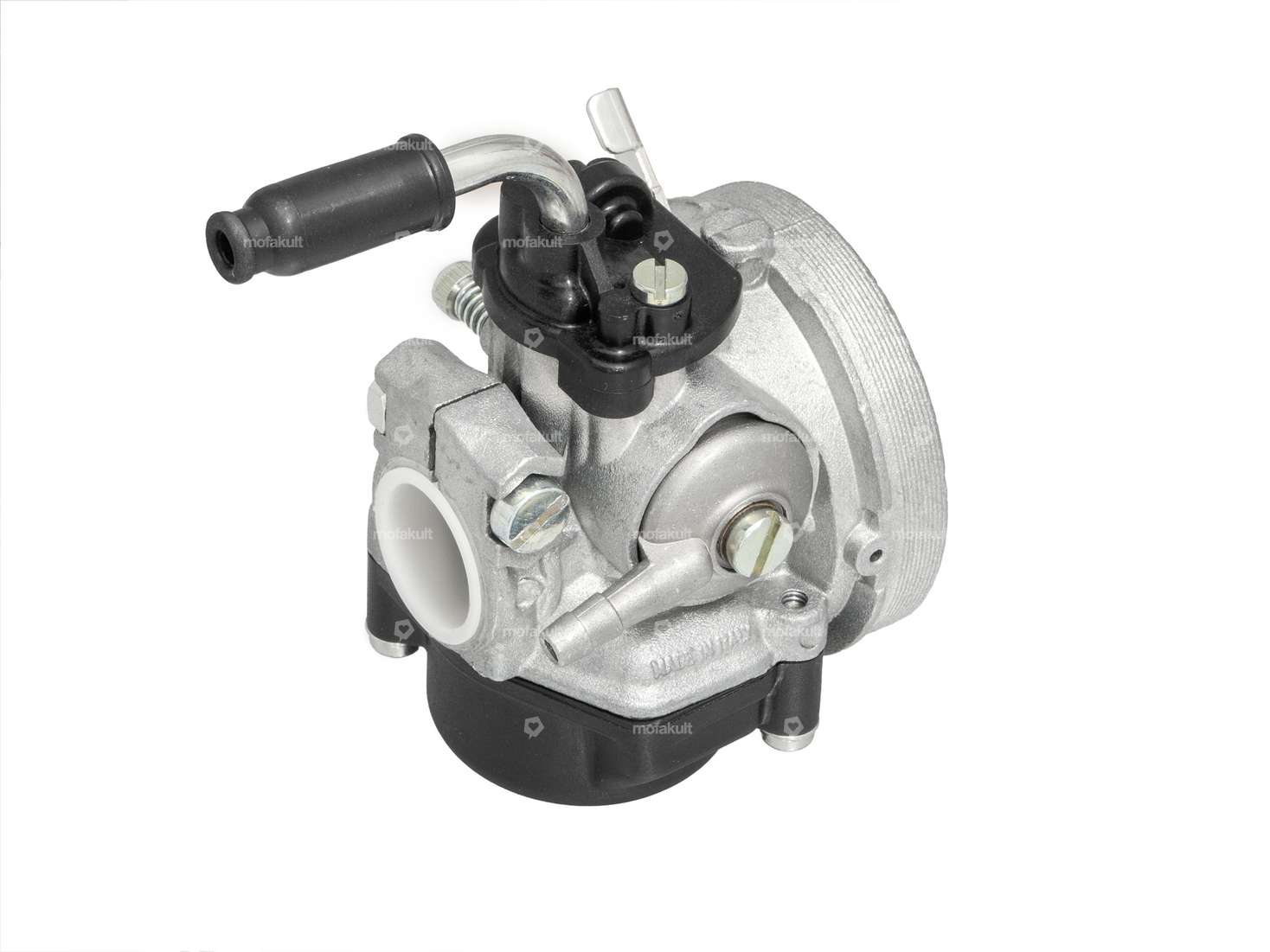

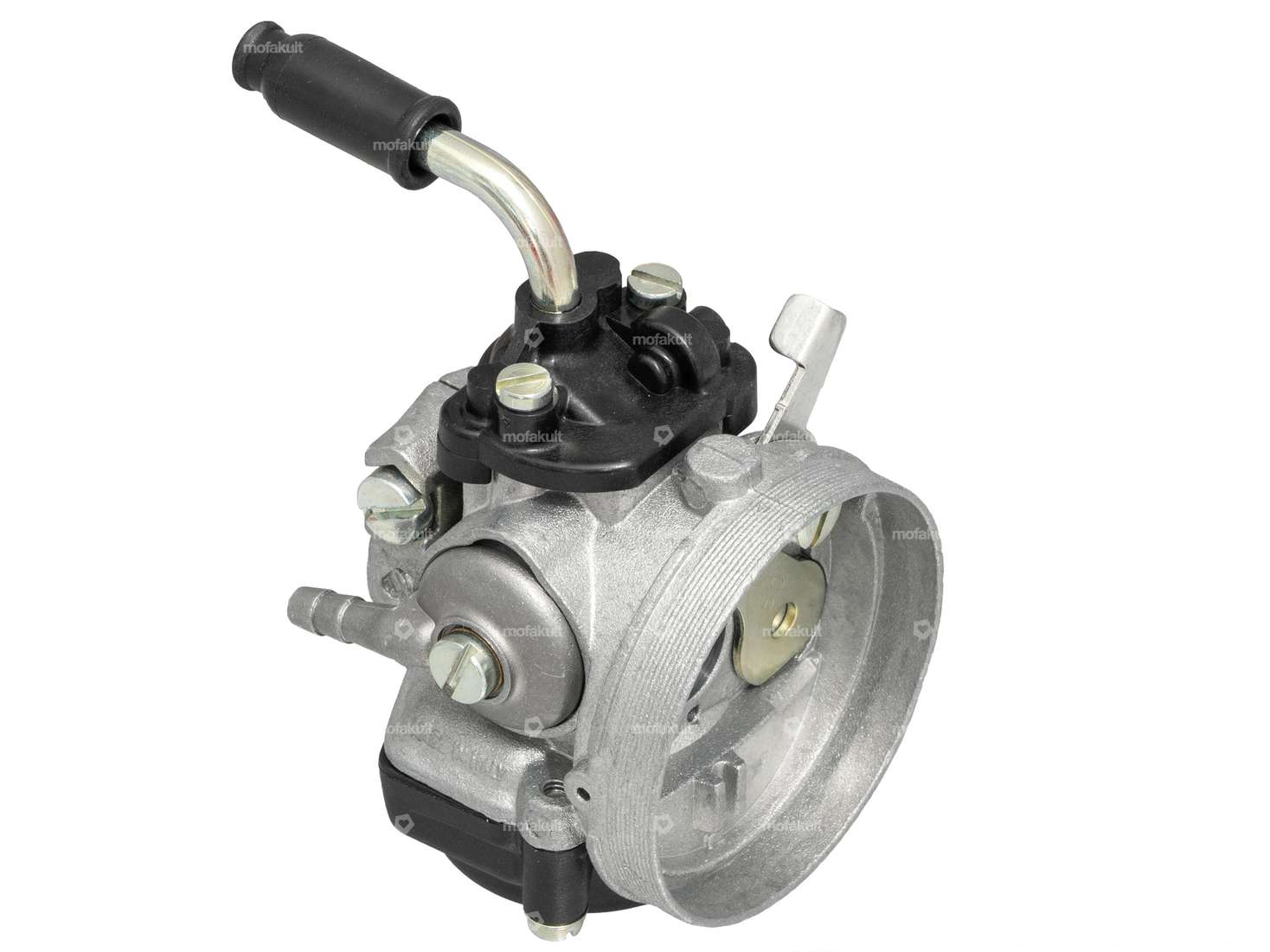

The Dell'Orto 14 / 14 L SHA carburetor impresses with its compact design and can be used universally for various mopeds, mopeds and small motorcycles.

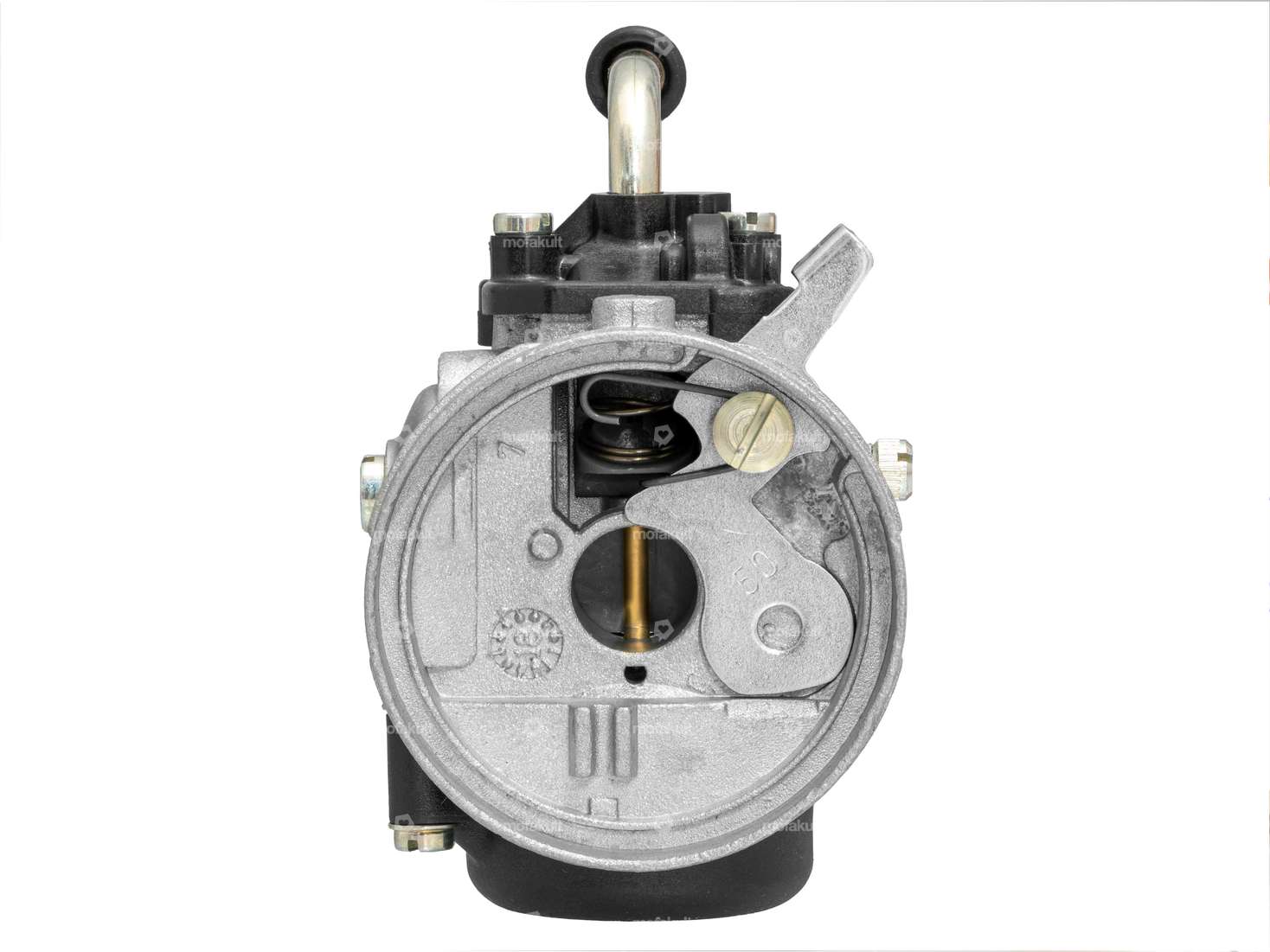

The tuning carburetor has a manually operated choke / starter slide. The starter flap engages by pressing it down and is only returned to its original position by actuating the throttle cable (full throttle).
Carburettor type: SHA type 4 (SHA4)
Main diameter (M5): 68
Ø Intake port connection: 19 mm (or 21 mm after removing the reducer). 21 mm after removing the reducing sleeve)
Ø external air filter connection: 59 mm
Ø passage on air filter side: 14 mm
Ø passage on intake manifold side: 14 mm
Total height: 95 mm (without pipe bend)
Total length: 58 mm
Total width: 65 mm
Matching nozzles, intake manifolds and air filters can be found in the accessories section.
Quality product from the Italian manufacturer Dell'Orto.
Details
| Manufacturer | Dell'Orto |
| Area of application | Tuning |
| Carburetor type | SHA (type 4) |
| Nominal diameter | 14 mm |
| Ø Internal connection | 19 mm |
| Ø without reducing sleeve | 21 mm |
| Ø Inside entrance | 14 mm |
| Ø Output inside | 14 mm |
| Mounting type | Plug connection clamped |
| Ø Air filter connection | 59 mm |
| Total length | 58 mm |
| Width | 65 mm |
| Ø fuel hose connection | 6 mm |
| Height | 95 mm |
| Choke control | Hand choke |
| Nozzle thread | M5x0.8 (standard thread) |
| Nozzle size | 68 |
