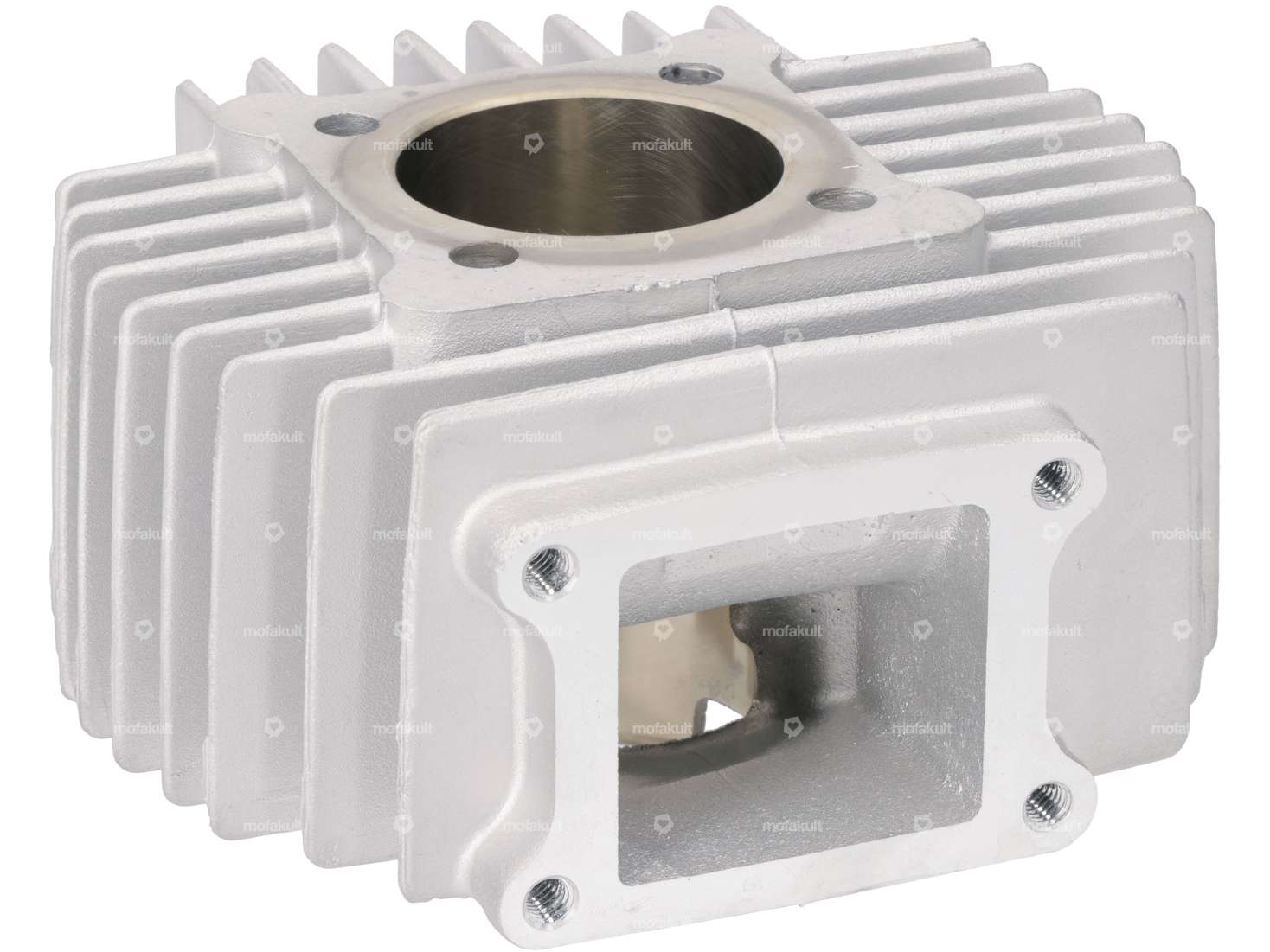

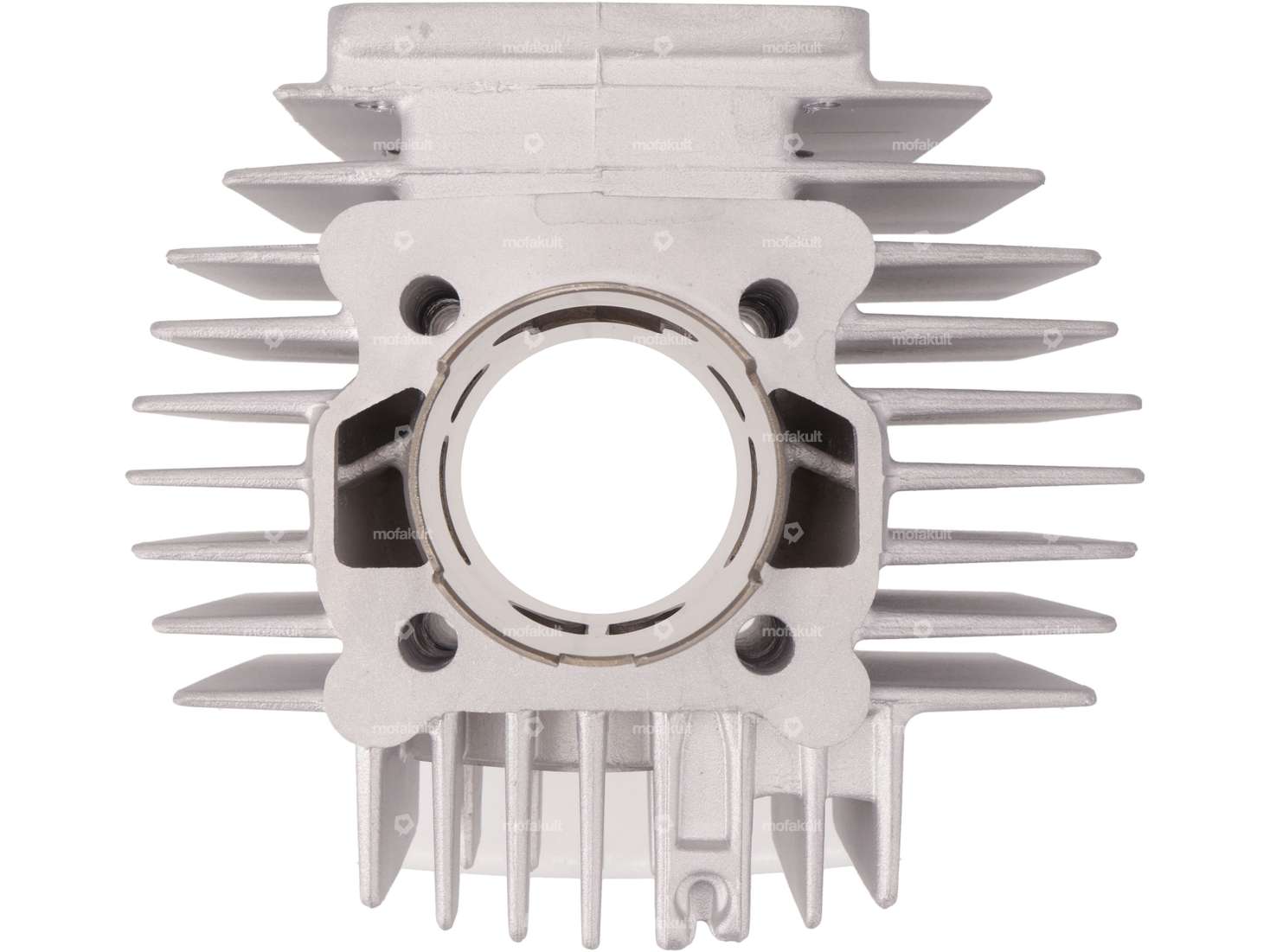

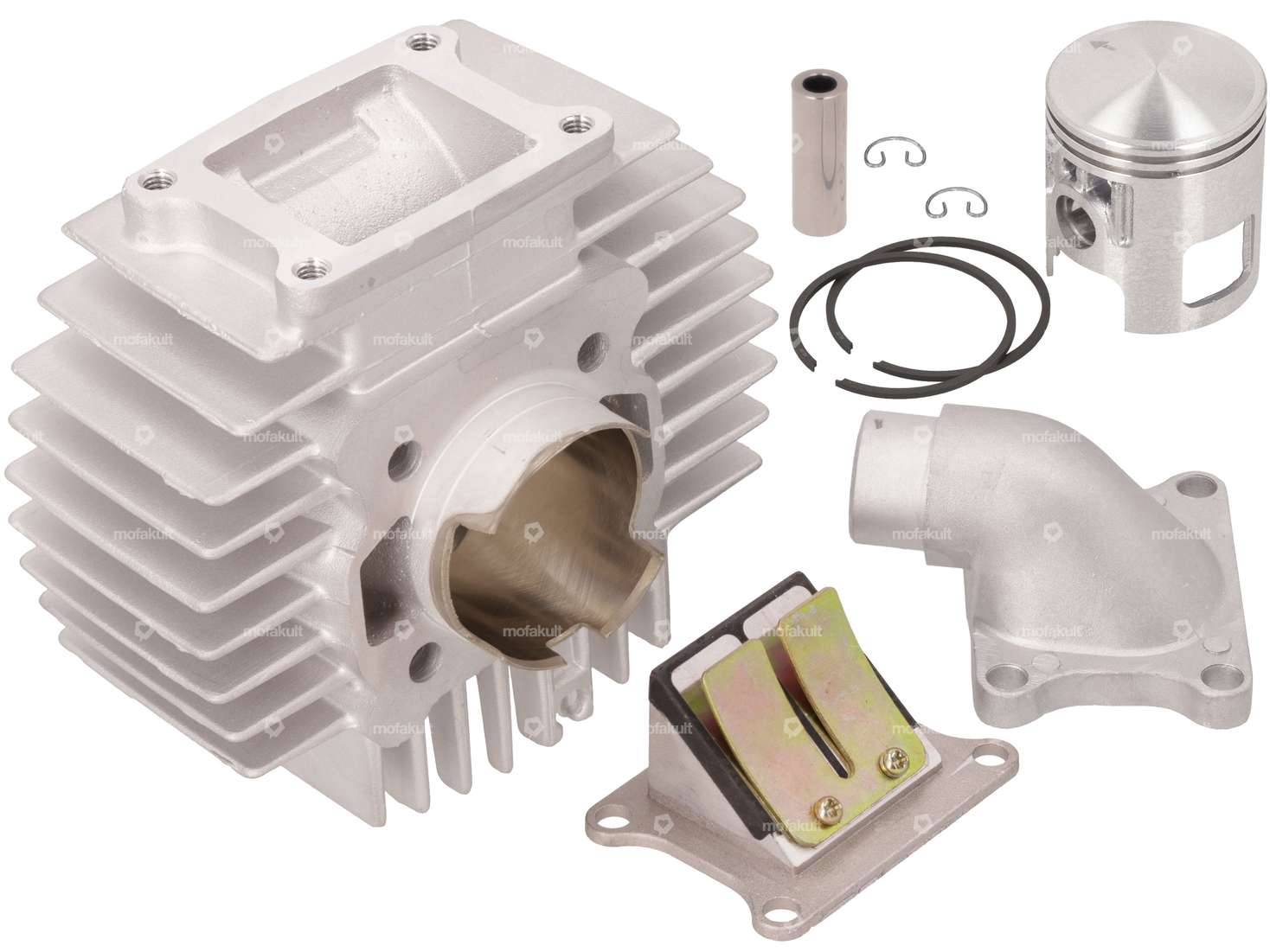

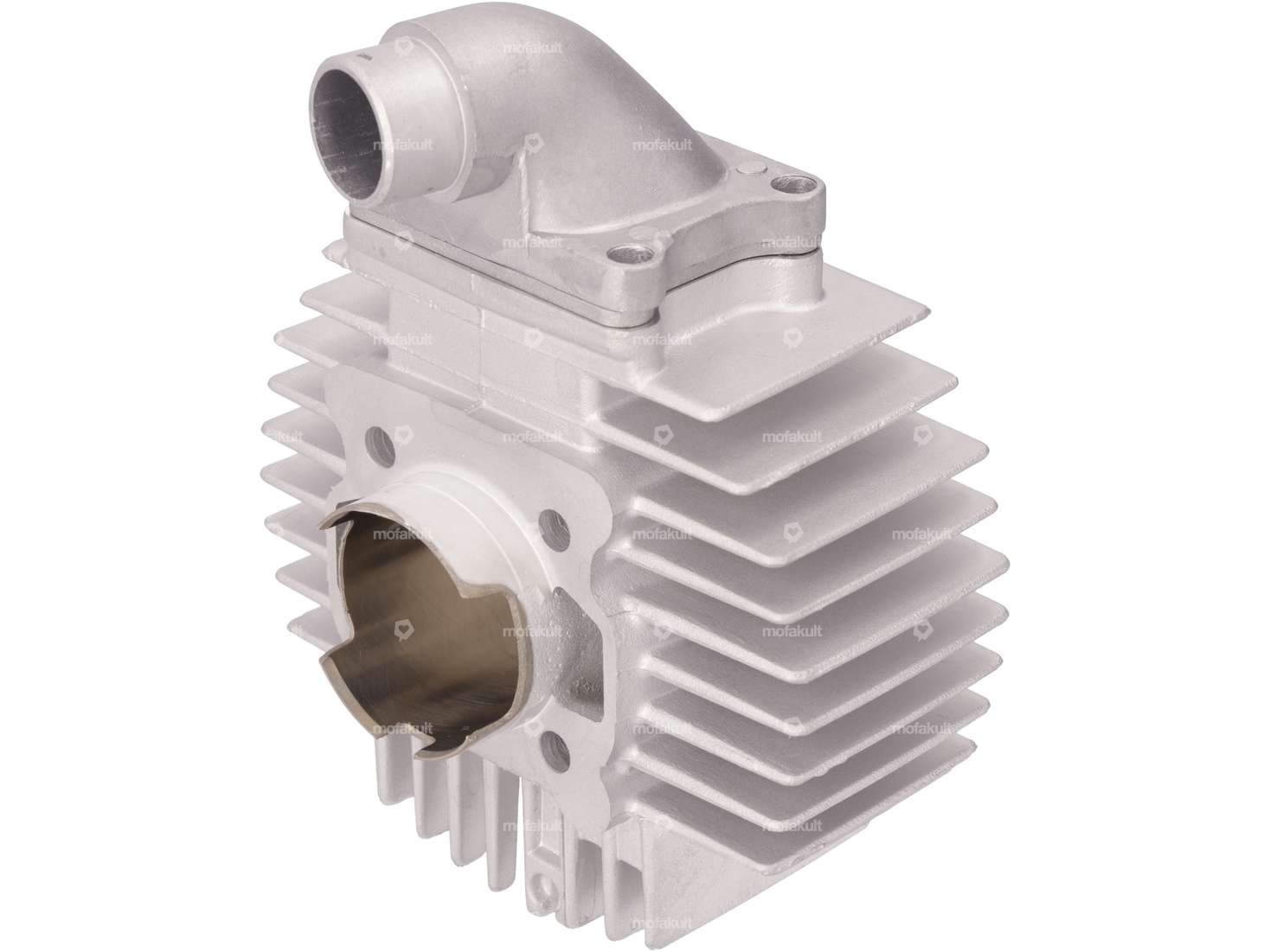

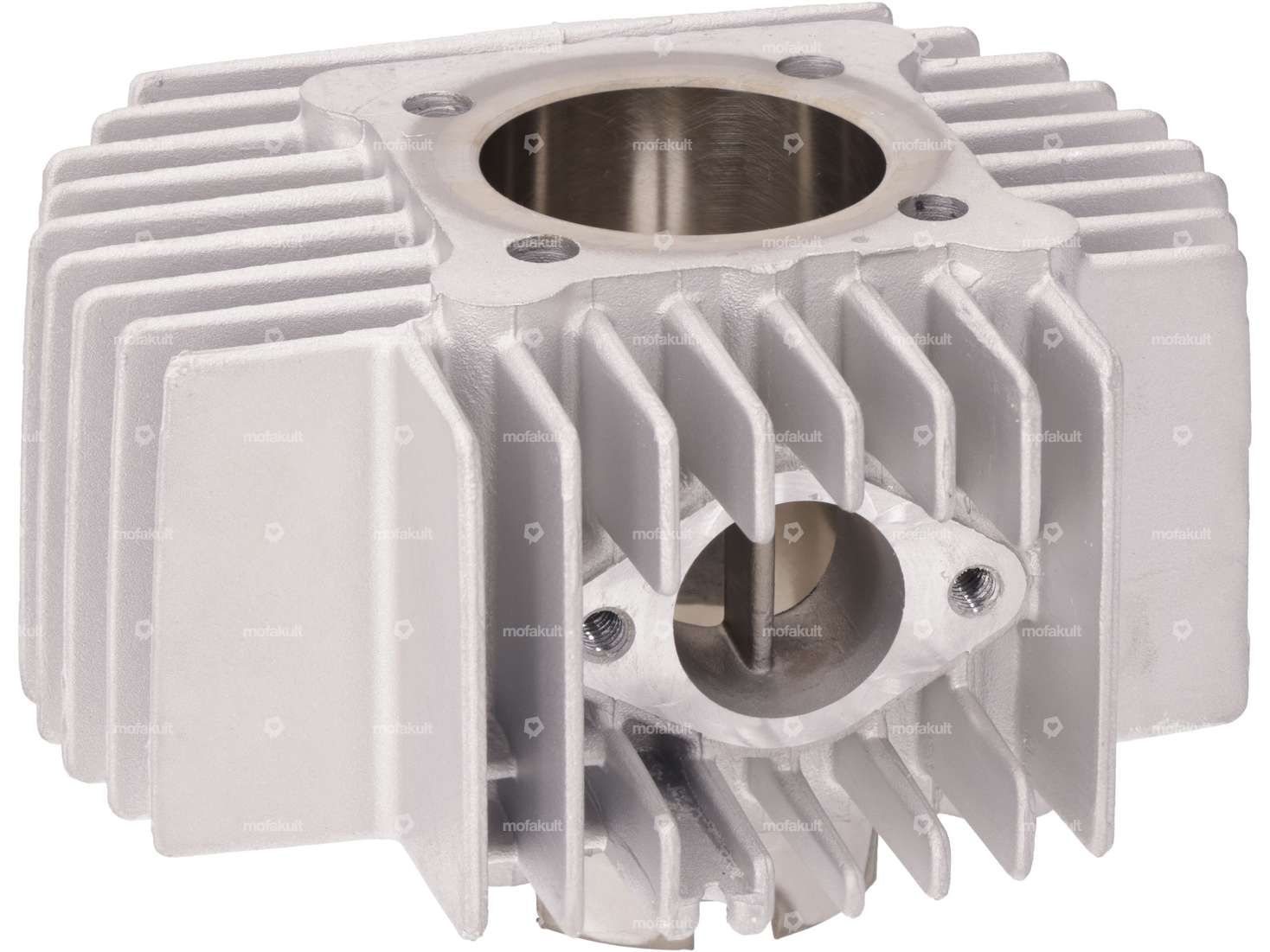

Powerful cylinder for Puch mopeds / mopeds without the need to rebuild the housing.
With 45 mm bore and reed valve inlet. Carburetor at least 17 mm and a racing exhaust should be fitted to exploit the full power.
Details
Manufacturer | DMP |
Material | Aluminum |
Camouflaged | No |
Displacement | 70 ccm |
Crankshaft stroke | 43 mm |
Nominal diameter | 45 mm |
Surface | sandblasted |
Ø piston pin (B) | 12 mm |
Hole spacing outlet | 42 mm |
Hole pattern [mm] | 44 x 44 |
Number of fixing points | 4 pcs |
Thread outlet | M6x1 (standard thread) |
Area of application | Tuning |
Suitable for the following models
Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
swiing® ingenious gasket set 44 - 45 mm cylinder | Puch
Manufacturer: swiing® ingenious parts · Area of application: Tuning · Ø cylinder: 44 mm · Ø cylinder: 45 mm · Hole spacing inlet: 38 mm · Number of components: 4 pcs · Hole pattern [mm]: 44 x 44 mm · Decompressor: Yes · Hole spacing outlet: 42 mm
CHF 9.90
swiing® ingenious needle roller bearing 12/15/14.2 original silver cage
Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Width: 14.2 mm · Ø outside: 15 mm · Ø inside: 12 mm · Dimension needle bearing: 12/15 x 14.2 · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548
CHF 11.90

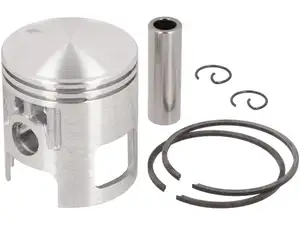

DMP piston 45 mm diaphragm cylinder kit | Puch
