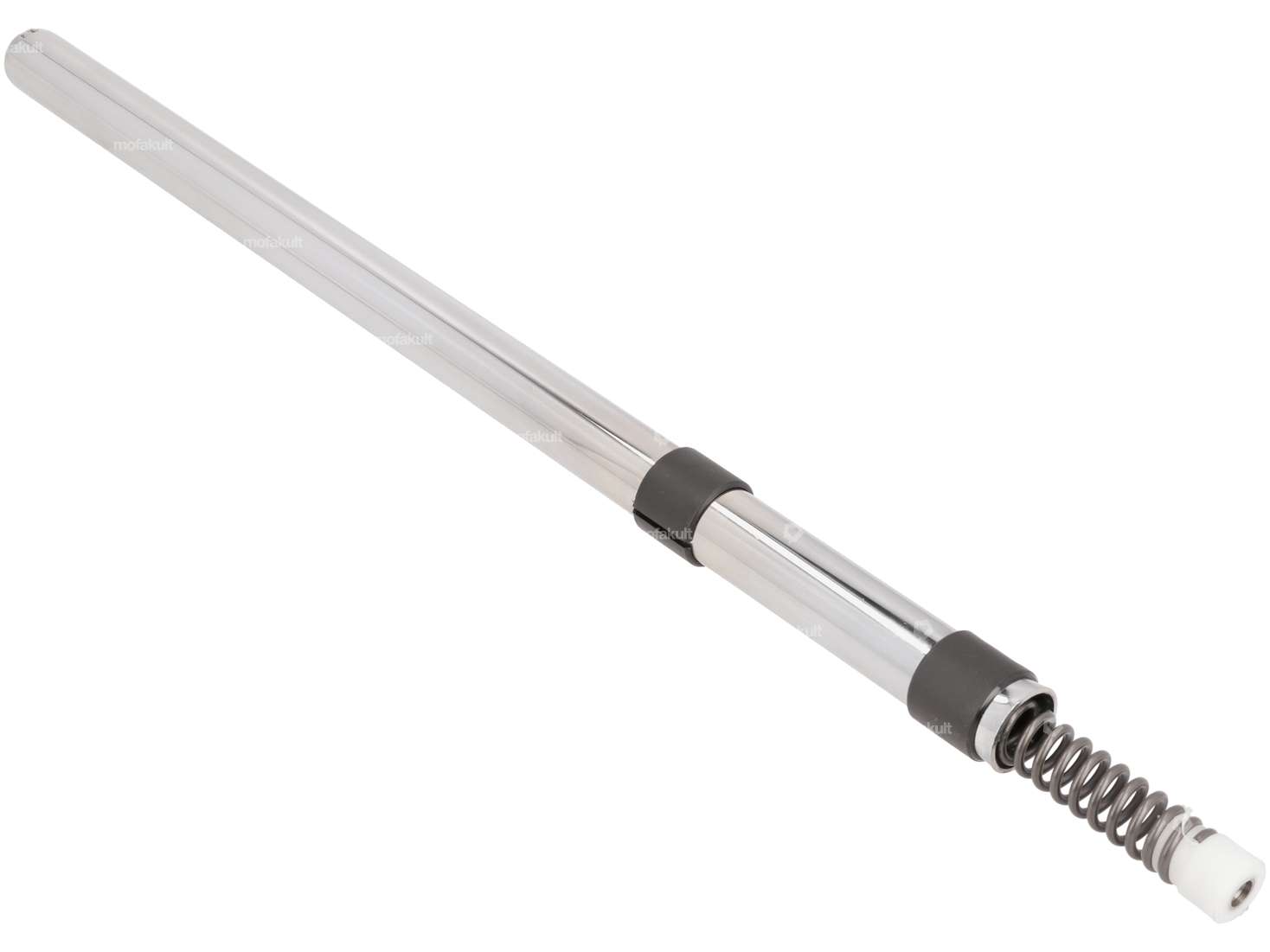

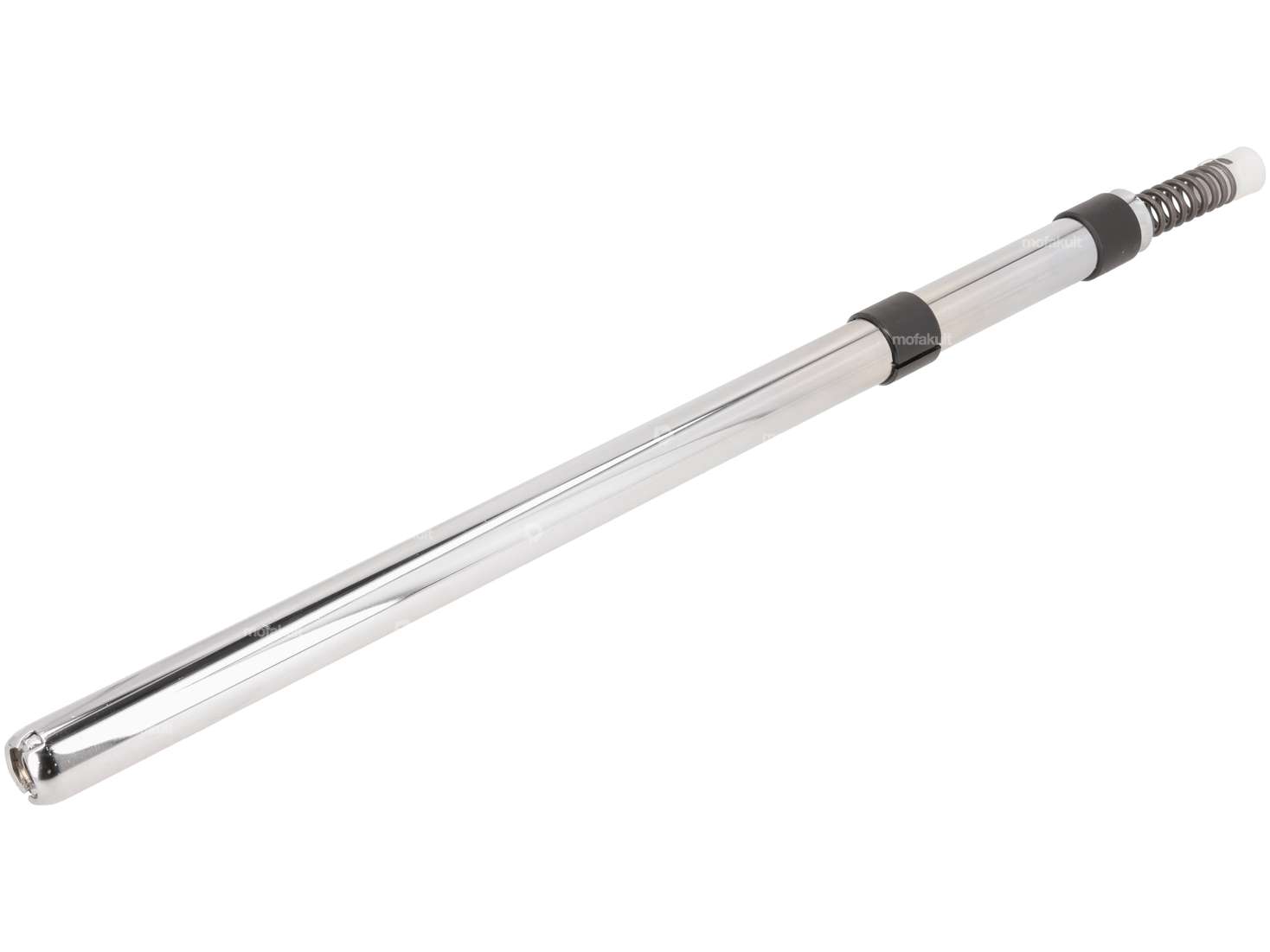

Single fork leg suitable for the long "EBR Puch fork reinforced, in black or chrome".

The spring and the sliding bushes are included in the scope of delivery.

Ø fork leg: 28 mm
Ø spring seat: 21 mm
Length of legs: 54 cm
Total length with springs: 62.5 cm
Spring seat thread: M8x1.25
Bottom fork thread: M12x1.75

(stanchion tube, dip tube)

Branded product from the Italian manufacturer EBR.

Details

Total length	625 mm
Manufacturer	EWC
Material	Steel
Surface	chrome-plated
Color	Chrome
Adjustable	No
Ø spars	28 mm
Thread type	M8x1.25 (standard thread), MF12x1.25 (fine pitch thread)

Suitable for the following models

Puch
Sachs
Piaggio
Zündapp Belmondo
