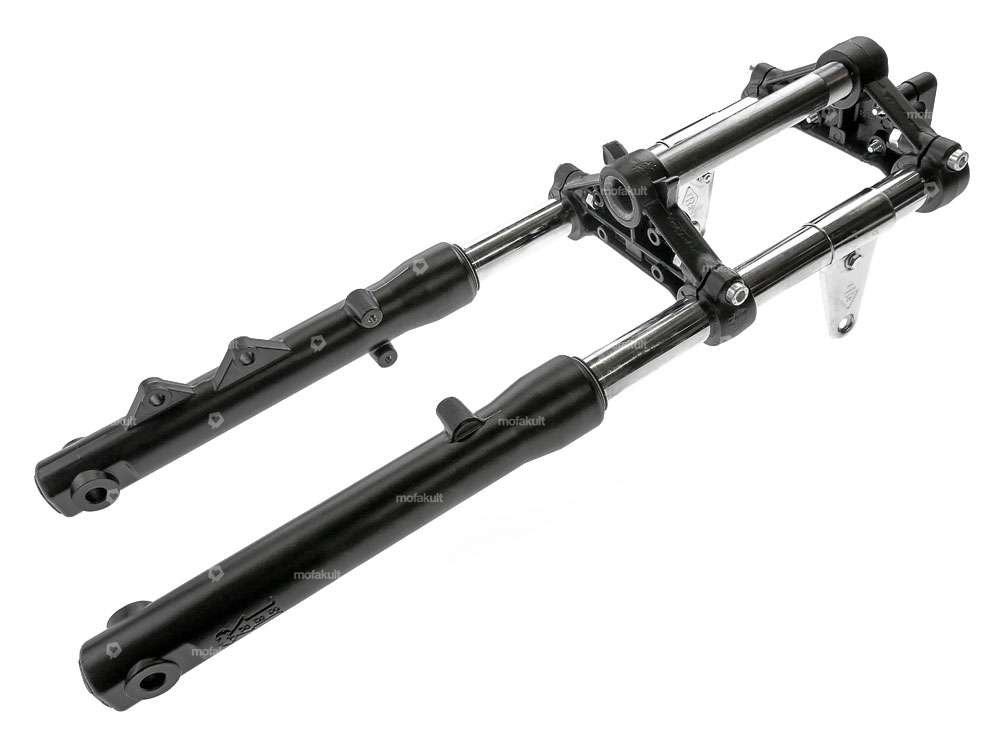

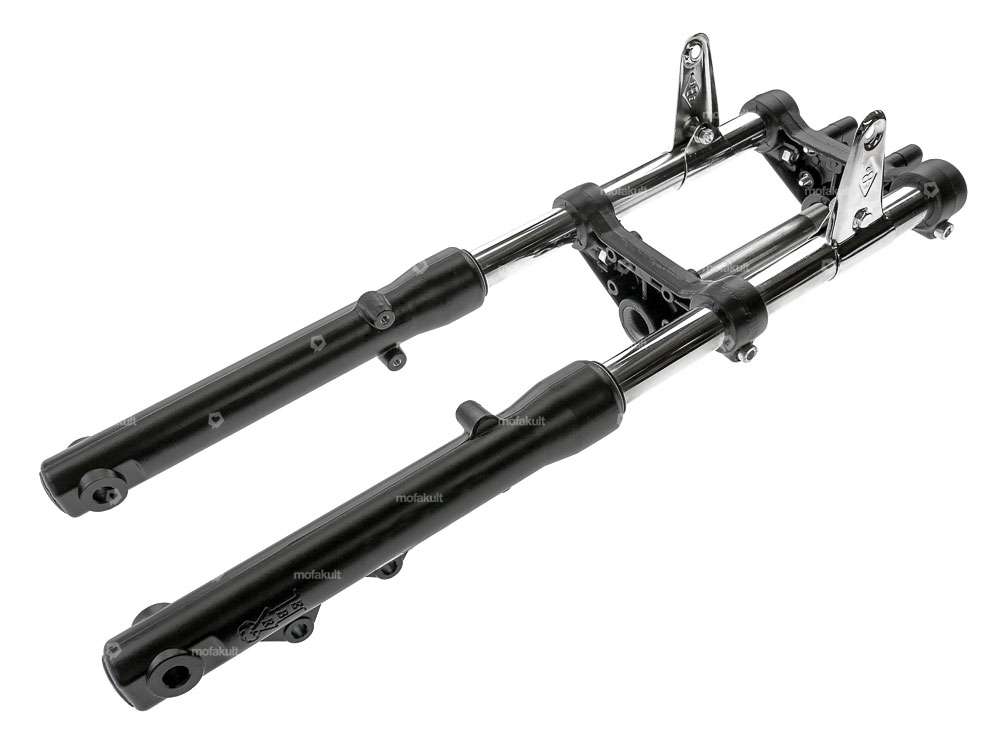

Fork from the manufacturer EBR for disc brake systems on your Sachs moped / moped or small motorcycle.

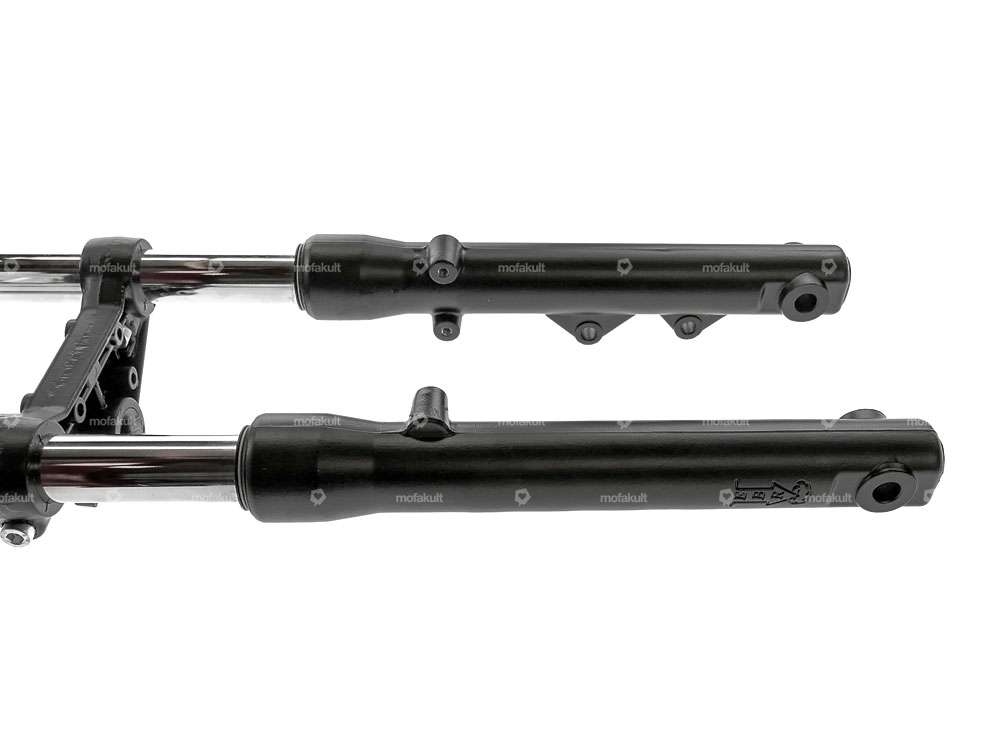

The fork has various threads and holes to mount a brake caliper.
The wheel axle is plugged into this fork.
Total length: 705 mm
Fork bridge - center of wheel axle: 435 mm
Head tube length: 220 mm
Hole distance (center - center): 150 mm
Head tube thread: M26x1
Internal diameter of head tube (for stem mounting): 22.1 mm
Hole spacing brake caliper mounting: 60 mm

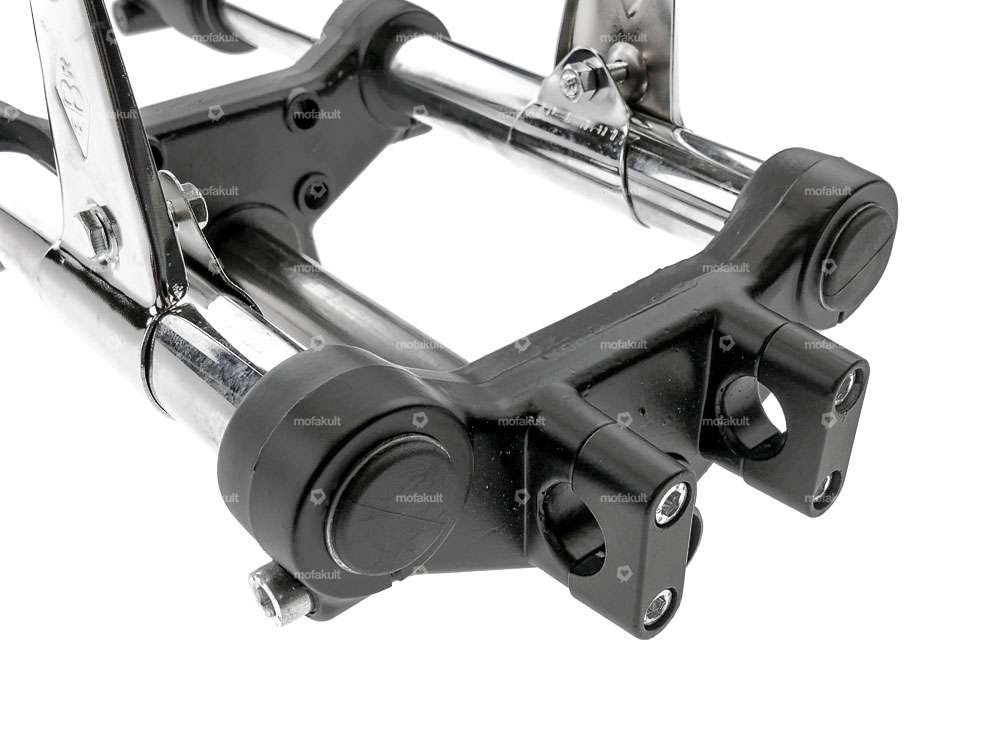

The two handlebar clamps on the upper fork bridge are included in the scope of delivery.
Branded product of the Italian manufacturer EBR.
Details
Manufacturer | EWC |
Material | Aluminum, Steel |
Surface | varnished, chrome-plated |
Color | black, Chrome |
Adjustable | Yes |
Ø spars | 30 mm |
Spar end distance (center-center) | 150 mm |
Ø outer head tube | 26.1 mm |
Ø head tube inside | 22.1 mm |
Head tube length | 220 mm |
Thread type | MF26x1 (fine pitch thread) |
Total length | 705 mm |
Fork bridge - center wheel axle | 435 mm |
Thread length | 58 mm |
Suitable for the following models
Sachs | |
Pony / Cilo (Beta 521 & 512) |
