EBR telescopic fork reinforced | Puch

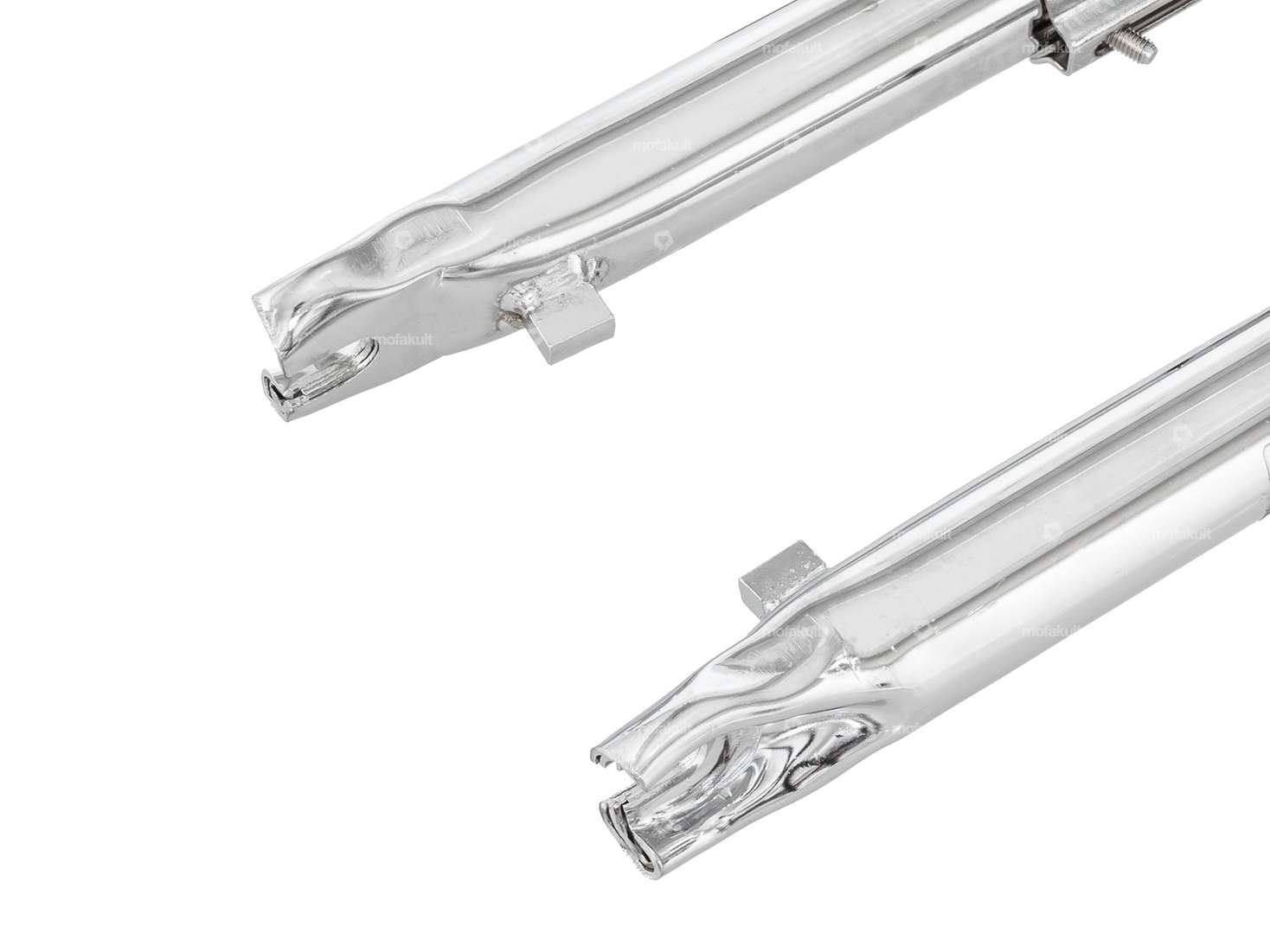

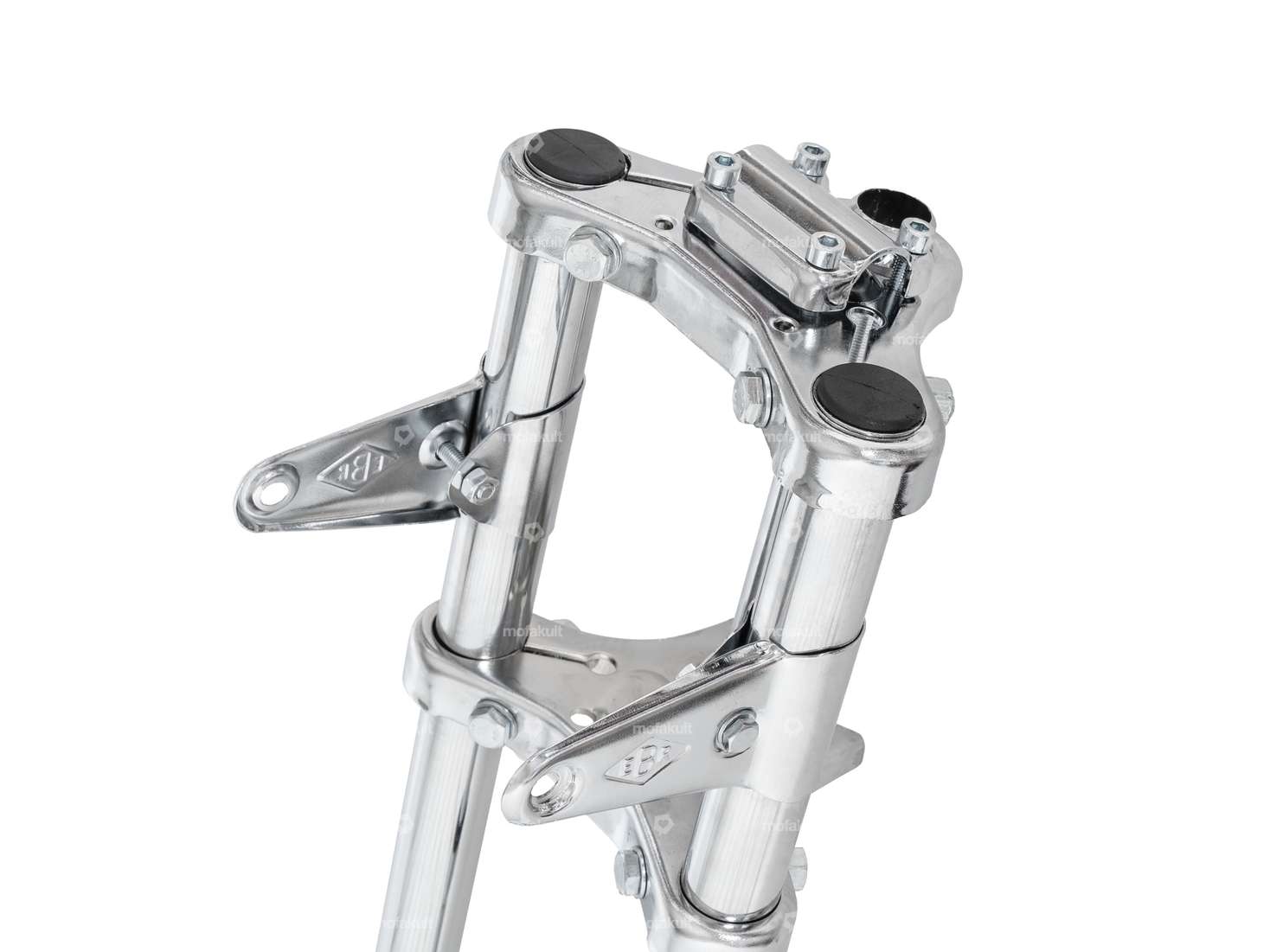

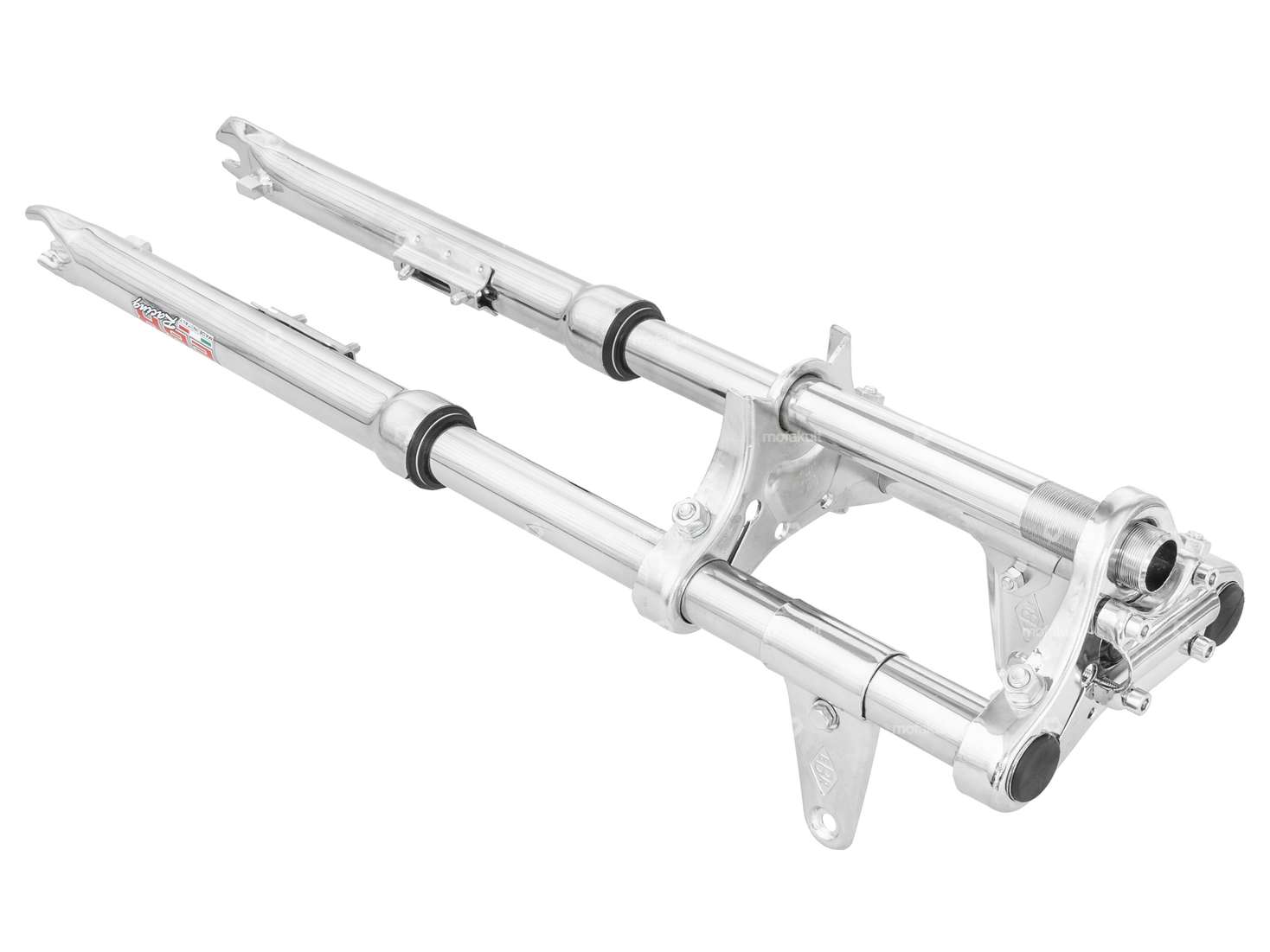

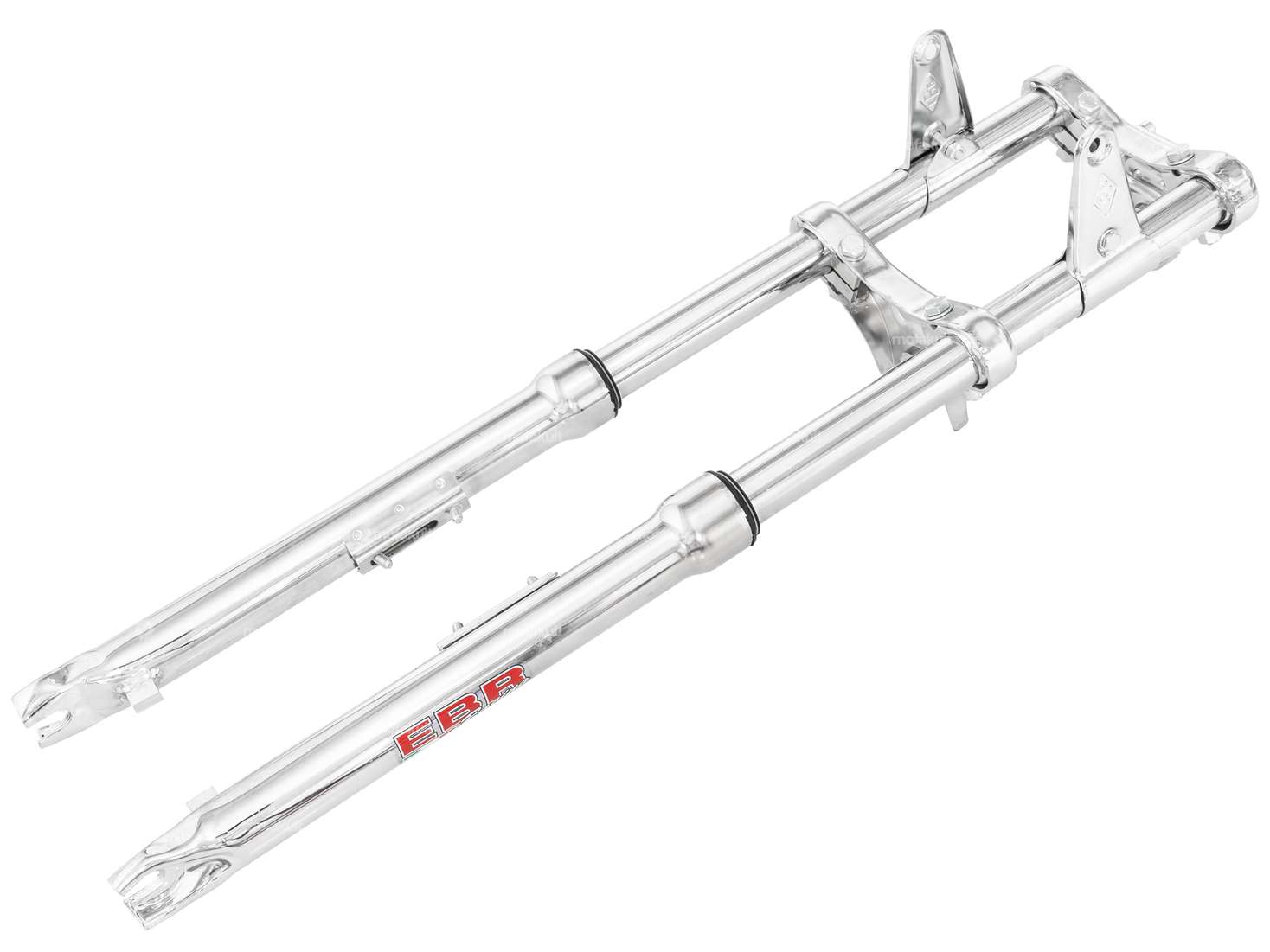

EBR fork reinforced black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Adjustable: No · Ø spars: 28 mm · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 580 mm · Fork bridge - center wheel axle: 381 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

EBR standard fork chrome | Puch

Manufacturer: EWC · Material: Steel · Adjustable: No · Surface: chrome-plated · Ø spars: 23 mm · Color: Chrome · Spar end distance (center-center): 140 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

EBR standard fork black | Puch

Manufacturer: EWC · Material: Steel · Surface: chrome-plated · Color: Chrome · Color: black · Adjustable: No · Ø spars: 23 mm · Spar end distance (center-center): 120 mm · Ø outer head tube: 26 mm · Ø head tube inside: 22 mm · Head tube length: 180 mm · Total length: 570 mm · Fork bridge - center wheel axle: 383 mm · Distance brake cam to wheel axle center-center: 40 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 57 mm

EBR telescopic fork hydraulic black | Puch

Manufacturer: EWC · Material: Aluminum · Material: Steel · Surface: chrome-plated · Surface: varnished · Color: Chrome · Color: black · Adjustable: Yes · Ø spars: 28 mm · Spar end distance (center-center): 150 mm · Ø outer head tube: 25.9 mm · Ø head tube inside: 22 mm · Head tube length: 200 mm · Total length: 635 mm · Fork bridge - center wheel axle: 410 mm · Distance brake cam to wheel axle center-center: 35 mm · Thread type: MF26x1 (fine pitch thread) · Thread length: 58 mm

GPO screws set fork reinforced Inox

Material: Chrome steel (stainless steel) · Drive: External hexagon · Manufacturer: GPO · Screw head: Hexagon · Number of components: 24 pcs

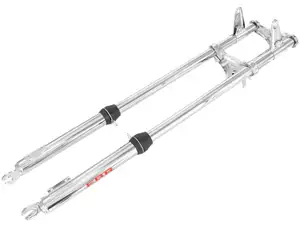

EBR Fork ULTRA LANG Chrome | Puch

Color: Chrome · Manufacturer: EWC · Thread type: MF26x1 (fine pitch thread) · Adjustable: No · Material: Steel · Surface: chrome-plated · Ø head tube inside: 22.3 mm · Ø outer head tube: 26 mm · Ø spars: 28 mm · Distance brake cam to wheel axle center-center: 38 mm · Thread length: 57 mm · Spar end distance (center-center): 138 mm · Head tube length: 180 mm · Fork bridge - center wheel axle: 642 mm · Total length: 870 mm

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

Magura cable clamp Ø 8 x 15 mm

Ø outside: 8 mm · Total length: 15 mm · Drive: External hexagon · Drive: Slot · Screw head: Hexagon · Width across flats SW: 7 mm · Thread type: M6x1 (standard thread) · Manufacturer: Magura · Thread length: 7 mm · Ø Cable bushing: 2.3 mm · Ø Bundle: 6 mm · Material: Brass · Material: Steel · Surface: blue galvanized · Surface: nickel-plated · Area of application: Standard

GPO control bearing set M26x1 mm | Puch

Manufacturer: GPO · Material: Steel · Surface: blue galvanized · Color: silver · Bearing type: Bearing ring · Ø mounting frame: 31 mm · Ø outside: 41 mm · Ø inside: 26.8 mm · Thread type: MF26x1 (fine pitch thread)

Chrome cable duct | Puch Maxi

Material: Plastic · Surface: chrome-plated · Color: Chrome · Total length: 320 mm · Width: 58 mm · Height: 22 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.3 mm

Side panels black matt | Puch Maxi S

Manufacturer: Made in Italy · Material: Plastic · Color: black · Puch spare part no.: 349.4.28.502.2 · Puch spare part no.: 349.7.28.503.2 · Alternative version of the Puch spare part no.: 349.4.28.603.2

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Thread type: MF12x1 (fine pitch thread) · Reserve level: 70 mm

GPO bulb 6V - 21/5W (BA15d) 2-filament

Manufacturer: GPO · Test mark: none · Bulb holder: BA15d · Color: white · Tension: 6 V · Performance: 5 W · Performance: 21 W · Ø base: 15 mm · Total length: 48 mm · Ø Lamp head: 25 mm

GPO steerer tube nut M26x1 closed fork plate chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Area of application: Standard · Nut type: Cap nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Ø outside: 28.9 mm · Ø outside: 36.4 mm · Height: 13.8 mm · Thread depth: 12 mm · Width across flats SW: 30 mm

GPO steerer tube nut M26x1 open stem chrome

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Nut type: Flange nut · Thread type: MF26x1 (fine pitch thread) · Drive: External hexagon · Ø inside: 22.1 mm · Ø outside: 36.5 mm · Height: 14 mm · Thread depth: 11.5 mm · Width across flats SW: 30 mm

Screw M5x16 countersunk head Inox

Material: Chrome steel (stainless steel) · Thread type: M5x0.8 (standard thread) · Drive: Slot · Total length: 16 mm · Screw head: Countersunk head
