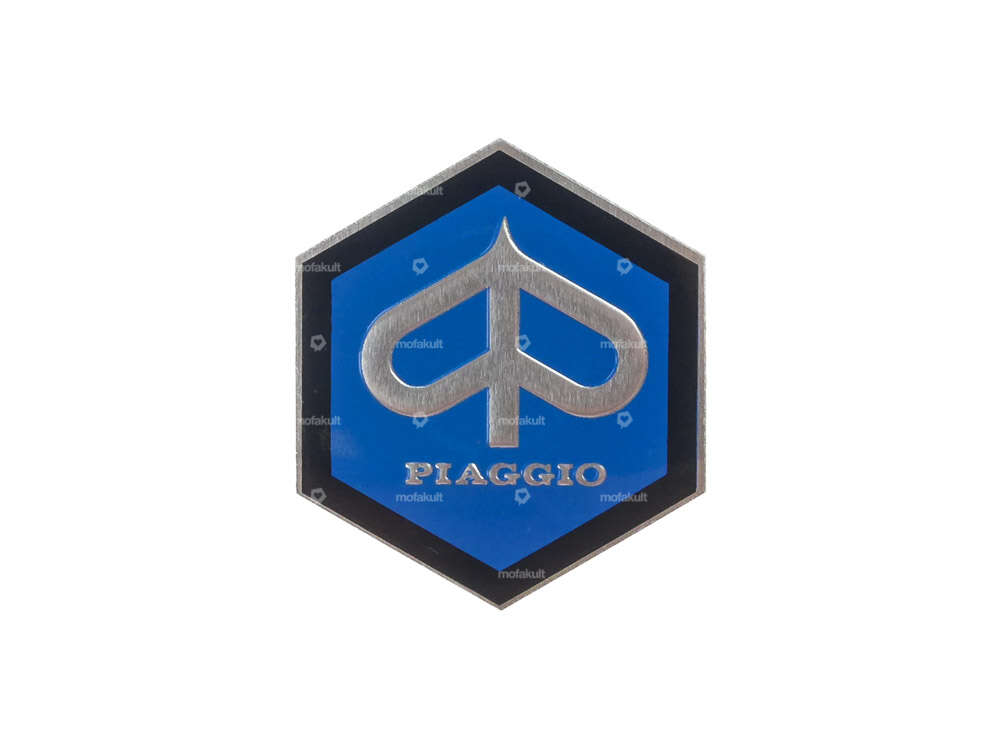

Emblem "Piaggio" Ø 48 mm aluminum | Piaggio Ciao, SI, Bravo, Boxer

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Reserve level: 70 mm · Mounting type: Union nut

Resistor for rear light

Total length: 80 mm · Width: 6.8 mm · Surface: blank · Surface: rubberized · Tension: 6 - 12 V · Mounting type: Plug connection

swiing® revival Ø 9 mm wedge 3.5° pedal crank galvanized

Ø outside: 9 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: blue galvanized · Color: silver · Thread type: M7x1 (standard thread) · Angle crank wedge: 3.5° · Total length: 43 mm

Pedals angular | Piaggio Ciao. SI, Bravo

Width across flats SW: 15 mm · Total length: 118 mm · Width: 51 mm · Height: 29 mm · Material: Plastic · Surface: ribbed · Color: black · Thread type: FG14.3 (9/16" 20G) · Drive: Outer edge · Reflectors: Yes

Stand set | Piaggio SI

Manufacturer: Made in Italy · Material: Steel · Surface: varnished · Color: black · Stand base - center mount (A): 225 mm · Total width of stand base (B): 220 mm · Wide receptacle (C): 89 mm · Ø Receptacle (D): 14 mm · Wide upright foot (F): 20 mm · Total height: 265 mm

Lockable fuel filler cap | Piaggio Ciao

Height: 105 mm · Material: Plastic · Color: black · Fuel filler cap: Plug 33 mm · Lockable: Yes · Vented: Yes · Ø External head: 54 mm

GPO chain tensioner | Piaggio Ciao

Number of fixing points: 1 pcs · Total length: 64 mm · Manufacturer: GPO · Width: 45 mm · Material: Plastic · Material: Steel · Surface: blue galvanized · Color: black · Color: silver · Thread type: M8x1.25 (standard thread) · Number of teeth: 8 pcs · Ø outside sprocket: 33 mm

Emblem "Piaggio" Ø 35 mm aluminum | Piaggio Ciao, SI, Bravo, Boxer

Diameter: 35 mm · Manufacturer: Made in Italy · Material: Aluminum · Rear side texture: Adhesive · Mounting type: glue

Sticker tank "PIAGGIO" aluminum 115 x 27 mm | Piaggio Ciao, SI, Bravo

Manufacturer: Made in Italy · Width: 115 mm · Height: 27 mm · Material: Aluminum · Color: silver · Rear side texture: Adhesive · Shape: rectangular · Mounting type: glue

Tank sticker "PIAGGIO" 3D silicone 115 x 27 mm | Piaggio Ciao, SI, Bravo

Width: 115 mm · Height: 27 mm · Material: Silicone · Color: black · Color: silver · Rear side texture: Adhesive · Place of use: Tank (+ frame)
