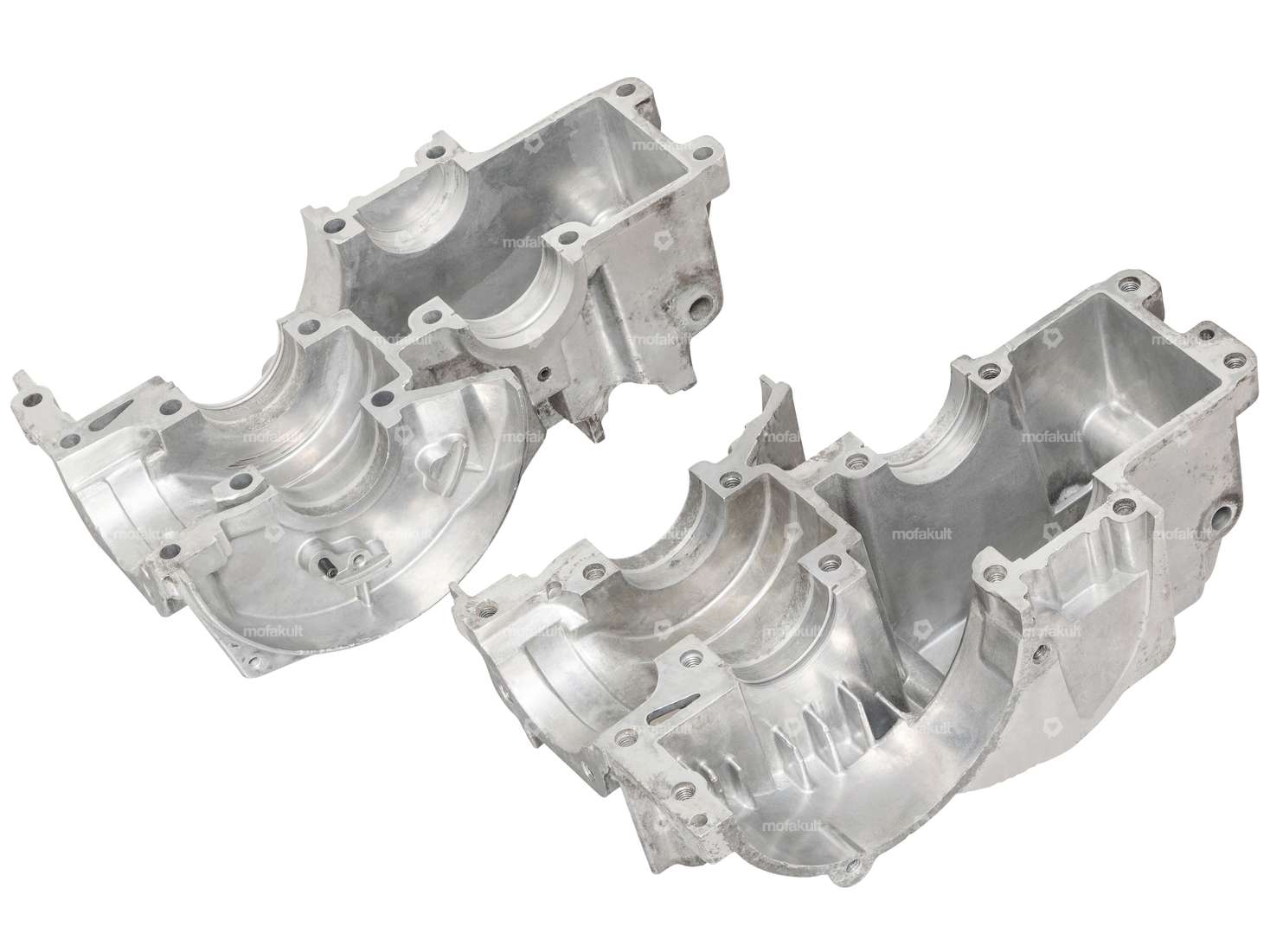

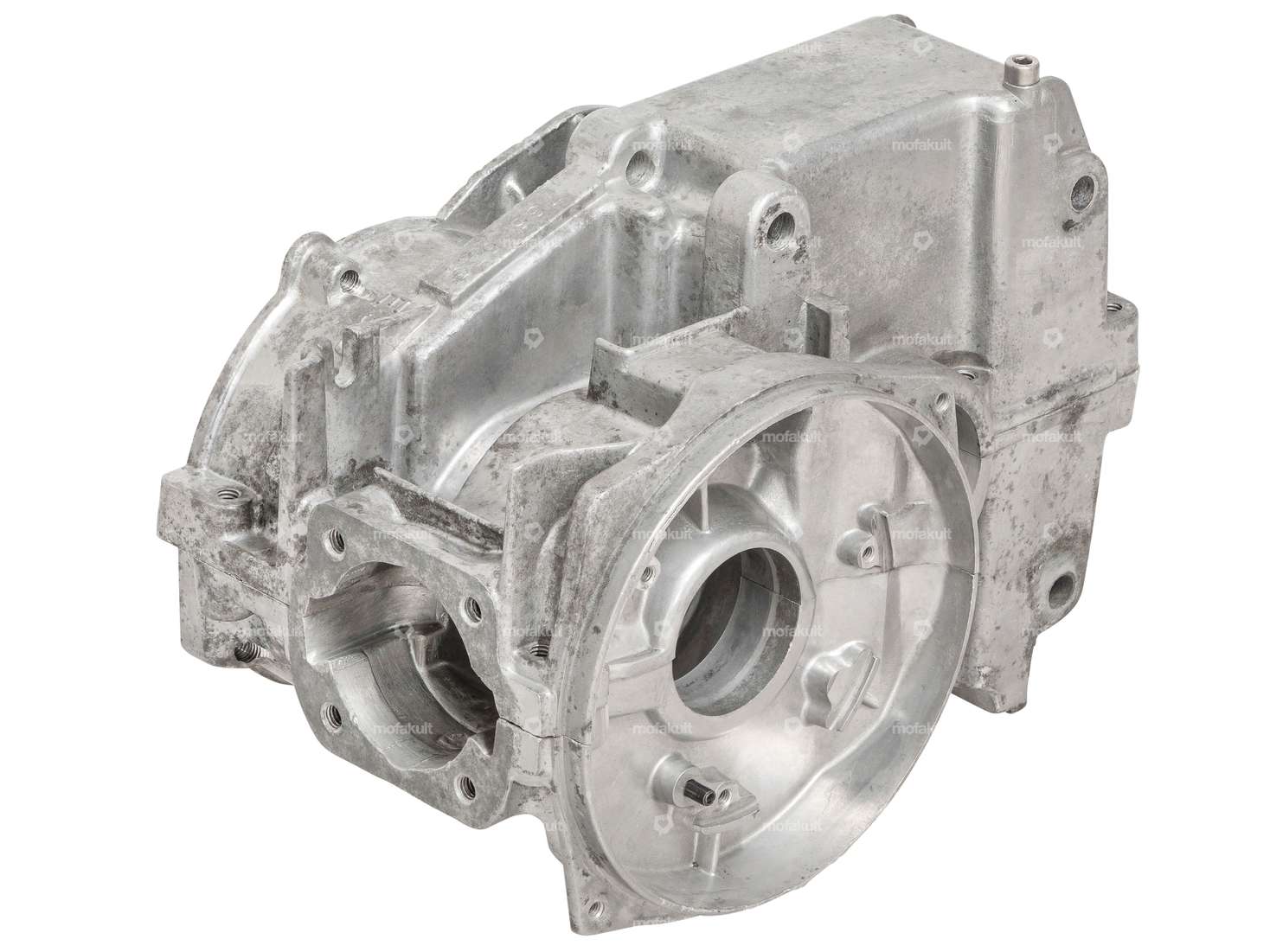

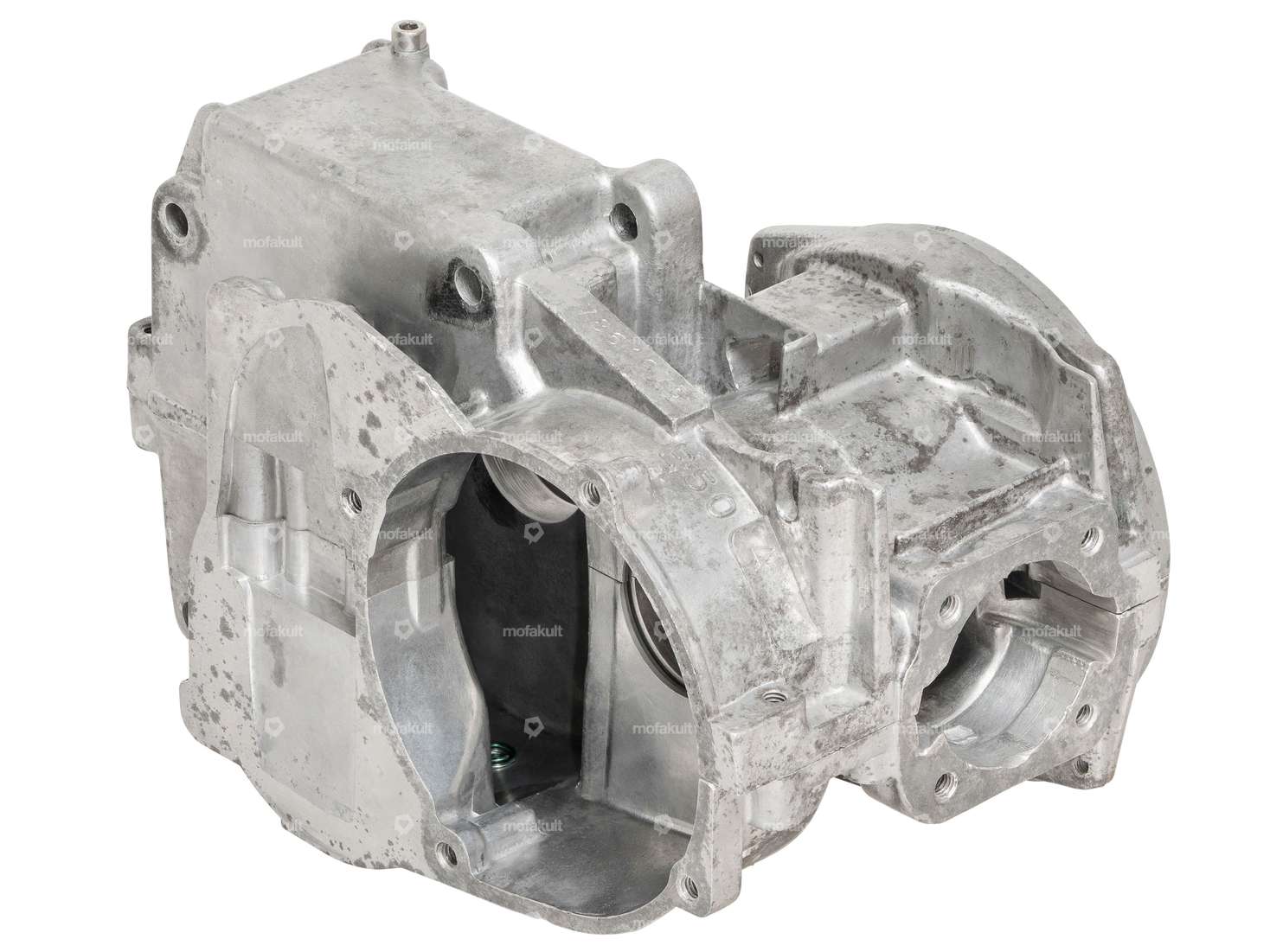

Used 4-bearing engine case, which forms the engine block for an E50 engine. The used housing fits your Puch Maxi S & N moped / moped.

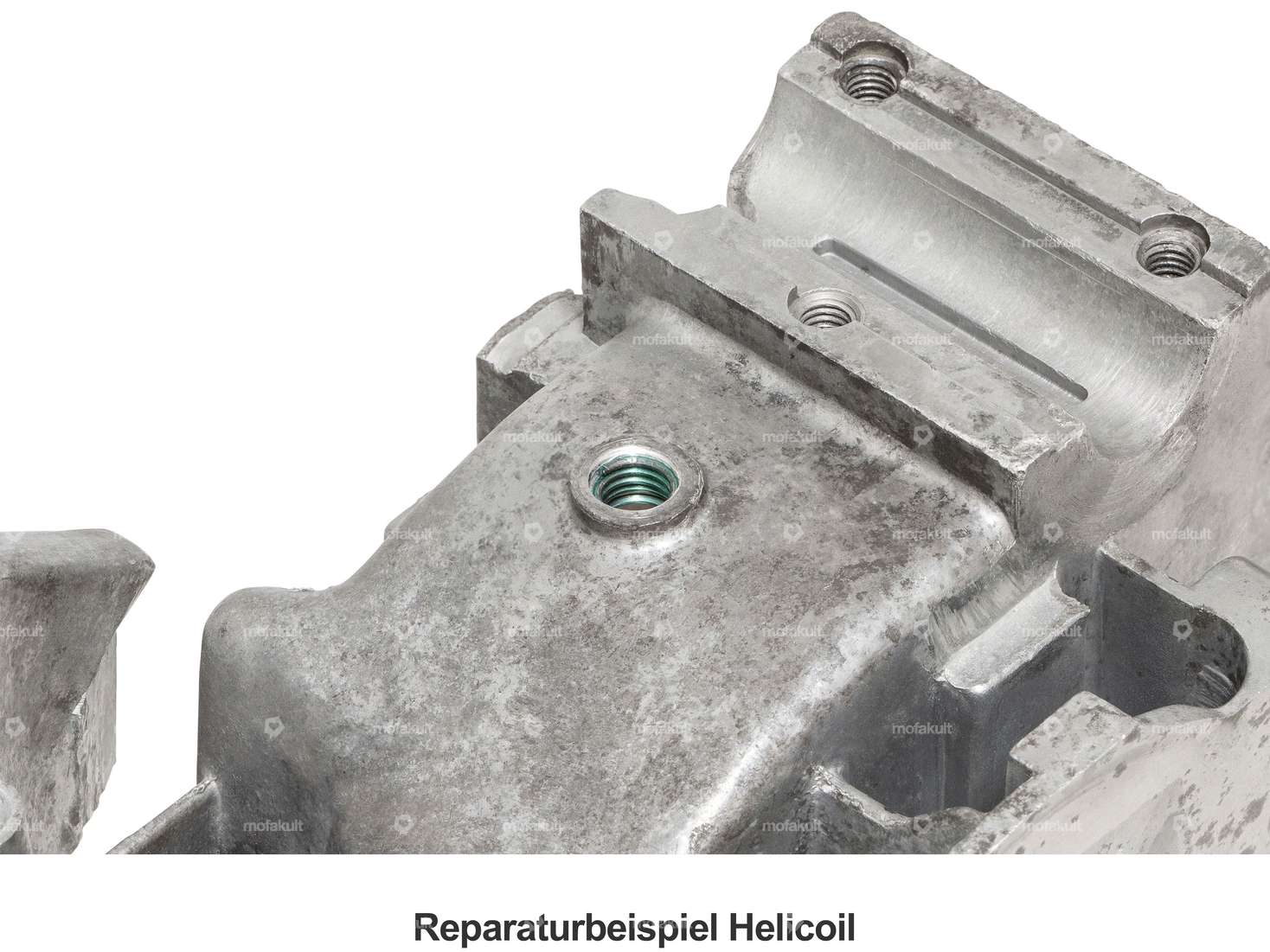

It is possible that stripped threads of stud bolts or drain plugs have been professionally repaired with helicoil inserts, as can be seen in Figure 4.
The numbering of the housing shells match each other.
Used spare part which is in technically serviceable condition, signs of wear are to be expected.
Original Puch spare part number: 349.3.10.332.0
Details
| Manufacturer | Puch |
| Material | Cast aluminum |
| Surface | raw |
| Color | silver |
| Ø inside | 40 mm |
| Ø outside | 124 mm |
| Total length | 240 mm |
| Width | 140 mm |
| Height | 180 mm |
| Puch spare part no. | 349.3.10.332.0 |
Suitable for the following models
| Puch | E50 |
