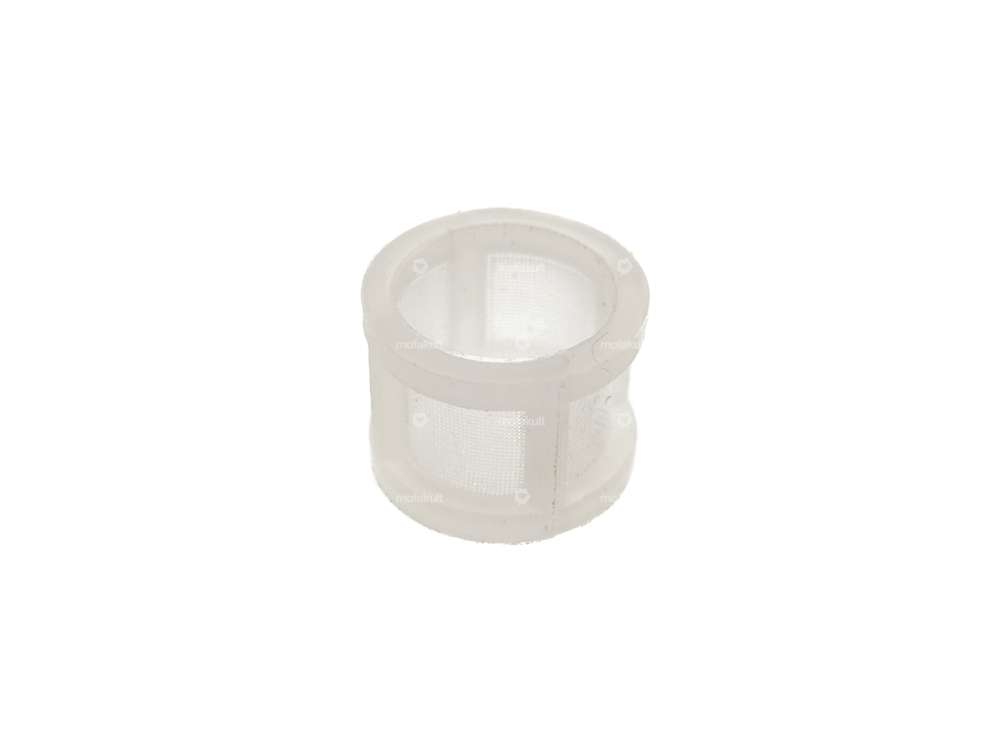

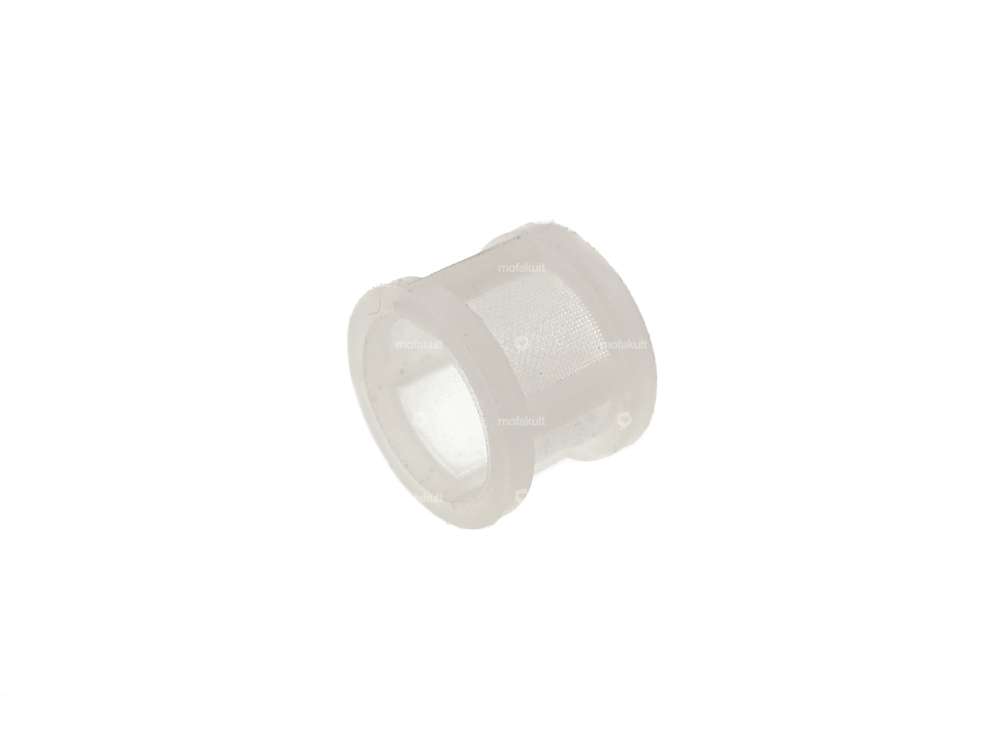

Fuel filter Dell'Orto SHA original | Piaggio Ciao, SI, Bravo, Boxer

Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom

Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Reserve level: 70 mm

Petrol hose clamp (Ø 8.8 - 9.3 mm) Standard

Ø inside: 7.5 mm · Outer width: 5.3 mm · Material: Spring steel · Surface: blue galvanized · Color: silver · Ø outside: 9.5 mm · Mounting type: Plug connection clamped · Clamping range: 7.6 - 9.3 mm

M8 sealing ring Fiber

Ø inside: 8.3 mm · Place of use: Carburetor · Material: Fiber · Place of use: Motor housing · Surface: raw · Ø outside: 13.7 mm · Area of application: Standard · Thickness: 1 mm · Puch spare part no.: 26482

Karcoma fuel filter 24 mm plastic / paper

Manufacturer: Karcoma · Ø inside: 4.7 mm · Material: Paper · Material: Plastic · Color: transparent · Color: yellow · Ø outside: 24 mm · Filter type: Filter paper · demountable: No · Ø fuel hose connection: 6 mm · Ø fuel hose connection: 7.3 mm · Total length: 35 mm · Total length: 60 mm

Wedge 12.1x4.9x3 mm

Width: 3 mm · Height: 4.9 mm · Material: Steel · Total length: 12.5 mm

Fuel tap horizontal M12x1 (with union nut) bottom outgoing | Piaggio Ciao

Possible lever positions: open / closed / reserve · Material lever: Aluminum · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Ø fuel hose connection: 6 mm · Installation direction: horizontal / horizontal · Outlet direction: below · Mounting type: Union nut · Spare tube shape: curved · Reserve level: 70 mm · Alternative version of Piaggio spare part no.: 103089 · Piaggio spare part no.: 189525 · Piaggio spare part no.: 257073

Dell'Orto spring-loaded float needle SHA 7 - 13 mm

Manufacturer: Dell'Orto · Carburetor type: SHA (type 3)

Dell'Orto fuel filter SHA 7 - 13 mm (type 3)

Manufacturer: Dell'Orto · Material: Plastic · Color: white · Filter type: Plastic net

Petrol hose Ø 5 / 7 mm transparent 30 cm (1A quality)

Manufacturer: Made in Italy · Ø inside: 5 mm · Color: transparent · Ø outside: 7 mm · Total length: 300 mm
