Racing kit with 44 mm diameter for your Tomos moped / moped with A35 engine.

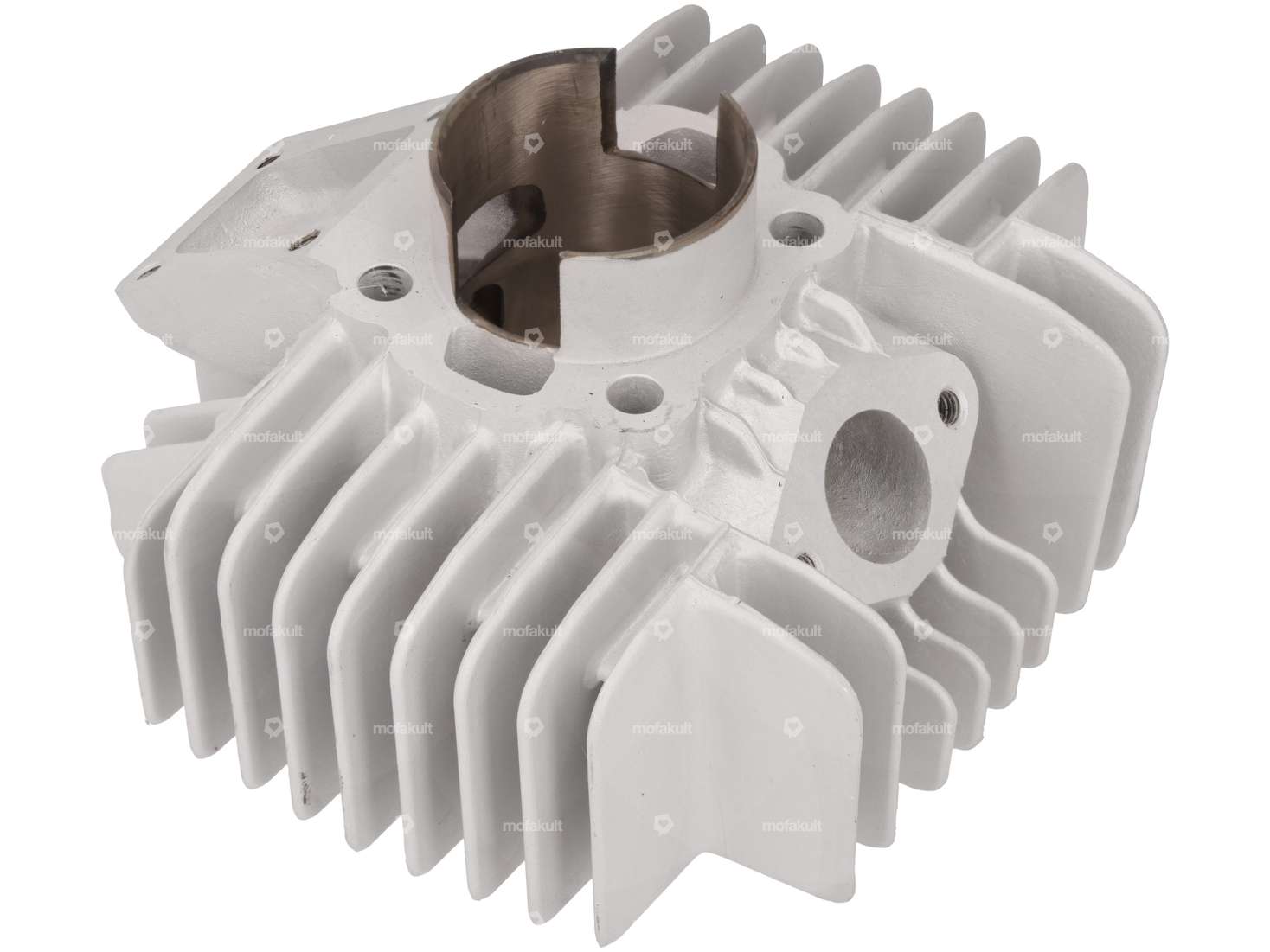

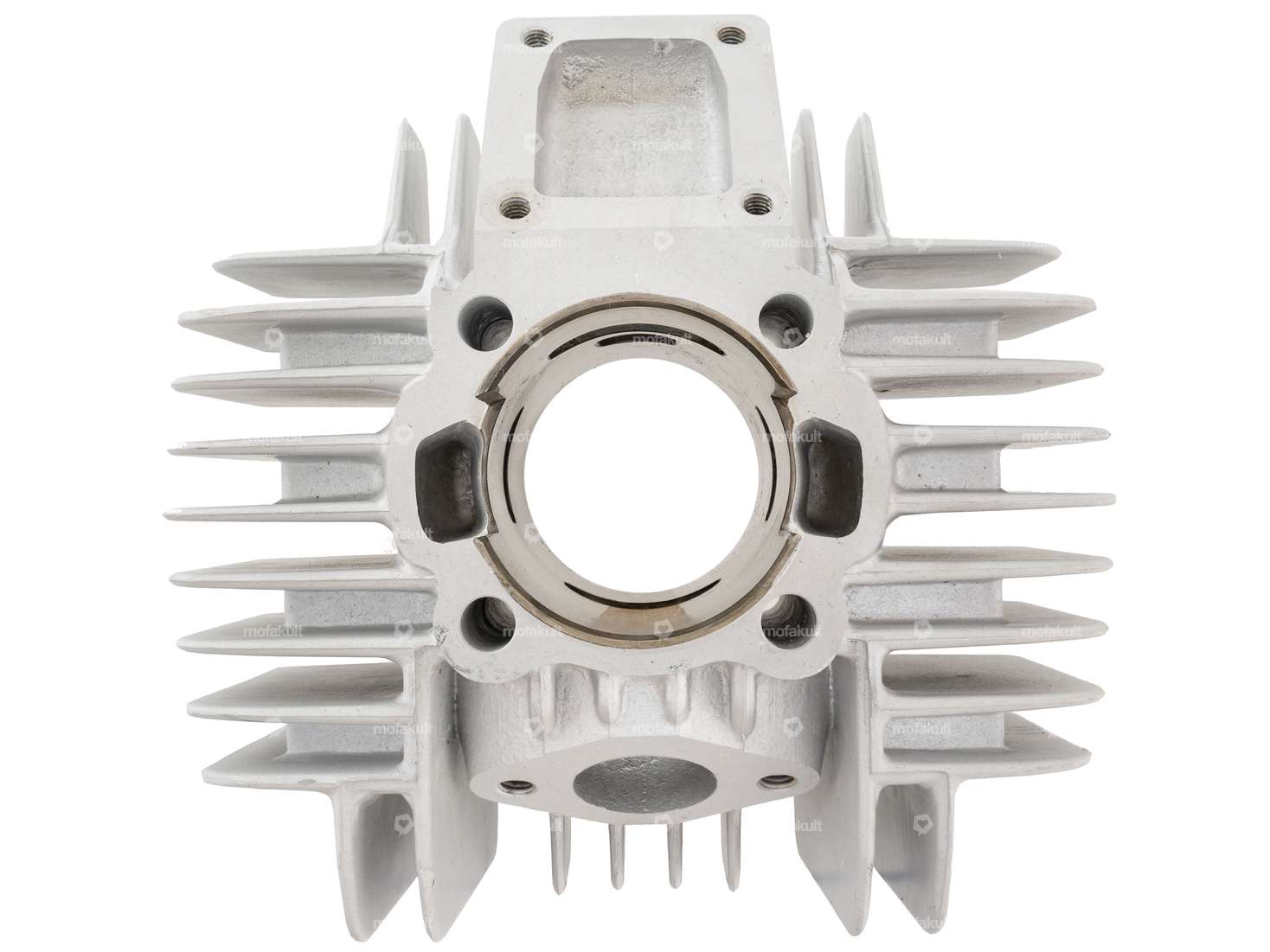

This 65 cc nikasil-coated racing cylinder made of aluminum convinces with its good workmanship and long service life.
To get the full power out of the tuning cylinder, a racing exhaust and a carburettor with plenty of oomph should be fitted.

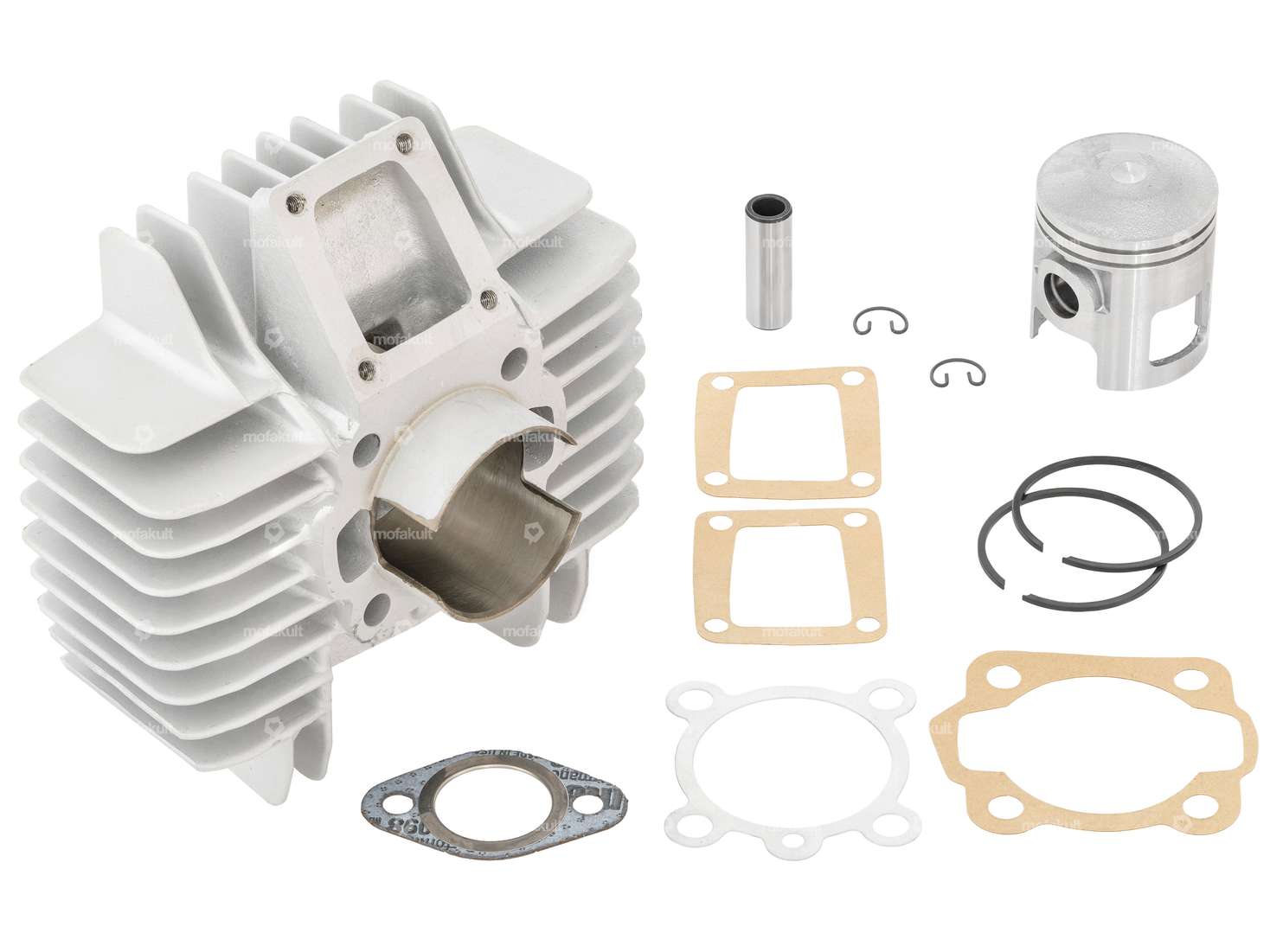

The scope of delivery includes all necessary gaskets, piston pins, piston rings and circlips.
You can find the necessary racing equipment and other engine kits in the accessories section.
Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Details
| Manufacturer | GPO |
| Material | Cast aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 65 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 44 mm |
| Ø cylinder neck | 47.8 mm |
| Inlet window | 35.5 x 29.5 |
| Ø outlet inside | 22.8 mm |
| Thread inlet | M5x0.8 (standard thread) |
| Number of fixing points | 4 pcs |
| Hole spacing inlet | 36 mm, 39 mm |
| Outlet type | slanted |
| Area of application | Tuning |
| Hole spacing outlet | 42 mm |
| Thread outlet | M6x1 (standard thread) |
| Hole pattern [mm] | 44 x 44 |
| Decompressor | No |
Suitable for the following models
| Tomos |
Accessories & related products
GPO piston 44 mm (12 mm KoBo) | Tomos A3/A35
Manufacturer: GPO · Nominal diameter: 44 mm · Ø outside piston (A): 43.96 mm · Ø piston pin (B): 12 mm · Compression height (C): 21.9 mm · Curvature (D): 4.15 mm · Total piston height (E): 49.55 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm
CHF 37.90
