For: Piaggio

29486

GPO pedal axle 28 T. keyway chrome | Piaggio Ciao

Home
| Frame
| Treadmill
| Pedal axle & bearing
CHF 94.90

Incl. 8.1% VAT.

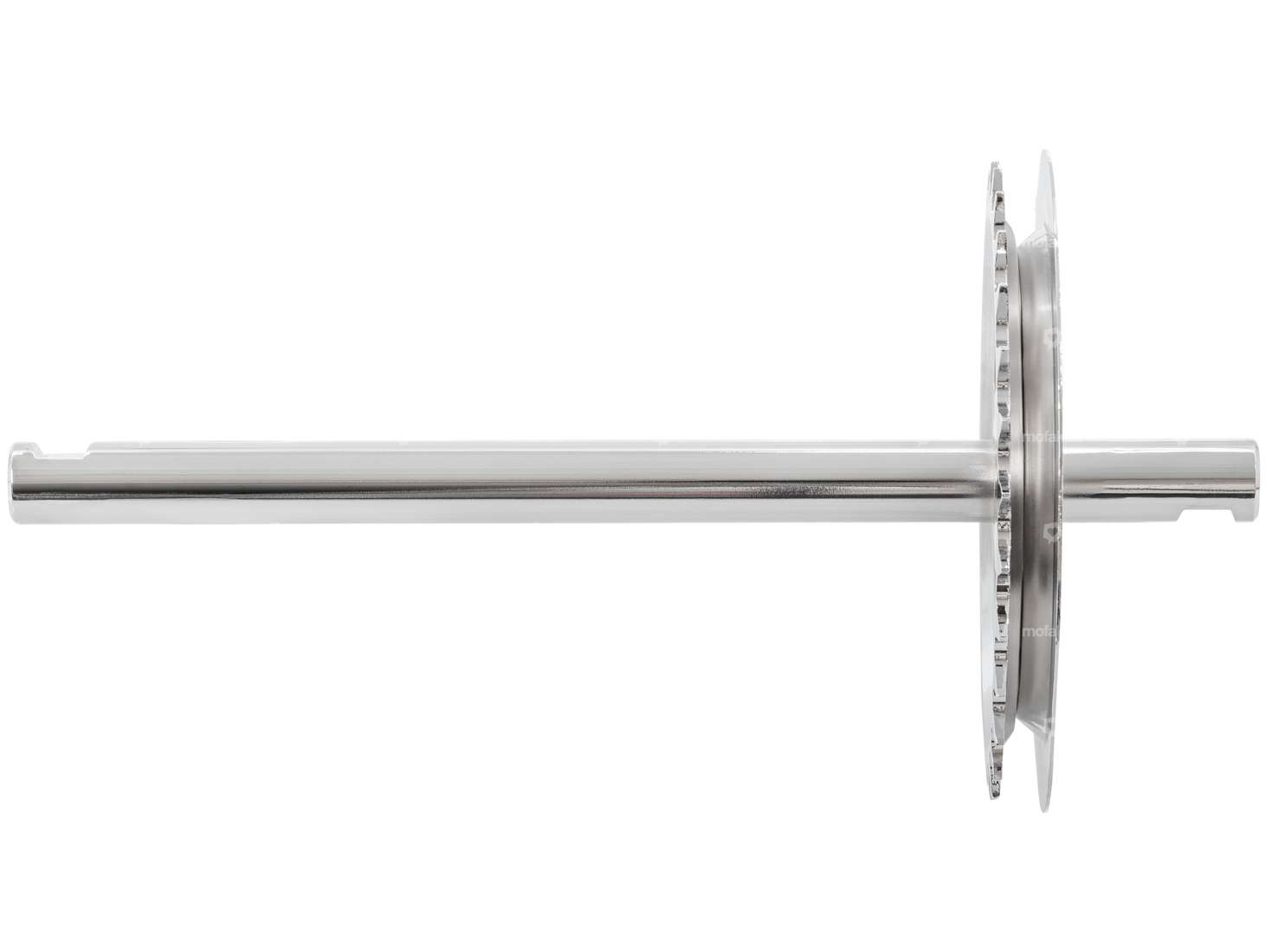

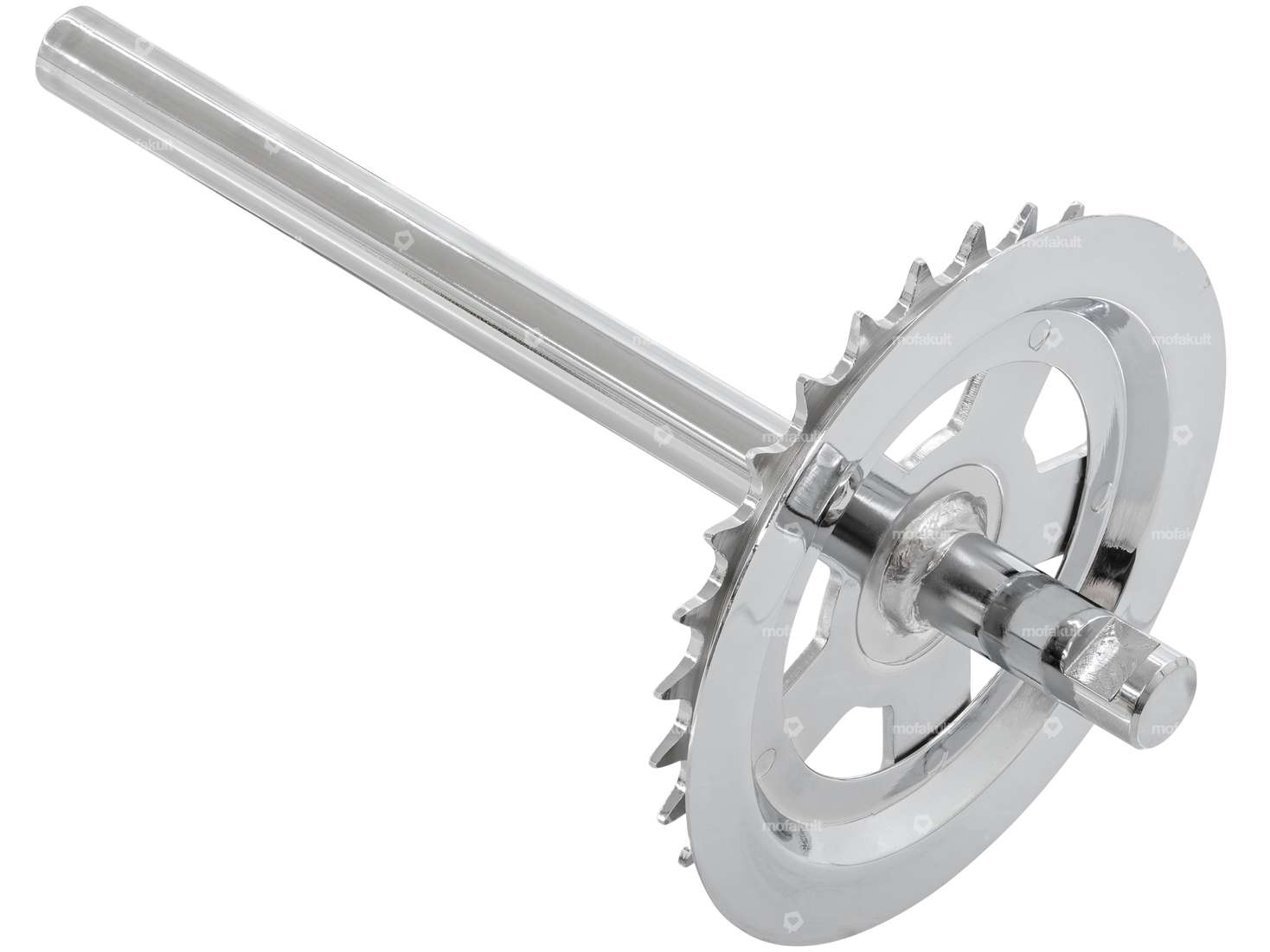

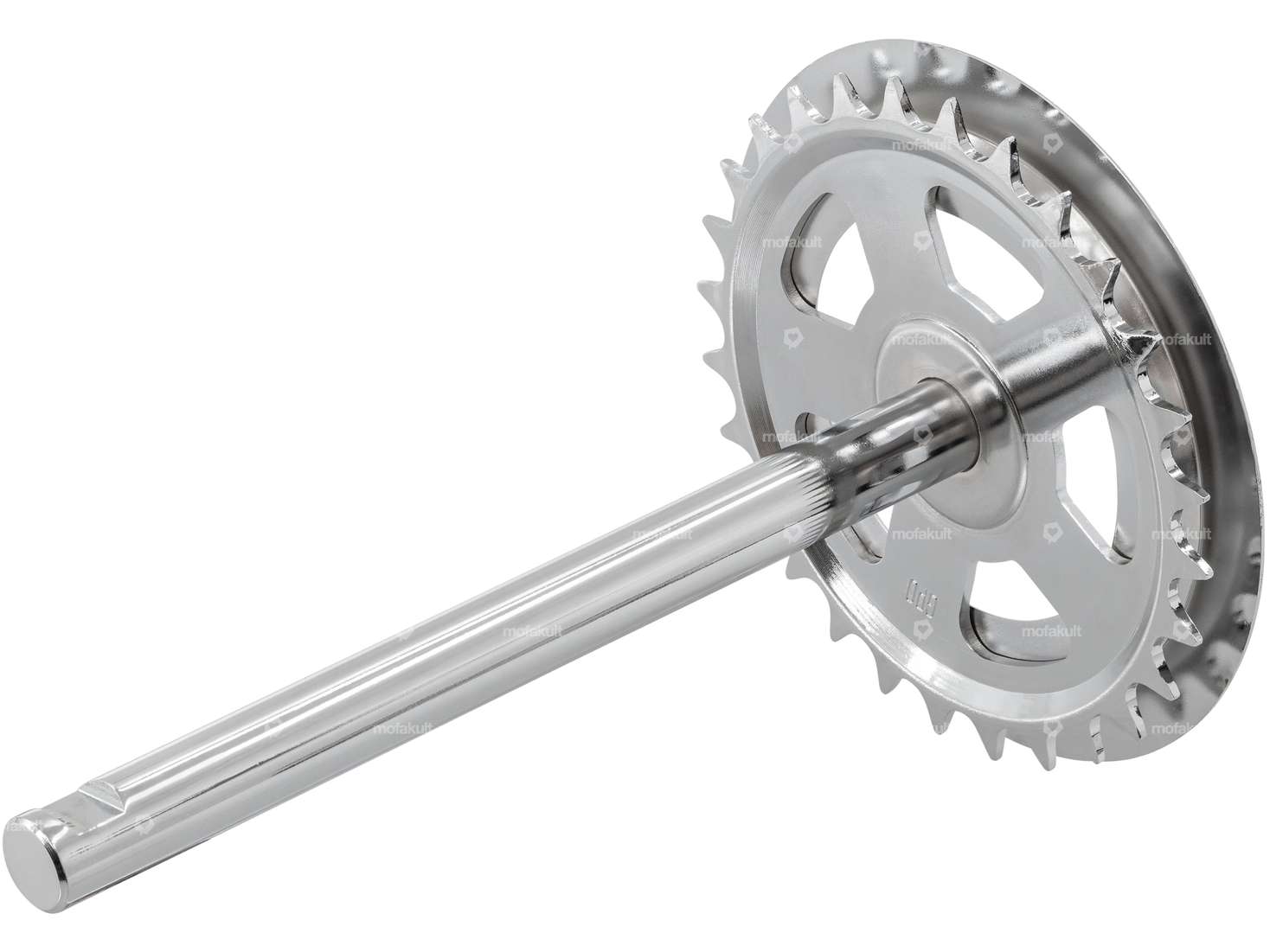

Chrome-plated bottom bracket axle with keyway suitable for Piaggio Ciao mopeds / mopeds.
The pedal axle is firmly welded to the sprocket. The pedal arms are mounted using a wedge.
The concentricity of the sprocket is almost perfect and thus ensures that the chain does not jump out or jam.

Total length: 234 mm
Ø sprocket: 120 mm
Ø chain guard: 125 mm
Ø axle: 16 mm
Number of teeth: 28 pieces
Chain pitch: 1/2 " x 1/8 "
long heel: 186 mm
short heel: 46 mm

You can find matching attachments such as a pedal chain or bottom bracket bushings in the accessories section.

Good, inexpensive standard spare part. GPO – GOOD PARTS ONLY.
Original Piaggio spare part number: 813424

Details

Total length234 mm
ManufacturerGPO
MaterialSteel
Surfacechrome-plated
ColorChrome
Chain pitch1/2" x 1/8"
Number of teeth28 pcs
Ø outside125 mm
Wavelength from wreath186 mm, 46 mm
Ø Outer sprocket120 mm
Ø Pedal arm holder16 mm

Suitable for the following models

Piaggio

Ciao - Ciao, Ciao, Ciao, Ciao
