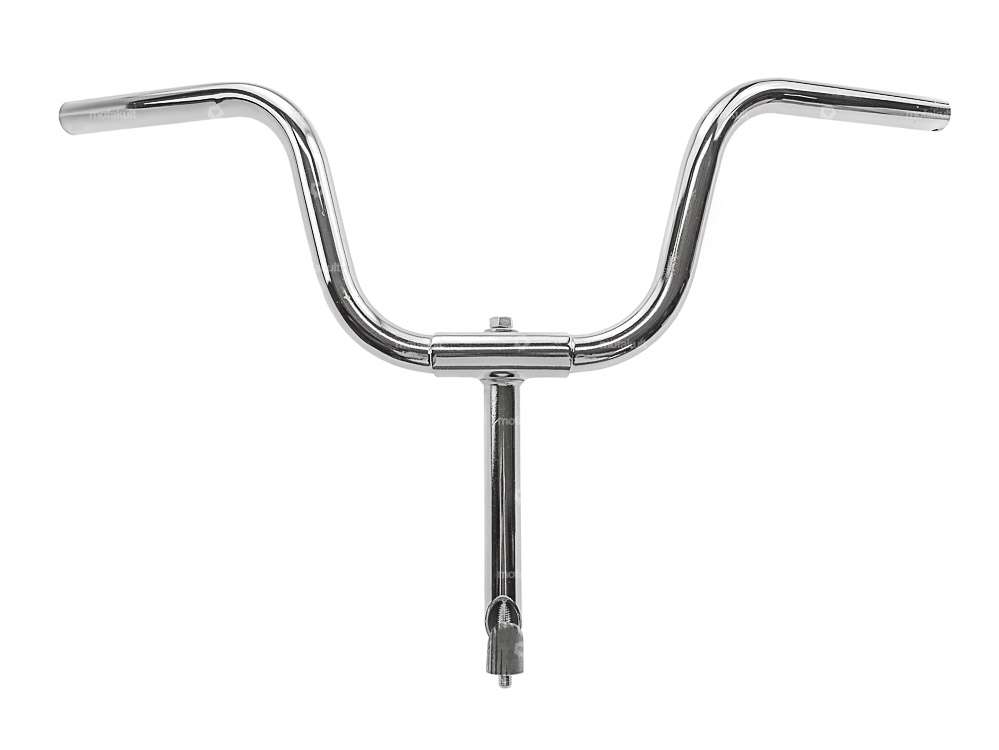

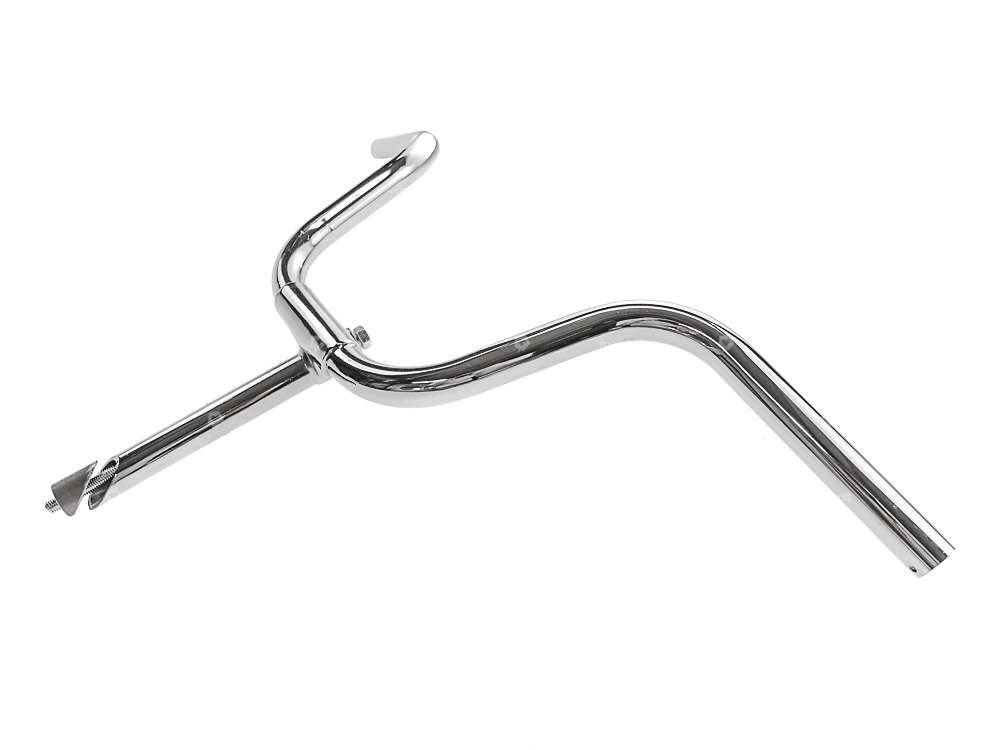

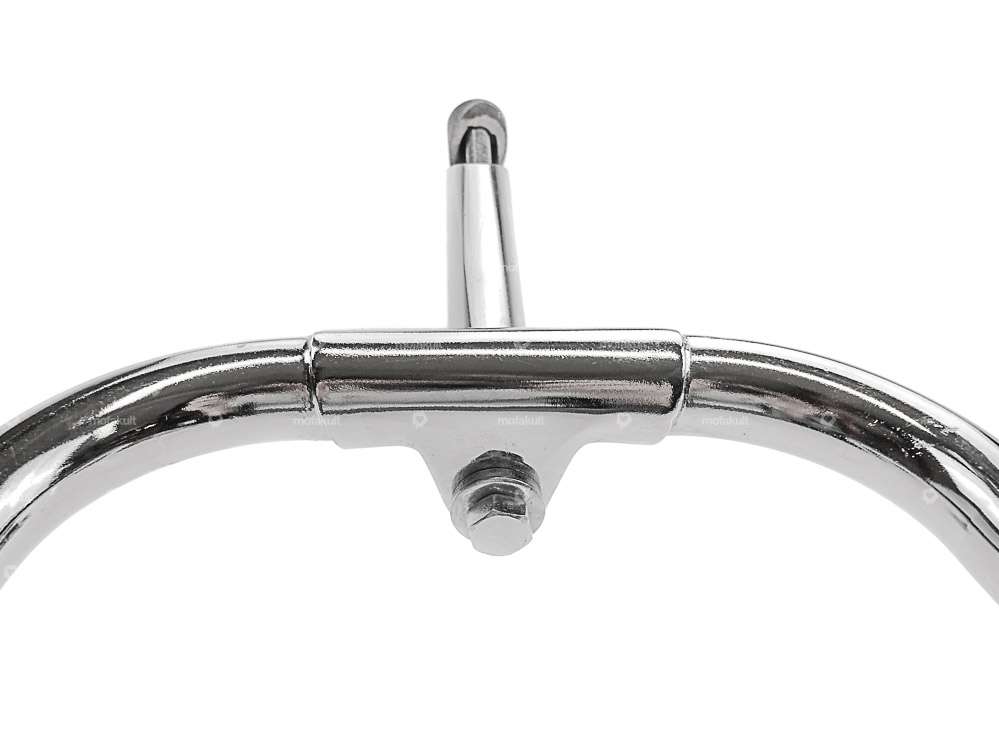

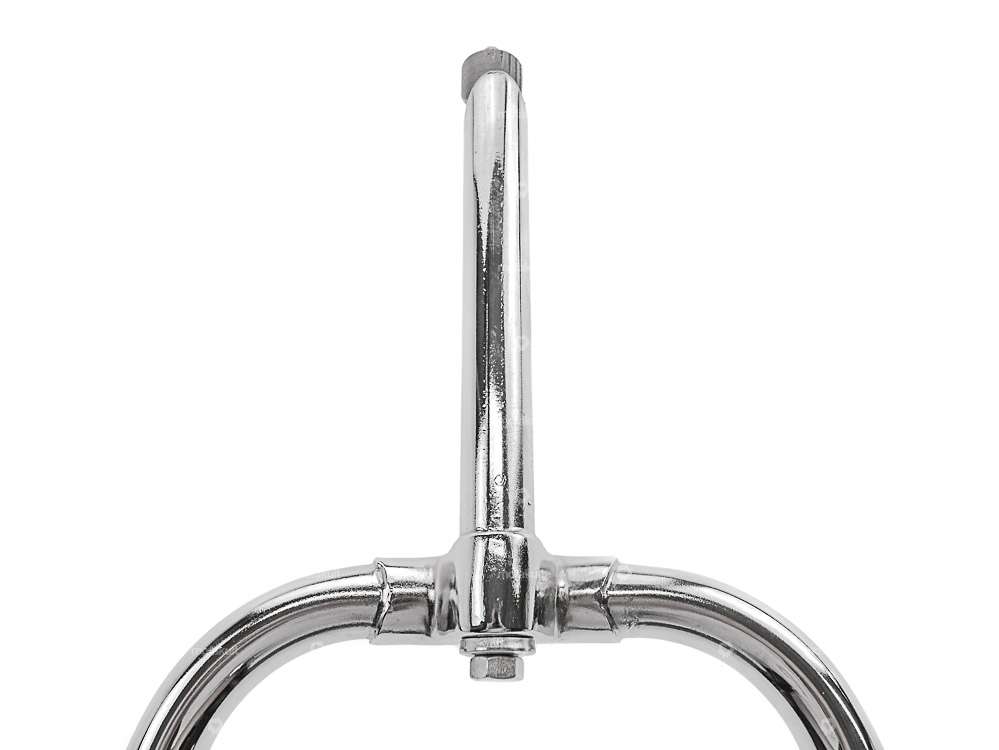

Original handlebar for Puch Maxi N / X30 mopeds.
Curved handlebar without crossbar for your moped, moped and small motorcycle. The chrome-plated balance is firmly welded to the stem and cannot be separated.
Handlebar height: 170 mm
Width of handlebar: 580 mm
Height of stem: 180 mm
Ø stem: 21 mm
Ø tube: 22.0 mm
Length of handlebar ends (for grip mounting): 135 mm
Delivery includes the clamp spigot and the corresponding bolt and washer.
For matching attachments such as steerer nuts, grips, etc., see accessories.
A quality product made in Portugal.
Details
| Manufacturer | Made in Portugal |
| Material | Steel |
| Surface | chrome-plated |
| Width | 580 mm |
| Height | 180 mm |
| Color | Chrome |
| Clamping diameter | 21 mm |
| Ø Stem | 21 mm |
| Stem height | 170 mm |
| Length handlebar ends | 135 mm |
| Ø outside | 22 mm |
| Crossbar | No |
| Mounting type | Front boom mounting |
Suitable for the following models
| Universal | |
| Puch |
