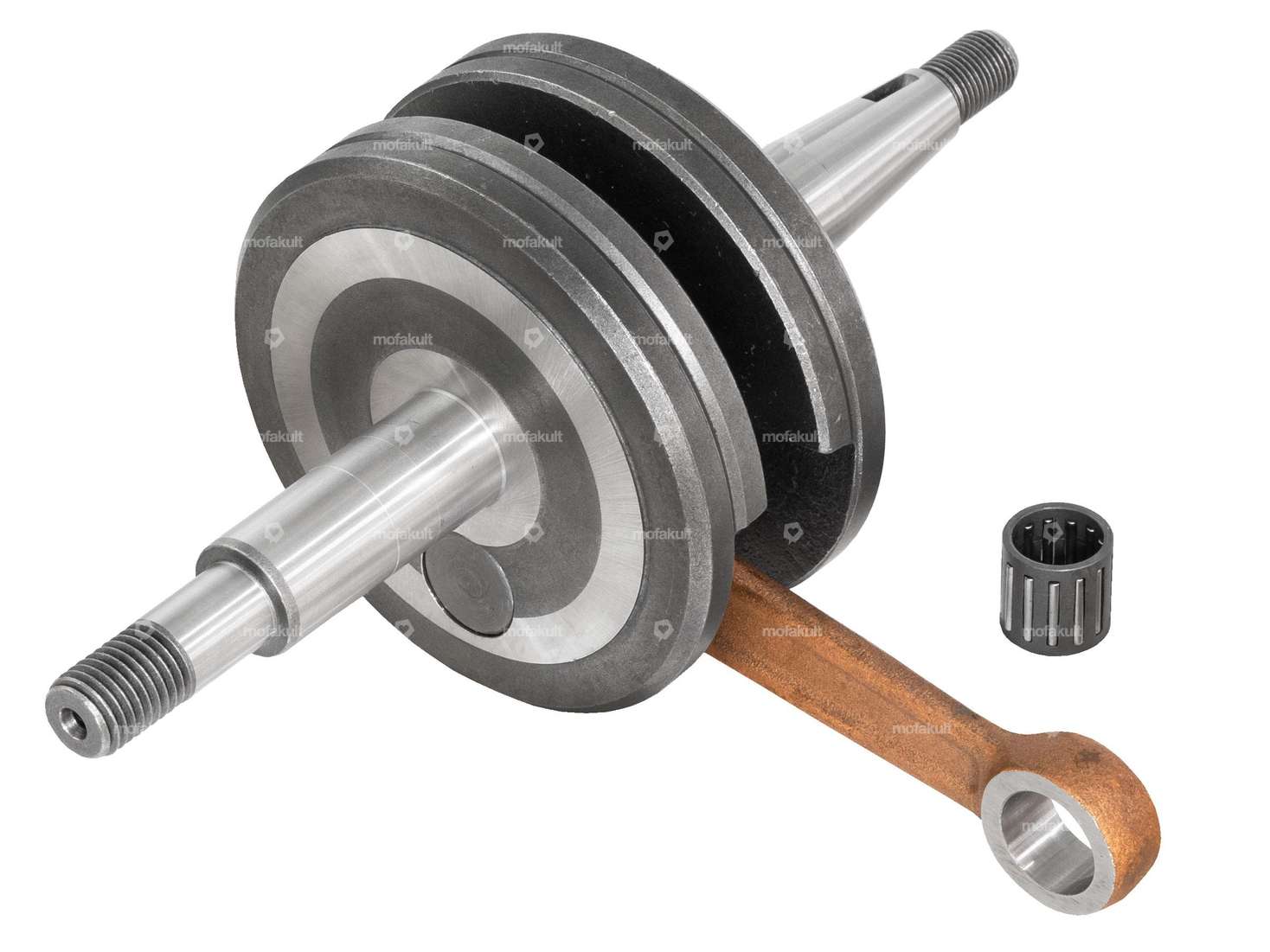

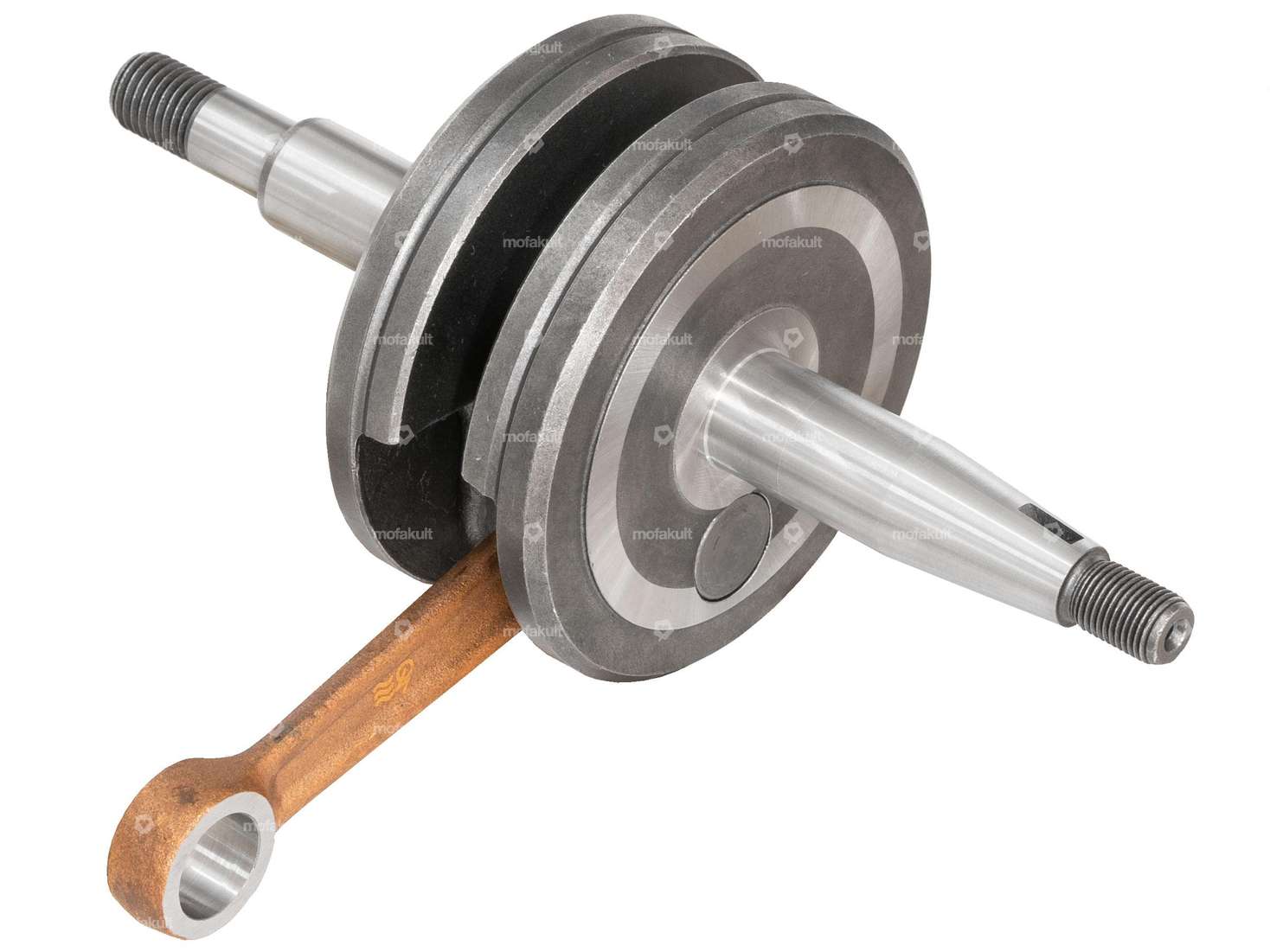

Full-flange crankshaft suitable for mopeds, mopeds and small motorcycles with Sachs five-speed and six-speed engines.
The shaft for the 5 & 6-speed engine comes with matching needle roller and cage assembly.
Dimension:
- Stroke: 44 mm
- Total length of the cheek pin: 72 mm
- Ø cheek pin on the end: 17 mm
- Total length of cheek pin on the clutch side: 72 mm
- Ø 1. Heel (coupling-side cheek pin): 17 mm
- Ø 2nd shoulder (clutch-side cheek pin: 12 mm
- Thread on clutch side: M10x1 mm
- Thread on clutch side: M12x1.5 mm
- for 12 mm connecting rod bolt
Branded product from Portuguese manufacturer Jasil under the Top Racing brand.
Details
| Manufacturer | Jasil |
| Cheek type | Full cheeks |
| Thread type | MF10x1 (fine pitch thread), MF12x1.25 (fine pitch thread) |
| Total length of crankpin on clutch side | 72 mm |
| Total length crankpin ignition side | 72 mm |
| Ø piston pin (B) | 12 mm |
| Ø Bearing seat (clutch side) | 17 mm |
| Ø Bearing seat (ignition side) | 17 mm |
| Area of application | Standard |
| Number of gears | 5 pcs, 6 pcs |
Suitable for the following models
| Sachs | 50/5 |
