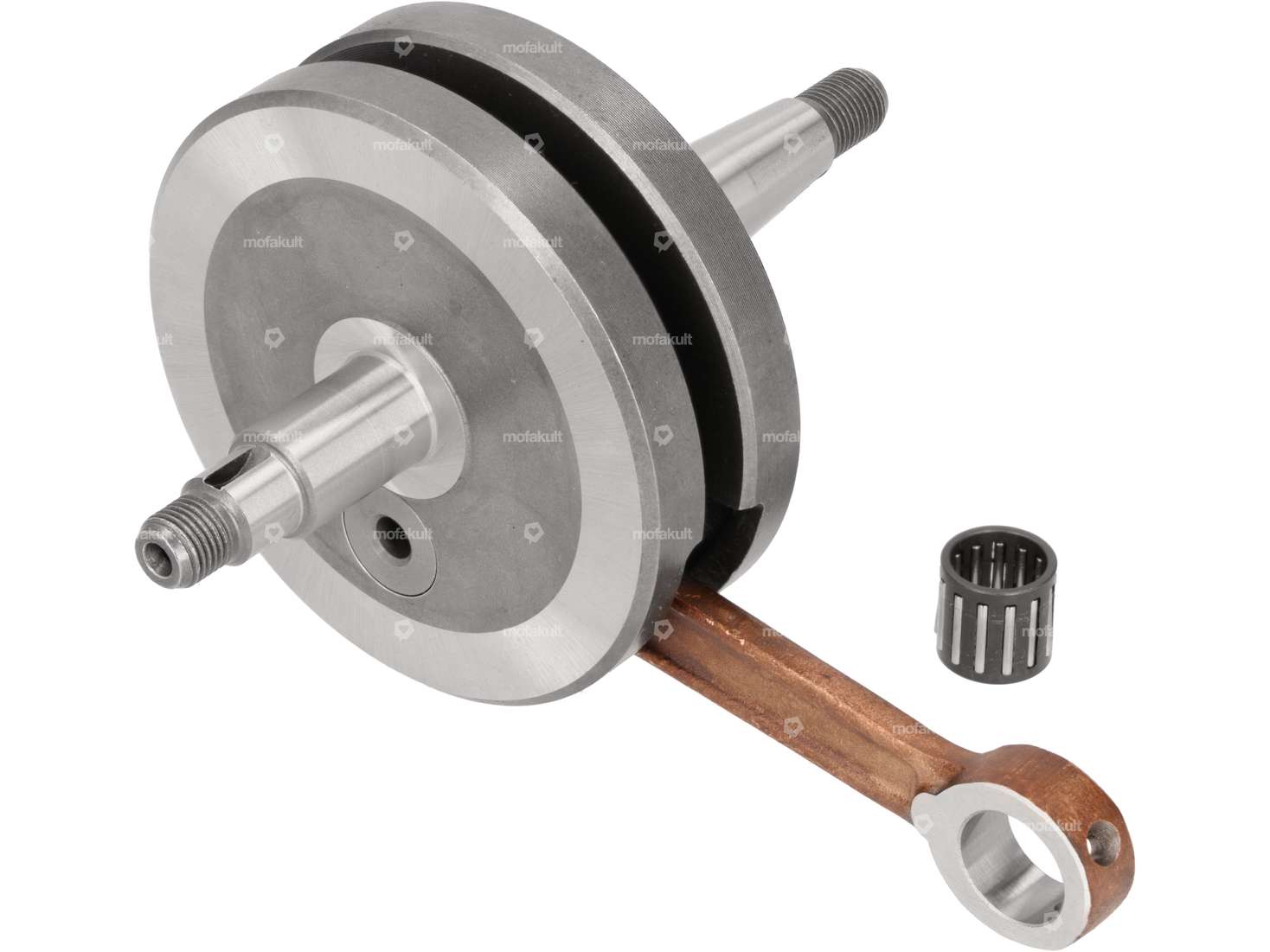

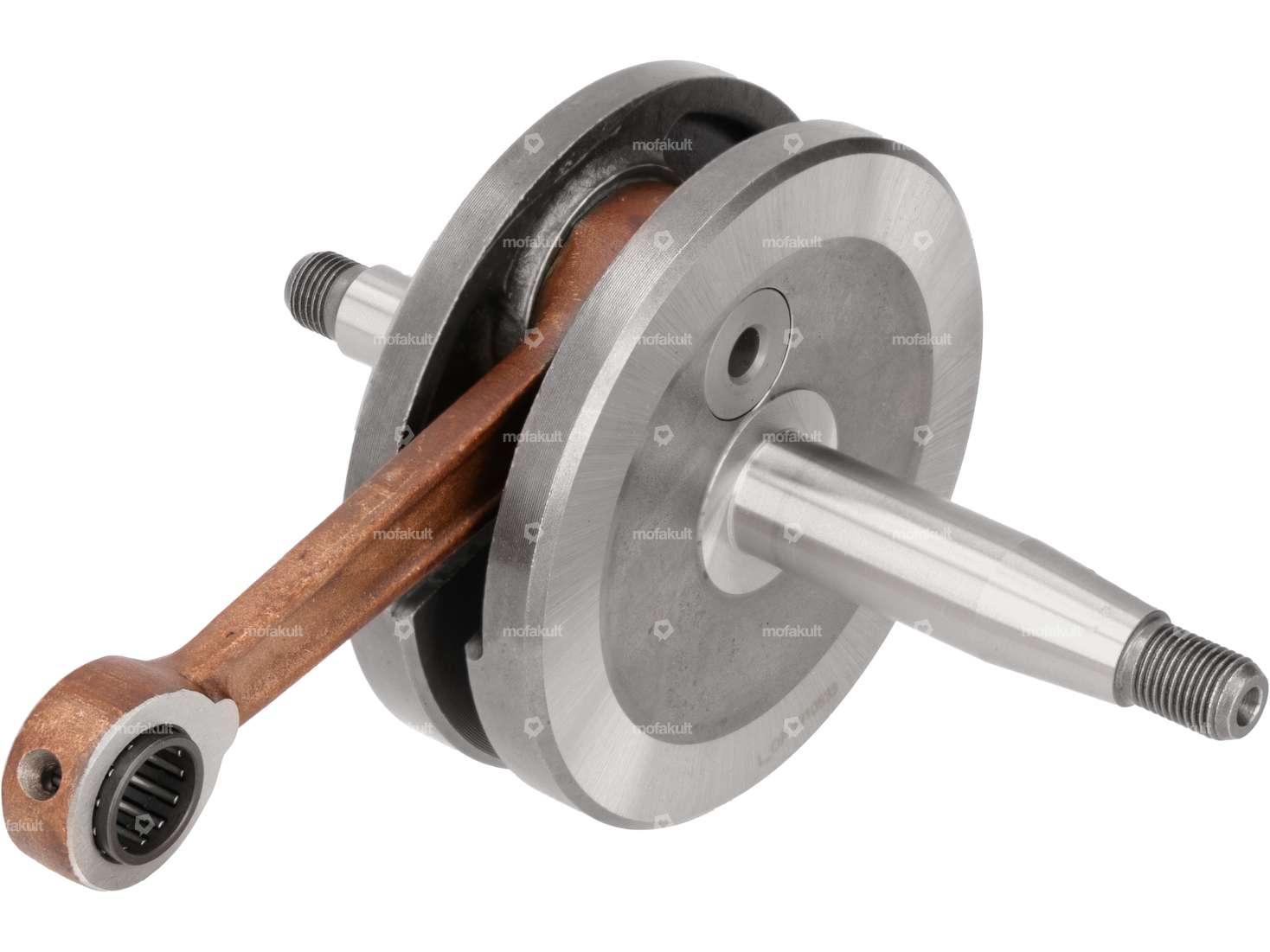

Full cheek shaft with needle bearing for your Zündapp Belmondo moped / moped with type 247 engine and Bergsteiger models with M25 and M50 engines.
Due to the limited space in the crankcase, this full cheek crankshaft generates a higher pre-compression, which leads to more power.
The lubrication slots correspond to the geometry of an original crankshaft.
Note: If you want better lubrication, you can replace the connecting rod arm with this in the accessory.
Details
| Dimension needle bearing | 12 /15 x 14.7 mm (axe 12) |
| Manufacturer | Jasil |
| Material | Steel |
| Cheek type | Full cheeks |
| Crankshaft stroke | 42 mm |
| Thread type | MF10x1 (fine pitch thread) |
| Connecting rod length center-center | 90.5 mm |
| Total length of crankpin on clutch side | 41 mm |
| Total length crankpin ignition side | 65.7 mm |
| Ø crank webs | 85 mm |
| Ø piston pin (B) | 12 mm |
| Thread length | 13 mm, 8 mm |
| Ø Connecting rod eye | 15 mm |
| Weight | 999.5 g |
| Ø Bearing seat (clutch side) | 15 mm |
| Ø Bearing seat (ignition side) | 15 mm |
| Area of application | Tuning |
| Wide crank webs | 30.1 mm |
| Ø 1st step (on the coupling side) | 21.6 mm |
| Ø 2nd shoulder (on the clutch side) | 10 mm |
| Length of shoulder (ignition side) | 34 mm |
Suitable for the following models
| Zündapp Belmondo | |
| Zündapp | 434 Fahrgestell (Bergsteiger) 247 Motor |
Accessories & related products
Jasil connecting rod set | Zündapp
Total length: 118.2 mm · Manufacturer: Jasil · Material: Steel · Surface: copper-coated · Connecting rod length center-center: 91 mm · Ø Connecting rod bolt: 16 mm · Ø lower connecting rod eye outside: 31 mm · Thickness: 10 mm · Ø upper connecting rod eye outside: 23 mm · Ø piston pin (B): 12 mm · Ø lower bearing inside: 21 mm · Area of application: Standard · Area of application: Tuning · Ø inside upper bearing: 15 mm · Dimension lower bearing: 16/21 x 9.75 mm · Dimension upper bearing: 12/15 x 12.7 mm · Connecting rod pin length: 37.85 mm
CHF 54.90
swiing® ingenious 44 mm cylinder kit tuning with head | Zündapp Bergsteiger M25, M50 (Type 247)
Nominal diameter: 44 mm · Manufacturer: Vertex · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: sandblasted · Displacement: 65 ccm · Crankshaft stroke: 42 mm · Thread inlet: M6x1 (standard thread) · Outlet type: slanted · Thread outlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Decompressor: No · Camouflaged: No · Area of application: Tuning
CHF 239.90
swiing® ingenious lifting plate 0.5 - 2 mm | Zündapp Type 247
Place of use: Cylinder base · Manufacturer: swiing® ingenious parts · Material: Aluminum · Surface: raw · Thickness: 0.5 mm · Thickness: 1 mm · Thickness: 1.5 mm · Thickness: 2 mm · Ø cylinder: 50 mm · Area of application: Tuning
CHF 19.90

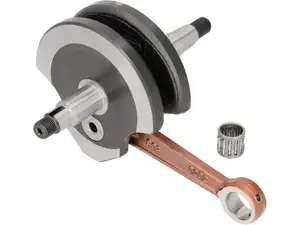

Crankshaft | Zündapp (Type 434 / 247)
