For: Sachs

24132

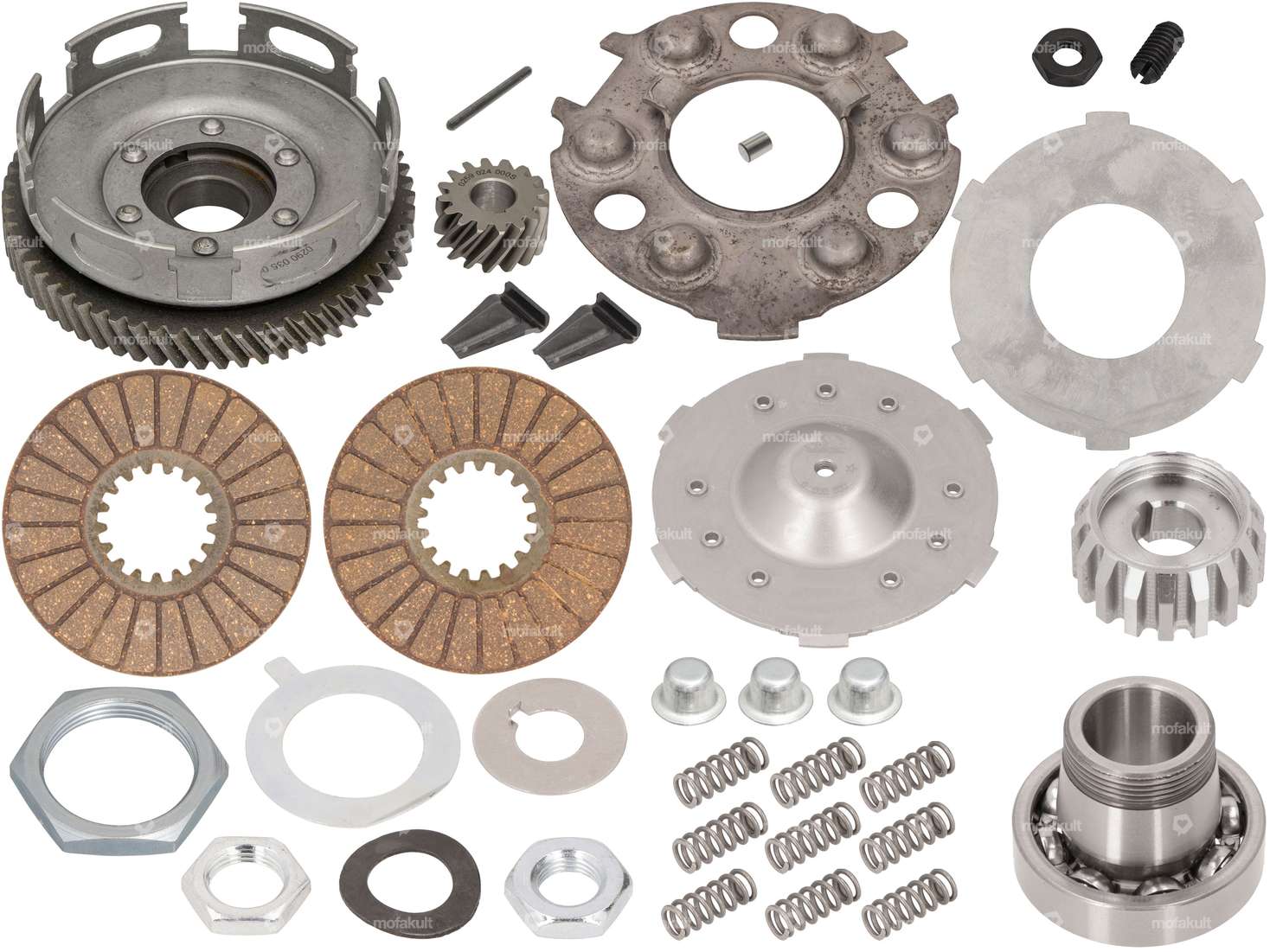

Large clutch overhaul set | Sachs 50/2, 503 2AL / 2BL

CHF 319.90

Incl. VAT, plus shipping costs

in stock

Item not in stock, we will take care of it!

Large revision set for the clutch of hand-shifted Sachs 50/2 and 503 2AL / 2BL engines.

For a closer look, all individual parts are listed below in the accessories section.

When purchasing this complete set, you will receive a large percentage off the retail price of the individual parts.

The set includes the following fixed parts:

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

For: Sachs

Clutch pressure plate | Sachs 50/2, 503 2AL/2BL (A4023)

15074

Material: Steel · Area of application: Standard · Pony spare part no.: A4023 · Sachs spare part no.: 0686 018 005

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

For: Sachs

swiing® revival intermediate blade | Sachs 50/2 ML, 503 2AL/2BL (A1908)

12036

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard · Pony spare part no.: A1908 · Sachs spare part no.: 0259 015 000

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

For: Sachs

swiing® revival clutch plates (2 pcs.) | Sachs 50/2, 503 2AL/2BL (A3887)

23304

Manufacturer: swiing® revival parts · Material: Steel, Composite materials · Recording type: Interlocking · Ø inside: 29.7 mm, 36 mm · Ø outside: 93.7 mm · Number of slats: 2 pcs · Thickness: 3.3 mm · Area of application: Standard · Pony spare part no.: A3887 · Sachs spare part no.: 0659 010 006

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

For: Sachs

swiing® revival clutch spring | Sachs 50/2 & 503 (A1325)

12026

Manufacturer: swiing® revival parts · Spring design: Pressure spring · Pony spare part no.: A1325 · Sachs spare part no.: 0239 015 000

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

For: Sachs

Spring cup clutch Sachs 50/2, 503 2AL/2BL (A3884)

15072

Pony spare part no.: A3884 · Sachs spare part no.: 0659 006 000

Nut & spring washer clutch hub | Sachs

For: Sachs

Nut & spring washer clutch hub | Sachs

17716

Nut type: Hexagon nut · Drive: External hexagon · Thread type: MF12x1 (fine pitch thread) · Width across flats SW: 17 mm

Set screw M6x12 with nut Clutch | Sachs 50/2, 503 2AL/2BL (A1371/A1494)

For: Sachs

Set screw M6x12 with nut Clutch | Sachs 50/2, 503 2AL/2BL (A1371/A1494)

16080

Thread type: M6x1 (standard thread) · Thread length: 12 mm · Alternative version of the Pony Spare part no.: A1371 · Alternative version of Sachs spare part no.: 0240 043 002

Lock washer | Sachs

Lock washer | Sachs

15057

Material: Steel · Surface: blue galvanized · Number of lobes: 1 pcs · Ø inside: 21 mm · Ø outside: 32 mm · Thickness: 0.5 mm

Clutch hub 17 teeth | Sachs 50/2, 503 2AL, 2BL (A1911)

For: Sachs

Clutch hub 17 teeth | Sachs 50/2, 503 2AL, 2BL (A1911)

15106

Recording type: Wedge connection · Number of teeth: 17 pcs · Area of application: Standard · Pony spare part no.: A1911 · Sachs spare part no.: 0259 024 000

Clutch lock plate | Sachs 50/2 & 503 (A1907)

For: Sachs

Clutch lock plate | Sachs 50/2 & 503 (A1907)

12027

Material: Steel · Area of application: Standard · Pony spare part no.: A1907 · Sachs spare part no.: 0259 014 000

Pressure pin clutch Sachs 50/2, 503 (A1792)

For: Sachs

Pressure pin clutch Sachs 50/2, 503 (A1792)

15053

Ø outside: 4.8 mm · Total length: 47 mm · Pony spare part no.: A1792 · Sachs spare part no.: 0249 047 000

Cylinder roller Ø 4.5x6 Clutch | Sachs 50/2, 503 2AL/2BL (A1162)

For: Sachs

Cylinder roller Ø 4.5x6 Clutch | Sachs 50/2, 503 2AL/2BL (A1162)

15054

Material: Steel · Surface: Hardened · Diameter: 4.5 mm · Width: 6 mm · Pony spare part no.: A1162 · Sachs spare part no.: 0232 107 000

Clutch basket & hub | Sachs 50/2, 503 (A2508/A2947)

For: Sachs

Clutch basket & hub | Sachs 50/2, 503 (A2508/A2947)

15070

Material: Steel · Color: graphite colors · Recording type: Interlocking · Toothing type: helical toothed · Number of teeth: 16 pcs, 62 pcs · Ø inside: 22.5 mm · Ø outside: 110 mm, 100 mm · Height: 41.5 mm · Area of application: Standard · Pony spare part no.: A1201, A2947 · Sachs spare part no.: 0234 068 000, 0290 035 005

Spring plate clutch | Sachs 50/2 ML, 503 2AL/2BL (A3882)

For: Sachs

Spring plate clutch | Sachs 50/2 ML, 503 2AL/2BL (A3882)

15071

Material: Steel · Ø inside: 39 mm · Ø outside: 90 mm, 98.5 mm · Height: 9.1 mm · Area of application: Standard · Pony spare part no.: A3882 · Sachs spare part no.: 0659 004 000

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

For: Sachs

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

28363

Manufacturer: swiing® revival parts · Material: Steel · Area of application: Standard, High End · Bearing type: Deep groove ball bearing · Stock number: E15 · Bearing clearance: CN (standard) · Ø inside: 15 mm · Ø outside: 35 mm · Width: 8 mm · Inner ring width: 25.6 mm · Bearing cage: "-" Sheet steel cage ball-guided · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

For: Sachs

swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)

17941

Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony spare part no.: A1717 · Sachs spare part no.: 0246 049 000, A1717

Nut M10x1 low

Universal

Nut M10x1 low

27292

Material: Steel · Surface: blue galvanized · Nut type: Hexagon nut 0.5D · Drive: External hexagon · Thread type: MF10x1 (fine pitch thread) · Height: 5 mm · Width across flats SW: 17 mm · Pony spare part no.: A1493, A1513 · Sachs spare part no.: 0242 000 001, 0242 102 001

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

For: Sachs

Flat nut M21x1 LH clutch | Sachs 50/2, 503 AB/ABL/2AL/2BL (A1504)

22384

Nut type: Hexagon flat nut · Drive: External hexagon · Thread type: MF21x1 LH (fine/left-hand thread) · Width across flats SW: 26 mm · Pony spare part no.: A1504 · Sachs spare part no.: 0242 030 005, 0242 030 105

Details

Area of applicationStandard
Number of springs9 pcs
Number of slats2 pcs

Suitable for the following models

Sachs

50 (Fahrtwind, 1.25 / 1.5 PS, DE)

50/2 - L CH (0.8 PS), ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)

50/3

50/4 - MLFB (2.6 PS), LKH (4.5 PS)

503 - 2AL / 2BL
