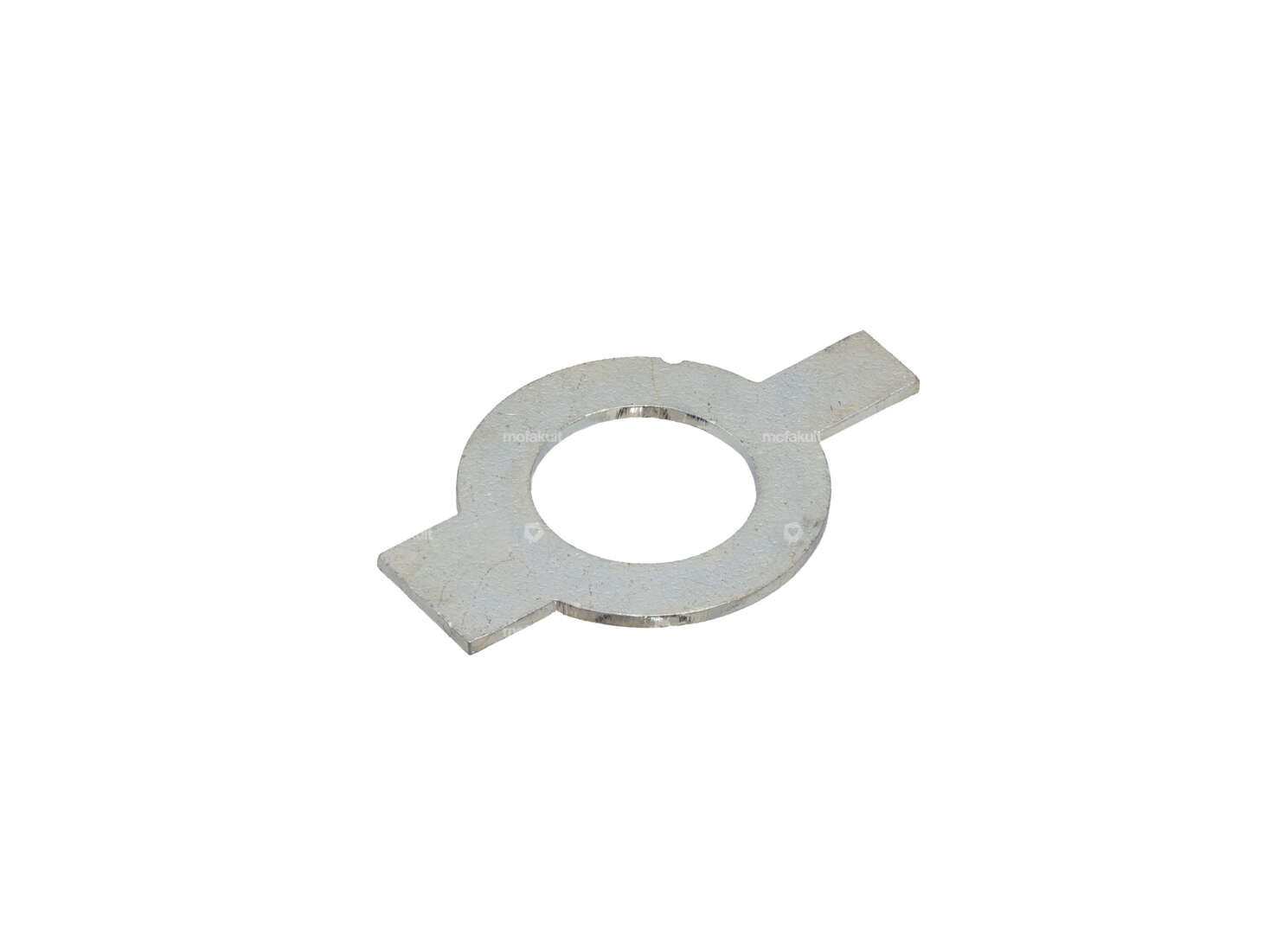

Securing washer for the drive shaft of Puch X30 Velux engines.
This plate is used to secure the nut of the drive pinion.

Ø inside: 12.7 mm
Lug width: 6 / 9 mm
Material thickness: 1 mm

Original Puch spare part number: 050.1318

The set includes the following fixed parts:

Universal

M12 locking plate 2 tabs

10554

Material: Steel · Thread size: M12 · Number of lobes: 2 pcs · Ø inside: 12.7 mm · Thickness: 1 mm · Width: 6 mm · Width 2: 9 mm

Details

Number of lobes	2 pcs
Width	6 mm
Ø inside	12.7 mm
Thickness	1 mm
Width 2	9 mm

Suitable for the following models

Puch

Z50 (X30 Velux)
