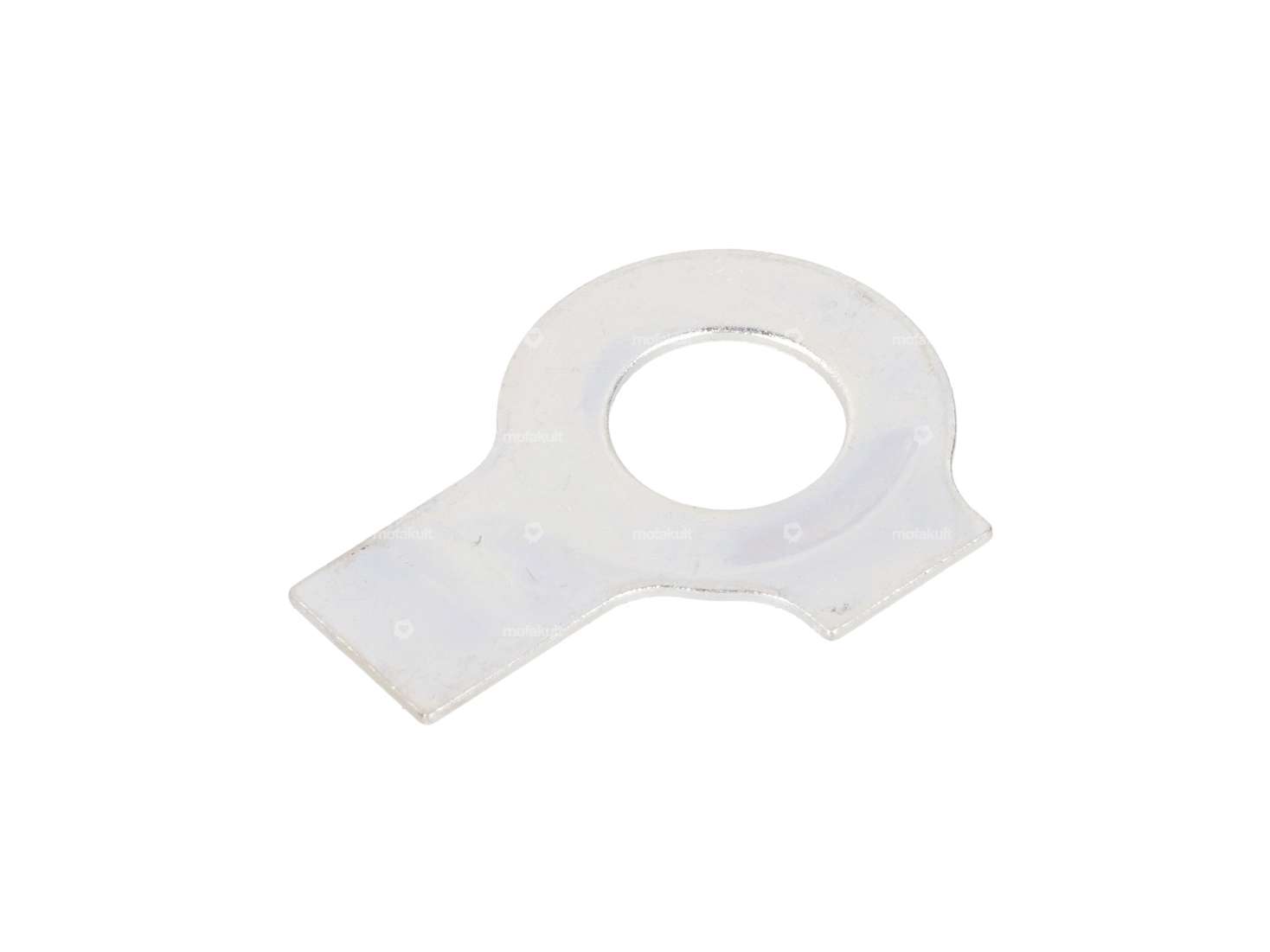

Galvanized lock washer with 2 tabs for securing nuts and bolts.

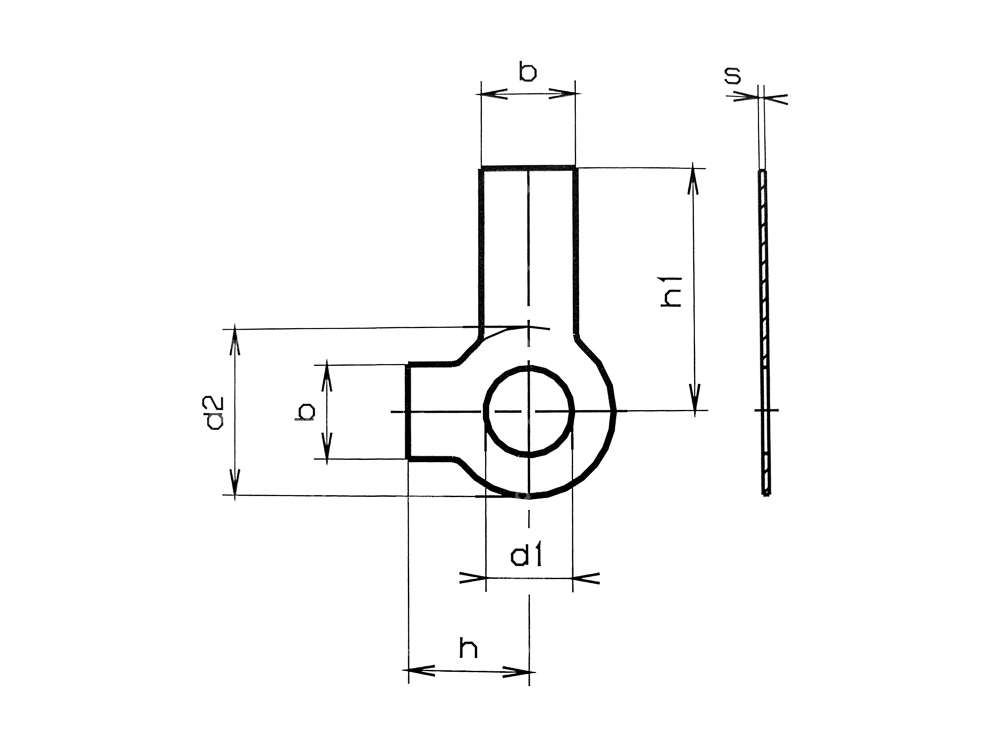

Take the following measurements from figure 2:
Details
Ø inside | 8.4 mm |
Material | Steel |
Total length | 11 mm |
Width | 8 mm |
Surface | blue galvanized |
Number of lobes | 2 pcs |
Thickness | 0.75 mm |
Ø outside | 17 mm |
Length 2 | 20 mm |
Width 2 | 8 mm |
Thread size | M8 |
Moped fans like you also bought:
BERU spark plug connector / 1 kΩ interference suppressed
Ø cable: 5 mm · Ø cable: 7 mm · Manufacturer: BERU · Material: Sheet metal (steel) · Spark plug socket: M4 · Cable available: No · Color: silver · Resistance: 1000 Ω · Suppressed: Yes · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00
CHF 8.75
Fuel tap horizontal M12x1 (with union nut) outgoing at the bottom
Possible lever positions: open / closed / reserve · Material lever: Metal · Thread type: MF12x1 (fine pitch thread) · Filter type: Plastic net · Installation direction: horizontal / horizontal · Outlet direction: below · Spare tube shape: curved · Mounting type: Union nut · Ø fuel hose connection: 6 mm · Reserve level: 70 mm
CHF 9.90
swiing® revival locking plate drive wheel Inox | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A1717)
Manufacturer: swiing® revival parts · Material: Chrome steel (stainless steel) · Number of lobes: 1 pcs · Thickness: 0.5 mm · Pony spare part no.: A1717 · Sachs spare part no.: A1717 · Sachs spare part no.: 0246 049 000
CHF 6.90
GPO blade gauge set 0.05 - 1.00 mm 20 pcs.
Measuring range [mm]: 0.05 - 1 mm · Manufacturer: GPO · Area of application: Measuring tool · Material: Steel · Thickness: 0.05 mm · Thickness: 0.1 mm · Thickness: 0.15 mm · Thickness: 0.2 mm · Thickness: 0.25 mm · Thickness: 0.3 mm · Thickness: 0.35 mm · Thickness: 0.4 mm · Thickness: 0.45 mm · Thickness: 0.5 mm · Thickness: 0.55 mm · Thickness: 0.65 mm · Thickness: 0.7 mm · Thickness: 0.75 mm · Thickness: 0.8 mm · Thickness: 0.85 mm · Thickness: 0.9 mm · Thickness: 0.95 mm · Thickness: 1 mm · Number of components: 20 pcs
CHF 14.90

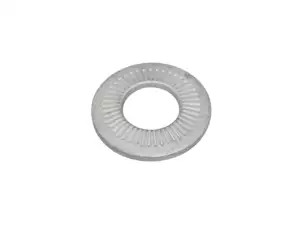

Ripp-Lock washer M10 10.2/22/1.6 galvanized
