Piaggio cylinder

Repair kit spark plug thread M14x1.25

Thread type: MF14x1.25 (fine pitch thread) · Storage method: Plastic box · Material: Steel · Area of application: Workshop accessories · Surface: blue galvanized · Surface: burnished · Total length: 11.3 mm · Nominal diameter (thread): 14 mm · Ø bore: 14 mm · Number of components: 16 pcs · Ø outside: 17.4 mm · Total length: 17.5 mm · Dimension storage box: 19 x 105 x 40 mm · Total length: 70.4 mm

Malossi needle bearing 12/15/15

Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 15 · Ø inside: 12 mm · Ø outside: 15 mm · Width: 15 mm

Malossi piston pin lock Ø 10 mm

Manufacturer: Malossi · Material: Spring steel · Surface: blank · Ø outside: 10 mm

Malossi piston pin lock Ø 12 mm

Manufacturer: Malossi · Material: Spring steel · Surface: blank · Ø outside: 12 mm

Airsal piston pin lock Ø 10 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Number of sensors / lugs: 1 pcs · Ø outside: 10 mm

swiing® revival needle roller bearing 10/13/14.5 piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Manufacturer: swiing® revival parts · Dimension needle bearing: 10/13 x 14.5 · Ø inside: 10 mm · Ø outside: 13 mm · Width: 14.5 mm

Polini needle bearing 12/15/15 connecting rod bushing

Bearing type: Needle roller and cage assembly · Manufacturer: Polini · Dimension needle bearing: 12/15 x 15 · Ø inside: 12 mm · Ø outside: 15 mm · Width: 15 mm

swiing® ingenious needle roller bearing 12/15/14.2 original silver cage

Alternative version of the Pony Spare part no.: A4222 · Bearing type: Needle roller and cage assembly · Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Dimension needle bearing: 12/15 x 14.2 · Ø inside: 12 mm · Width: 14.2 mm · Ø outside: 15 mm · Alternative version of Sachs spare part no.: 0232 157 001 · Tomos spare part no.: 035548

Needle bearing 10/13/14.2 Piston pin

Bearing type: Needle roller and cage assembly · Bearing cage: Sheet steel cage · Dimension needle bearing: 10/13 x 14.2 · Ø inside: 10 mm · Ø outside: 13 mm · Width: 14.2 mm

Malossi needle bearing 10/13/14.5 aluminum cage piston pin

Bearing cage: Sheet steel cage · Manufacturer: Malossi · Bearing type: Needle roller and cage assembly · Width: 14.5 mm · Ø inside: 13 mm · Ø outside: 1 mm · Dimension needle bearing: 10/13 x 14.5

Airsal piston pin lock Ø 12 mm (single)

Manufacturer: Airsal · Material: Spring steel · Surface: blank · Ø outside: 12 mm · Number of sensors / lugs: 1 pcs

Meteor piston pin lock Ø 10 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Number of sensors / lugs: 2 pcs · Ø outside: 10 mm

swiing® revival needle roller bearing 12/15/14.2 original

Bearing type: Needle sleeve · Bearing cage: Sheet steel cage · Dimension needle bearing: 12/15 x 14.2 · Ø inside: 12 mm · Ø outside: 15 mm · Manufacturer: swiing® revival parts · Width: 14.2 mm · Alternative version of the Pony Spare part no.: A4222 · Alternative version of Sachs spare part no.: 0232 155 001 · Tomos spare part no.: 035548

Meteor piston ring 40.2 x 1.5 mm (FS)

Manufacturer: Meteor · Nominal diameter: 40.2 mm · Height: 1.5 mm · Piston ring mold: Rectangular ring · Piston ring impact: Flank safety device (FS) · Area of application: Tuning · Thick piston ring: 1.65 mm

Meteor piston pin lock Ø 12 mm (double)

Manufacturer: Meteor · Material: Spring steel · Surface: blank · Ø outside: 12 mm · Number of sensors / lugs: 2 pcs · Pony spare part no.: A1632 · Tomos spare part no.: 032039 · Sachs spare part no.: 0245 000 000

GPO piston pin extractor Ø 10, 12, 14 mm

Manufacturer: GPO · Area of application: (Dis)assembly tool · Material: Steel · Surface: burnished · Number of components: 7 pcs · Total length: 130 mm · Diameter: 10 mm · Diameter: 12 mm · Diameter: 14 mm · Width across flats SW: 10 mm · Width across flats SW: 17 mm

Polini Racing 43 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø outlet inside: 18.1 mm · Ø Outlet outside: 22.4 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.7 mm · Hole pattern [mm]: 55 x 34 · Displacement: 63 ccm

Polini 43 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Displacement: 63 ccm

Malossi 46.5 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Manufacturer: Malossi · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Displacement: 70 ccm

Malossi 46.5 mm cylinder kit incl. head 12 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Manufacturer: Malossi · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Displacement: 70 ccm

Malossi 43 mm cylinder kit incl. head 10 mm KoBo new version | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Manufacturer: Malossi · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Displacement: 63 ccm

Polini 43 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Displacement: 63 ccm

Polini Racing 43 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø outlet inside: 18.1 mm · Ø Outlet outside: 22.4 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.7 mm · Hole pattern [mm]: 55 x 34 · Displacement: 63 ccm

Polini Racing 43 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Ø outlet inside: 18.1 mm · Ø Outlet outside: 22.4 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.7 mm · Hole pattern [mm]: 55 x 34 · Displacement: 63 ccm

Polini 43 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Displacement: 63 ccm

Polini 43 mm cylinder kit incl. head 12 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Displacement: 63 ccm

Polini 46 mm cylinder kit incl. head 12 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Displacement: 70 ccm

Polini Racing 43 mm cylinder kit incl. head 12 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Ø outlet inside: 18.1 mm · Ø Outlet outside: 22.4 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.7 mm · Hole pattern [mm]: 55 x 34 · Displacement: 63 ccm

Polini 46 mm cylinder kit incl. head 10 mm KoBo | Piaggio Ciao, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Displacement: 70 ccm

Simonini 47.6 mm cylinder kit 12 mm KoBo Set | Piaggio Ciao, SI, Bravo, Boxer

Material: Cast aluminum · Camouflaged: No · Manufacturer: Simonini · Area of application: Tuning · Surface: sandblasted · Outlet type: slanted · Number of fixing points: 4 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 46 mm · Nominal diameter: 47.6 mm · Hole pattern [mm]: 50 x 50 · Displacement: 100 ccm

Olympia 43 mm cylinder kit incl. head 10 mm KoBo | Piaggio SI, Bravo, Grillo

Material: Gray cast iron · Camouflaged: No · Manufacturer: Olympia · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: varnished · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø Outlet outside: 22.3 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Displacement: 63 ccm

Meteor piston rings set 39.4 mm | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring mold: L-ring · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.65 mm · Thick piston ring: 1.75 mm · Height: 2 mm · Nominal diameter: 39.4 mm

Meteor piston rings set 39.6 mm | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring mold: L-ring · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.65 mm · Thick piston ring: 1.75 mm · Height: 2 mm · Nominal diameter: 39.6 mm

Meteor piston rings set 38.6 mm | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring mold: L-ring · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.6 mm · Thick piston ring: 1.75 mm · Height: 2 mm · Nominal diameter: 38.6 mm

Meteor piston rings set 38.4 mm | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Flank safety device (FS) · Piston ring impact: Internal fuse (IS) · Piston ring mold: L-ring · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.6 mm · Thick piston ring: 1.75 mm · Height: 2 mm · Nominal diameter: 38.4 mm

swiing® revival stud bolt set M7x120 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Drive: External hexagon · Thread type: M7x1 (standard thread) · Material: Steel · Surface: blue galvanized · Manufacturer: swiing® revival parts · Diameter: 6.2 mm · Strength class: 8 · Strength class: 8.8 · Width across flats SW: 11 mm · Thread length: 25 mm · Total length: 120 mm

DR 43 mm cylinder kit 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Material: Gray cast iron · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: varnished · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø outlet inside: 18 mm · Ø Outlet outside: 22.3 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 46 mm · Hole pattern [mm]: 55 x 34 · Displacement: 65 ccm

Malossi piston rings Ø 46.5 mm | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Internal fuse (IS) · Manufacturer: Malossi · Height: 1.5 mm · Nominal diameter: 46.5 mm

Cylinder base gasket Piaggio Ciao, SI, Bravo, Boxer (aluminum) original

Material: Aluminum · Place of use: Cylinder base · Area of application: Original · Thickness: 0.25 mm

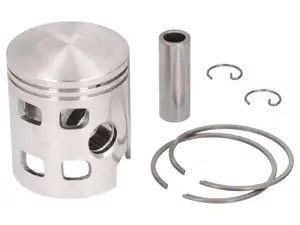

DR 43 mm piston (12 mm KoBo) Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: DR Racing Parts · Piston ring impact: Internal fuse (IS) · Piston ring mold: Rectangular ring · Piston ring height: 1.2 mm · Number of piston rings (F): 2 pcs · Curvature (D): 2.4 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.1 mm · Ø outside piston (A): 42.9 mm · Nominal diameter: 43 mm · Total piston height (E): 50.5 mm

Malossi piston 46.5 mm (10 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Piston ring impact: Internal fuse (IS) · Manufacturer: Malossi · Piston ring mold: Rectangular ring · Piston ring height: 1.5 mm · Number of piston rings (F): 2 pcs · Curvature (D): 2.4 mm · Ø piston pin (B): 10 mm · Compression height (C): 25.9 mm · Ø outside piston (A): 46.4 mm · Nominal diameter: 46.5 mm · Total piston height (E): 52.8 mm

Malossi 46.5 mm cylinder kit without head 10 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Material: Gray cast iron · Manufacturer: Malossi · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 10 mm · Ø outlet inside: 18.1 mm · Ø Outlet outside: 22.4 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46.5 mm · Ø cylinder neck: 50 mm · Hole pattern [mm]: 55 x 34 · Displacement: 73 ccm

Meteor piston ring 38.4 x 1.5 mm (FS)

Piston ring impact: Flank safety device (FS) · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.6 mm · Nominal diameter: 38 mm

Meteor piston ring 38.6 x 1.5 mm (FS)

Piston ring impact: Flank safety device (FS) · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.6 mm · Nominal diameter: 38 mm

Meteor piston ring 39.2 x 1.5 mm (FS)

Piston ring impact: Flank safety device (FS) · Manufacturer: Meteor · Piston ring mold: Rectangular ring · Height: 1.5 mm · Thick piston ring: 1.65 mm · Nominal diameter: 39 mm

Athena 46 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Crankshaft stroke: 43 mm · Nominal diameter: 46 mm · Displacement: 70 ccm

Athena piston 43mm (10 mm KoBo) #A | Piaggio Ciao, SI, Bravo, Boxer

Tolerance group: A · Manufacturer: Athena · Piston ring impact: Flank safety device (FS) · Piston ring mold: Rectangular ring · Piston ring height: 1.5 mm · Number of piston rings (F): 2 pcs · Curvature (D): 2.4 mm · Ø piston pin (B): 10 mm · Compression height (C): 26.52 mm · Ø outside piston (A): 42.9 mm · Nominal diameter: 43 mm · Total piston height (E): 50.4 mm

Athena piston 38.4 mm (12 mm KoBo) | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Piston ring impact: Internal fuse (IS) · Piston ring mold: Rectangular ring · Piston ring height: 1.5 mm · Number of piston rings (F): 2 pcs · Curvature (D): 3.9 mm · Ø piston pin (B): 12 mm · Compression height (C): 26.3 mm · Ø outside piston (A): 38.32 mm · Nominal diameter: 38.4 mm · Total piston height (E): 51.83 mm

Athena gasket set 38.4 mm cylinder | Piaggio Ciao, SI, Bravo, Boxer

Manufacturer: Athena · Area of application: Tuning · Decompressor: Yes · Number of components: 2 pcs · Ø cylinder: 38.4 mm

Polini 43 mm cylinder kit without head 12 mm KoBo | Piaggio Ciao, SI, Bravo, Boxer

Material: Gray cast iron · Camouflaged: No · Manufacturer: Polini · Area of application: Tuning · Decompressor: Yes · Outlet type: clamped · Surface: sandblasted · Number of fixing points: 3 pcs · Ø piston pin (B): 12 mm · Ø outlet inside: 18.4 mm · Ø Outlet outside: 22.6 mm · Crankshaft stroke: 43 mm · Nominal diameter: 43 mm · Ø cylinder neck: 45.8 mm · Hole pattern [mm]: 55 x 34 · Displacement: 63 ccm
