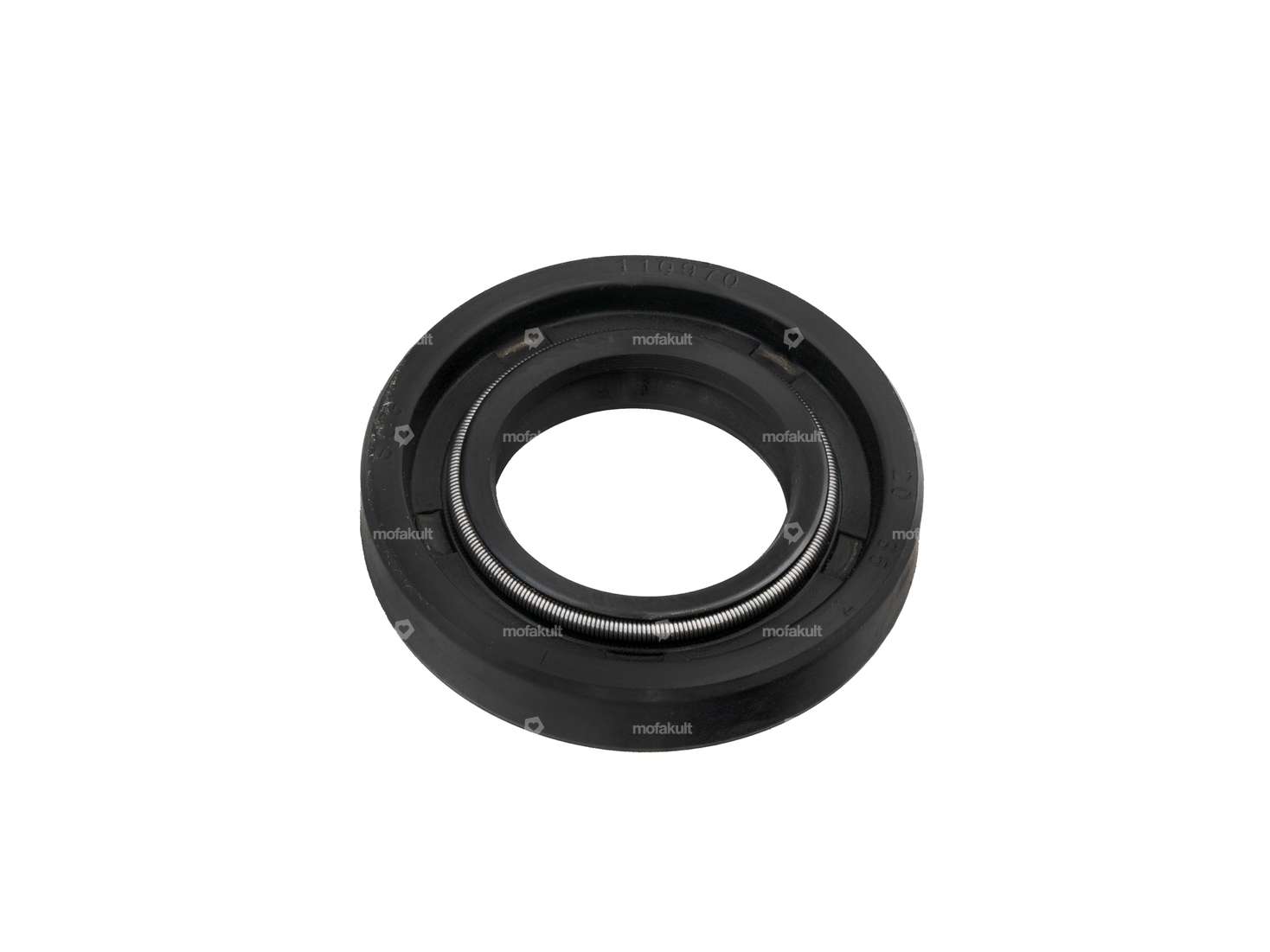

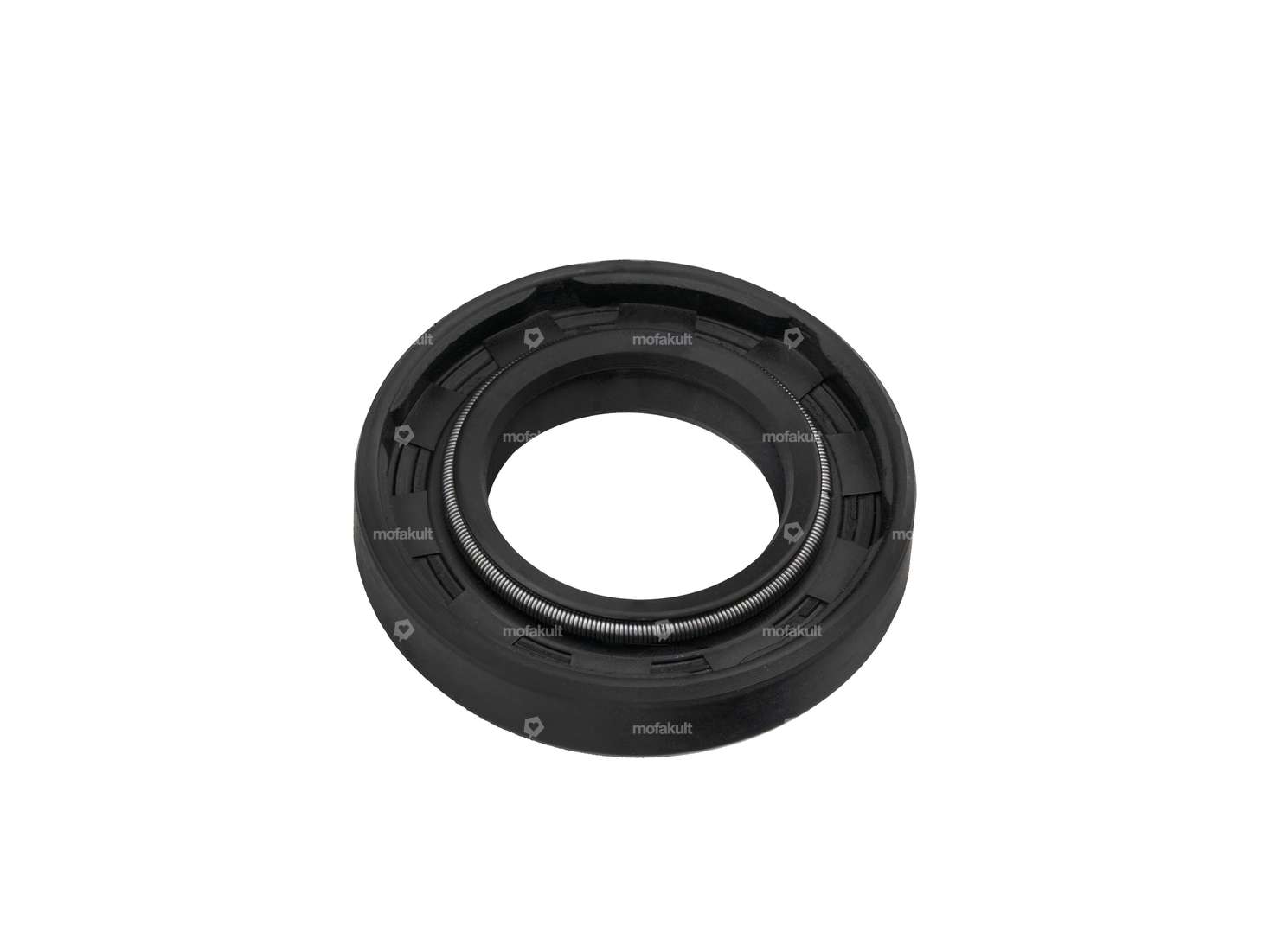

Shaft seal ring 20x35x7 mm for use on the crankshaft of your Puch X30 moped, moped with ZA50 engine.
This radial shaft seal ring is fitted to the crankshaft on the clutch side.
Ø inner: 20 mm
Ø outer: 35 mm
Width: 7 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
Type: A DUO - With rubberized outer casing and two sealing lips.
Details
Simmering type | A DUO - With rubberized outer casing / two sealing lips. |
Ø inside | 20 mm |
Width | 7 mm |
Ø outside | 35 mm |
Manufacturer | Puch |
Temperature resistance (min.) | -30 - 100 °C |
Material | NBR |
Place of use | Crankshaft |
Surface | rubberized |
Suitable for the following models
Puch | ZA50 (Fahrtwindgekühlt) ZA50 (Gebläsegekühlt) |
