Operator's manual for Puch X30 NG-2A and NG-2AH (2-speed automatic engine).
Very helpful, informative booklet.

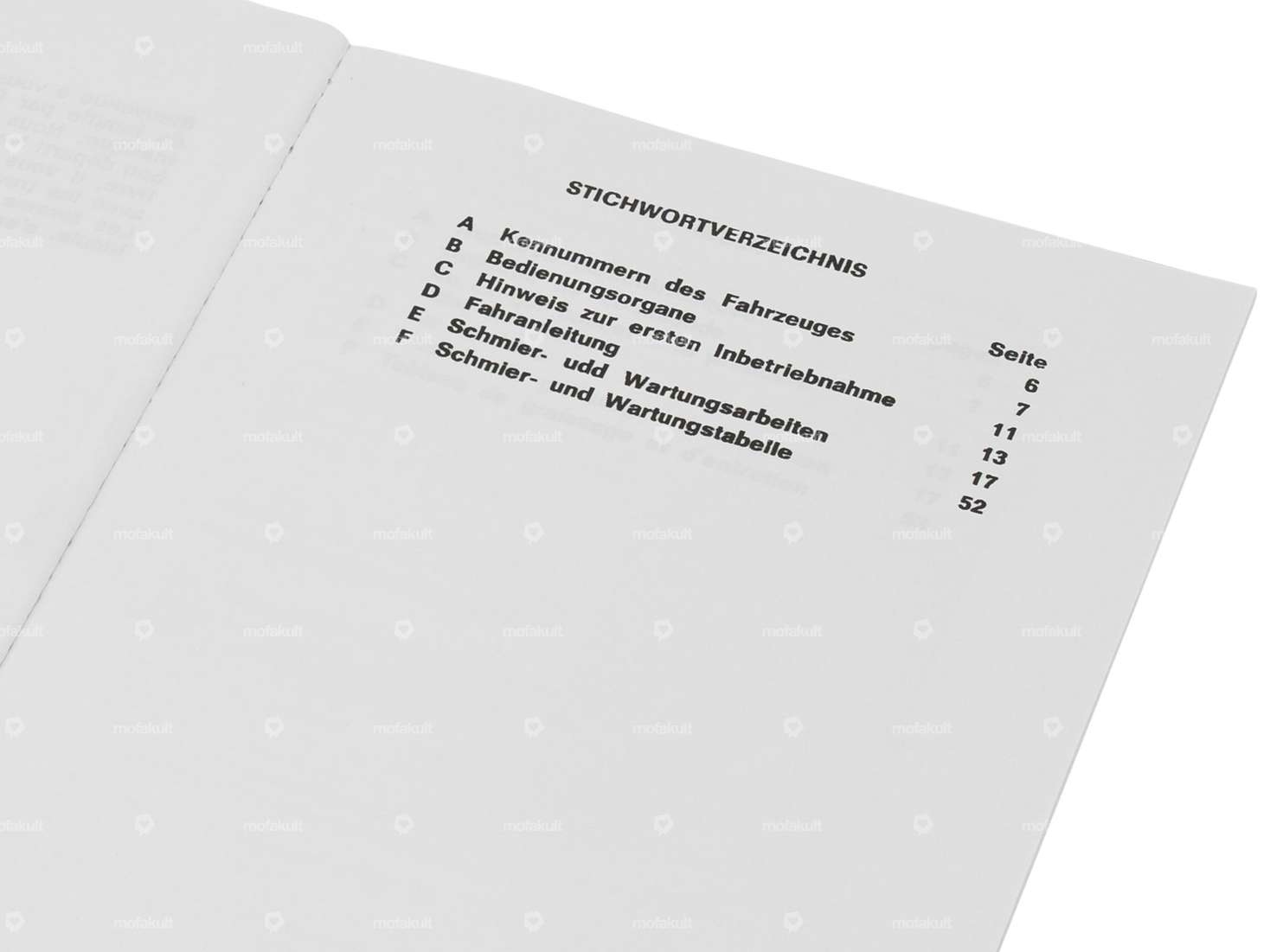

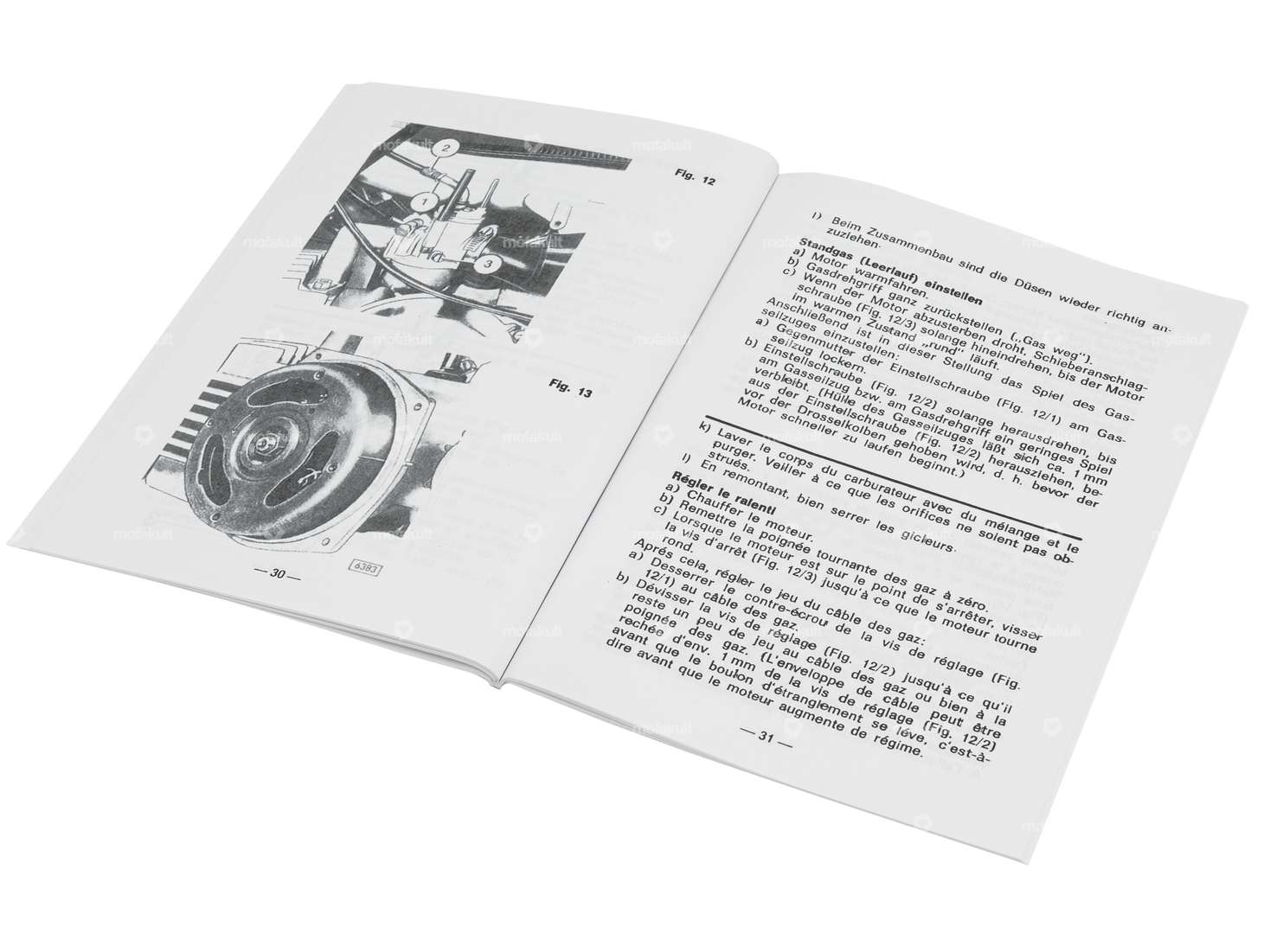

This explains technical data, maintenance work, adjustments etc.. It also has helpful pictures and the explanations are easier to understand.
A6 format with 53 pages.
Details
| Material | Paper |
| DIN format | A6 |
| Number of pages | 53 pcs |
| Language | German, French |
Suitable for the following models
| Puch | ZA50 (air-cooled) ZA50 (fan-cooled) |
