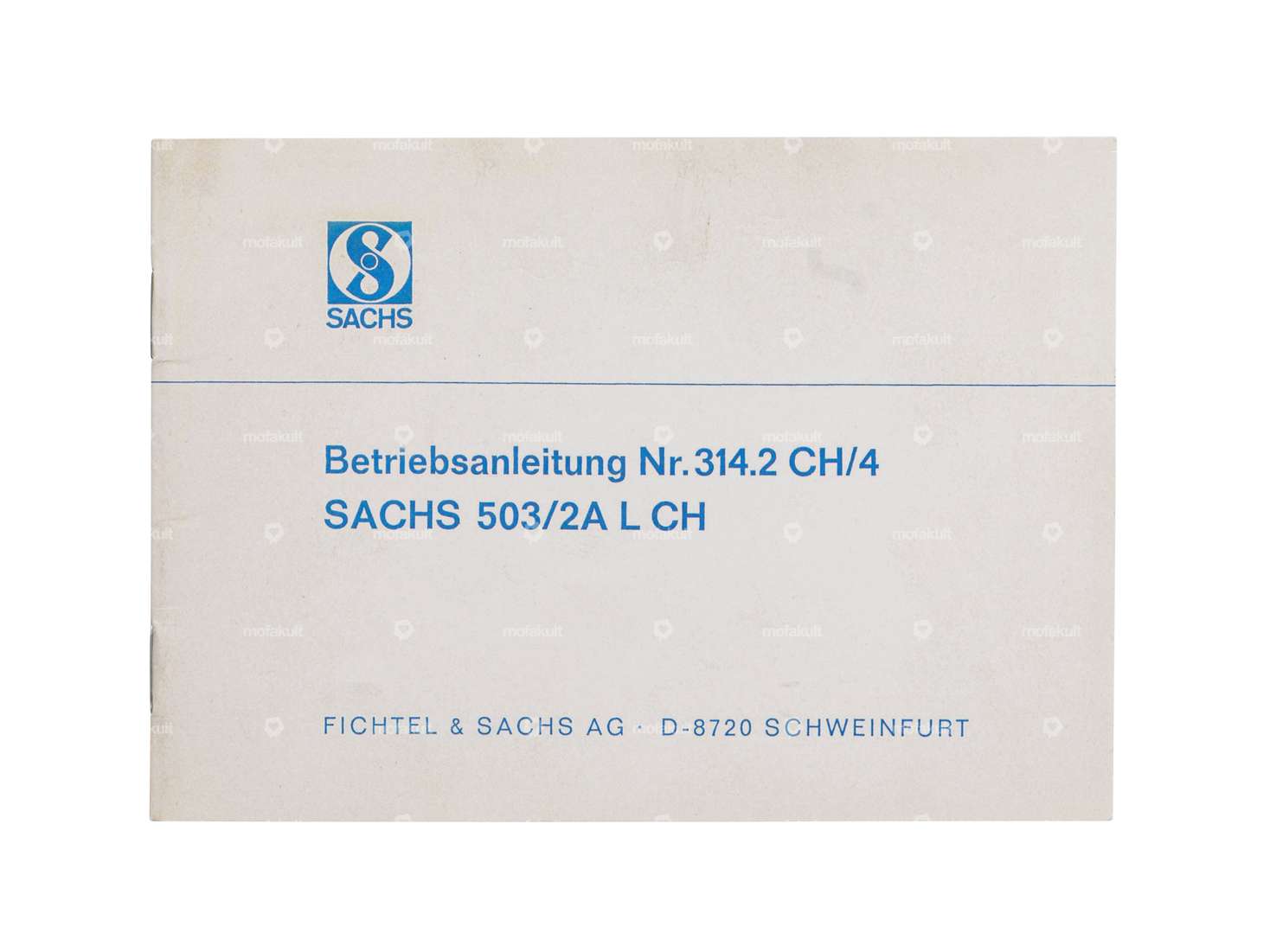

Operator's manual for the hand-shifted 2-speed Sachs 503 2AL CH engine from Fichtel & Sachs AG.

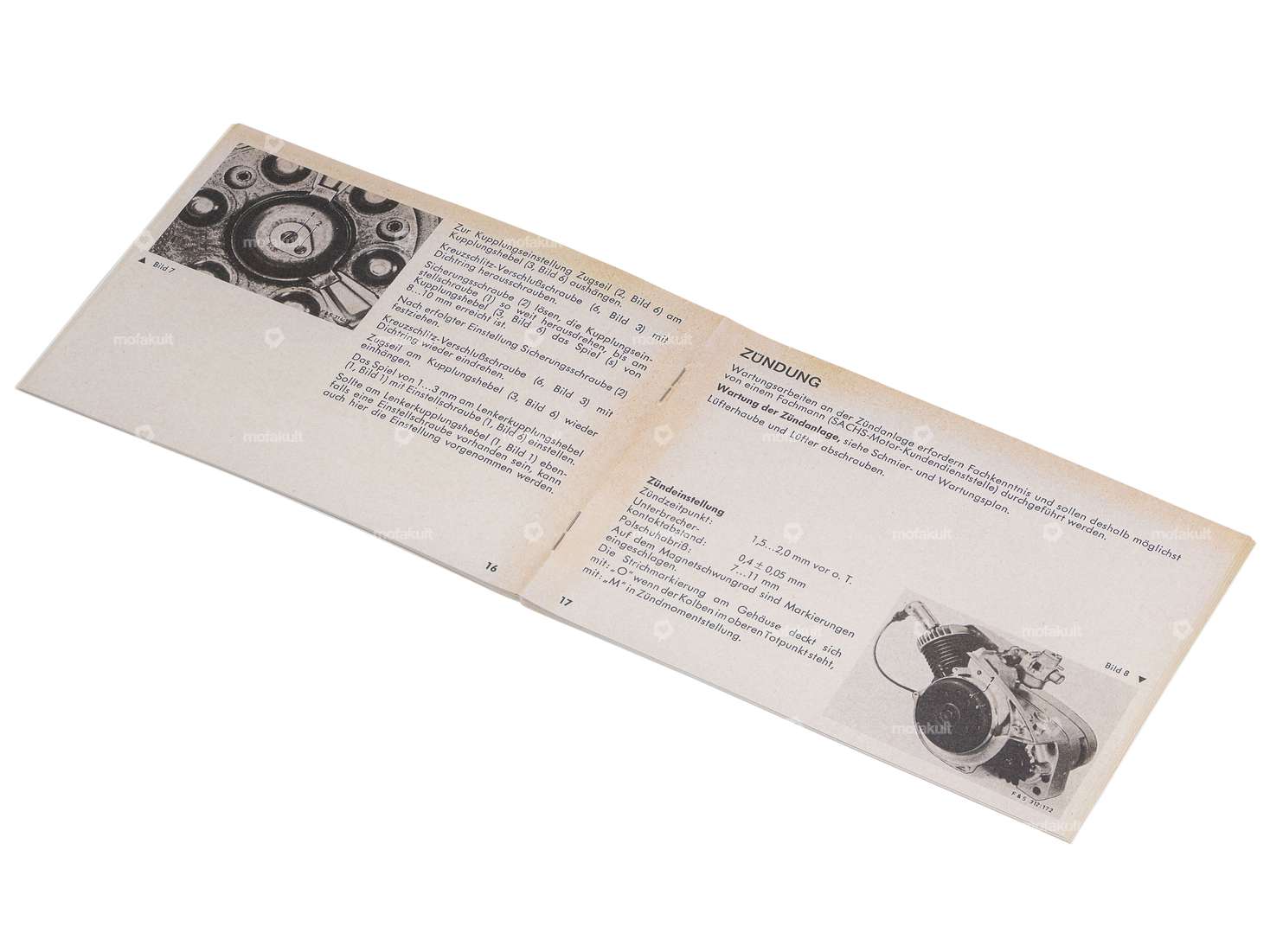

Very helpful, informative booklet. Among other things, it explains the operating elements, repair, maintenance and adjustment work. This detailed instruction manual should not be missing in any workshop with Sachs mopeds / mopeds.
Size: A6 (148 x 105 mm)
Pages: 30
High-quality new edition in used look, only available from us!
Further spare parts catalogs and repair manuals can be found in the accessories section.
Details
| Manufacturer | Sachs |
| Material | Paper |
| Width | 148 mm |
| DIN format | A6 |
| Height | 105 mm |
| Number of pages | 30 pcs |
Suitable for the following models
| Sachs | 503 - 2AL / 2BL |
