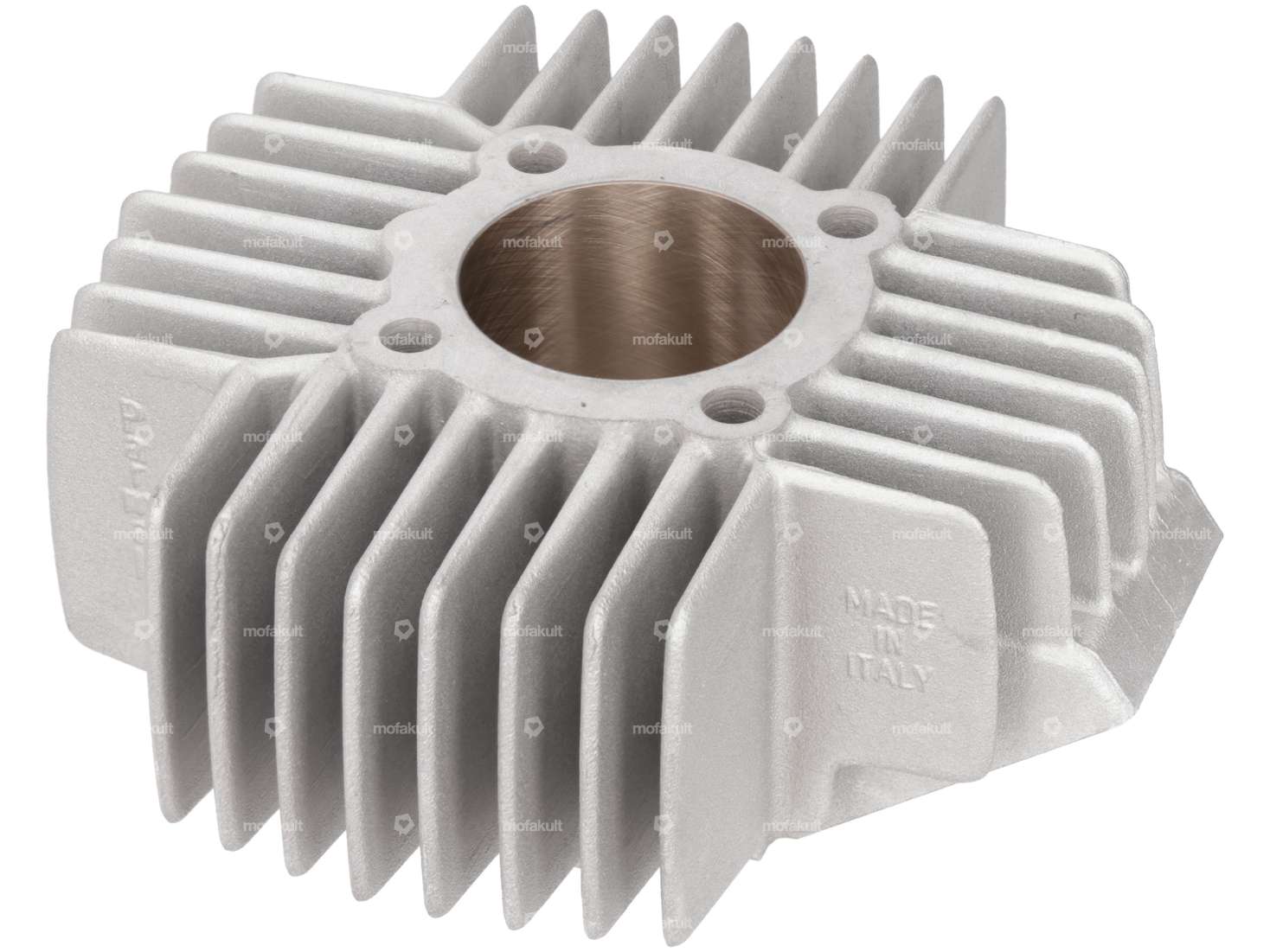

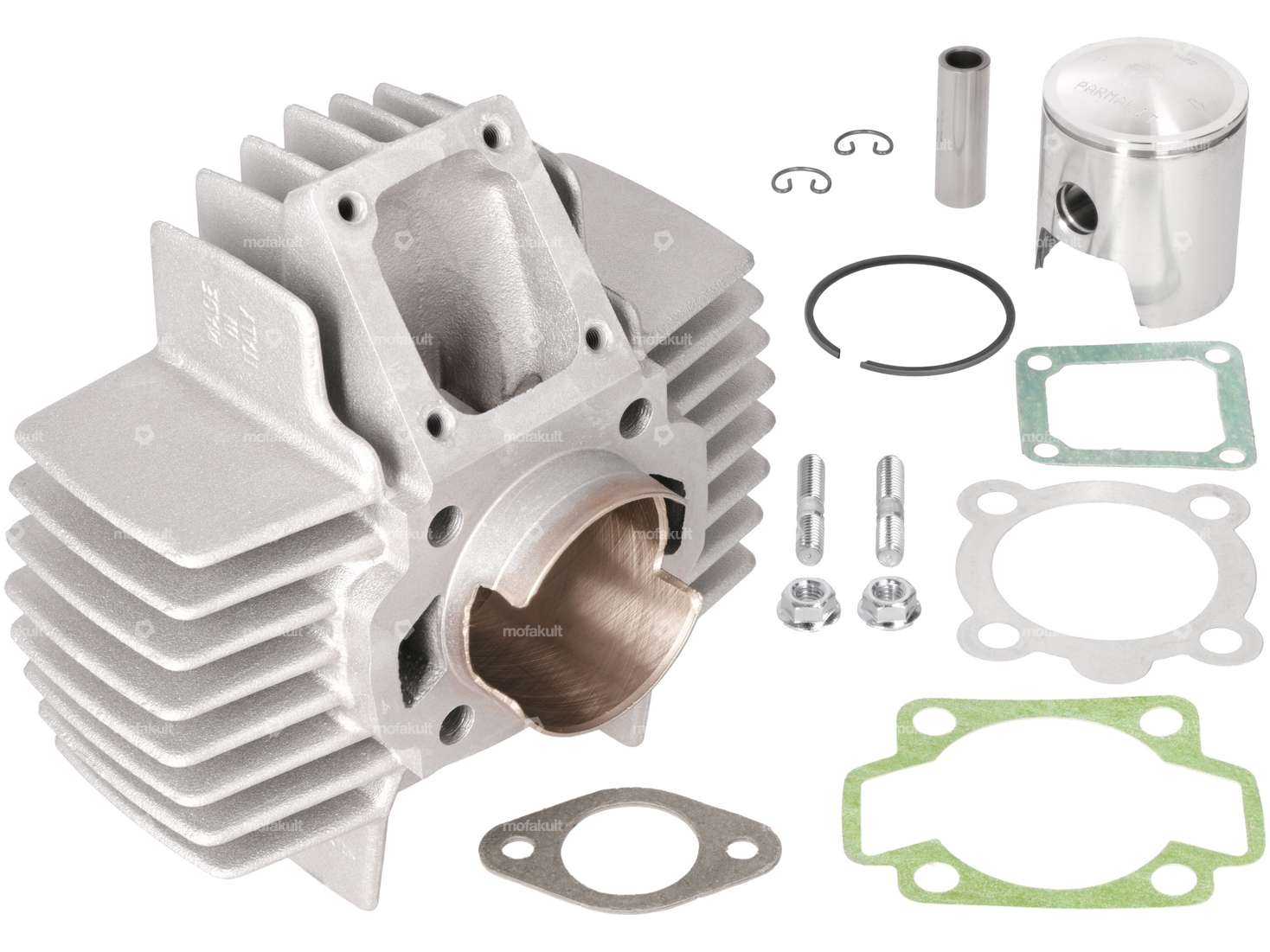

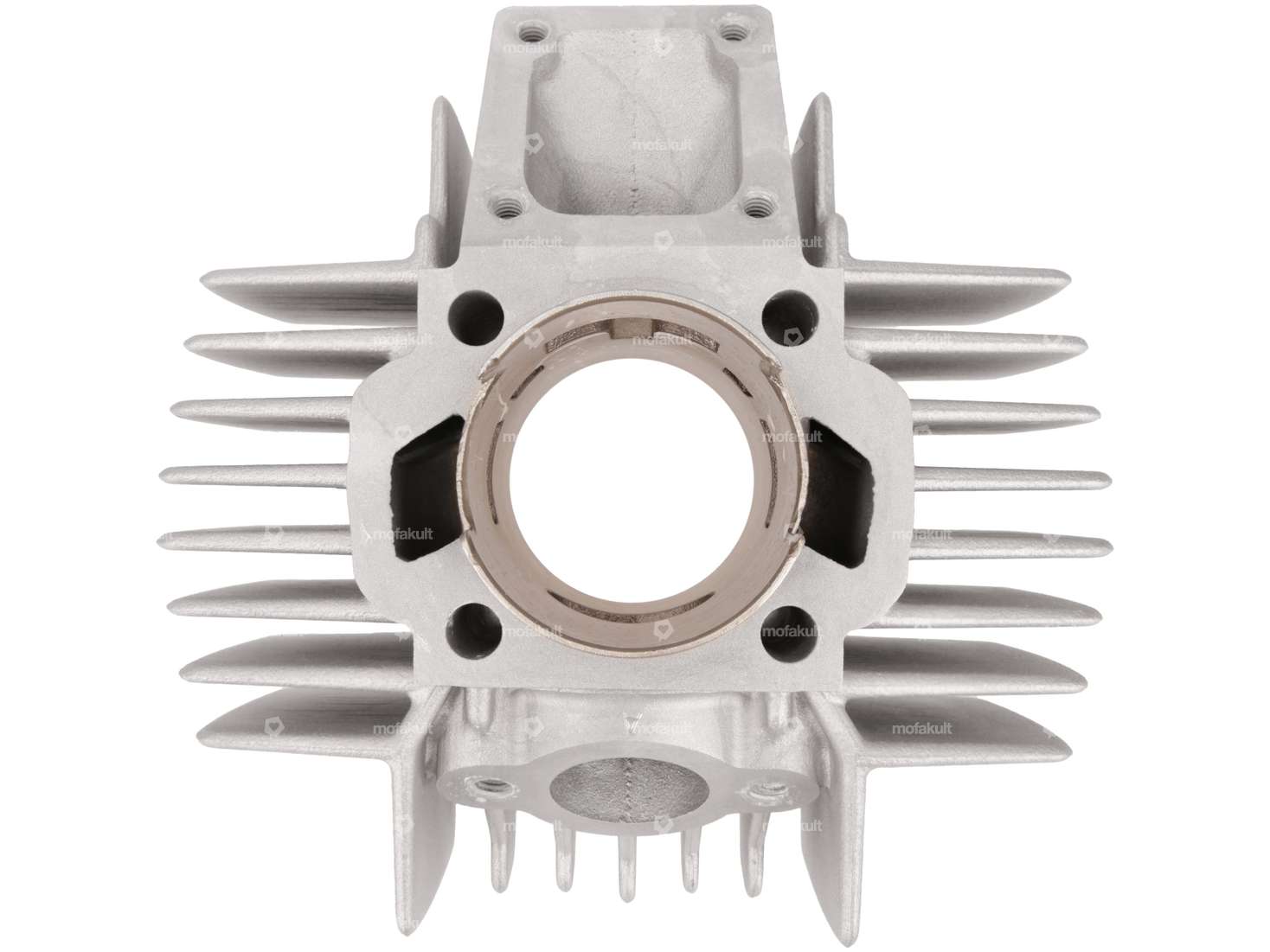

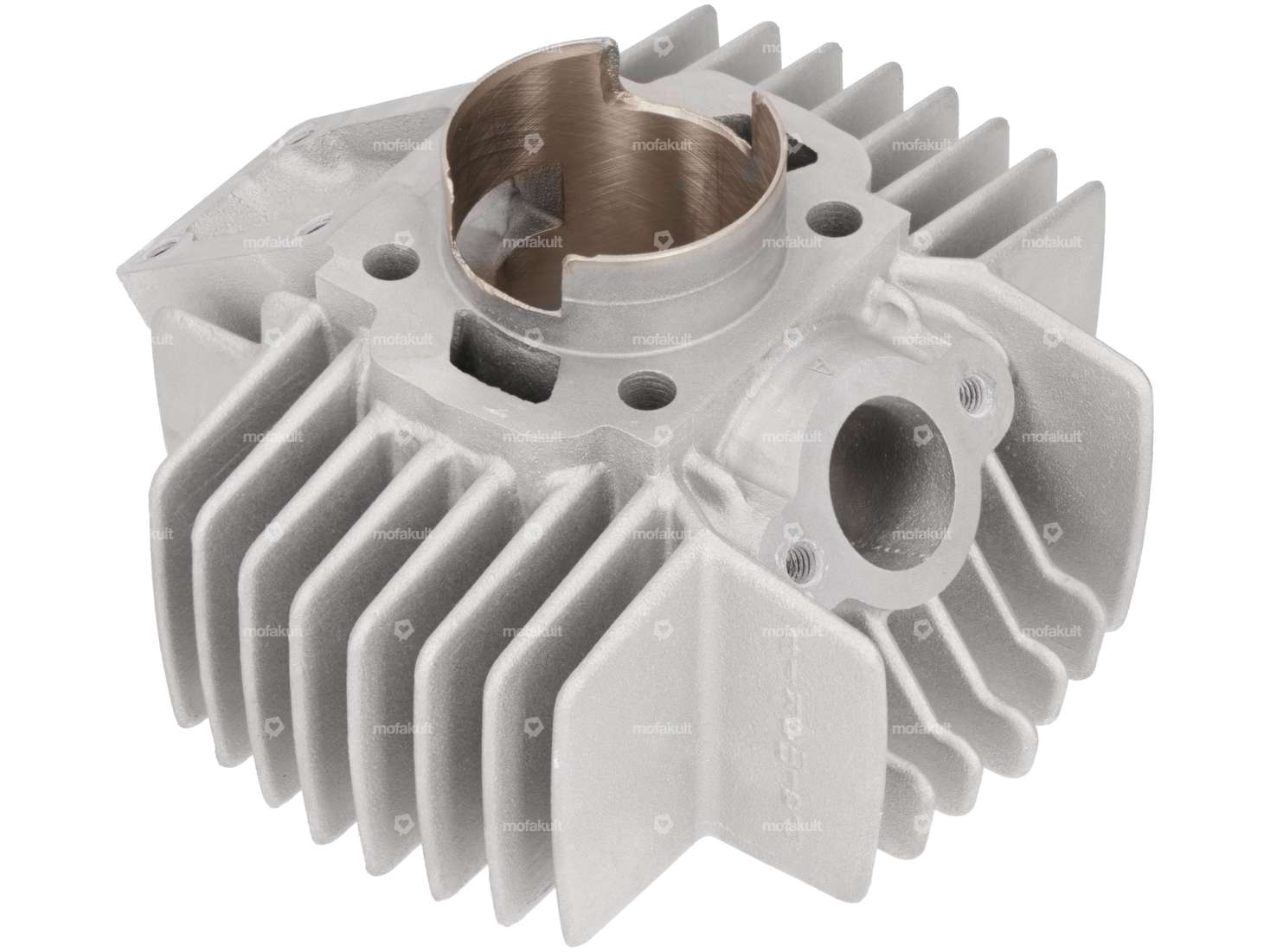

45 mm cylinder kit from the Parmakit brand.
This nikasil-coated aluminum racing kit is currently one of the best on the market.
The racing cylinder impresses with its high-quality workmanship and long service life.
In order to get the full power out of the cylinder, a racing exhaust and a larger carburetor should be fitted.
12 mm piston pin.
Fits Tomos A3 / A35.
Product of the Italian manufacturer Parmakit.
Details
| Manufacturer | Parmakit |
| Material | Cast aluminum |
| Camouflaged | No |
| Surface | sandblasted |
| Displacement | 70 ccm |
| Crankshaft stroke | 43 mm |
| Ø piston pin (B) | 12 mm |
| Nominal diameter | 45 mm |
| Hole pattern [mm] | 44 x 44 |
| Thread inlet | M5x0.8 (standard thread) |
| Hole spacing outlet | 42 mm |
| Number of fixing points | 4 pcs |
| Thread outlet | M6x1 (standard thread) |
| Area of application | Tuning |
Suitable for the following models
| Tomos |
