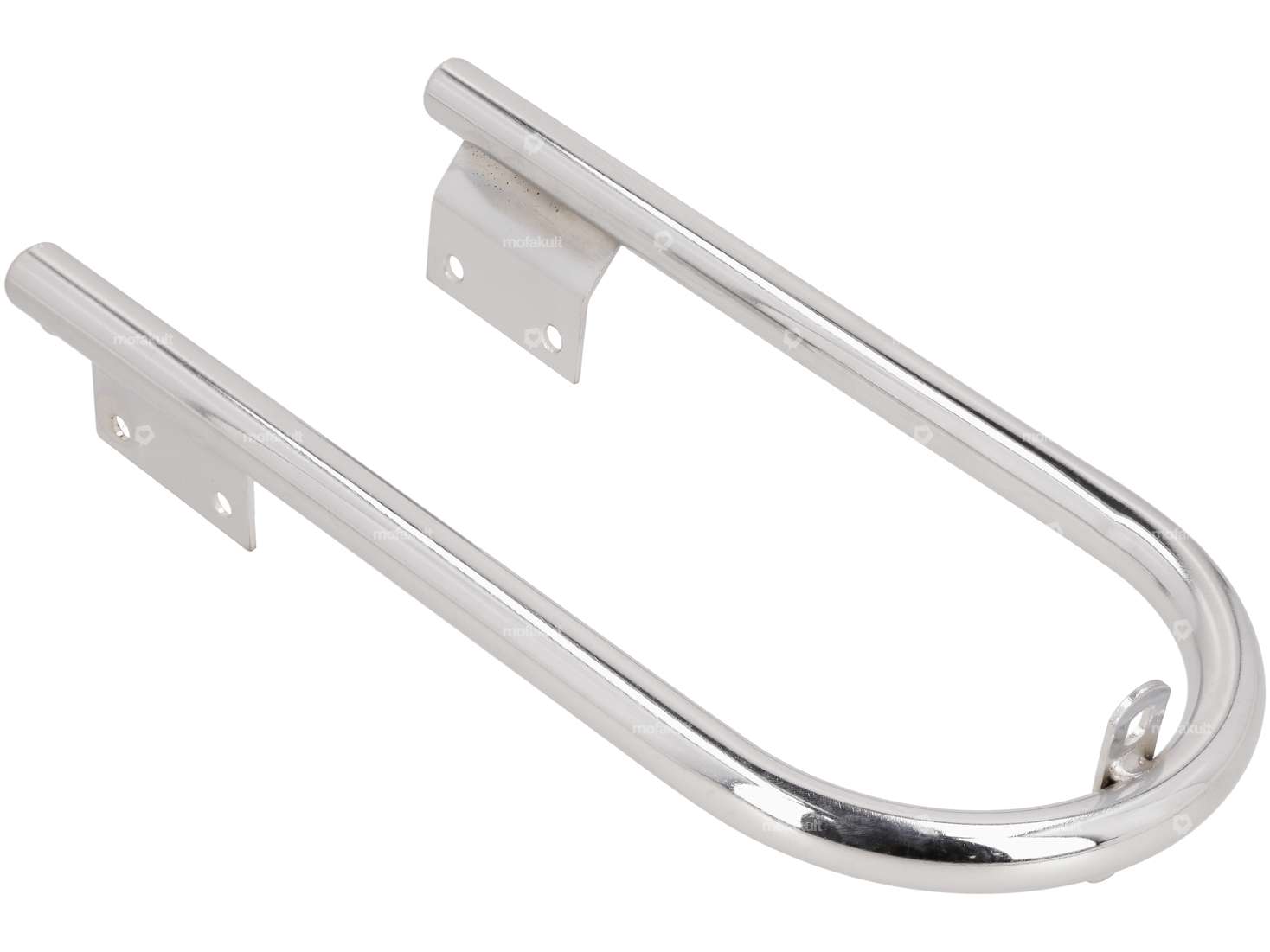

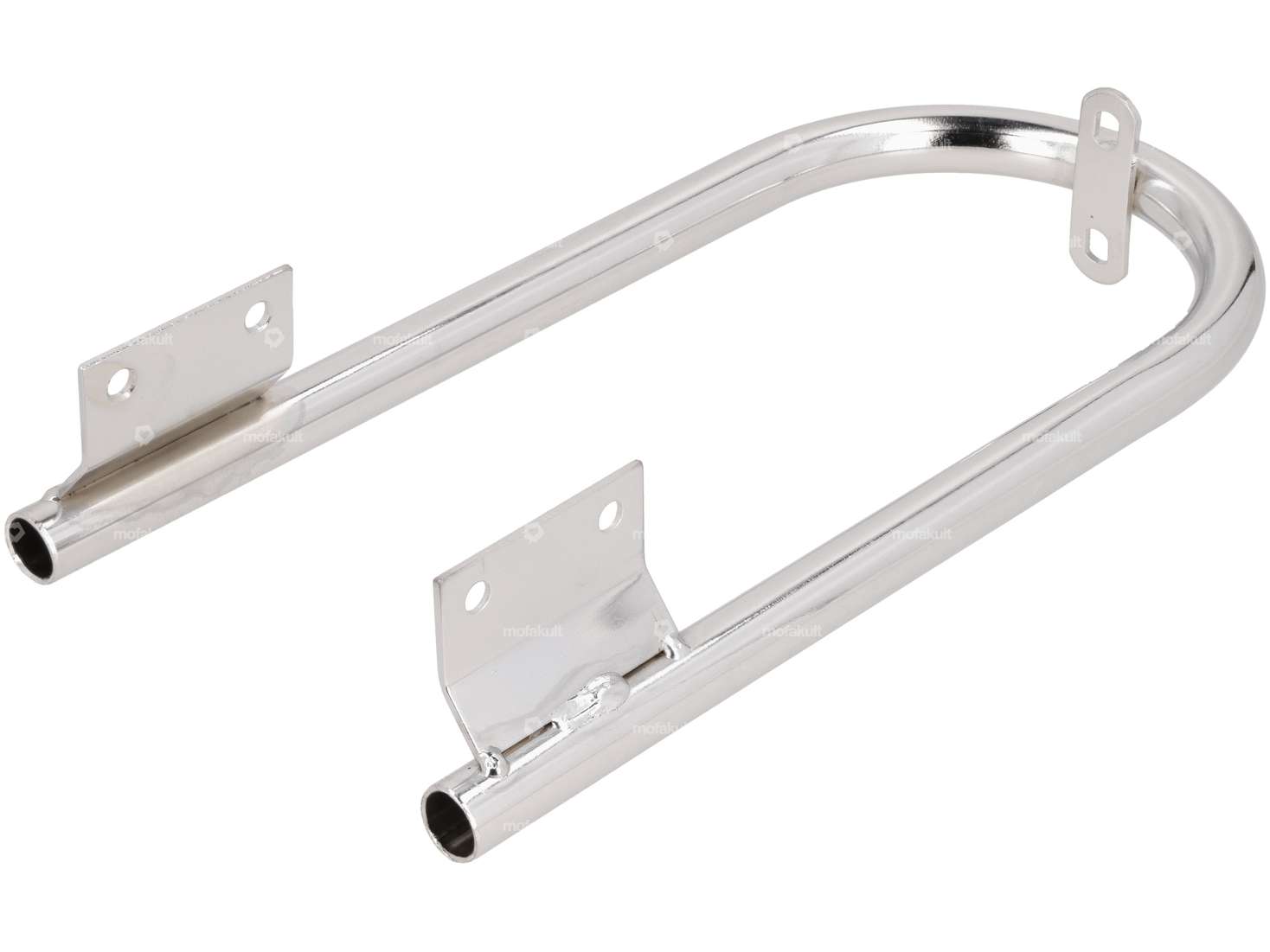

Special tube bend.
Does not fit any fork as standard, must be modified.
Dimension between the lugs:
Total height: 100 mm
Support surface flat bar - upper mounting hole of the lug: 210 mm
Hole spacing for lugs: 35 mm
Details
| Number of fixing points | 6 pcs |
| Material | Steel |
| Surface | chrome-plated |
| Color | Chrome |
| Distance mudguard - center hole | 210 mm |
| Hole spacing | 35 mm |
| Mounting type | Nuts & bolts |
Suitable for the following models
| Puch |
