For: Peugeot

32460

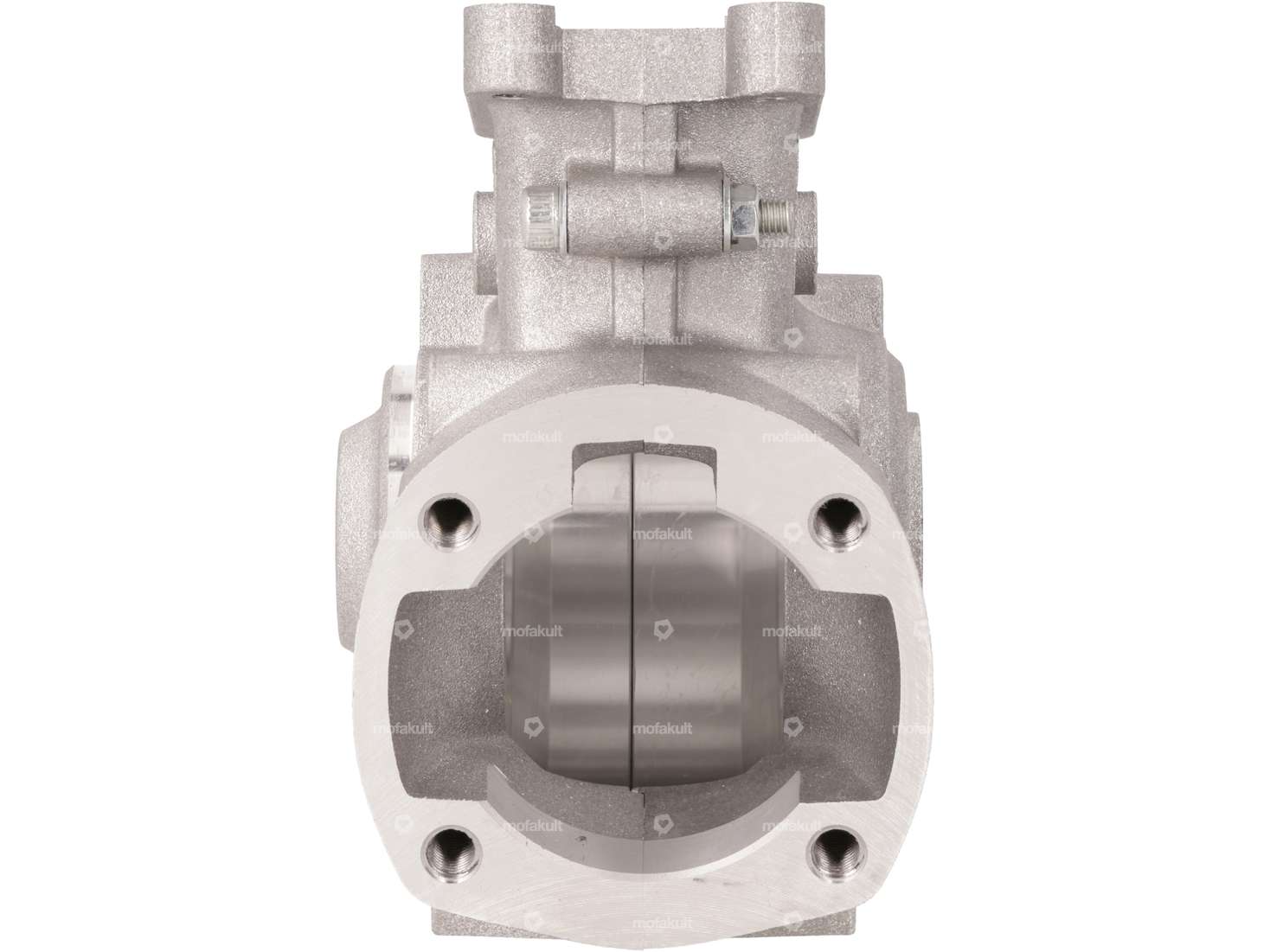

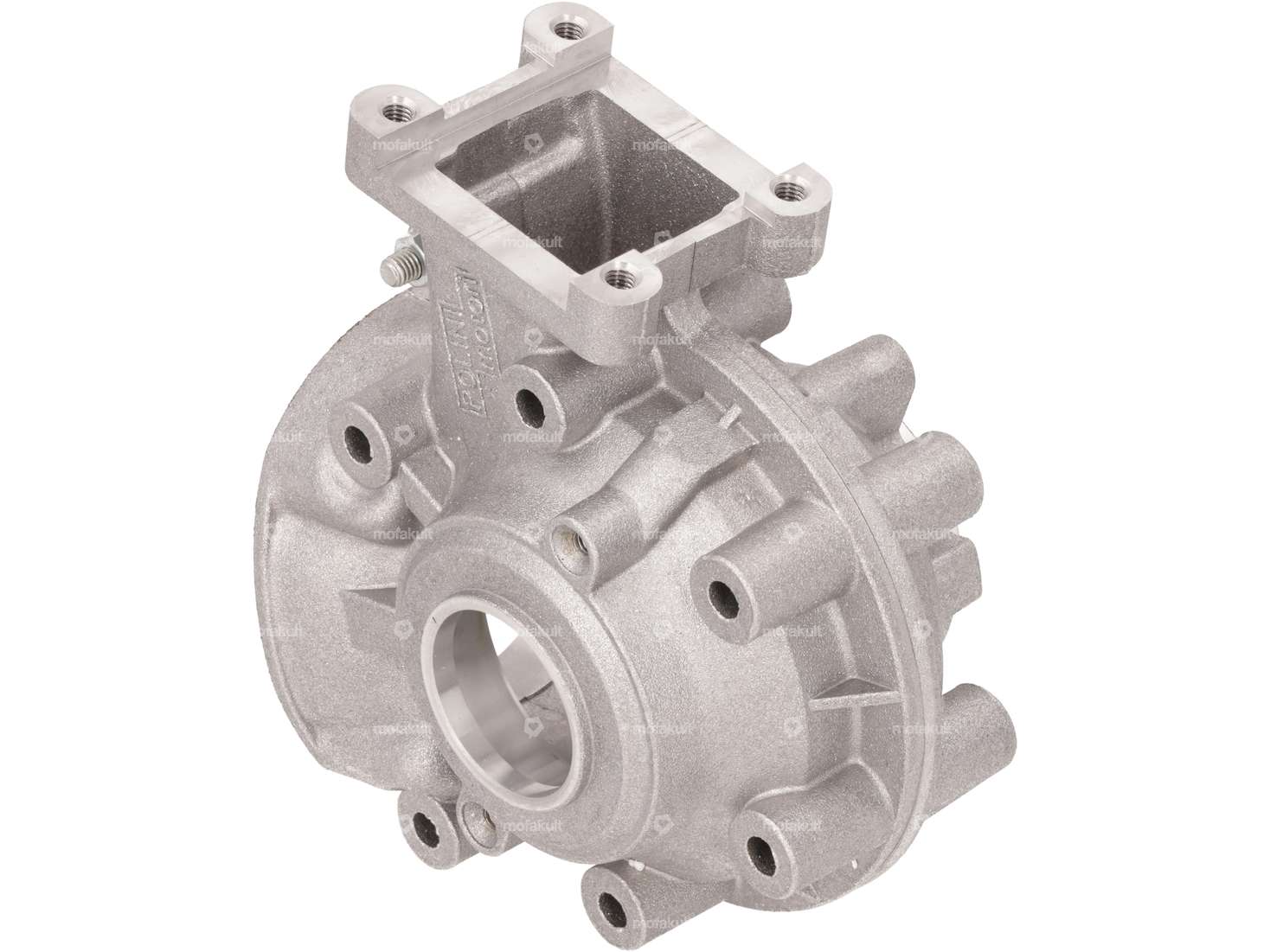

Polini engine housing 2-flap diaphragm | Peugeot 103, 104, 105, GL 10

Home
| Motor
| Engine block
| Gearbox & housing (motor)
CHF 219.90

Incl. 8.1% VAT.

Polini racing gears suitable for your Peugeot 103, 103 SPX50, 104, 105, GL 10 moped / moped.

The workmanship is high quality and the housing shells are supplied with the required bearings and oil seals (also known under the famous brand name Simmerring®).
The engine mount and fixing screws are taken from the original engine. The delivery includes a 2-flap diaphragm.

Cylinder hole pattern: 50x45 mm
Ø cylinder neck: 50 mm
Inlet hole pattern: 48x34 mm

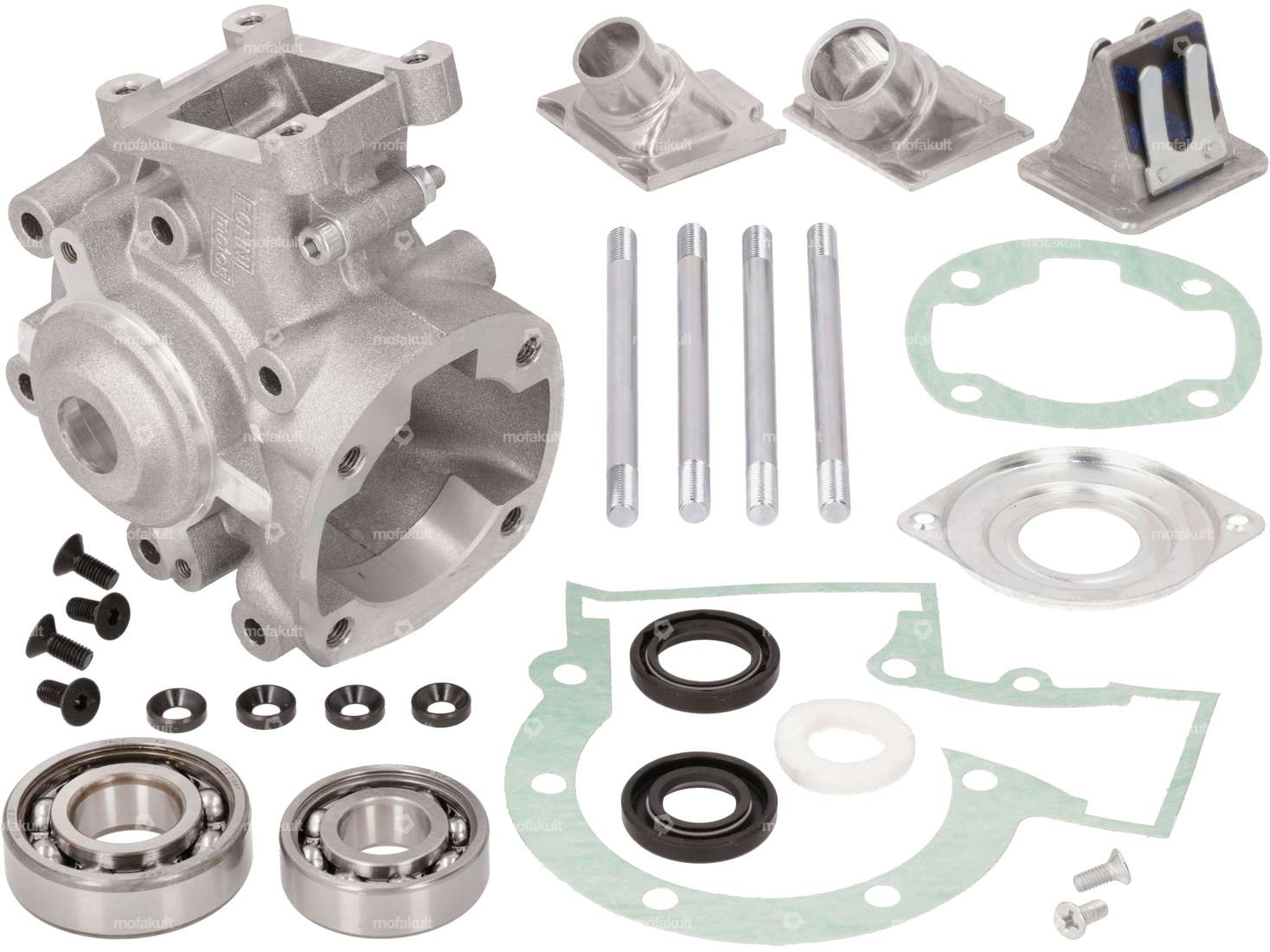

Scope of delivery:

  • Handles right and left
  • 1 crankshaft bearing 6203 C3 17 x 40 x 12 mm
  • 1 crankshaft bearing 6204 C3 20 x 47 x 14 mm
  • 1 oil seal AS 20 x 30 x 4.5 mm
  • 1 shaft seal AS 15 x 30 x 5 mm
  • 2-flap diaphragm system

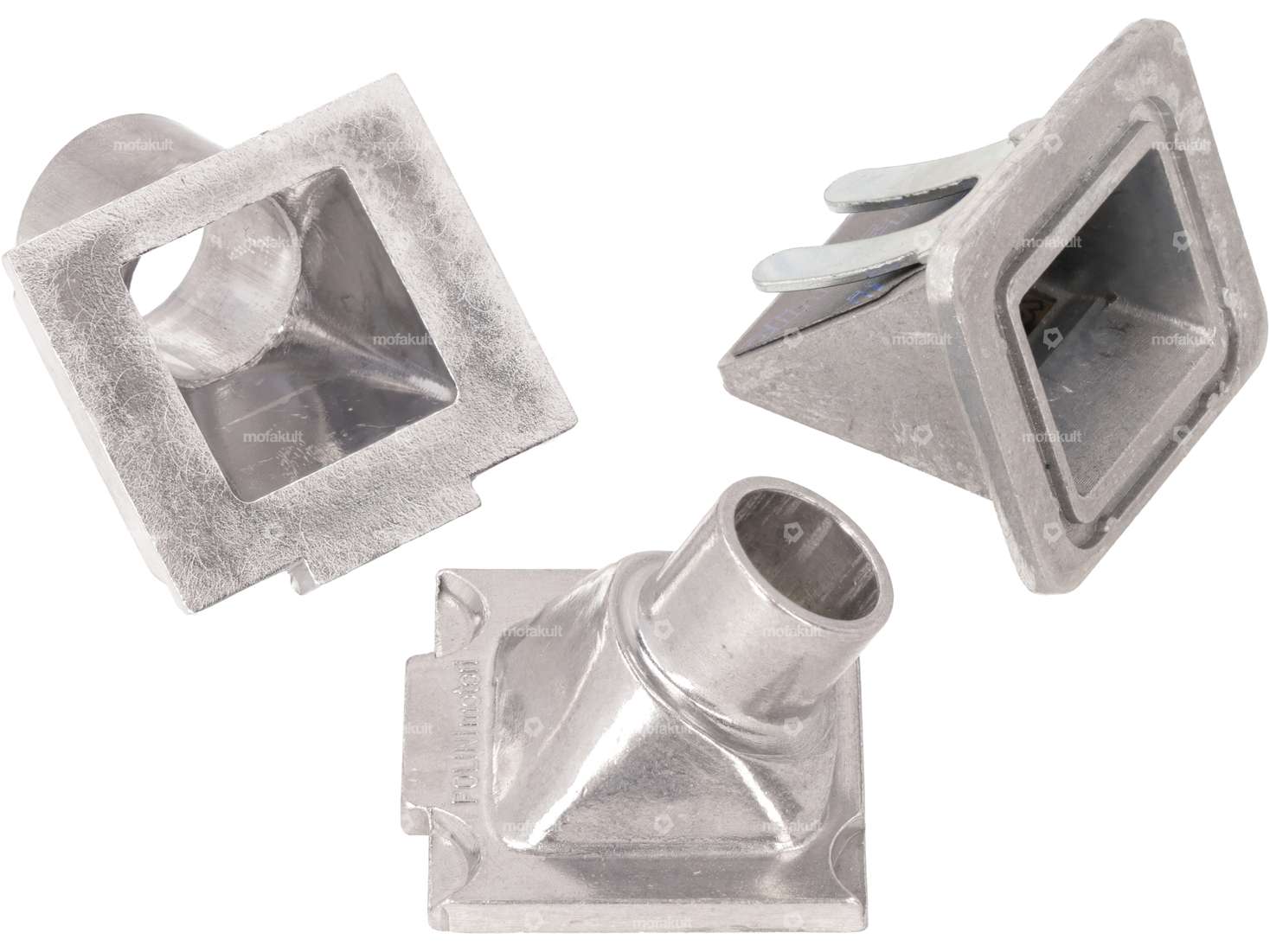

  • 2 intake manifolds (for 15 or 19 mm carburetor)
  • Gasket set
  • 4 cylinder stud bolts
  • Small parts

The engine mounts with 4-flap diaphragm system can be found in the accessories section.

Quality product from the Italian manufacturer Polini.

Details

ManufacturerPolini
MaterialCast aluminum
Crankshaft stroke39 mm
Hole pattern [mm]50 x 45

Suitable for the following models

Peugeot
