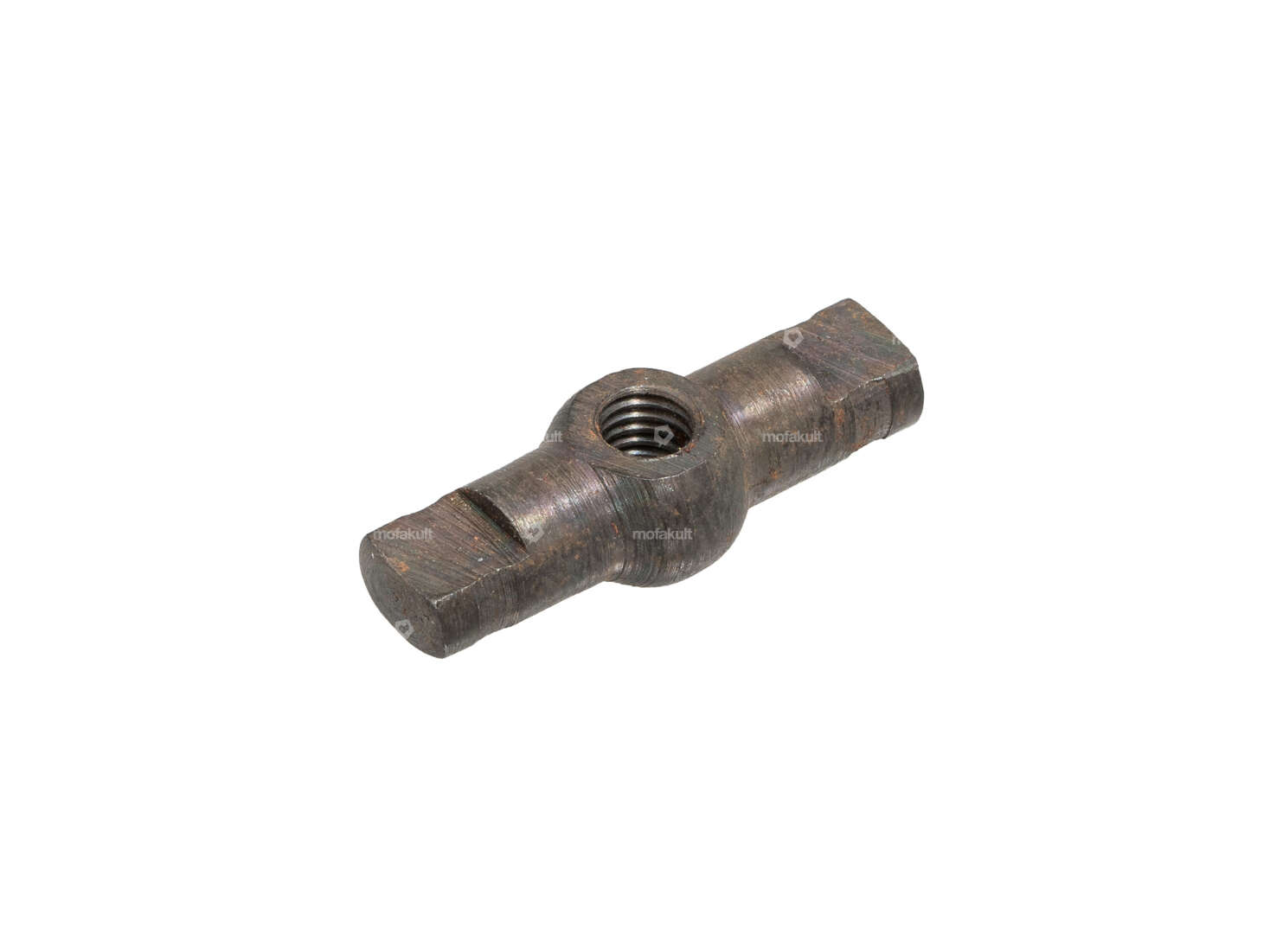

Shift key NOS | Sachs 50/3, 50/4

Slotted nut M6 shift rod | Sachs 50/3, 50/4 foot control

Material: Steel · Surface: burnished · Nut type: Slotted nut · Thread type: M6x1 (standard thread) · Drive: Slot

Shift rod in gearbox | Sachs 50/4

Total length: 118.5 mm · Material: Steel · Surface: raw · Thread type: M5x0.8 (standard thread) · Thread type: M6x1 (standard thread)

Shift unit 3-speed foot shift | Sachs 50/3

Shift unit 4-speed foot shift | Sachs

Oil seal NBR 10/16/4.5 A Shift shaft | Sachs 50/3, 50/4

Simmering type: A - With rubberized outer part / one sealing lip. · Ø inside: 10 mm · Ø outside: 16 mm · Manufacturer: Sachs · Width: 4.5 mm · Material: NBR · Surface: rubberized · Place of use: Shift shaft · Temperature resistance (min.): -30 - 100 °C

Locknut M6 shift rod foot shift NOS | Sachs 50/3, 50/4

Manufacturer: Sachs · Nut type: Slotted nut · Thread type: M6x1 (standard thread) · Drive: External hexagon

BERU spark plug connector / 1 kΩ interference suppressed

Manufacturer: BERU · Material: Sheet metal (steel) · Color: silver · Spark plug socket: M4 · Cable available: No · Suppressed: Yes · Resistance: 1000 Ω · Ø cable: 5 mm · Ø cable: 7 mm · Pony spare part no.: A2099 · Sachs spare part no.: 0265 100 00

OMG fuel filter metal 6 mm (removable)

Ø inside: 3.45 mm · Total length: 40 mm · Total length: 63 mm · Ø outside: 22 mm · Manufacturer: OMG · Material: Glass · Material: Metal · Color: gray · Color: transparent · Color: white · Filter type: Plastic net · demountable: Yes · Ø fuel hose connection: 5.6 mm · Ø fuel hose connection: 6 mm

Fortune / Merrick 2.00-2.50 x 16/17" inner tube

Valve type: TR4 Auto valve · Manufacturer: Fortune · Tire width [inch]: 2 - 2.5 " · Wheel size [inch]: 16 - 17 " · Wheel size [inch]: 17 " · Tire width [mm]: 50.8 - 63.5 · Tire height [%]: 100 · Width [inch]: 2 · Width [inch]: 2 1/4 · Width [inch]: 2 1/2 · Old designation: 20 x 2 · Old designation: 20 x 2.25 · Old designation: 20 x 2.5 · Old designation: 21 x 2 · Old designation: 21 x 2.25 · Old designation: 21 x 2.5

NSK L17 shoulder ball bearing

Bearing type: Shoulder bearing · Stock number: L17 · Ø inside: 17 mm · Inner ring width: 10 mm · Ø outside: 40 mm · Manufacturer: NSK · Ball bearing closed: No · Width: 10 mm · Bearing clearance: CN (standard) · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank / oiled

NSK BO15 shoulder ball bearing 15/40/10 (A4502)

Bearing type: Shoulder bearing · Stock number: BO15 · Ø inside: 15 mm · Inner ring width: 10 mm · Ø outside: 40 mm · Manufacturer: NSK · Ball bearing closed: No · Width: 10 mm · Bearing cage: Brass cage ball-guided · Material: Brass · Area of application: Standard · Material: Steel · Surface: blank · Pony spare part no.: A4502 · Sachs spare part no.: 0932 007 001

swiing® revival gearbox cover gasket | Sachs 503 AAL, ABL, AB, AC, ADV, 2AL, 2BL (A1888)

Number of fixing points: 6 pcs · Total length: 200 mm · Manufacturer: swiing® revival parts · Width: 130 mm · Material: Sealing paper · Color: sand-colored · Number of components: 1 pcs · Thickness: 0.35 mm · Pony spare part no.: A1888 · Sachs spare part no.: 0250 150 000

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Total length: 23 mm · Diameter: 4.9 mm · Manufacturer: swiing® revival parts · Area of application: Standard · Material: Steel · Surface: blue galvanized · Thread type: M5x0.8 (standard thread) · Thread length: 6 mm · Thread length: 12 mm · Pony spare part no.: A3700 · Sachs spare part no.: 0640 016 101 · Sachs spare part no.: 0640 016 102

Shift rod in gearbox | Sachs 50/3

Total length: 91.5 mm · Material: Steel · Surface: raw · Thread type: M5x0.8 (standard thread)

NSK L17 shoulder ball bearing 17/40/10 | Sachs 50/3, 50/4

Bearing type: Shoulder bearing · Stock number: L17 · Ø inside: 17 mm · Ø outside: 40 mm · Manufacturer: NSK · Width: 10 mm

swiing® revival ball bearing countershaft | Sachs 50/2, 50/3, 50/4, 503 2AL/2BL (A2531)

Bearing type: Deep groove ball bearing · Stock number: E15 · Ø inside: 15 mm · Inner ring width: 25.6 mm · Ø outside: 35 mm · Manufacturer: swiing® revival parts · Width: 8 mm · Bearing clearance: CN (standard) · Bearing cage: "-" Sheet steel cage ball-guided · Area of application: High End · Area of application: Standard · Material: Steel · Thread type: MF20.8x1 LH (fine/left-hand thread) · Pony spare part no.: A2531 · Sachs spare part no.: 0286 079 105
