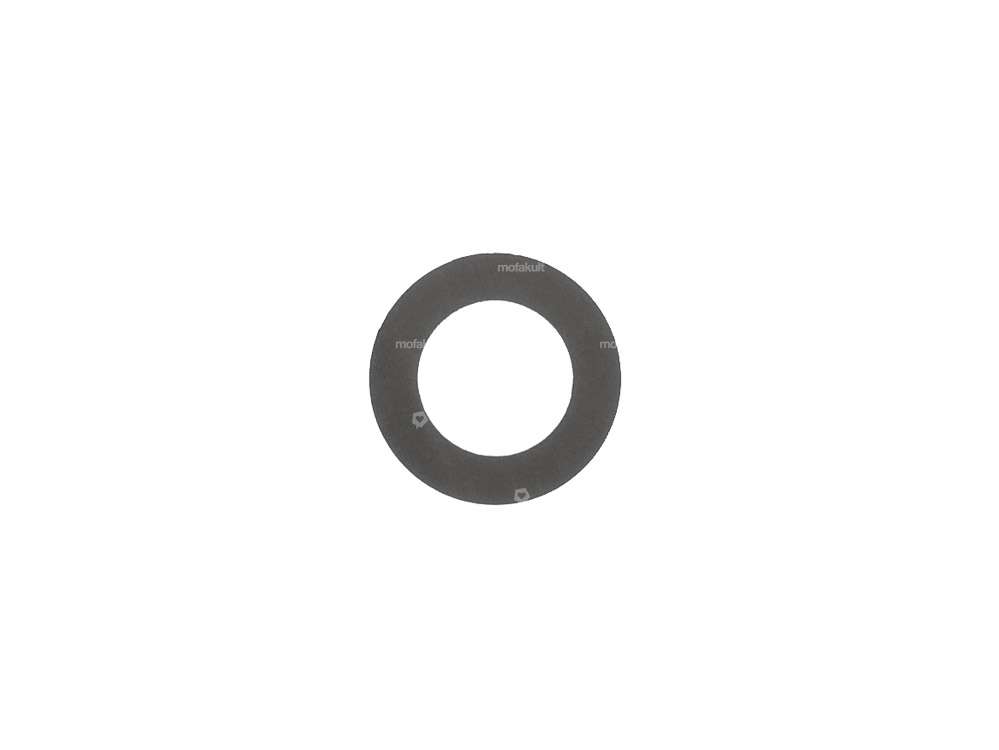

Name: Shim 13/22/0.5 Gearbox | Beta 521, 512 (A8071)
Brand: Pony
SKU: 21351
Price: 3.40 CHF
Availability: InStock

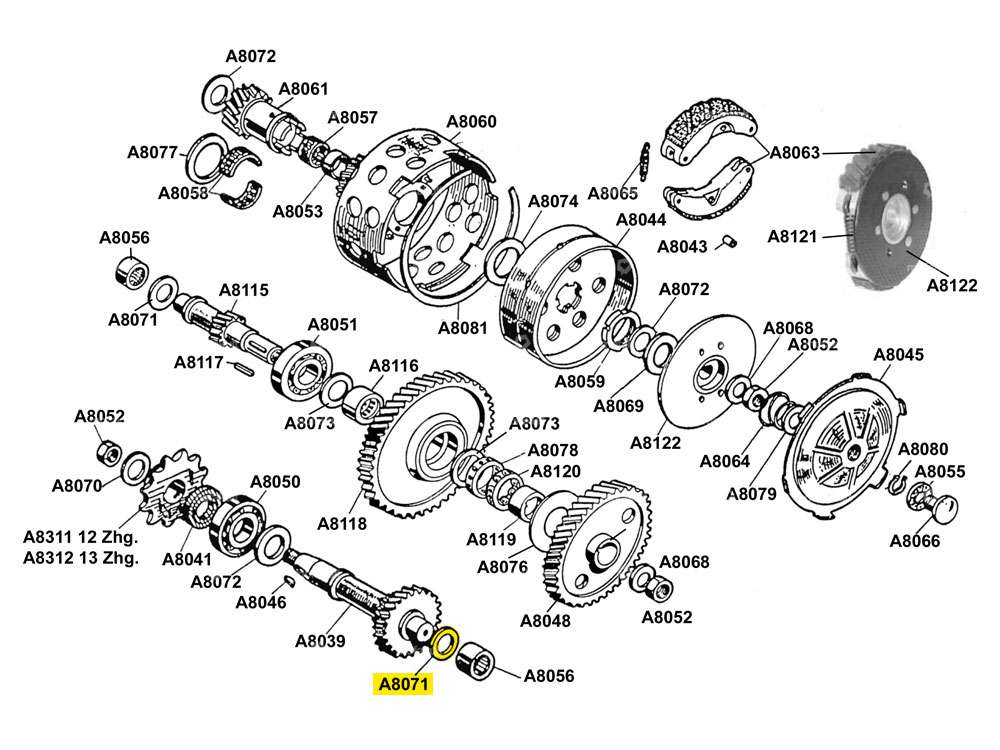

Spacer washer fitted to the gearbox of the following mopeds with Beta 521 engine:

Cilo Cross 521 & 512
Pony Cross 521
Pony GTX 521

Ø outer: 22 mm
Ø inner: 13 mm
Thickness: 0.5 mm

Original spare part number: A8071

Details

Manufacturer	Pony
Material	Steel
Surface	blank / oiled
Ø inside	13 mm
Nominal diameter inside	13 mm
Ø outside	22 mm
Thickness	0.5 mm

Suitable for the following models

Pony / Cilo (Beta 521 & 512)

Beta 512

Beta 521 (engine)
