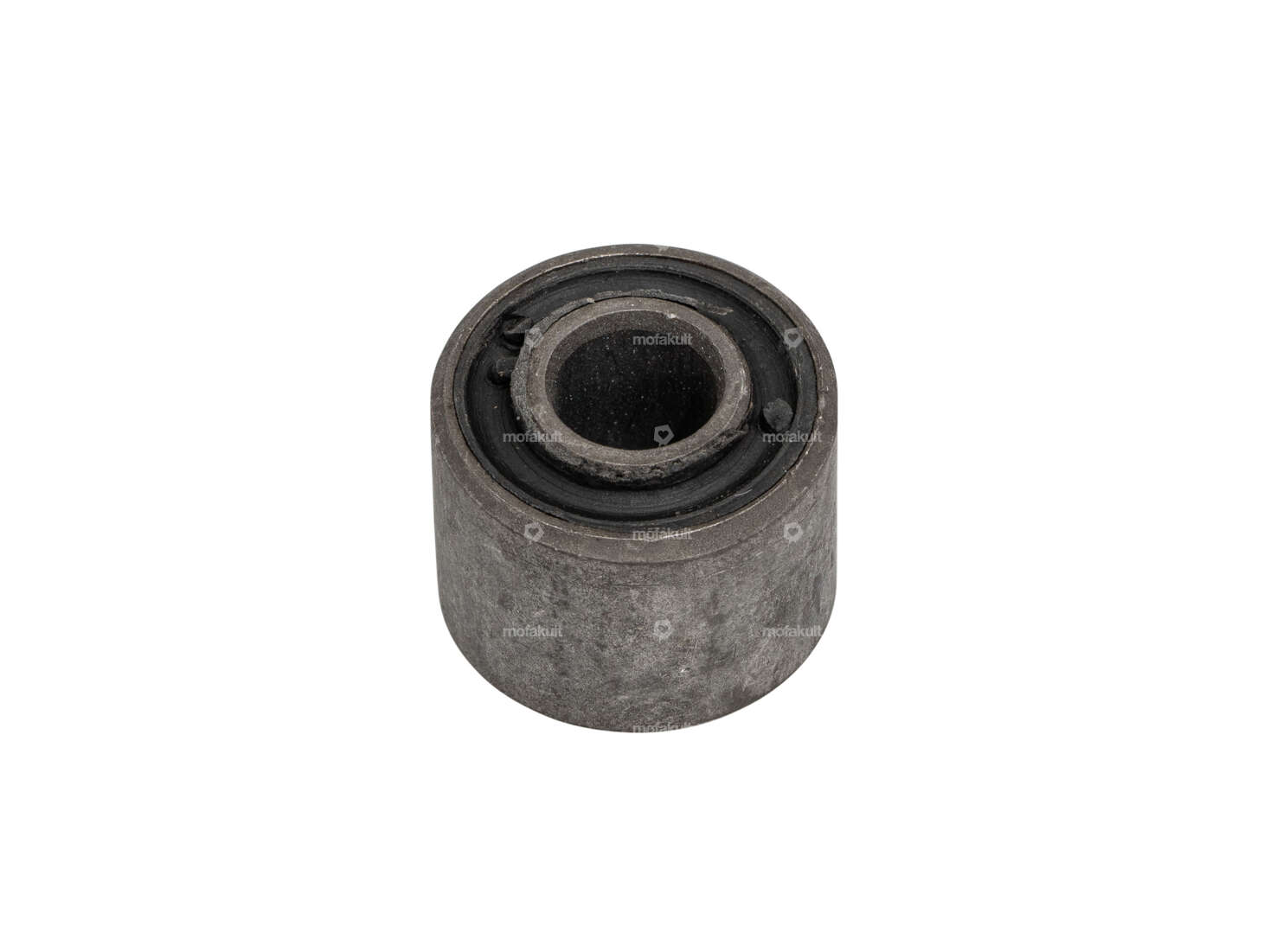

Silentblock engine mount | Puch MS50, VS50, MV50

Guide times | Steyr - Daimler - Puch AG

Material: Paper · DIN format: A5 · Number of pages: 23 pcs

Gasket set | Puch MS, VS, DS, MV, M

Area of application: Standard · Number of components: 8 pcs

Thrust washer 12.5/25/1.5 NOS | Puch M50, DSV, VZV

Ø inside: 12.5 mm · Ø outside: 25 mm · Material: Steel · Surface: hardened & ground · Thickness: 1.5 mm

Intake rubber (1A quality) | Puch MS, VS, MV, DS, X50 (small motorcycle)

Manufacturer: Made in Italy · Material: Rubber · Color: black

Crankshaft full cheek Puch MV, VS, MS, DS | Monza | X50 (3 & 4 speed)

Area of application: Tuning · Cheek type: Full cheeks · Ø piston pin (B): 12 mm · Total length of crankpin on clutch side: 73 mm · Total length crankpin ignition side: 66 mm · Ø Bearing seat (clutch side): 17 mm · Ø Bearing seat (ignition side): 17 mm · Number of gears: 3 pcs · Number of gears: 4 pcs

40 mm cylinder kit aluminum | Puch Monza, X50

Number of fixing points: 4 pcs · Material: Cast aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Nominal diameter: 40 mm · Crankshaft stroke: 43 mm · Displacement: 60 ccm · Ø piston pin (B): 12 mm · Hole spacing inlet: 32 mm · Thread inlet: M6x1 (standard thread) · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread)

Silentblock 10/22/33 mm

Ø inside: 10 mm · Total length: 33 mm · Ø outside: 22 mm · Material: Rubber · Material: Steel
