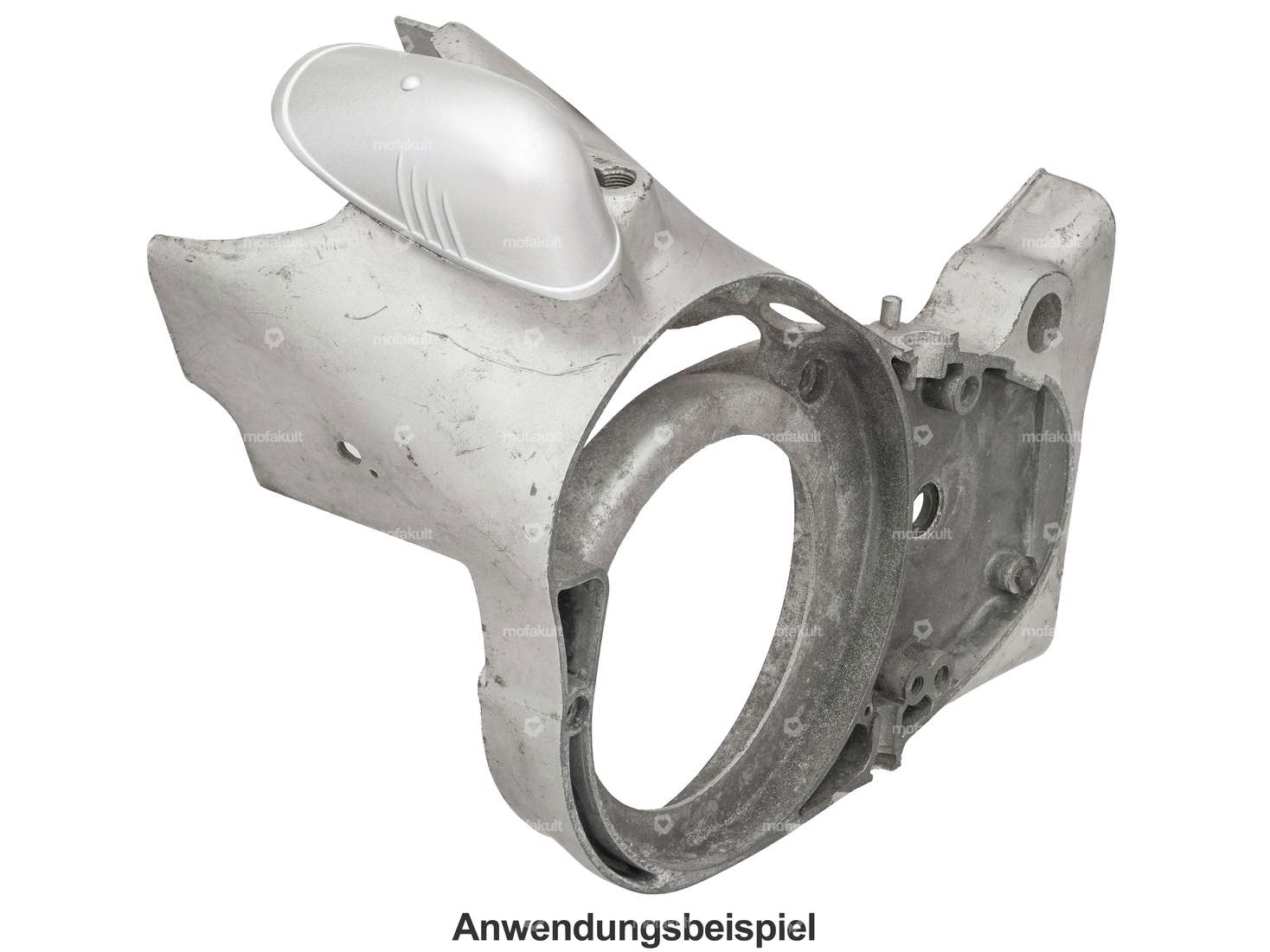

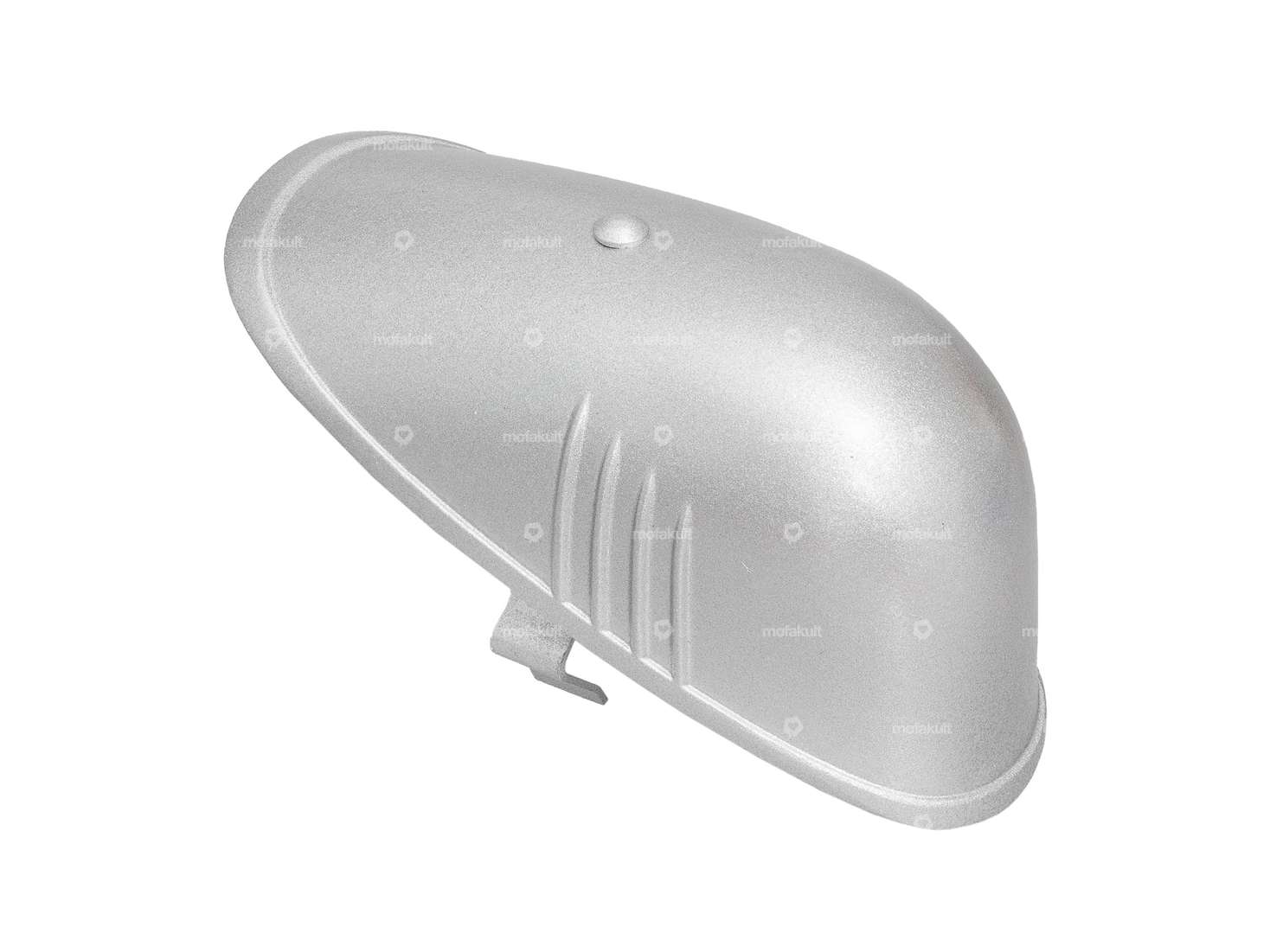

Spark plug cap | Sachs 50/3 LKH manual transmission

Blower hood | Sachs 50/3, 50/4 LKH

Material: Aluminum

Repair instructions | Sachs 50/3 LFH, MLFB, 50/4 LKH, LKS, MLFB, MLKAX

Material: Paper · DIN format: A5 · Number of pages: 63 pcs

Spare parts list | Sachs 50/3 LKH, LH engine

Material: Paper · DIN format: A5 · Number of pages: 30 pcs

Spare parts list | Sachs 50/3 ML, MLA, MLK, LKH, LHX engine

Material: Paper · DIN format: A5 · Number of pages: 30 pcs

PVL spark plug connector small / not suppressed

Manufacturer: PVL · Material: Rubber · Color: black · Ø cable: 5 mm · Ø cable: 7 mm · Spark plug socket: SAE · Cable available: No · Suppressed: No

BOSCH WSR6F spark plug special short thread | Solex, Sachs LKH

Manufacturer: BOSCH · Candle designation: WSR6F · Candle thread type: short · Thread type: MF14x1.25 (fine pitch thread) · Width across flats SW: 19 mm · Spark plug socket: SAE · Suppressed: Yes · Area of application: Original · Area of application: Standard

Handlebar with stem 9 cm curved chrome

Ø outside: 22 mm · Width: 630 mm · Height: 90 mm · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Front boom mounting · Ø Stem: 22 mm · Stem height: 180 mm · Length handlebar ends: 200 mm · Crossbar: No

GPO flame tube 32 mm | Sachs 50/2, 50/3

Manufacturer: GPO · Material: Steel · Surface: chrome-plated · Color: Chrome · Mounting type: Union nut · Ø inside: 29.6 mm · Ø External connection: 38 mm · Ø outside: 32.2 mm · Total length: 255 mm

Flute muffler Ø 32 / 70 mm | Sachs /

Material: Steel · Surface: chrome-plated · Color: Chrome · Ø outside: 70 mm · Mounting type: Screwed clamp · Exhaust type: Flute · Ø Internal connection: 32 mm · Total length: 690 mm

Oil seal NBR 15/30/7 B AS | Sachs 503, 50/2

Temperature resistance (min.): -30 - 100 °C · Simmering type: B - With sheet metal outer casing / one sealing lip. · Ø inside: 15 mm · Ø outside: 30 mm · Manufacturer: Sachs · Material: NBR · Width: 7 mm · Pony OEM number: A1830 · Sachs OEM number: 0250 090 000

Gearbox cover gasket manual transmission | Sachs 50/2, 50/3, 50/4 A1827 0.4 mm (1A quality)

Total length: 215 mm · Material: Sealing paper · Color: sand-colored · Thickness: 0.4 mm · Width: 130 mm · Number of fixing points: 5 pcs · Number of components: 1 pcs · Pony OEM number: A1827 · Sachs OEM number: 0250 087 100

swiing® revival exhaust nut M40x1.5 galvanized (for 32 mm pipe) | Sachs

Ø inside: 33.5 mm · Ø outside: 46 mm · Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Nut type: Union nut · Height: 19 mm · Thread type: MF40x1.5 (fine pitch thread)

Inlet seal 17 mm spigot (5.5 mm) | Sachs 50/3

Place of use: Admission · Thickness: 5.5 mm · Hole spacing inlet: 30 mm

swiing® ingenious extension pedal axle + 48 mm Inox

Ø outside: 32 mm · Manufacturer: swiing® ingenious parts · Material: Chrome steel (stainless steel) · Ø bore: 16.1 mm · Depth: 35 mm · Ø Pedal arm holder: 15.8 mm · Total length: 78 mm

ESJOT sprocket 13 | Sachs (50/3, 50/4)

Manufacturer: ESJOT · Material: Steel · Surface: raw · Chain type: 415H · Number of teeth: 13 pcs · Chain pitch: 1/2" x 3/16" · Recording type: Ø15 x SW12 · Cranking (offset): 10.5 mm

Exhaust clamp 32 - 33 mm galvanized

Manufacturer: Made in Portugal · Material: Steel · Surface: galvanized (blue) · Ø inside: 32 - 33 mm · Mounting type: Nuts & bolts
