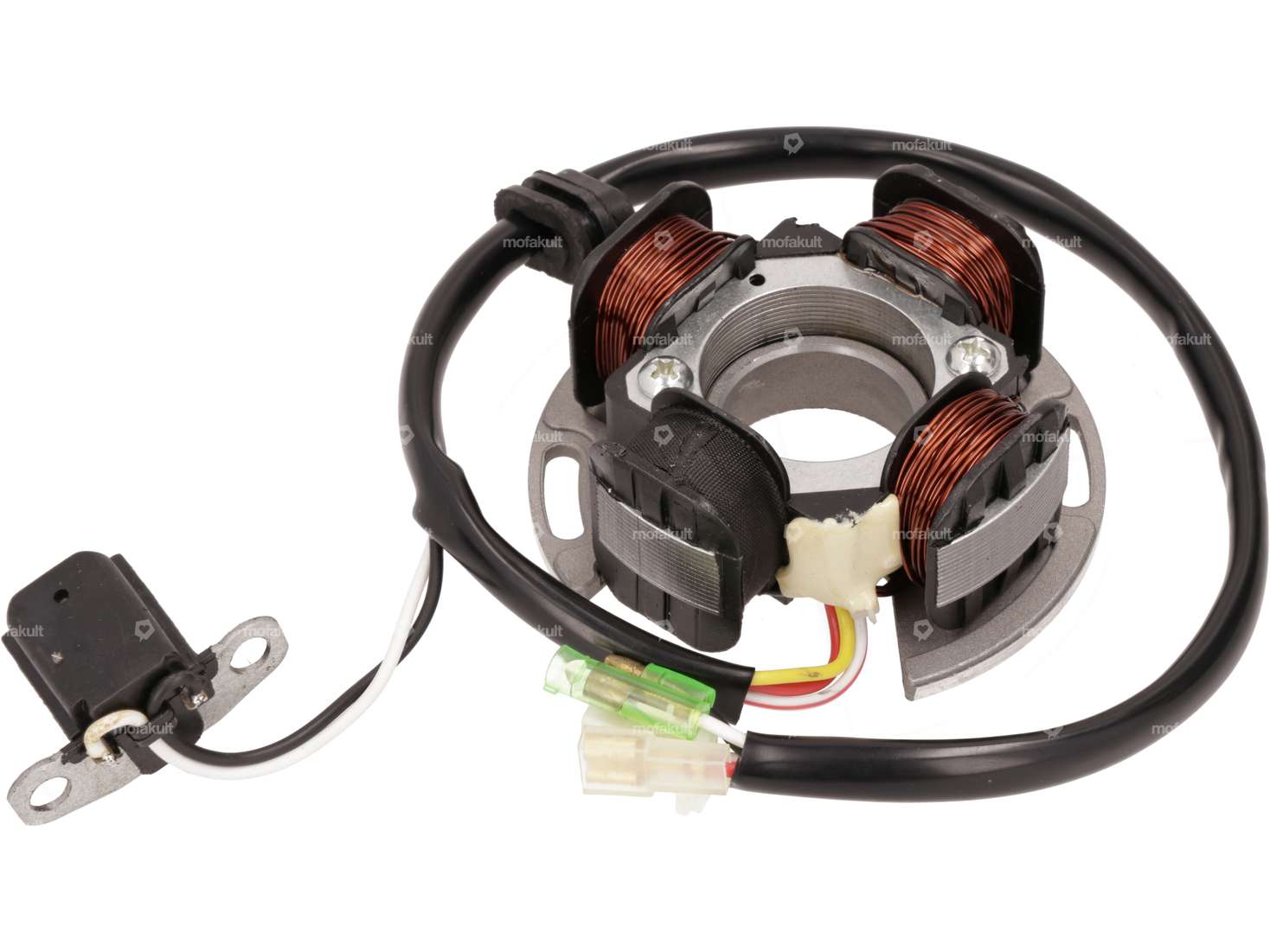

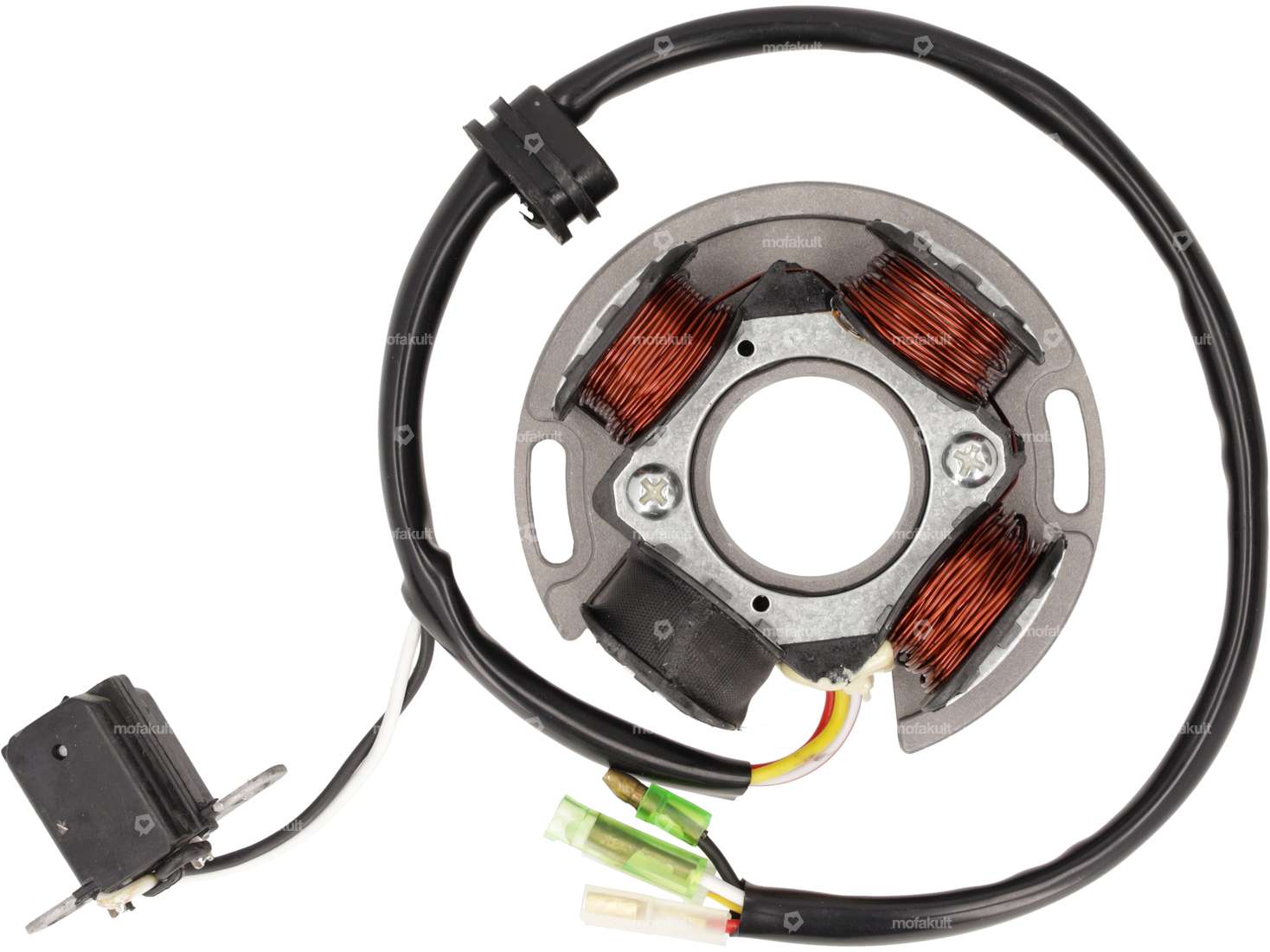

Complete ignition plate (armature plate) consisting of ignition switch, light coil and pick-up.
The stator fits Tomos Quadro, Sprint, Classic and FunSport mopeds / mopeds with electric and kickstarter from 2008 onwards.
Ø base plate: 90mm
Ø coil: 79mm
The stator is supplied ready for installation including pick-up (screws not included).
Original Tomos spare part number: 243100
Details
Ø outside | 90 mm |
Number of fixing points | 2 pcs |
Tension | 12 V |
Performance | 80 W |
Number of cables | 5 pcs |
Cable length | 400 mm |
Ø Internal flywheel | 80 mm |
Ø inside | 30.4 mm |
Ø bolt circle | 80 mm |
Tomos spare part no. | 243100 |
Suitable for the following models
Tomos |
Accessories & related products
Ignition box CDI / E-Start (4 connections) | Tomos Classic, Sprint, FunSport
Material: Plastic · Surface: raw · Color: black · Total length: 71.5 mm · Width: 40 mm · Height: 54 mm · Number of fixing points: 2 pcs · Hole spacing: 33.5 mm · Hole spacing: 40 mm · Ø mounting hole: 5 mm · Ø cable holder: 7 mm · Area of application: Original · Tomos spare part no.: 233729
CHF 78.80

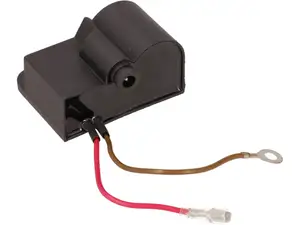

Ignition box CDI with 2 connections | Tomos
Material: Plastic · Surface: raw · Color: black · Ø cable holder: 7 mm · Total length: 72 mm · Width: 54 mm · Height: 40 mm · Number of fixing points: 2 pcs · Ø mounting hole: 5.6 mm · Hole spacing: 34 mm · Hole spacing: 40 mm · Area of application: Standard · Tomos spare part no.: 16.754.114
CHF 39.90

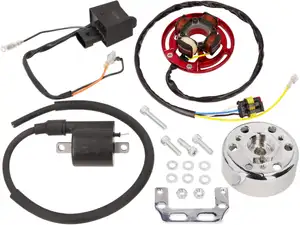

swiing® ingenious EVO ignition | Tomos
