For: Sachs

27104

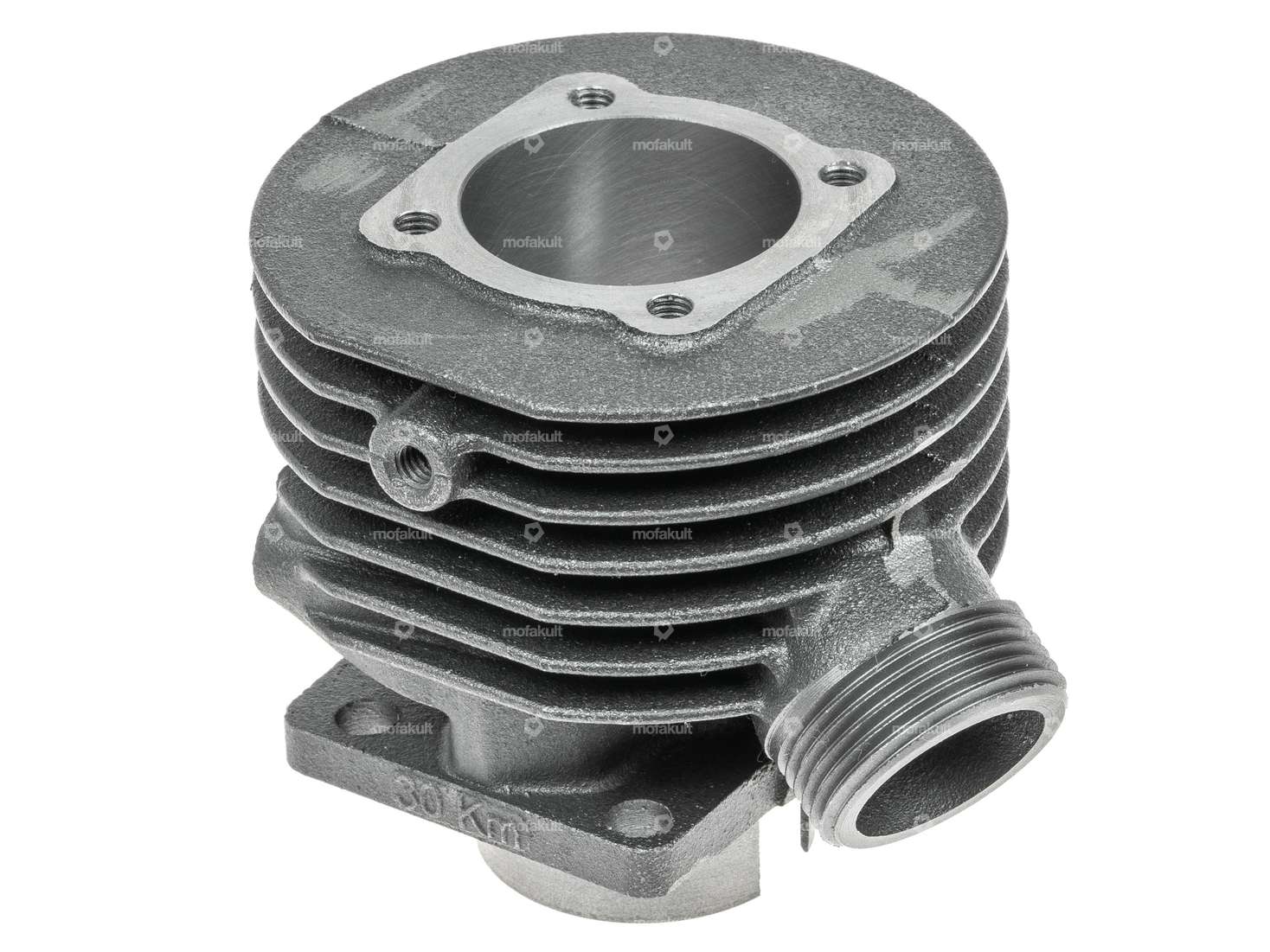

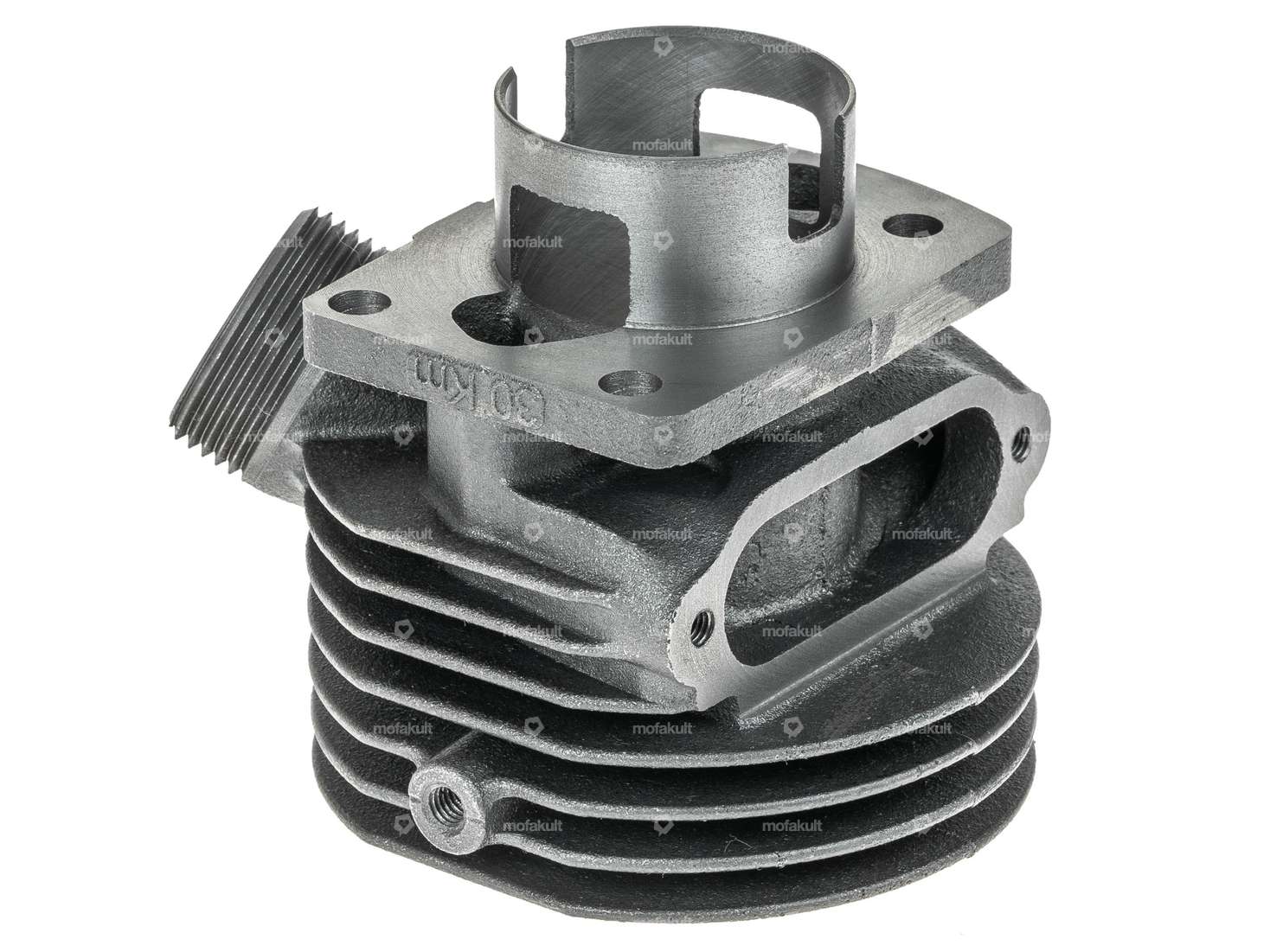

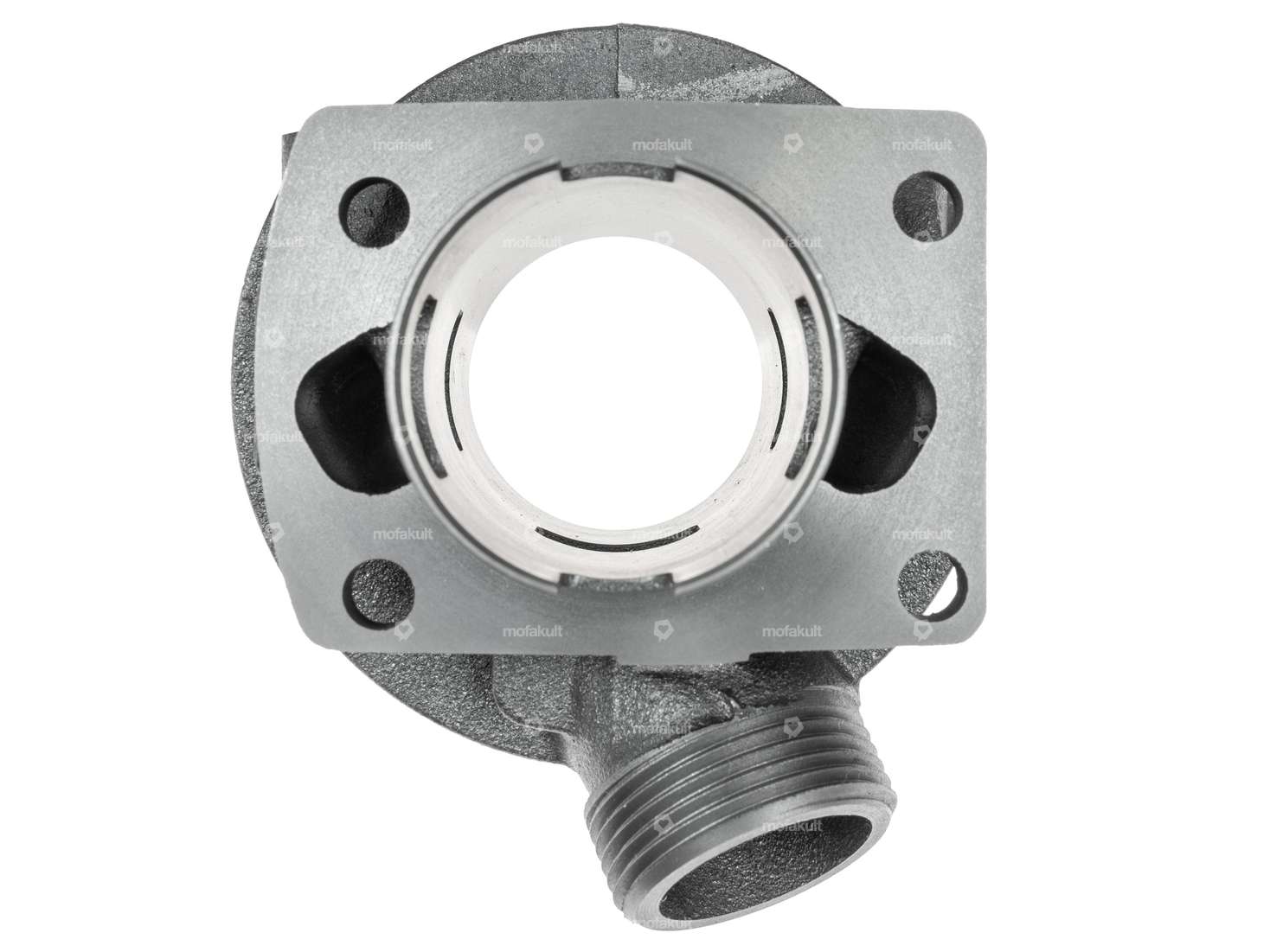

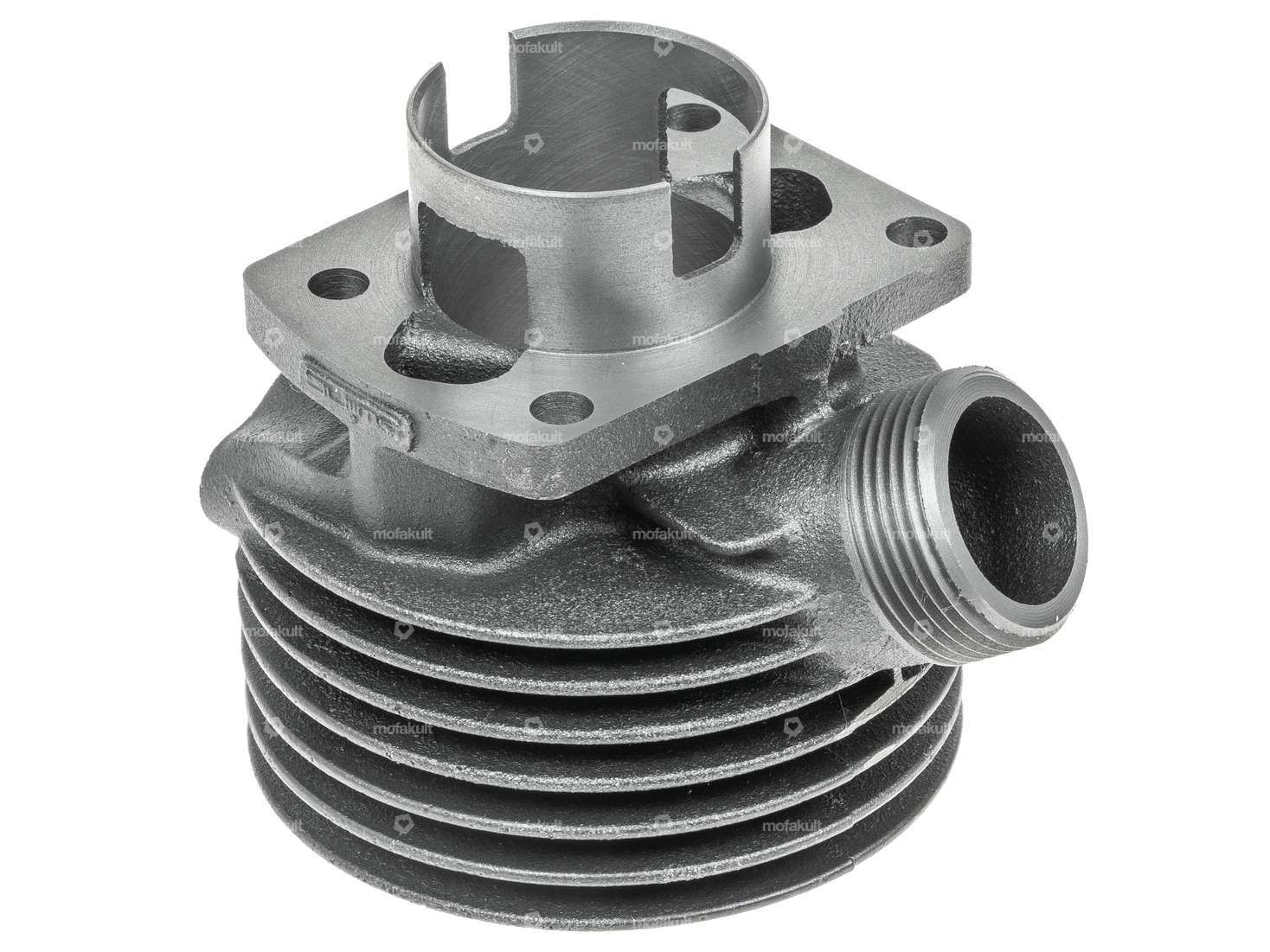

swiing® ingenious 41 mm cylinder kit tuning diaphragm | Sachs 50/2 (CH)

Home
| Motor
| Cylinder
| Cylinder & racing set

Please select a variant

CHF 164.90

Incl. 8.1% VAT.

First 41 mm tuning cylinder kit with diaphragm intake suitable for Swiss Sachs 50/2 (502) mopeds / mopeds.
With a larger displacement and optimized timing, this tuning kit turns your oldie into a powerhouse. In addition, this racing cylinder is visually indistinguishable from the original cylinder when fitted.

The cylinder kit is characterized by the following attributes:

  • Cast iron reproduction cylinder with 41 mm bore
  • Membrane control
  • Optimized overflow channels
  • Improved control times
  • Pore-clean surface

Exhaust thread: M35 x 2 mm

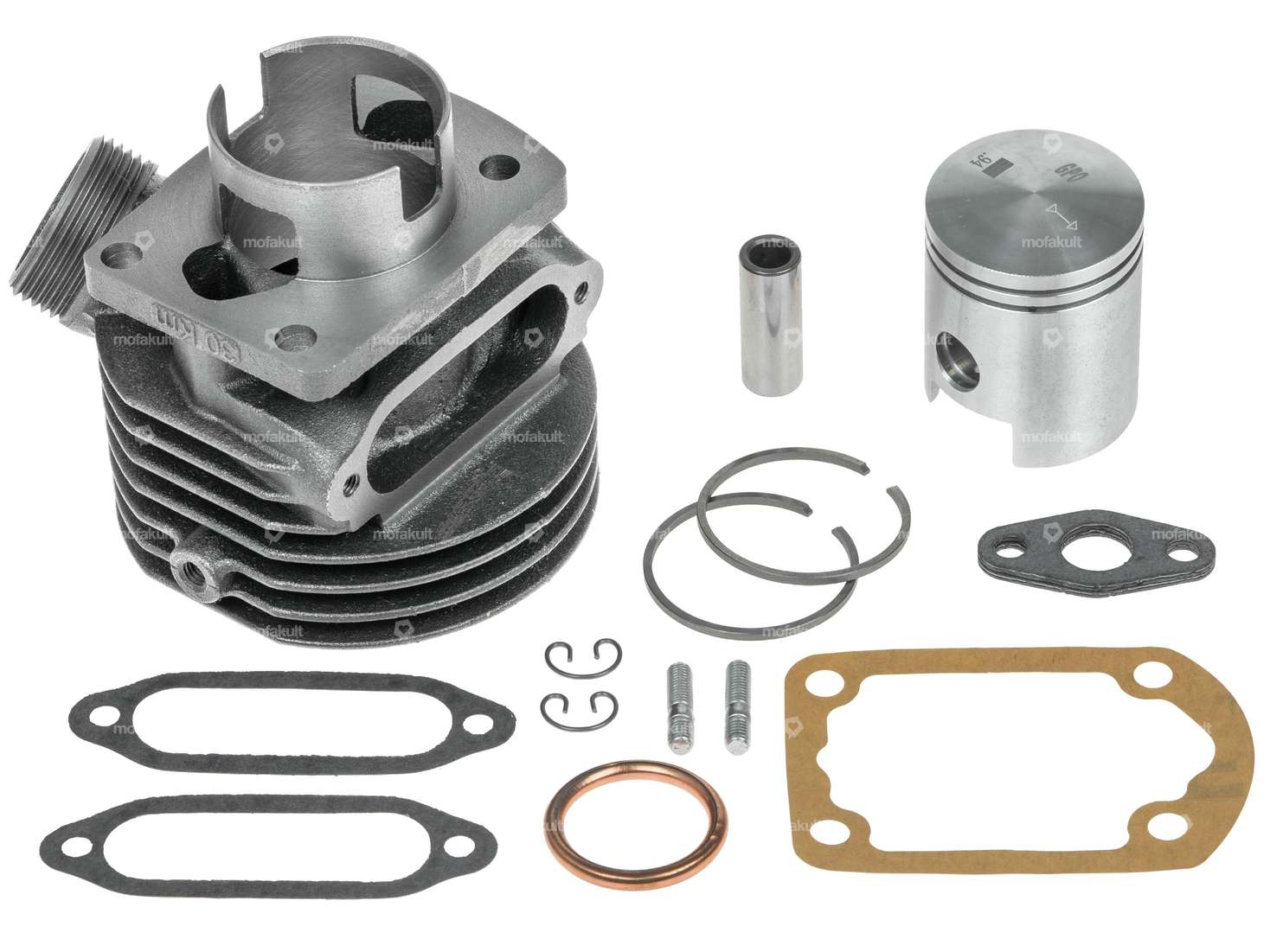

The scope of delivery includes cylinder, piston kit, gasket set and intake studs
Please note that this cylinder does not fit under the louvre casing of a slotted Sachs of the same type

.

Matching add-on parts, as well as the more compact 38 mm tuning cylinder, can be found in the accessories section.

Please select in the selection field whether you would like the cylinder kit with or without gasket set.

Exclusive product for the highest demands of the quality brand swiing®.

The set includes the following fixed parts:

swiing 41 mm cylinder diaphragm | Sachs 50/2 (CH)

swiing 41 mm cylinder diaphragm | Sachs 50/2 (CH)

27102

Hole pattern [mm]: 60 x 40 / 37 x 37 · Inlet window: 57.5 x 19 · Manufacturer: swiing · Material: Gray cast iron · Surface: sandblasted · Displacement: 55 ccm · Crankshaft stroke: 42 mm · Nominal diameter: 41 mm · Ø cylinder neck: 44 mm · Ø Outlet outside: 35 mm · Ø outlet inside: 26 mm · Ø Inlet inside: 19 mm · Thread inlet: M5x0.8 (standard thread) · Hole spacing inlet: 68 mm · Ø piston pin (B): 12 mm · Outlet type: Union nut · Thread outlet: M35x2 (standard thread) · Number of fixing points: 4 pcs · Camouflaged: Yes · Area of application: Tuning

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

For: Sachs

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

16088

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm, 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101, 0640 016 102

Quantity: 2

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

For: Sachs

GPO piston 40.94 mm | Sachs 502, 50/2, 50/3, 50/4

26879

Manufacturer: GPO · Nominal diameter: 41 mm · Ø outside piston (A): 40.94 mm · Ø piston pin (B): 12 mm · Compression height (C): 28 mm · Curvature (D): 3.2 mm · Total piston height (E): 49.4 mm · Number of piston rings (F): 2 pcs · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Piston ring height: 1.5 mm · Thick piston ring: 1.8 mm · Piston weight: 86 g

Details

Nominal diameter41 mm
Manufacturerswiing® ingenious parts, GPO
Area of applicationTuning
MaterialGray cast iron
Surfacesandblasted
Displacement55 ccm
Crankshaft stroke42 mm
Ø cylinder neck44 mm
Ø Outlet outside35 mm
Ø outlet inside26 mm
Ø Inlet inside19 mm
Inlet window57.5 x 19
Thread inletM5x0.8 (standard thread)
Hole spacing inlet68 mm
Ø piston pin (B)12 mm
Outlet typeUnion nut
Number of fixing points4 pcs
Thread outletM35x2 (standard thread)
Hole pattern [mm]60 x 40 / 37 x 37
CamouflagedYes

Suitable for the following models

Sachs

502 (Saxonette) - AML

50/2 - ML CH (0.8 PS), MB (2.6 PS), MLB (2.6 PS)

Accessories & related products

Testa del cilindro | Sachs 50/2

For: Sachs

11273

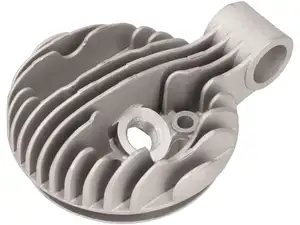

Cylinder head | Sachs 50/2

Number of fixing points: 4 pcs · Decompressor: Yes · Pony OEM number: A1069 · Pony OEM number: A1070 · Sachs OEM no.: 0213 104 006 · Sachs OEM no.: 0213 106 000

CHF 46.80

Diaphragm insert Sachs 50/2

For: Sachs

11694

Diaphragm insert Sachs 50/2

Material: Brass · Number of flaps: 2 pcs · Membrane material: Spring steel · Hole spacing: 67 mm · Ø mounting hole: 5.2 mm · Mounting type: Screws · Number of fixing points: 2 pcs · Area of application: Standard · Pony OEM number: A2624 · Sachs OEM no.: 0286 213 010

CHF 28.90

Carburatore 17 mm Bing SSB 1/17/69 riproduzione

For: Sachs

12019

Carburetor 17 mm Bing SSB 1/17/69 reproduction

Camouflaged: No · Component group Carburetor: Carburetor complete · Material: Aluminum · Carburetor type: SSB · Nominal diameter: 17 mm · Ø fuel hose connection: 6.2 mm · Mixed oil connection: No · Vacuum connection: Yes · Choke control: without choke · Nozzle thread: MF7x0.75 (fine pitch thread) · Nozzle size: 76 · Mounting type: Stud bolts & nuts · Hole spacing inlet: 31 mm · Clamping screw torque (max.): 3 N/m · Clamping screw torque (max.): 4 N/m · Total length: 116 mm · Width: 86 mm · Height: 99 mm · Area of application: Standard · Area of application: Tuning

CHF 79.90

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)
undefined

Universal

15357

Motorex 2-stroke mixed oil semi-synthetic 1 L (for running in cylinders!)

Manufacturer: Motorex · Oil type: semi-synthetic · Area of application: Standard · Color: green · Contents [ml]: 1000 ml

CHF 19.90

CHF 19.90/l

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)
undefined

For: Sachs

16088

swiing® revival stud bolt M5 x 23 mm inlet (diaphragm) 10.9 | Sachs 50/2 (A3700)

Manufacturer: swiing® revival parts · Material: Steel · Surface: galvanized (blue) · Area of application: Standard · Diameter: 4.9 mm · Thread type: M5x0.8 (standard thread) · Total length: 23 mm · Thread length: 6 mm · Thread length: 12 mm · Pony OEM number: A3700 · Sachs OEM no.: 0640 016 101 · Sachs OEM no.: 0640 016 102

CHF 1.80

Inox

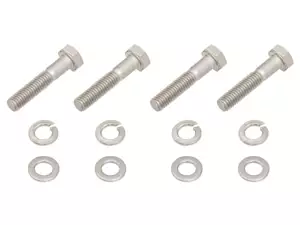

swiing® revival screw set cylinder head Inox | Sachs 503 / 50/2 / 50/3 / 50/4
