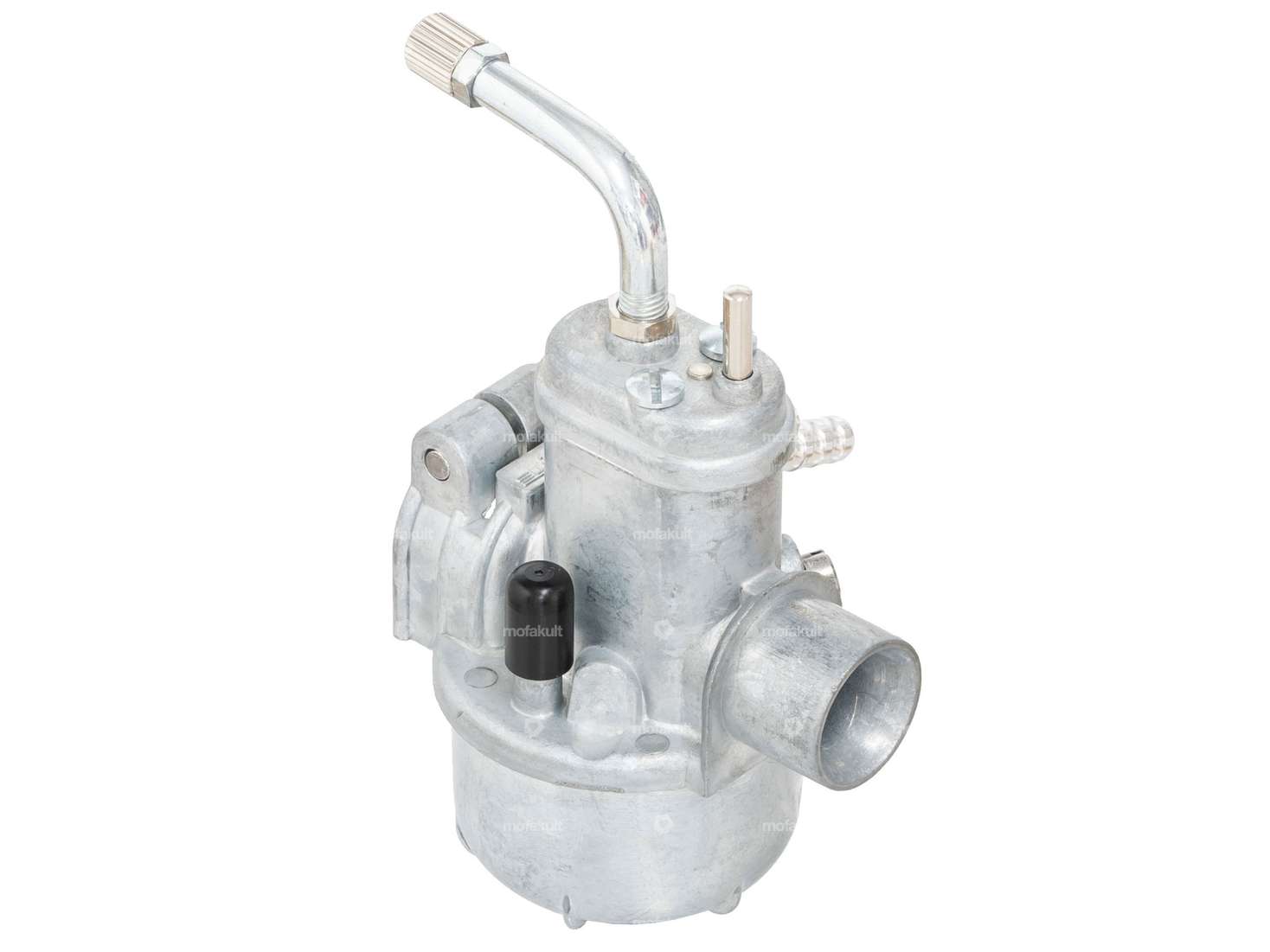

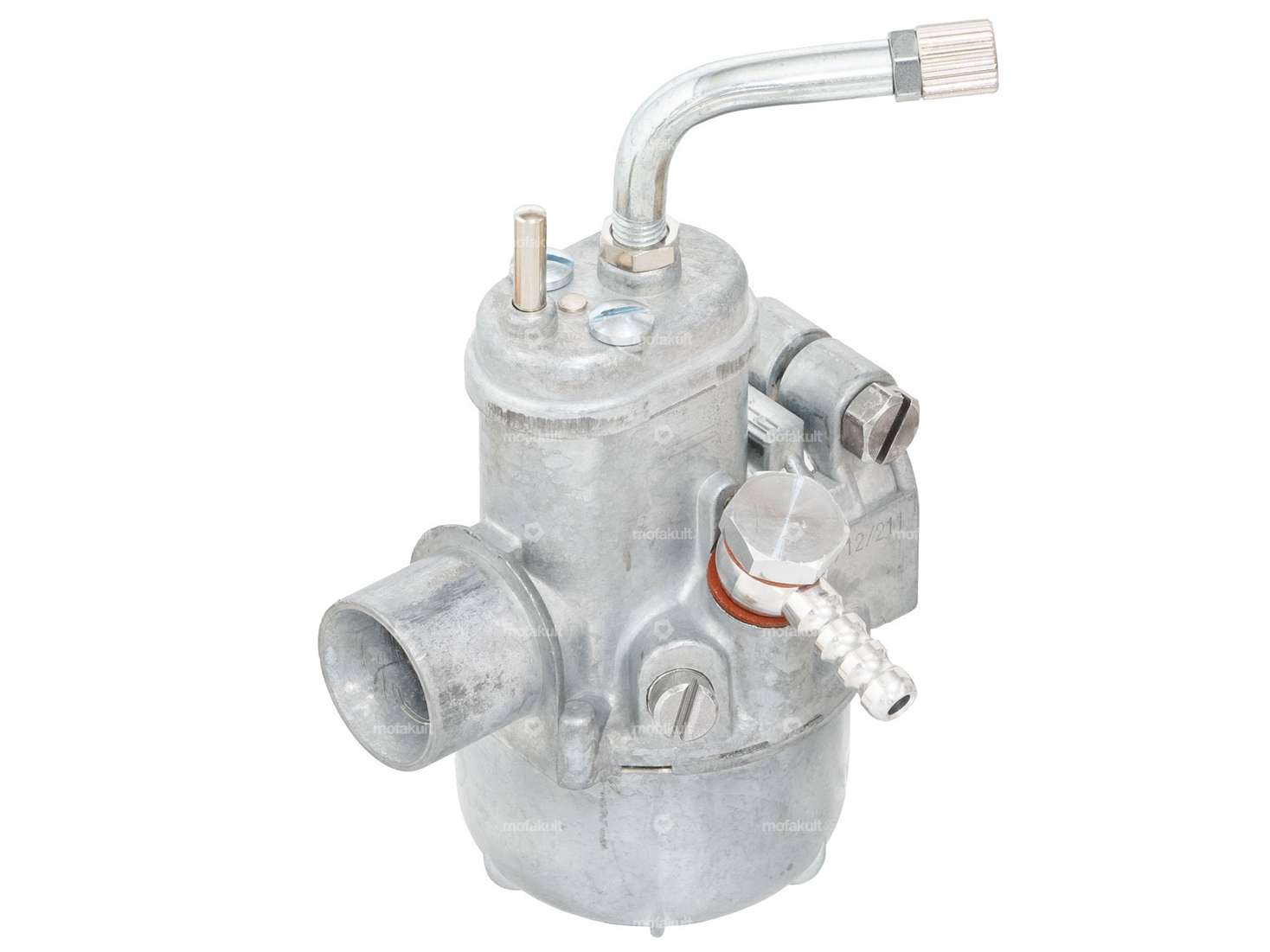

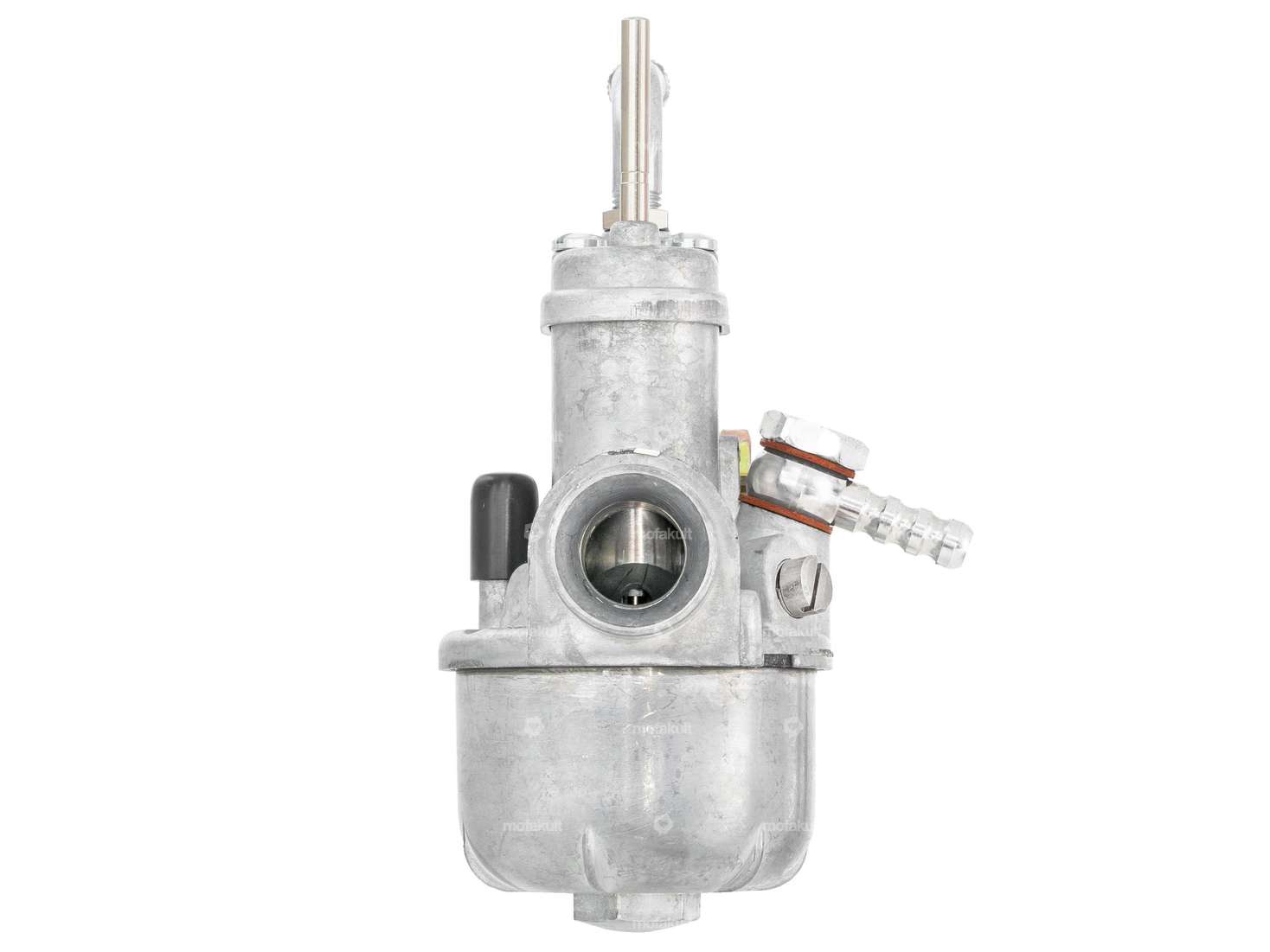

12 mm original carburetor suitable for Sachs 503 and other mopeds / mopeds which are originally equipped with a Bing SRE carburetor. The adjusting screw is positioned on the right-hand side of the carburettor in the direction of travel.
High-quality reproduction of a Bing SRE carburettor.
Installed throttle body size: 52
The throttle body is for throttles with M3.5 thread.
Ø connection to the air filter: 20 mm
Ø connection to the intake manifold: 20 mm
Maximum tightening torque on the clamping screw: 3-4 Nm
Nostalgic product for the highest demands of the quality brand swiing®.
Details
| Total length | 65 mm |
| Width | 55 mm |
| Height | 112 mm |
| Manufacturer | swiing® revival parts |
| Material | Aluminum |
| Area of application | Standard |
| Carburetor type | SRE |
| Nominal diameter | 12 mm |
| Ø Internal connection | 20 mm |
| Ø Inside entrance | 12 mm |
| Ø Output inside | 12 mm |
| Ø Air filter connection | 20 mm |
| Mounting type | Plug connection clamped |
| Ø fuel hose connection | 6 mm, 5 mm |
| Mixed oil connection | No |
| Vacuum connection | No |
| Choke control | Hand choke |
| Nozzle thread | M3.5 |
| Nozzle size | 52 |
| Camouflaged | No |
| Clamping screw torque (max.) | 4 N/m |
| Pony spare part no. | A2442 |
| Sachs spare part no. | 0281 115 105 |
Suitable for the following models
| Sachs | 503 - AAL, ABL, 2AL / 2BL, AB, AC |
