Name: swiing® revival pinion attachment M12x1 mm swiing pinion shaft | Zündapp (Type 247)
Brand: swiing® revival parts
SKU: 24015
Price: 6.50 CHF
Availability: InStock

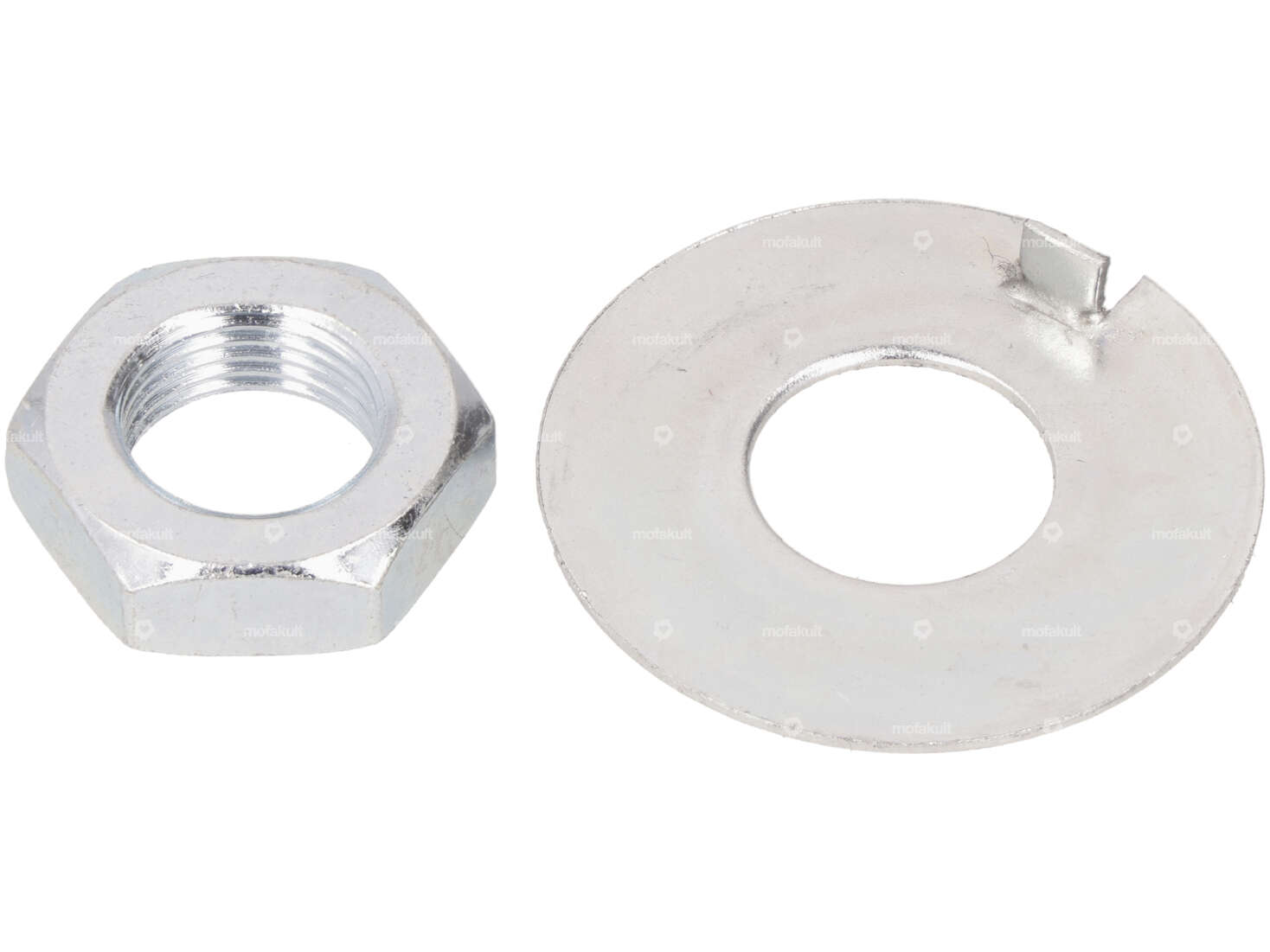

Security plate and nut for fastening the pinion to the pinion shaft suitable for Zündapp Belmondo mopeds, Zündapp Bergsteiger M25/M50 mopeds, as well as Alpa Spezial 3000 and Alpa Black River small motorcycles which have a Zündapp type 247 engine installed.

Can only be used in conjunction with the pinions and pinion shaft at the bottom of the accessories

Thread: M12 x 1 mm
Spanner width: 19 mm

Details

Manufacturer	swiing® revival parts
Nut type	Hexagon nut
Drive	External hexagon
Width across flats SW	19 mm
Thread type	MF12x1 (fine pitch thread)

Suitable for the following models

Zündapp Belmondo
Zündapp	247 Motor
