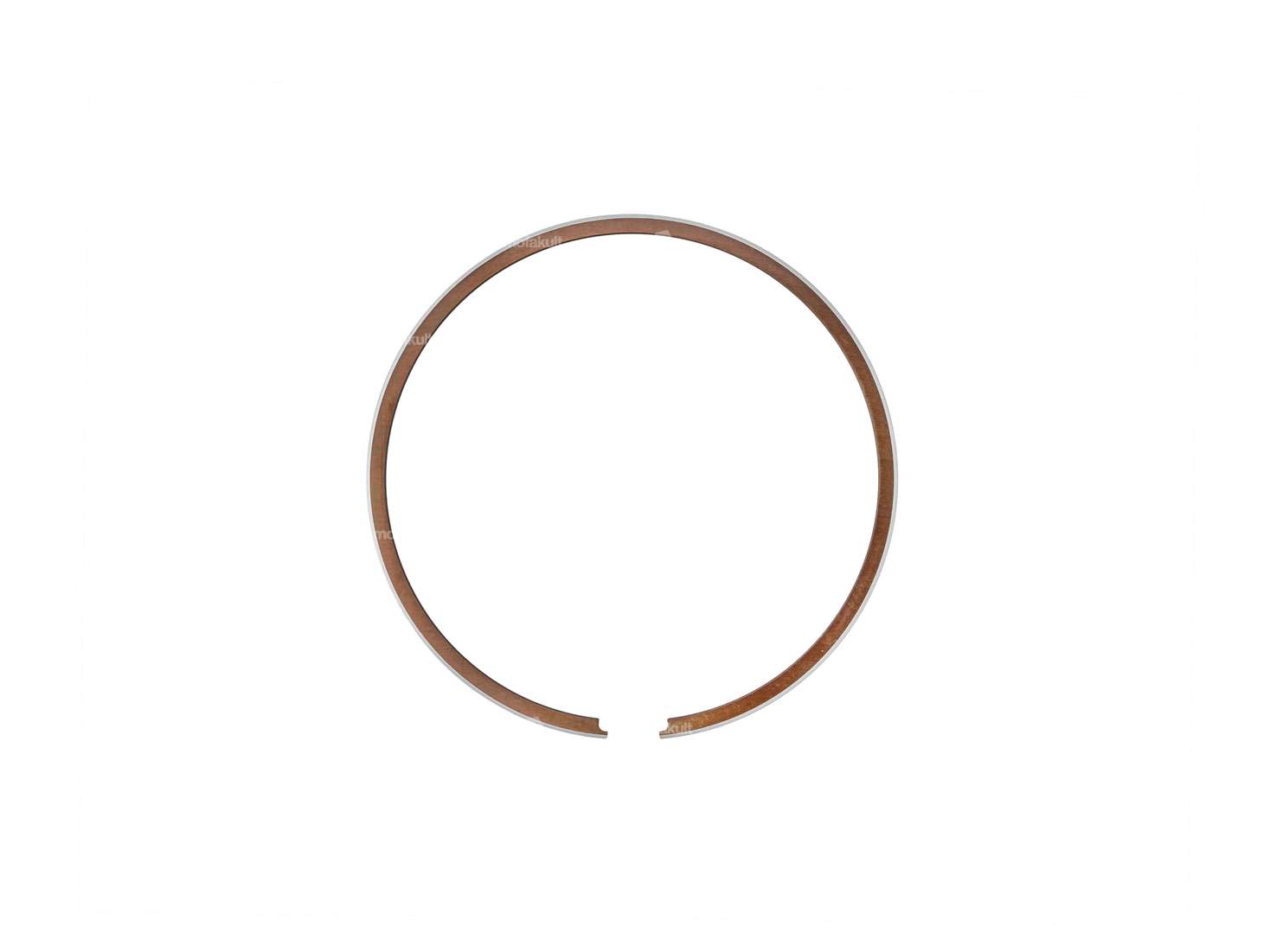

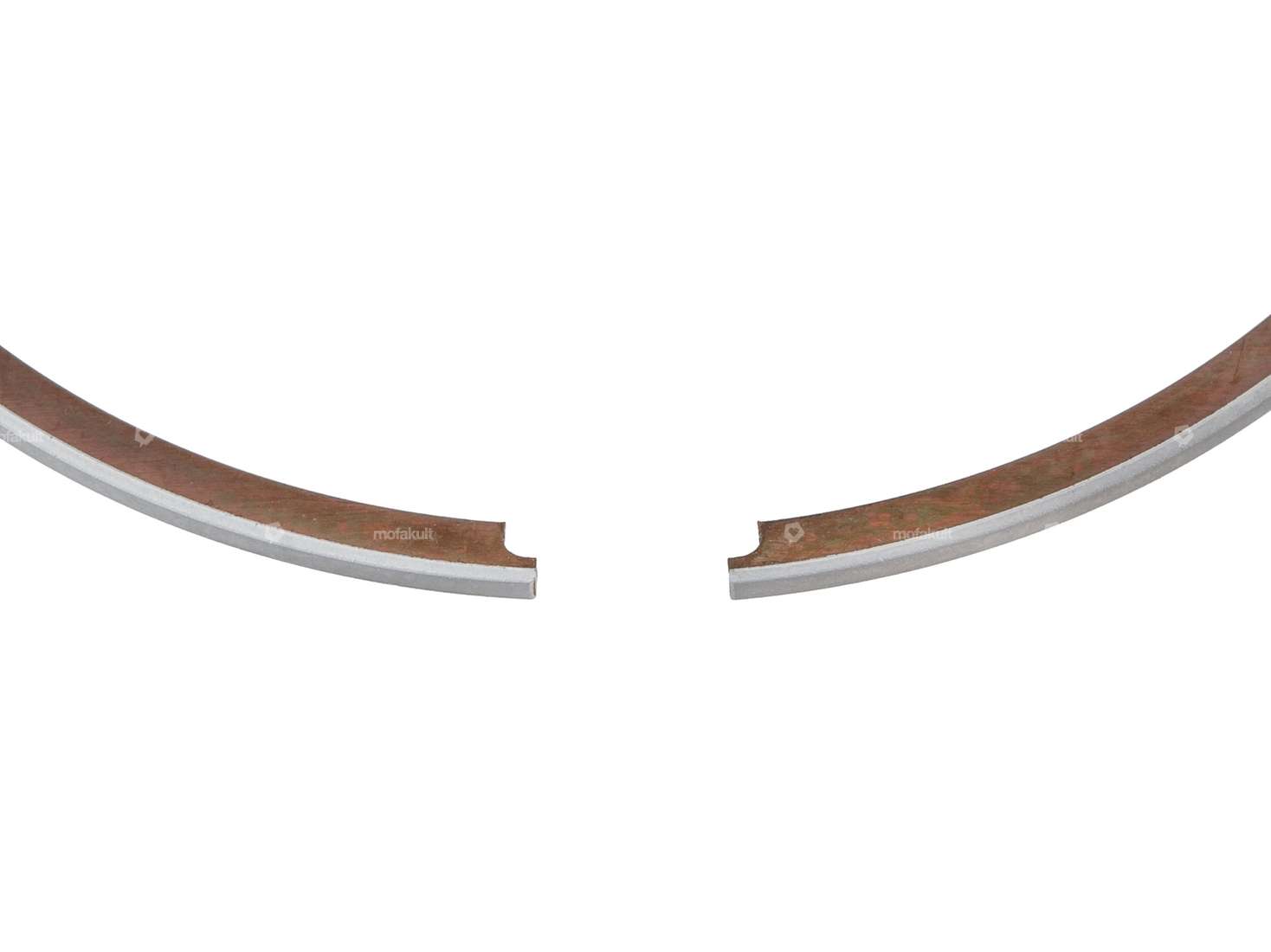

Hard chrome-plated 47 mm piston ring suitable for the 47 mm Gilardoni italkit cylinder for Puch mopeds.
Ring width: 1 mm
Hard chrome-plated piston rings have better tension and running properties, which contributes significantly to a longer service life.
Can only be used with the corresponding Vertex piston. You can find this in the accessories section.
Quality product from the Italian manufacturer Vertex.
Details
| Manufacturer | Vertex |
| Surface | hard chrome plated |
| Nominal diameter | 47 mm |
| Piston ring impact | Internal fuse (IS) |
| Height | 1 mm |
Suitable for the following models
| Puch | E50 ZA50 (Fahrtwindgekühlt) Z50 (X30 Sport) |
Accessories & related products
swiing® ingenious needle roller bearing 12/15/16.2 "Racing" silver cage
Bearing cage: Silver cage · Manufacturer: swiing® ingenious parts · Bearing type: Needle roller and cage assembly · Width: 16.2 mm · Ø inside: 12 mm · Ø outside: 15 mm · Dimension needle bearing: 12/15 x 16.2 · Tomos spare part no.: 035548
CHF 13.90
Gilardoni italkit piston 47 mm #B | Puch
Manufacturer: Gilardoni italkit · Thick piston ring: 2 mm · Ø outside piston (A): 46.97 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 47 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Tolerance group: B · Piston weight: 100 g
CHF 69.00
Gilardoni italkit piston 47 mm #A | Puch
Manufacturer: Gilardoni italkit · Ø outside piston (A): 46.96 mm · Compression height (C): 22.5 mm · Curvature (D): 3.2 mm · Total piston height (E): 52.5 mm · Number of piston rings (F): 2 pcs · Nominal diameter: 47 mm · Piston ring mold: L-ring · Piston ring mold: Rectangular ring · Piston ring impact: Internal fuse (IS) · Ø piston pin (B): 12 mm · Piston ring height: 1.5 mm · Piston ring height: 2 mm · Tolerance group: A · Piston weight: 100 g
CHF 69.00
Gilardoni italkit cylinder head 47 mm (75 ccm)
Manufacturer: Gilardoni italkit · Material: Aluminum · Area of application: Tuning · Surface: sandblasted · Ø cylinder: 47 mm · Total length: 155 mm · Width: 155 mm · Ø screw holder: 6.5 mm · Height: 58 mm · Candle thread: long · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44
CHF 68.90
Gilardoni italkit 47 mm cylinder kit without cylinder head
Manufacturer: Gilardoni italkit · Material: Aluminum · Camouflaged: No · Area of application: Tuning · Surface: sandblasted · Crankshaft stroke: 43 mm · Displacement: 75 ccm · Nominal diameter: 47 mm · Ø cylinder neck: 51 mm · Ø outlet inside: 26.5 mm · Ø Inlet inside: 18.3 mm · Ø piston pin (B): 12 mm · Inlet window: 38.5 x 25.8 · Thread inlet: M6x1 (standard thread) · Number of fixing points: 4 pcs · Hole pattern [mm]: 44 x 44 · Outlet type: slanted · Hole spacing outlet: 42 mm · Thread outlet: M6x1 (standard thread) · Decompressor: No · Hole spacing inlet: 35.5 mm · Hole spacing inlet: 60 mm
CHF 209.90
