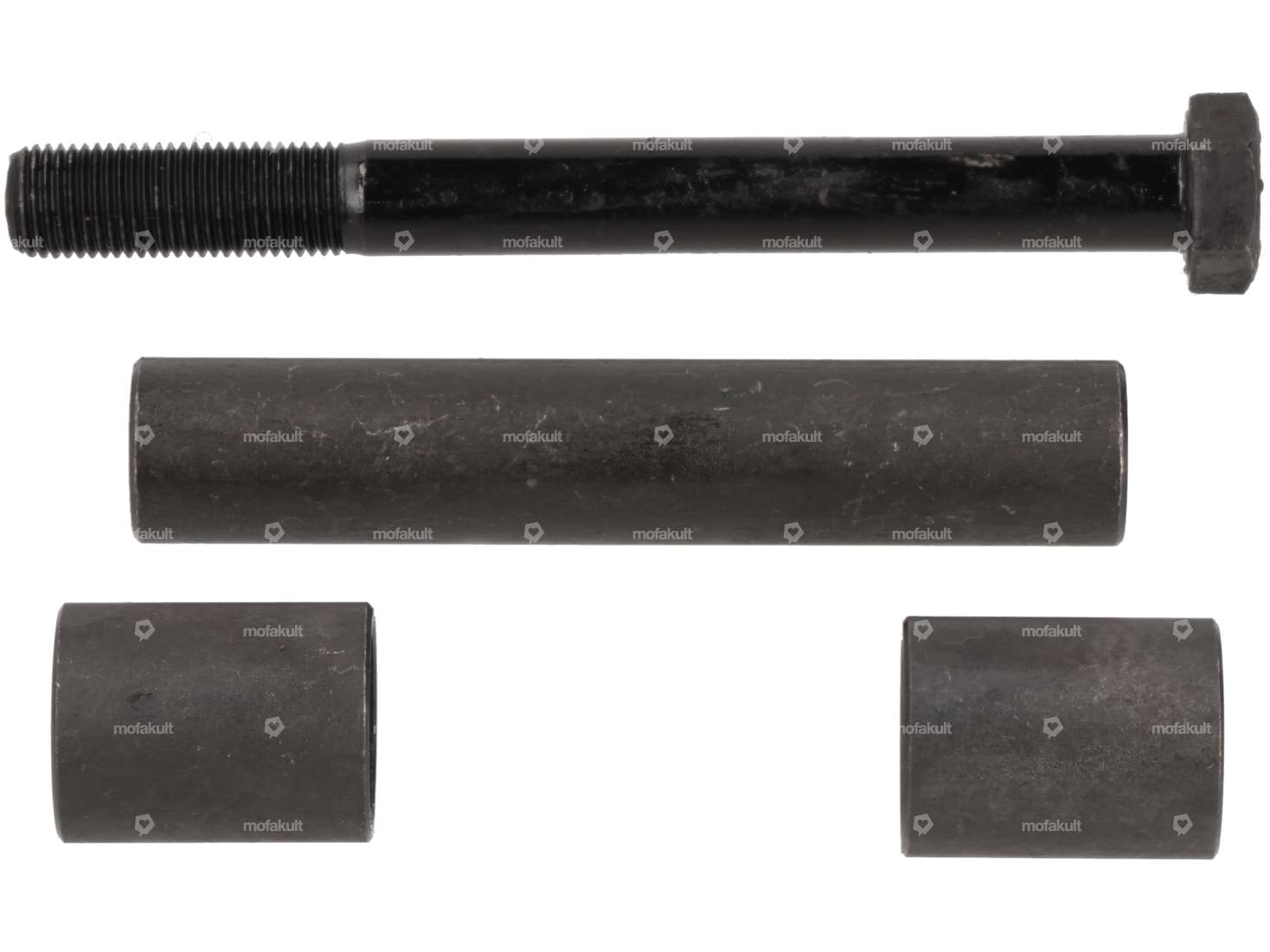

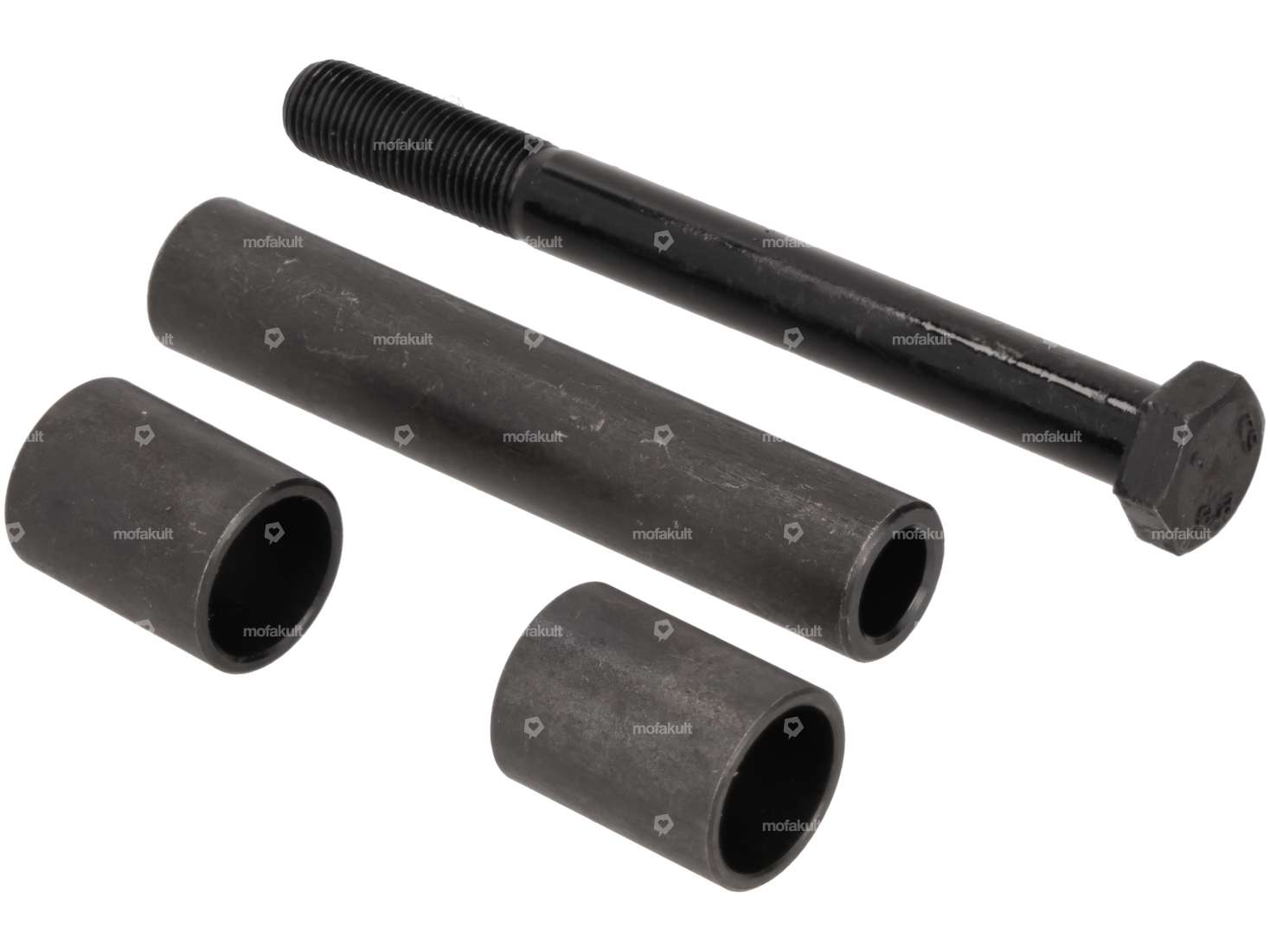

Swingarm axle with corresponding bushings suitable for various Tomos mopeds / mopeds of the Classic, Quadro, Sprint, FunSport model series.
Please compare the corresponding dimensions to ensure that the repair kit fits.

Bolt: M12x120 mm
Screw width (SW): 18 mm

Long bolt
&br />Oslash; outer: 18 mm
&br />&br />Oslash; inner: 12.15 mm
Length: 95 mm

Short Büchsen
Ø outside: 22 mm
Ø inside: 18.1 mm
Length: 28 mm

The nut is not included in the scope of delivery.

Original Tomos spare part number: 026083 / 209144

Details

Material	Steel
Surface	blackened, galvanized (blue)
Color	black
Thread type	M12x1.75 (standard thread)
Drive	External hexagon
Ø outside	18 mm, 22 mm
Ø inside	12.15 mm
Ø Bearing inside	18.1 mm
Total length	120 mm
Ø External bearing	22 mm

Ø axle	12 mm
Tomos OEM number	026083, 209144
