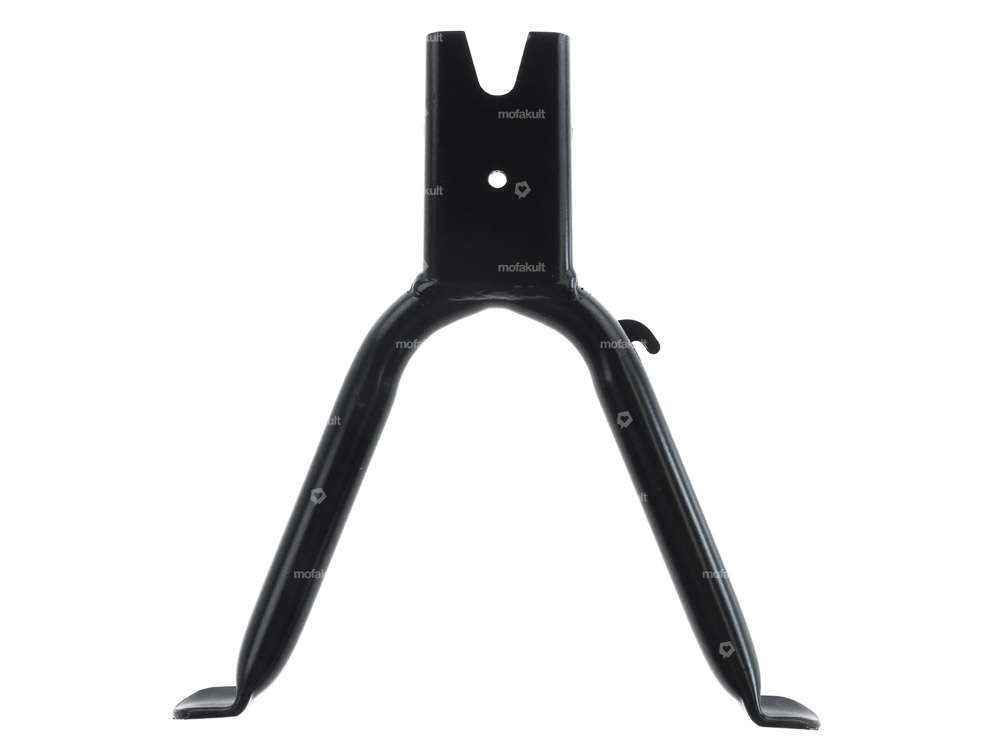

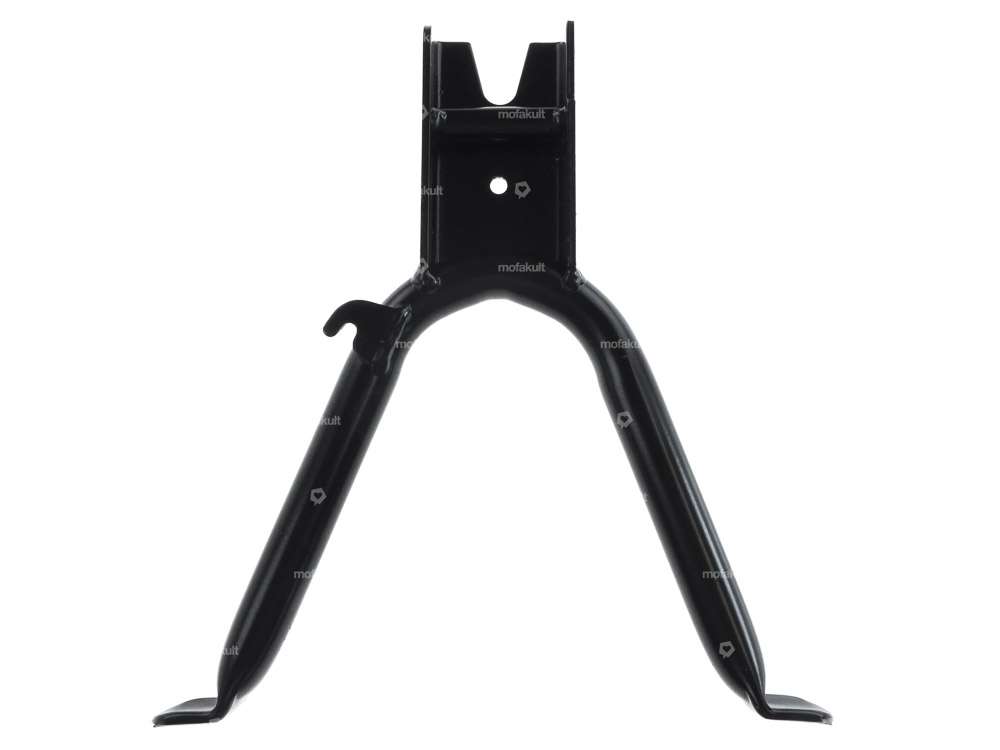

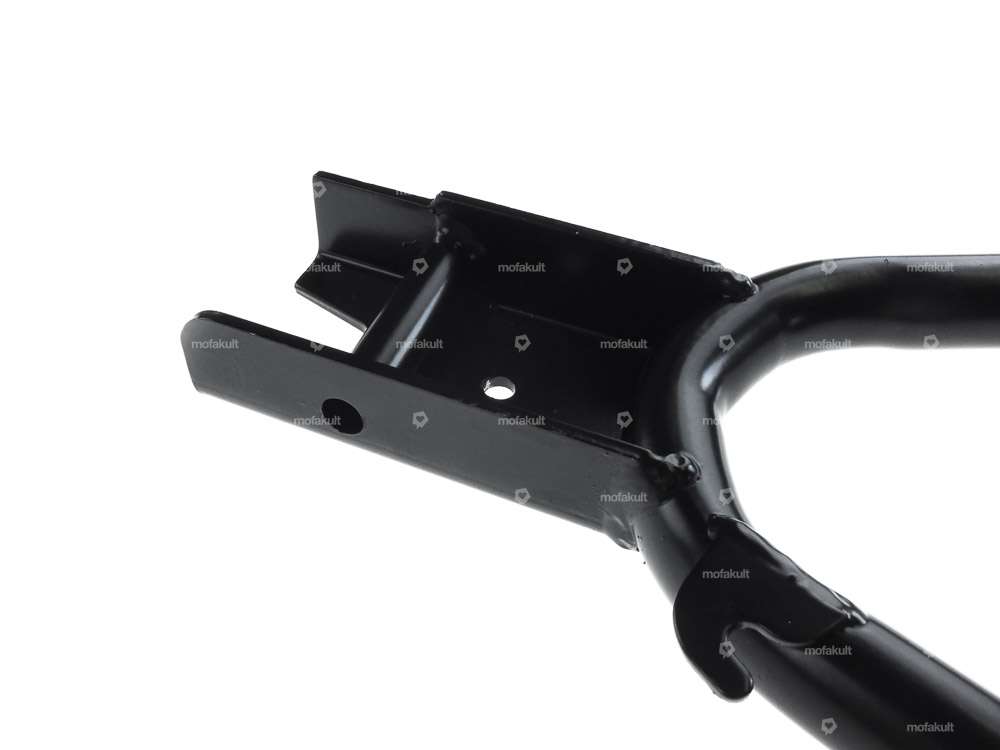

Center support suitable for Tomos A3/A35 mopeds/mopeds.
The support is supplied without bolt and spring.
You can find an alternative version as well as other parts for your Tomos in the accessories section.
A quality product made in Portugal.
The support is supplied without bolt and spring.
Details
Color | black-matt |
Manufacturer | Made in Portugal |
Material | Steel |
Surface | varnished |

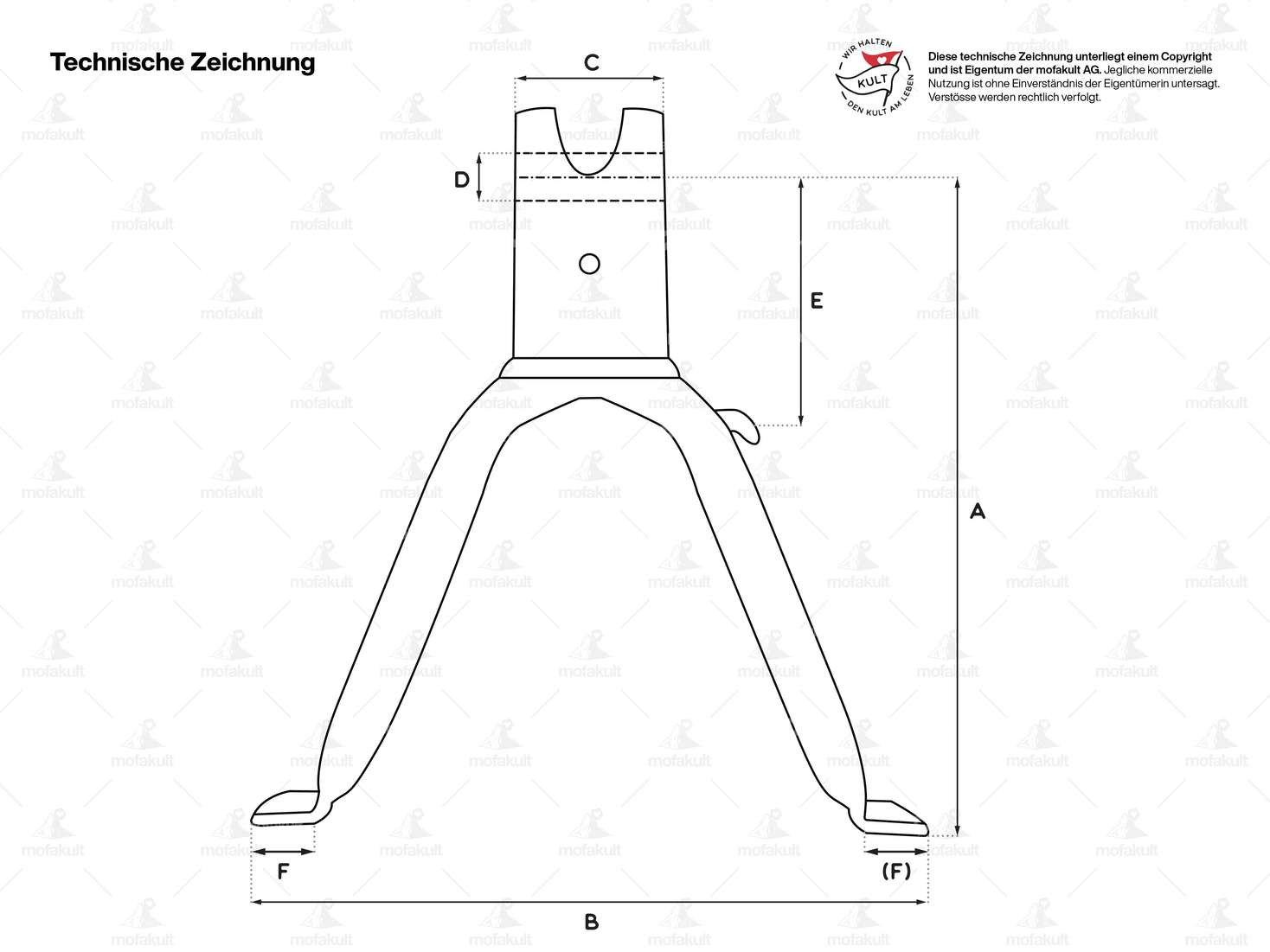

Stand base - center mount (A) | 205 mm |
Total width of stand base (B) | 220 mm |
Wide receptacle (C) | 52 mm |
Ø Receptacle (D) | 7.8 mm |
Spring nipple distance - center pivot axis (E) | 7.5 mm |
Wide upright foot (F) | 25 mm |
Total height | 240 mm |
Tomos spare part no. | 237153S91 |
Suitable for the following models
