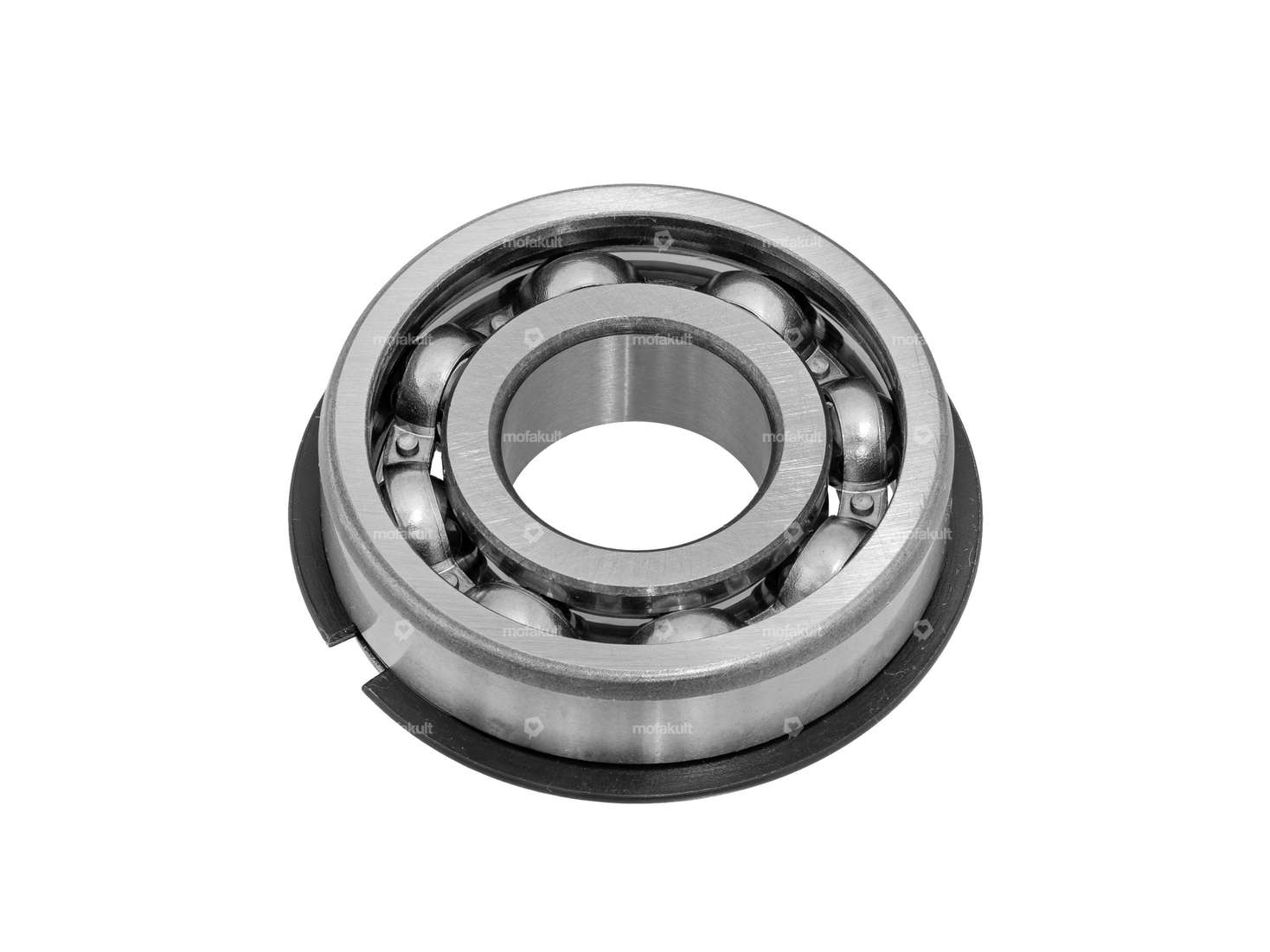

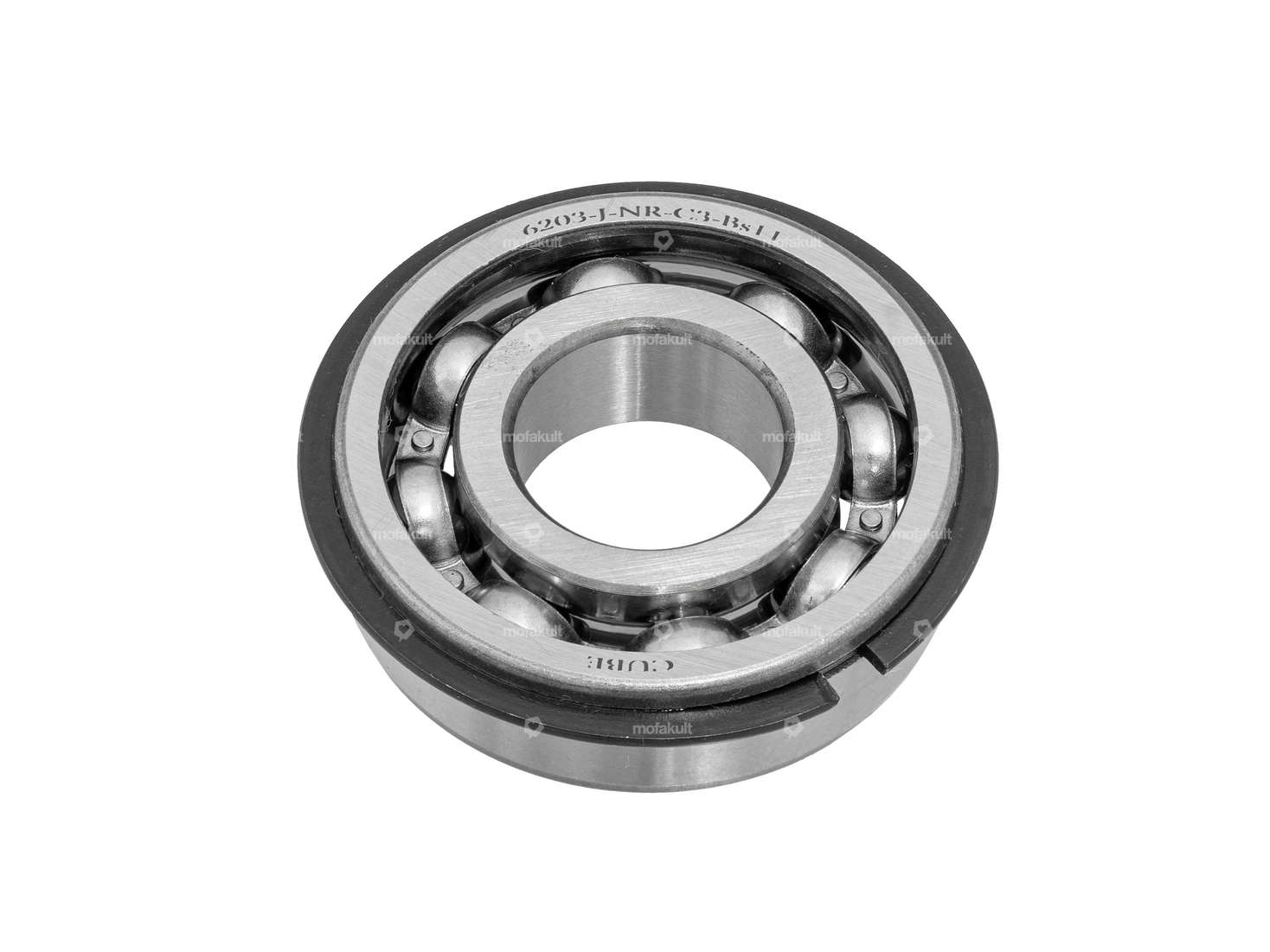

Grooved ball bearing for Puch E50 1-speed engines. On the clutch side, this special bearing (11 mm inner ring) is mounted on crankshafts with a small oil seal seat.
Also known as the "new model" (corresponding crankshaft shown in Figure 3).
Cost-effective version. You can find a higher-quality alternative in the accessories section below.
Ø outer: 40 mm
Ø inner: 17 mm
Width of outer ring: 12 mm
Width of inner ring: 11 mm
Original spare part number: 900.6233
Branded product from the manufacturer CUBE Bearings.
Details
| Bearing cage | "-" Sheet steel cage ball-guided |
| Inner ring width | 11 mm |
| Manufacturer | CUBE |
| Bearing clearance | CN (standard) |
| Groove ring | Yes |
| Bearing type | Deep groove ball bearing |
| Stock number | 6203 |
| Width | 12 mm |
| Ø inside | 17 mm |
| Ø outside | 40 mm |
Suitable for the following models
| Puch | E50 |
