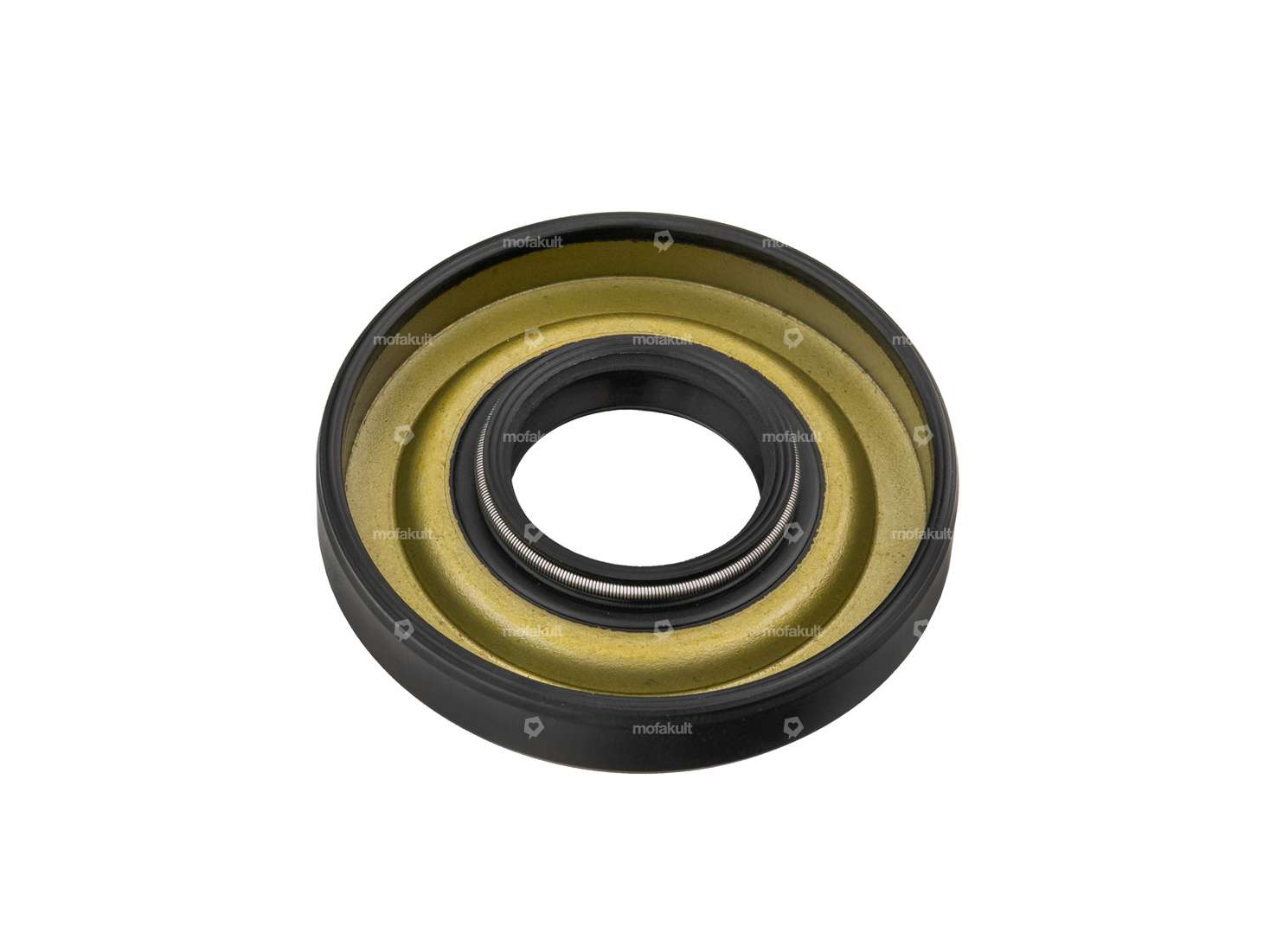

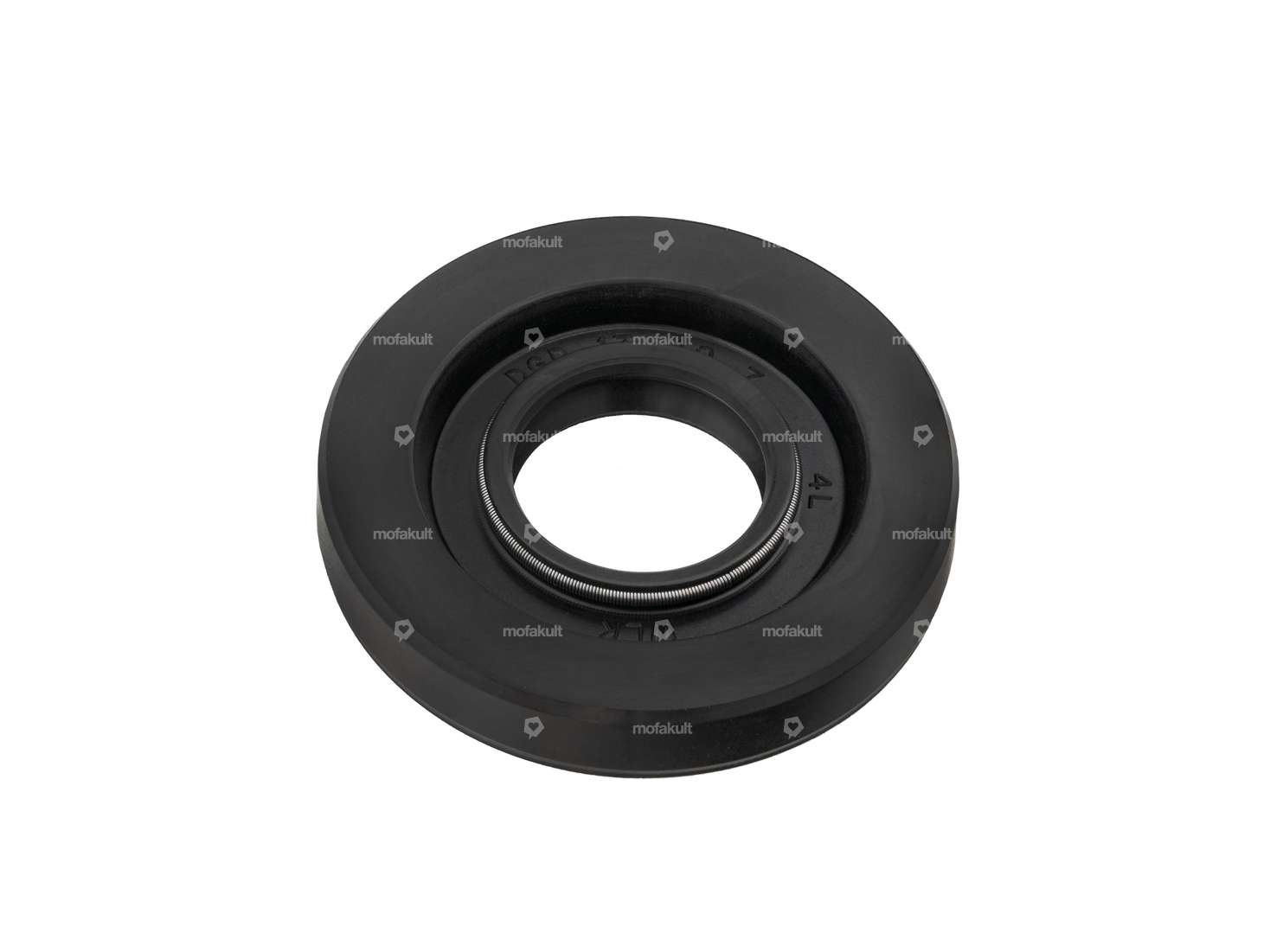

Shaft seal ring 17x40x7 mm for use in the E50 engine of your Puch moped / moped.
This radial shaft seal ring fits the E50 engine of Puch Maxi S / N, as well as Puch Supermaxi mopeds. A total of 3 pieces are required.
Ø inner: 17 mm
Ø outer: 40 mm
Width: 7 mm
Material: NBR
Temperature resistant: approx. -30 to +100 °C, briefly up to 120 °C
A DUO - With rubberized outer casing and two sealing lips.
Original Puch spare part number: 901.3801
Details
| Temperature resistance (min.) | -30 - 100 °C |
| Simmering type | A DUO - With rubberized outer casing / two sealing lips. |
| Ø inside | 17 mm |
| Ø outside | 40 mm |
| Manufacturer | Puch |
| Material | NBR |
| Area of application | Standard |
| Surface | rubberized |
| Width | 7 mm |
Suitable for the following models
| Puch | E50 |
